    YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve

    YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve

    Model NO.:D016010002013D-01

    Pur Qty. / Ref FOB Price

    1 SetUS $25.57-331.11 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Pneumatic

    Connection Form:Weld

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to BasketPDF Format.
    Basic Info

      Model NO.D016010002013D-01

      Product nameButterfly Valve

      ApplicationWater, gas,oil

      MOQ1pcs

      SealingEPDM,NBR,PTFE,Silicone,PFA,Metal,ETC

      FeatureSafe and Durable

      MaterialStainless Steel,Cast iron,WCB

      Connection FormWafer,Flange,Lug

      Nominal PressureAPI,ANSI CLASS 150-300,10K-20K,PN16-PN64

      CustomizationAvailable

      Temperature- 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Products Name:YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve

      Pneumatic Butterfly Valve

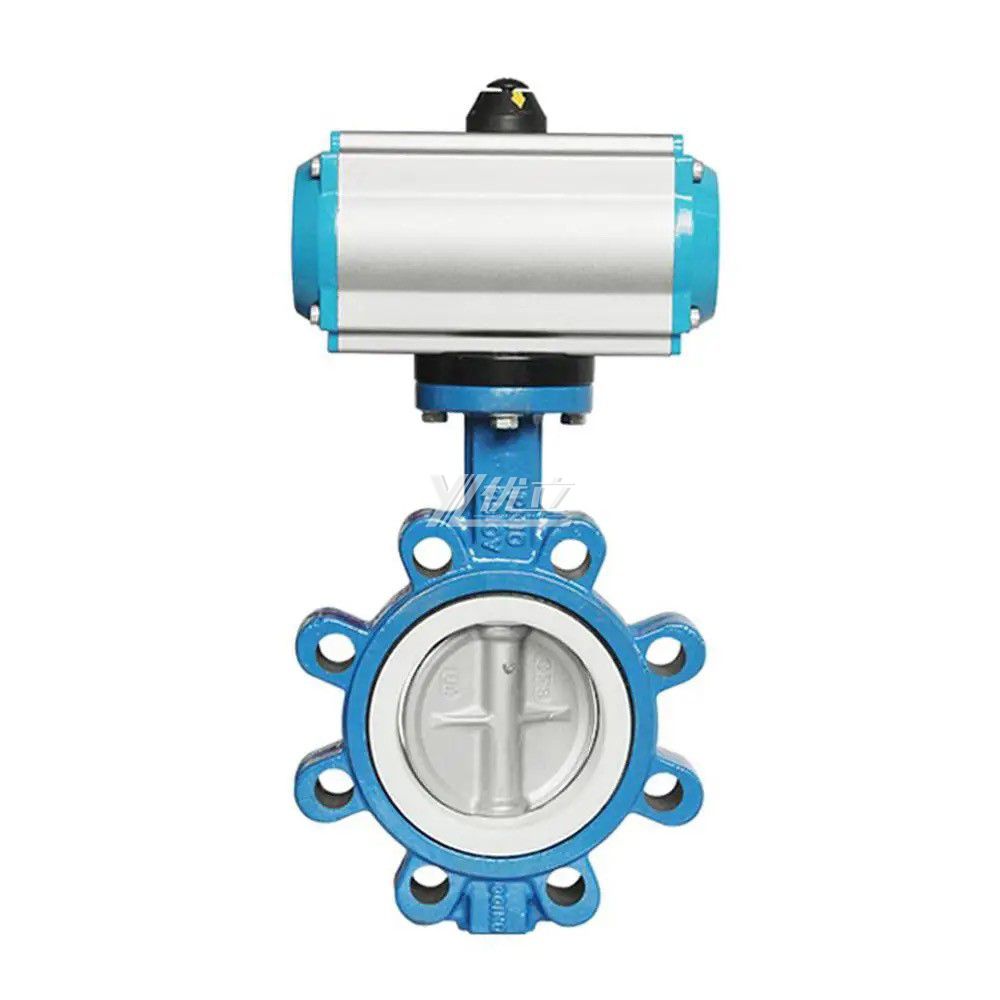

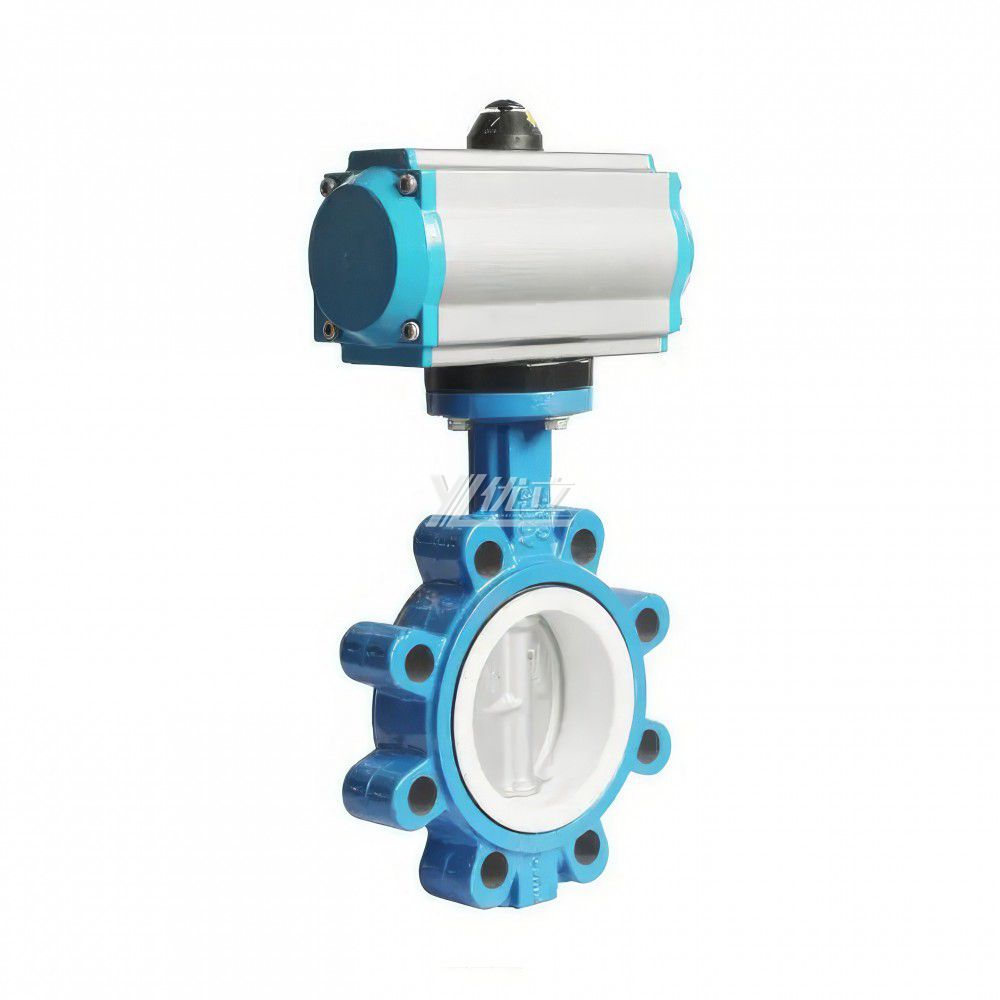

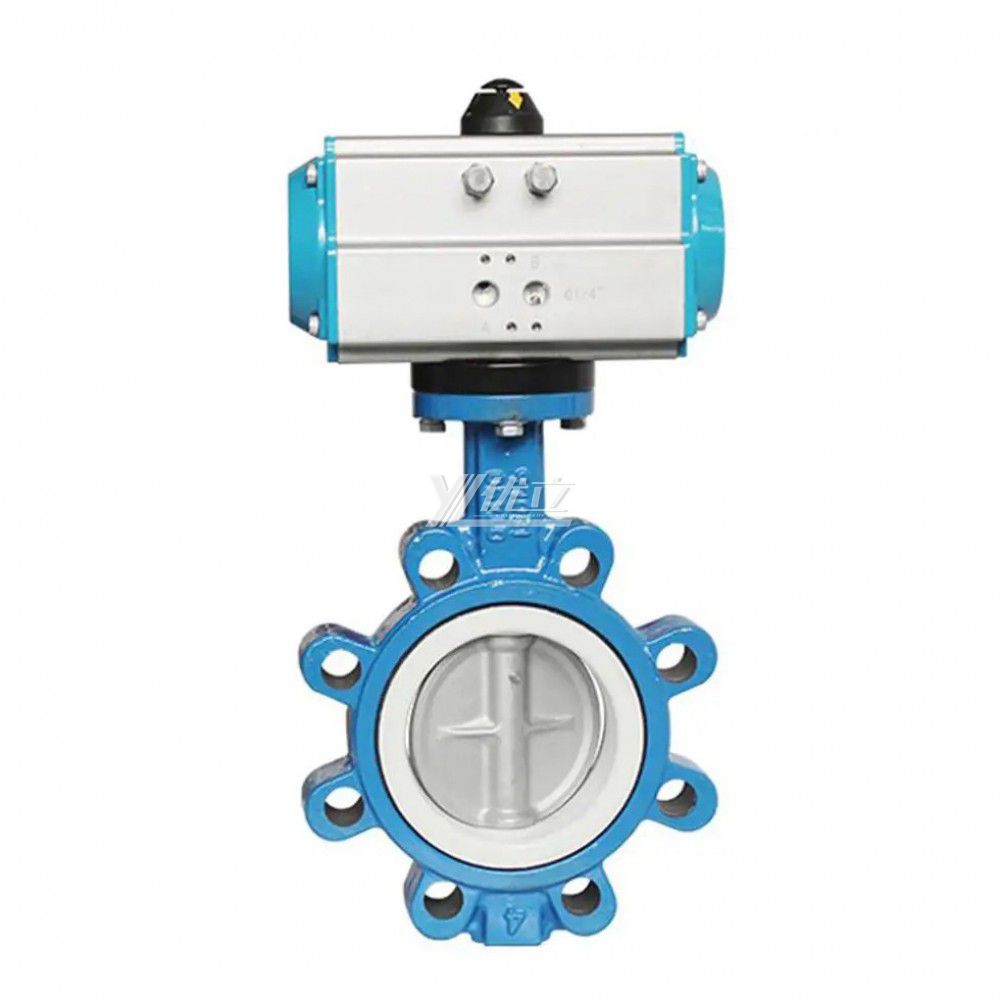

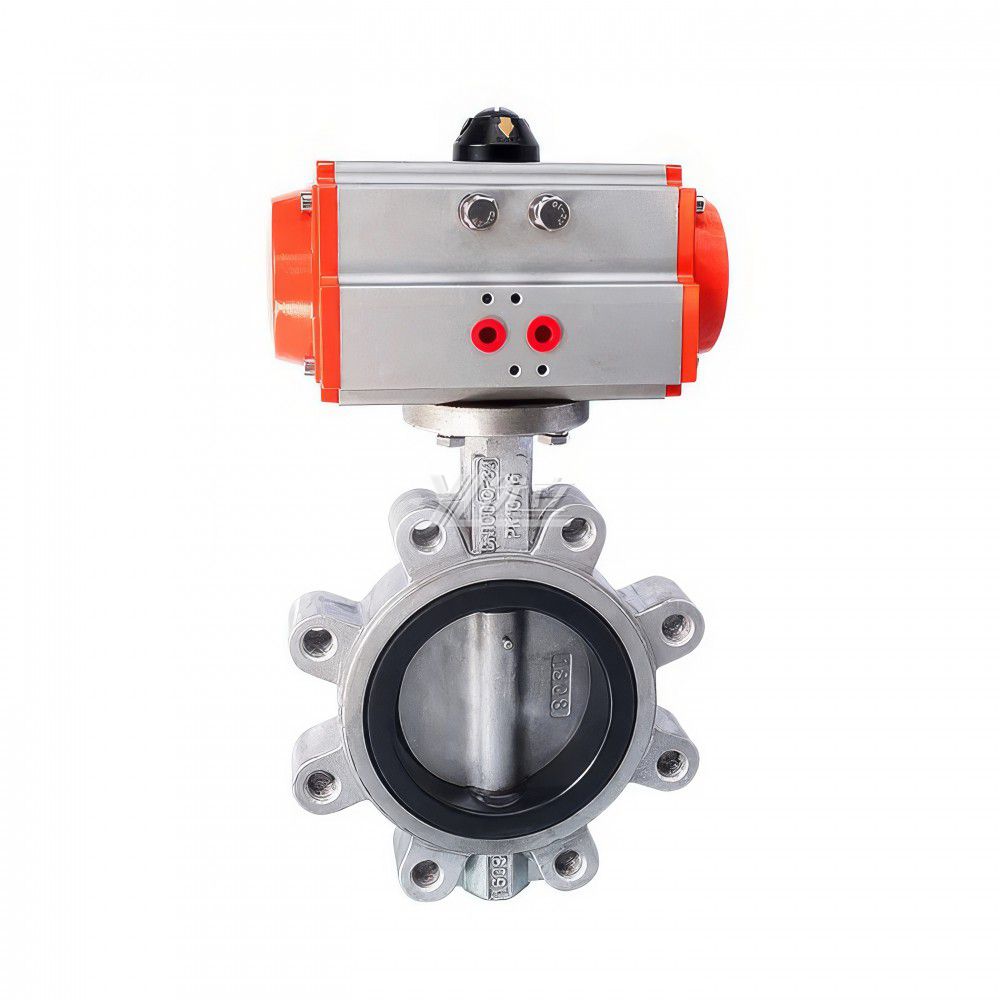

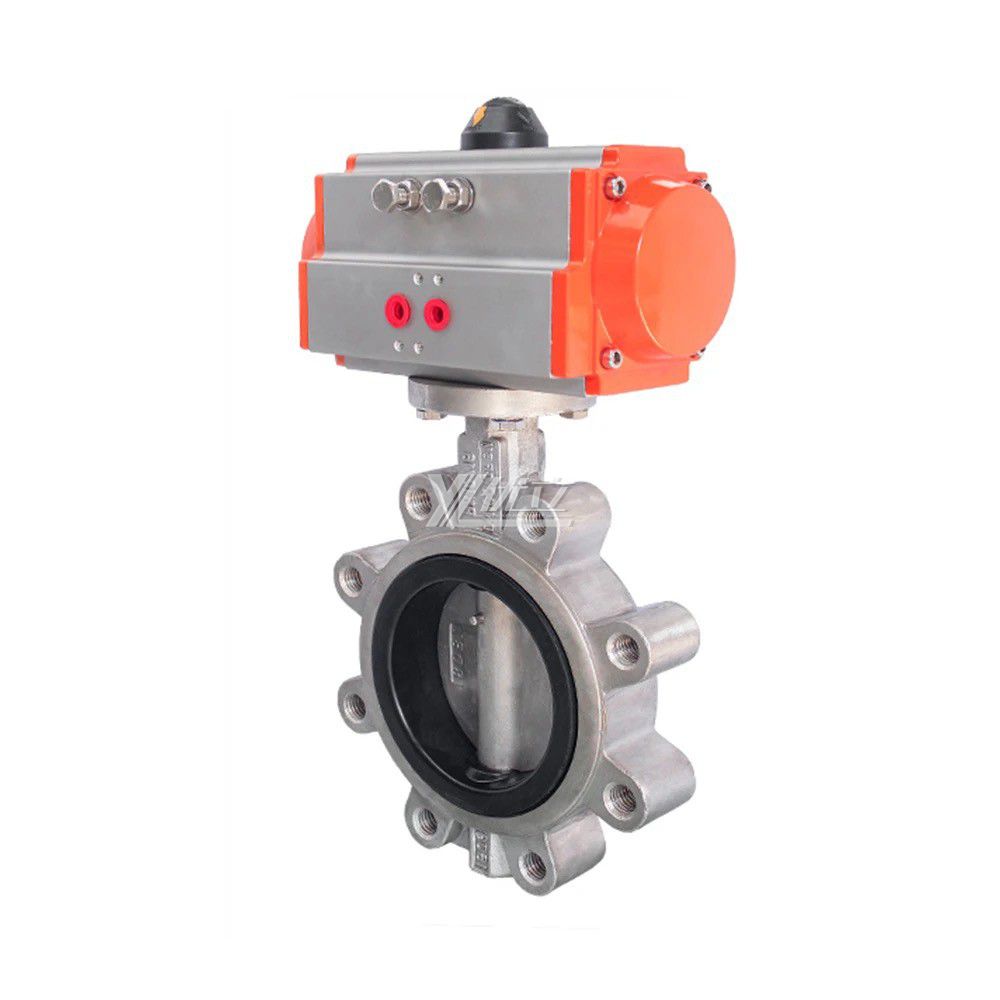

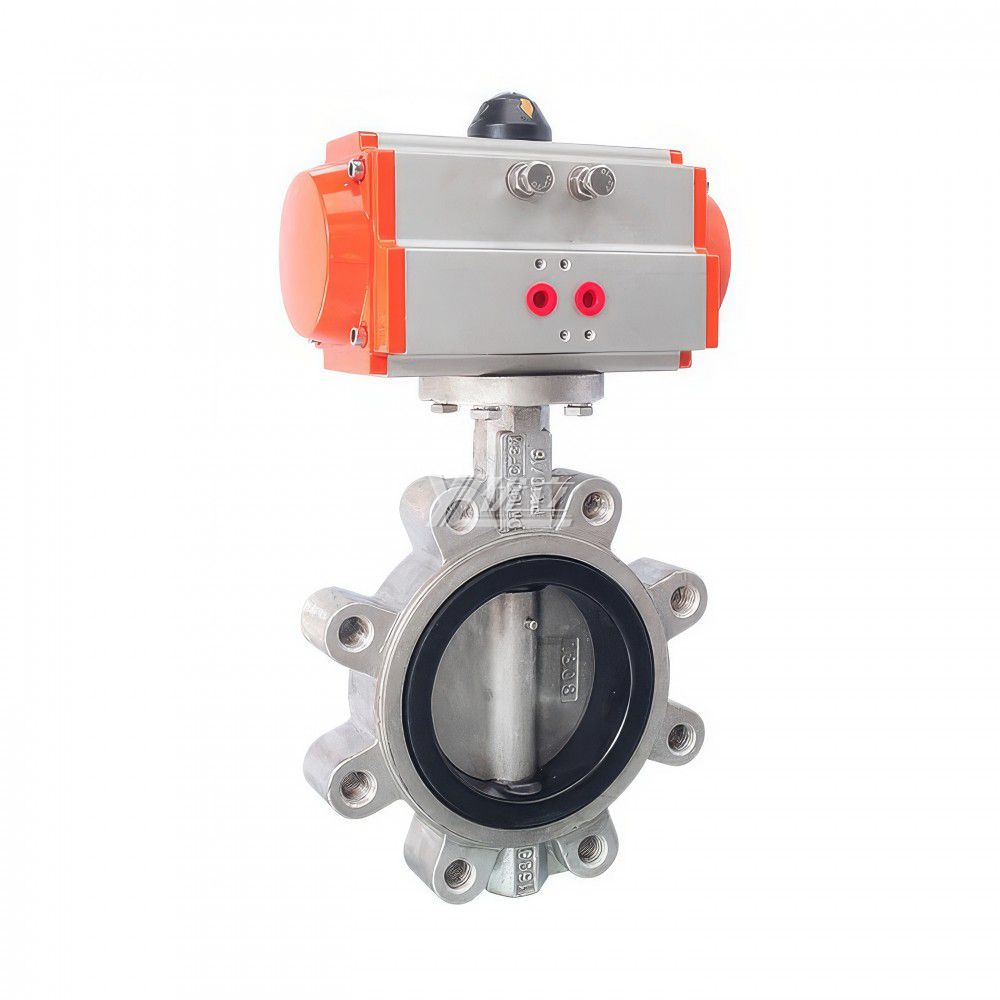

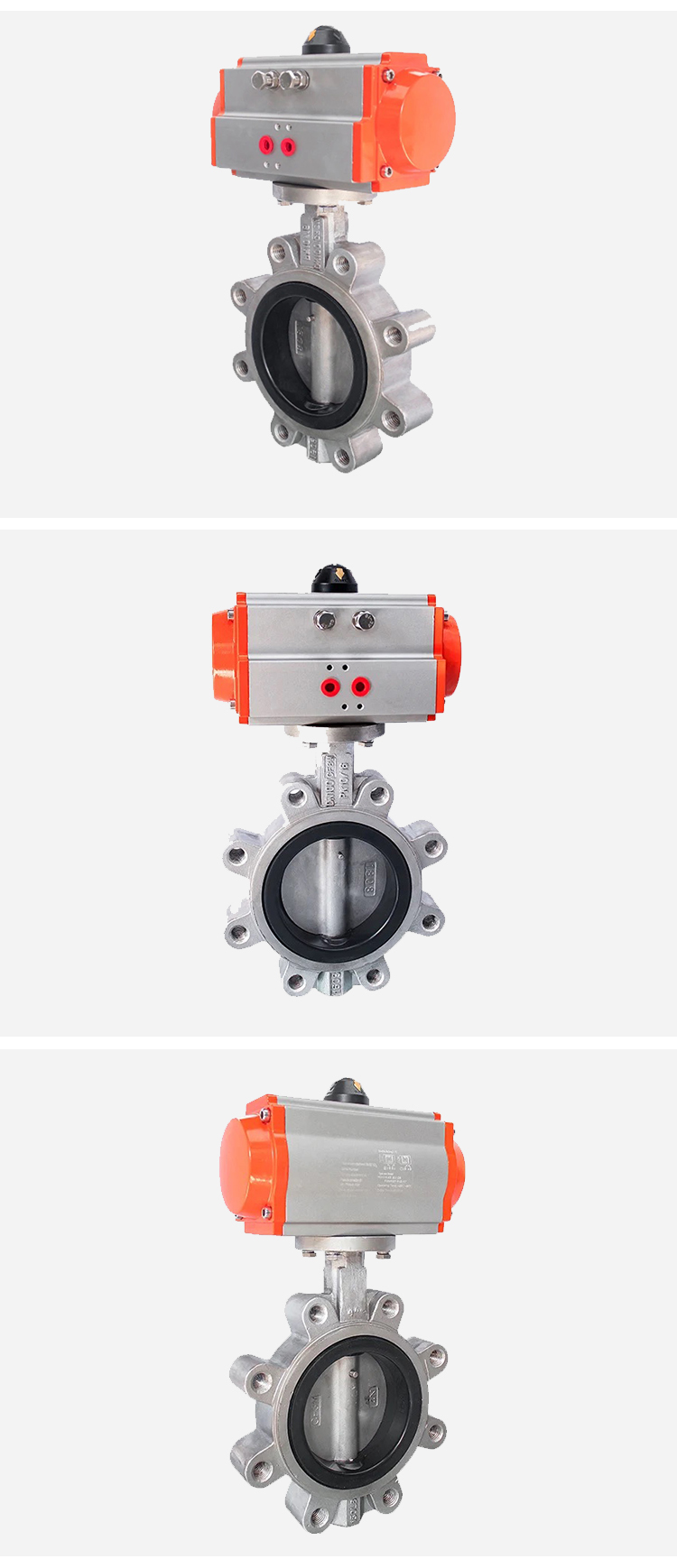

      Pneumatic Lug Butterfly Valve



      Body material WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),Cast Iron,Aluminium Alloy etc.
      Full port 2"-12"(DN50-DN300)
      Working pressure JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40,1-4Mpa
      Medium temperature - 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)
      Connection type Wafer,Flange,Lug,vacuum
      Sealing EPDM(NBR,PTFE,Silicone,PFA,Metal,ETC)
      Structure Center sealed ,Single eccentric sealed ,Double eccentric,Triple eccentric sealed
      ISO 5211 Direct mounting pad Yes
      Pneumatic actuator Double acting,option(Spring return )
      Solenoid valve Option(DC24V,AC220V)
      Filter Option
      Handwheel Option
      Limit switch Optionn(APL210,APL410 explosion-proof,APL510 explosion-proof)
      Positioner Option(TY-1000,4-20ma Signal feedback)
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Hygienic Sanitary Butterfly Valves Sanitary Hygienic Manual Male Butterfly Valves Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle
    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve

      Model NO.:D016010002013D-01

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve
      NO. Mat Spec Wgt(kg) Ps
      1 Cast iron+EPDM Disc:Cast iron 1-1/2"-DN40 5.1kg AT52 60 1.3
      2 Cast iron+EPDM Disc:Cast iron 2"-DN50 5.1kg AT52 60 1.3
      3 Cast iron+EPDM Disc:Cast iron 2-1/2"-DN65 6.3kg AT63 80 2.1
      4 Cast iron+EPDM Disc:Cast iron 3"-DN80 7.2kg AT75 100 2.5
      5 Cast iron+EPDM Disc:Cast iron 4"-DN100 12.1kg AT83 115 3.1
      6 Cast iron+EPDM Disc:Cast iron 5"-DN125 15.1kg AT92 145 4.1
      7 Cast iron+EPDM Disc:Cast iron 6"-DN150 20kg AT105 195 5.5
      8 Cast iron+EPDM Disc:Cast iron 8"-DN200 23.5kg AT125 285 8.2
      9 Cast iron+EPDM Disc:304 1-1/2"-DN40
      10 Cast iron+EPDM Disc:304 2"-DN50
      11 Cast iron+EPDM Disc:304 2-1/2"-DN65
      12 Cast iron+EPDM Disc:304 3"-DN80
      13 Cast iron+EPDM Disc:304 4"-DN100
      14 Cast iron+EPDM Disc:304 5"-DN125
      15 Cast iron+EPDM Disc:304 6"-DN150
      16 Cast iron+EPDM Disc:304 8"-DN200
      17 304+EPDM 1-1/2"-DN40 AT52 60 1.3
      18 304+EPDM 2"-DN50 AT52 60 1.3
      19 304+EPDM 2-1/2"-DN65 AT63 80 2.1
      20 304+EPDM 3"-DN80 AT75 100 2.5
      21 304+EPDM 4"-DN100 AT83 115 3.1
      22 304+EPDM 5"-DN125 AT92 145 4.1
      23 304+EPDM 6"-DN150 AT105 195 5.5
      24 304+EPDM 8"-DN200 AT125 285 8.2
      25 304+PTFE 1-1/2"-DN40 AT52 60 1.3
      26 304+PTFE 2"-DN50 AT52 60 1.3
      27 304+PTFE 2-1/2"-DN65 AT63 80 2.1
      28 304+PTFE 3"-DN80 AT75 100 2.5
      29 304+PTFE 4"-DN100 AT83 115 3.1
      30 304+PTFE 5"-DN125 AT92 145 4.1
      31 304+PTFE 6"-DN150 AT105 195 5.5
      32 304+PTFE 8"-DN200 AT125 285 8.2

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve

      Model NO.:D016010002013D-01

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 Cast iron+EPDM Disc:Cast iron 1-1/2"-DN40 $25.57 134 5.1kg AT52 60 1.3
      2 Cast iron+EPDM Disc:Cast iron 2"-DN50 $25.57 134 5.1kg AT52 60 1.3
      3 Cast iron+EPDM Disc:Cast iron 2-1/2"-DN65 $32.63 171 6.3kg AT63 80 2.1
      4 Cast iron+EPDM Disc:Cast iron 3"-DN80 $40.08 210 7.2kg AT75 100 2.5
      5 Cast iron+EPDM Disc:Cast iron 4"-DN100 $50.95 267 12.1kg AT83 115 3.1
      6 Cast iron+EPDM Disc:Cast iron 5"-DN125 $63.55 333 15.1kg AT92 145 4.1
      7 Cast iron+EPDM Disc:Cast iron 6"-DN150 $78.05 409 20kg AT105 195 5.5
      8 Cast iron+EPDM Disc:Cast iron 8"-DN200 $117.75 617 23.5kg AT125 285 8.2
      9 Cast iron+EPDM Disc:304 1-1/2"-DN40 $26.53 139
      10 Cast iron+EPDM Disc:304 2"-DN50 $26.53 139
      11 Cast iron+EPDM Disc:304 2-1/2"-DN65 $33.78 177
      12 Cast iron+EPDM Disc:304 3"-DN80 $41.6 218
      13 Cast iron+EPDM Disc:304 4"-DN100 $53.63 281
      14 Cast iron+EPDM Disc:304 5"-DN125 $67.75 355
      15 Cast iron+EPDM Disc:304 6"-DN150 $85.31 447
      16 Cast iron+EPDM Disc:304 8"-DN200 $132.44 694
      17 304+EPDM 1-1/2"-DN40 $55.73 292 AT52 60 1.3
      18 304+EPDM 2"-DN50 $55.73 292 AT52 60 1.3
      19 304+EPDM 2-1/2"-DN65 $68.7 360 AT63 80 2.1
      20 304+EPDM 3"-DN80 $87.98 461 AT75 100 2.5
      21 304+EPDM 4"-DN100 $120.04 629 AT83 115 3.1
      22 304+EPDM 5"-DN125 $154.77 811 AT92 145 4.1
      23 304+EPDM 6"-DN150 $186.83 979 AT105 195 5.5
      24 304+EPDM 8"-DN200 $331.11 1735 AT125 285 8.2
      25 304+PTFE 1-1/2"-DN40 AT52 60 1.3
      26 304+PTFE 2"-DN50 AT52 60 1.3
      27 304+PTFE 2-1/2"-DN65 AT63 80 2.1
      28 304+PTFE 3"-DN80 AT75 100 2.5
      29 304+PTFE 4"-DN100 AT83 115 3.1
      30 304+PTFE 5"-DN125 AT92 145 4.1
      31 304+PTFE 6"-DN150 AT105 195 5.5
      32 304+PTFE 8"-DN200 AT125 285 8.2

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve

      Model NO.:D016010002013D-01

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 WCB PTFE Pneumatic Actuator Lug Butterfly Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 Cast iron+EPDM Disc:Cast iron 1-1/2"-DN40 $25.57 5.1kg AT52 60 1.3
      2 Cast iron+EPDM Disc:Cast iron 2"-DN50 $25.57 5.1kg AT52 60 1.3
      3 Cast iron+EPDM Disc:Cast iron 2-1/2"-DN65 $32.63 6.3kg AT63 80 2.1
      4 Cast iron+EPDM Disc:Cast iron 3"-DN80 $40.08 7.2kg AT75 100 2.5
      5 Cast iron+EPDM Disc:Cast iron 4"-DN100 $50.95 12.1kg AT83 115 3.1
      6 Cast iron+EPDM Disc:Cast iron 5"-DN125 $63.55 15.1kg AT92 145 4.1
      7 Cast iron+EPDM Disc:Cast iron 6"-DN150 $78.05 20kg AT105 195 5.5
      8 Cast iron+EPDM Disc:Cast iron 8"-DN200 $117.75 23.5kg AT125 285 8.2
      9 Cast iron+EPDM Disc:304 1-1/2"-DN40 $26.53
      10 Cast iron+EPDM Disc:304 2"-DN50 $26.53
      11 Cast iron+EPDM Disc:304 2-1/2"-DN65 $33.78
      12 Cast iron+EPDM Disc:304 3"-DN80 $41.6
      13 Cast iron+EPDM Disc:304 4"-DN100 $53.63
      14 Cast iron+EPDM Disc:304 5"-DN125 $67.75
      15 Cast iron+EPDM Disc:304 6"-DN150 $85.31
      16 Cast iron+EPDM Disc:304 8"-DN200 $132.44
      17 304+EPDM 1-1/2"-DN40 $55.73 AT52 60 1.3
      18 304+EPDM 2"-DN50 $55.73 AT52 60 1.3
      19 304+EPDM 2-1/2"-DN65 $68.7 AT63 80 2.1
      20 304+EPDM 3"-DN80 $87.98 AT75 100 2.5
      21 304+EPDM 4"-DN100 $120.04 AT83 115 3.1
      22 304+EPDM 5"-DN125 $154.77 AT92 145 4.1
      23 304+EPDM 6"-DN150 $186.83 AT105 195 5.5
      24 304+EPDM 8"-DN200 $331.11 AT125 285 8.2
      25 304+PTFE 1-1/2"-DN40 AT52 60 1.3
      26 304+PTFE 2"-DN50 AT52 60 1.3
      27 304+PTFE 2-1/2"-DN65 AT63 80 2.1
      28 304+PTFE 3"-DN80 AT75 100 2.5
      29 304+PTFE 4"-DN100 AT83 115 3.1
      30 304+PTFE 5"-DN125 AT92 145 4.1
      31 304+PTFE 6"-DN150 AT105 195 5.5
      32 304+PTFE 8"-DN200 AT125 285 8.2
