    YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve

    YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve

    Model NO.:D016010002001DX001-01

    Pur Qty. / Ref FOB Price

    1 SetUS $18.89-537.4 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Pneumatic

    Connection Form:Weld

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to BasketPDF Format.
    Basic Info

      Model NO.D016010002001DX001-01

      Product nameButterfly Valve

      ApplicationWater, gas,oil

      MOQ1pcs

      SealingEPDM,NBR,PTFE,Silicone,PFA,Metal,ETC

      FeatureSafe and Durable

      MaterialStainless Steel,Cast iron,WCB

      Connection FormWafer,Flange,Lug

      Nominal PressureAPI,ANSI CLASS 150-300,10K-20K,PN16-PN64

      CustomizationAvailable

      Temperature- 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Products Name:YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve

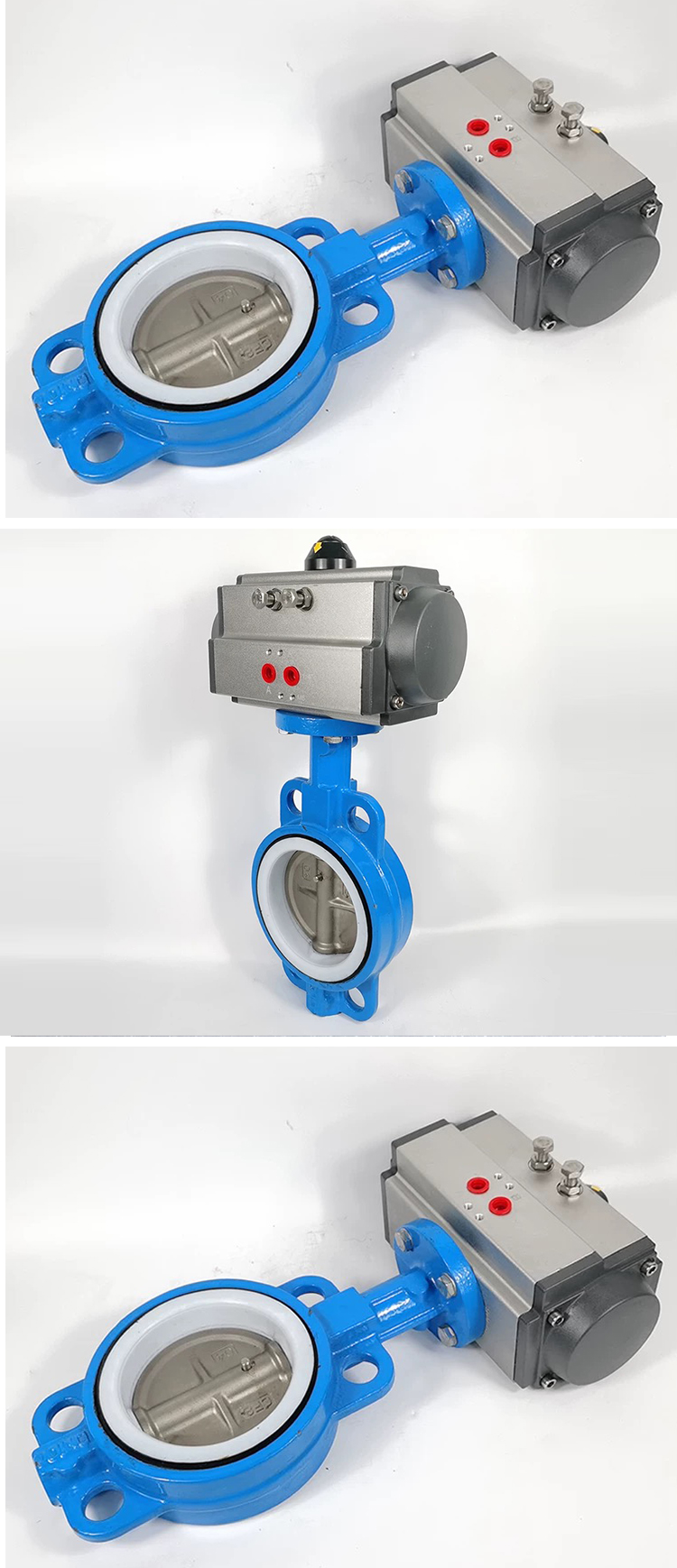

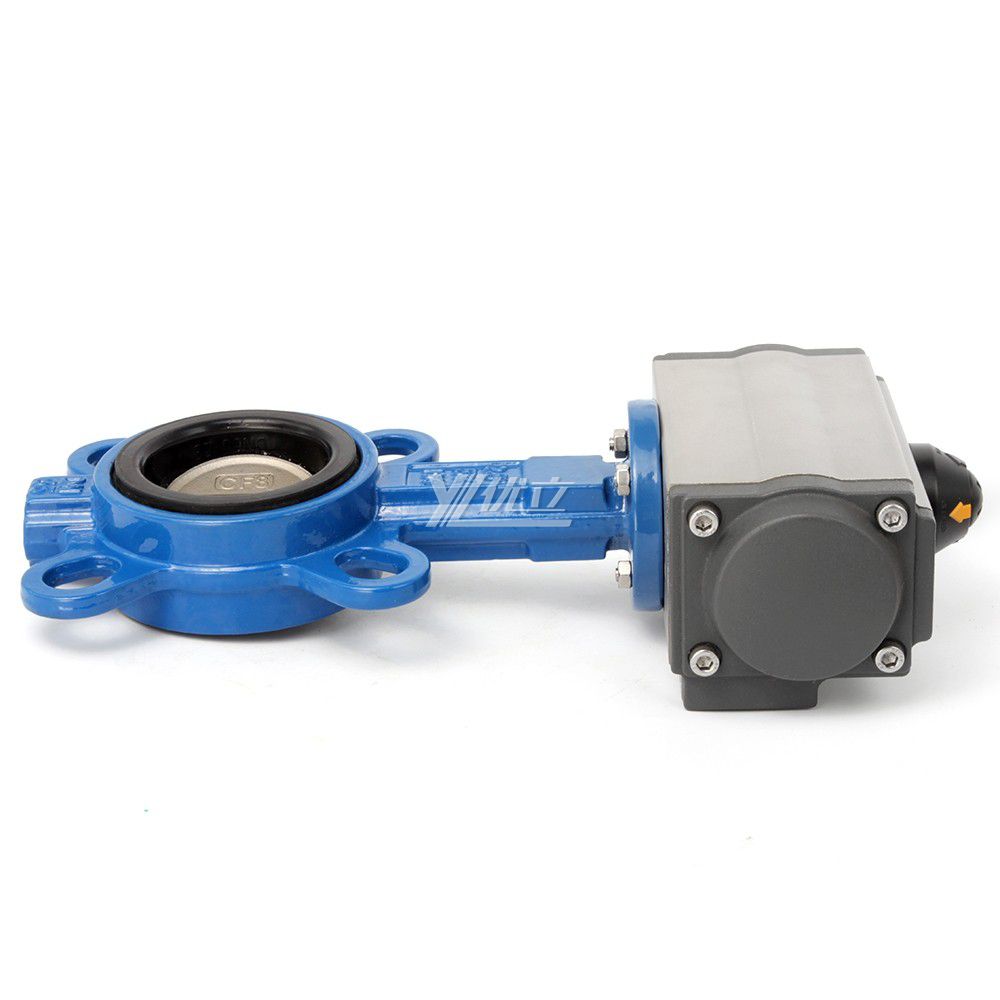

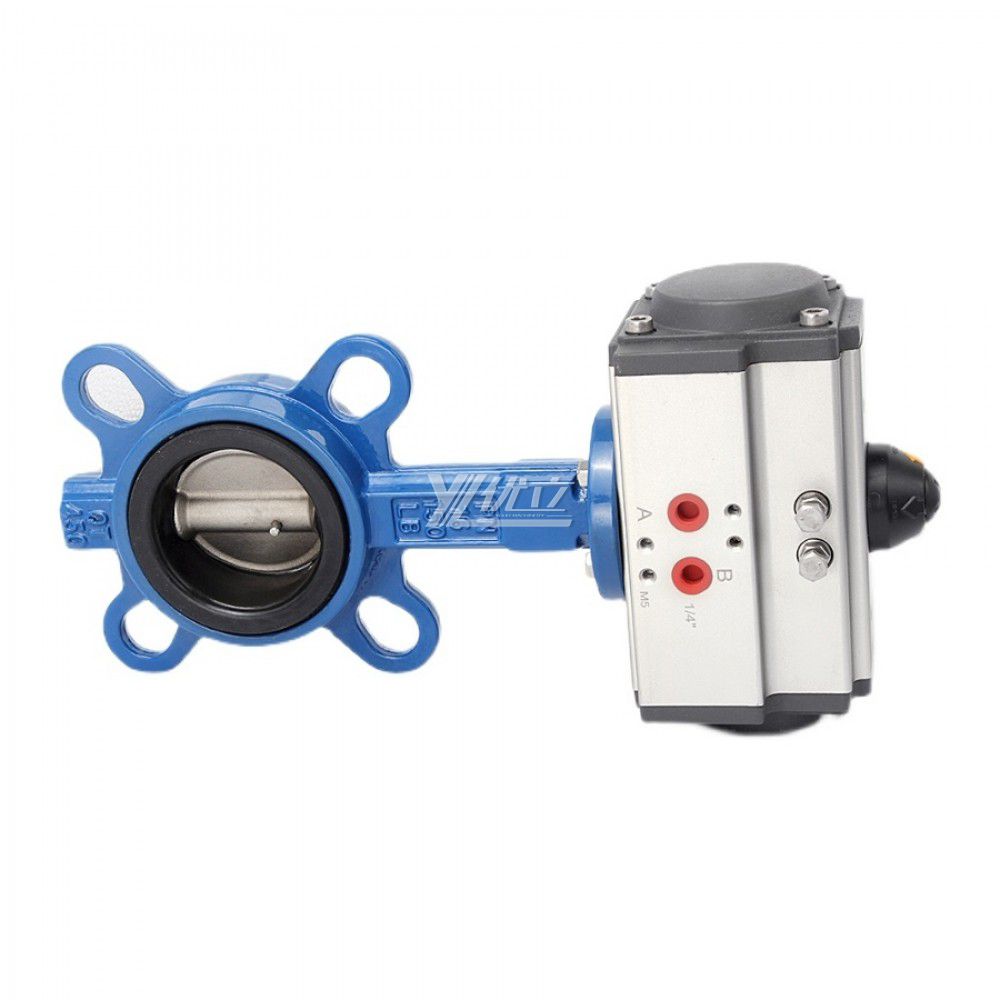

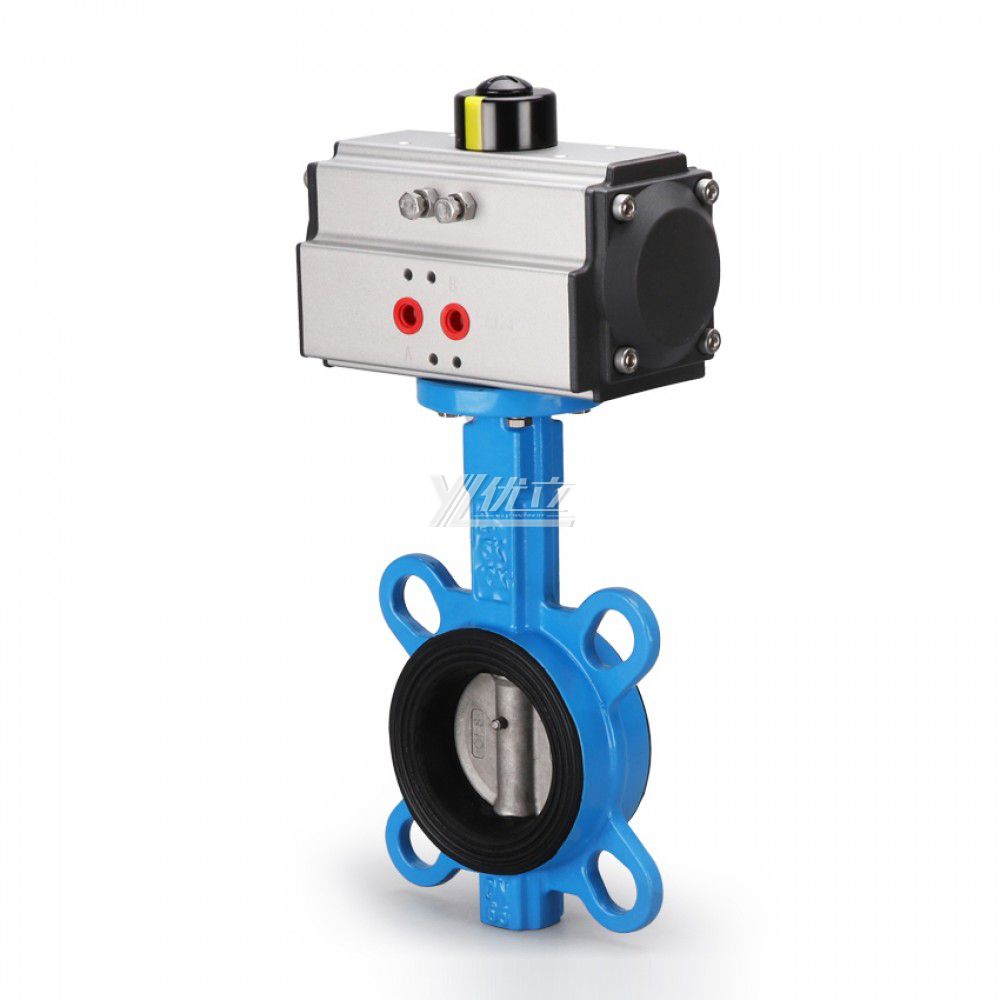

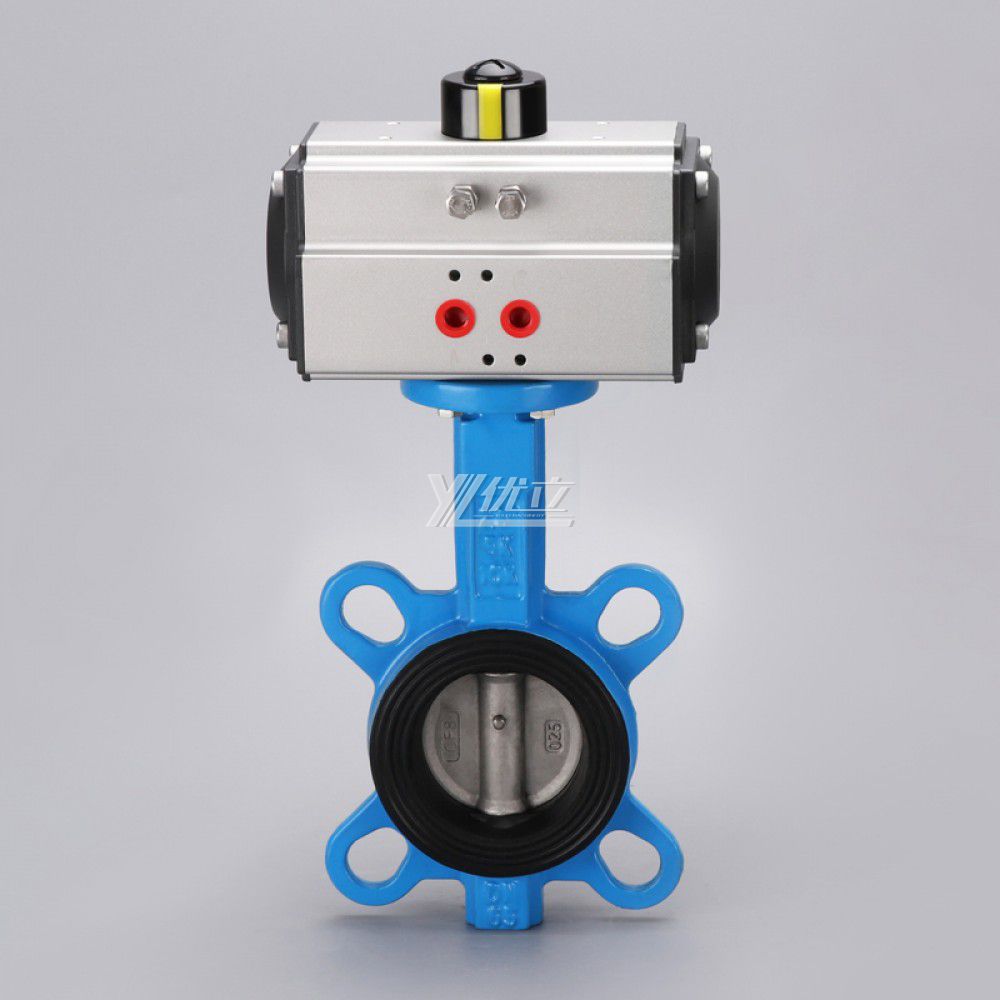

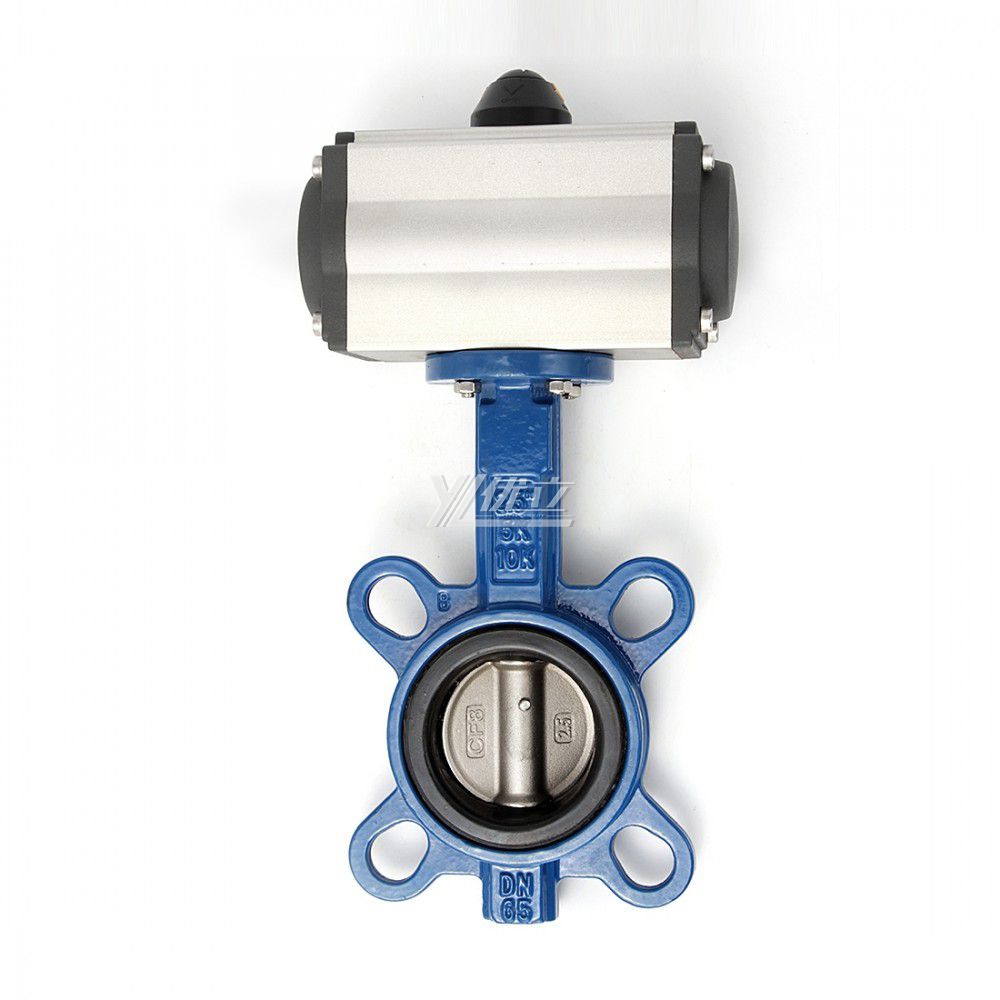

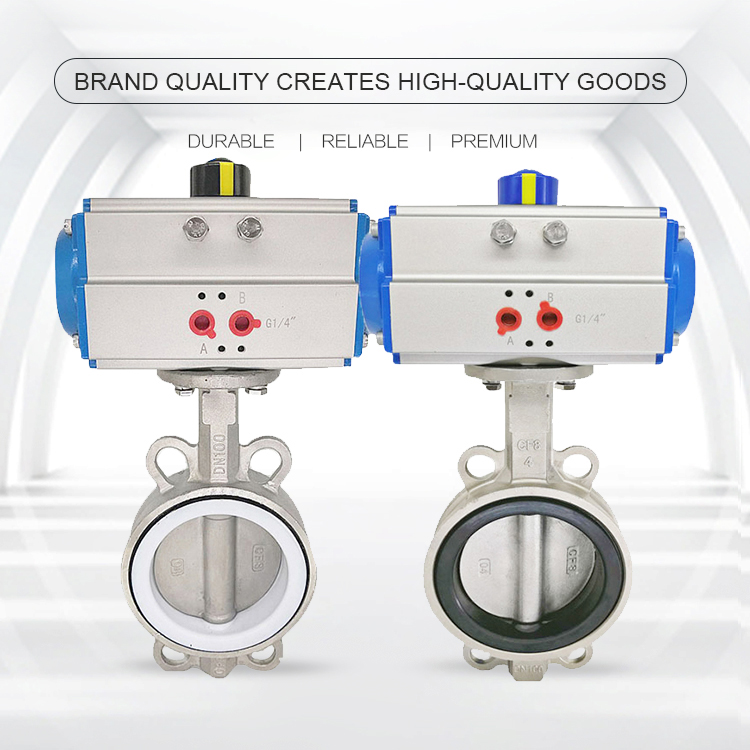

      Pneumatic Butterfly Valve

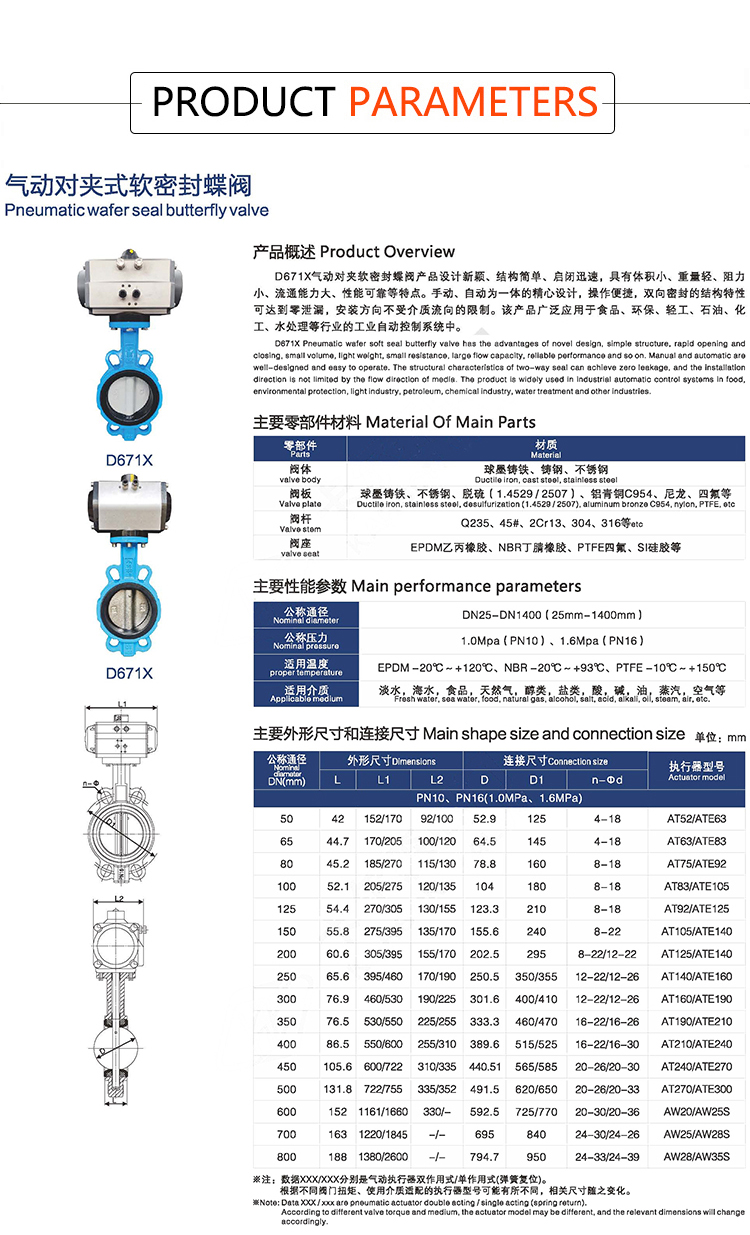

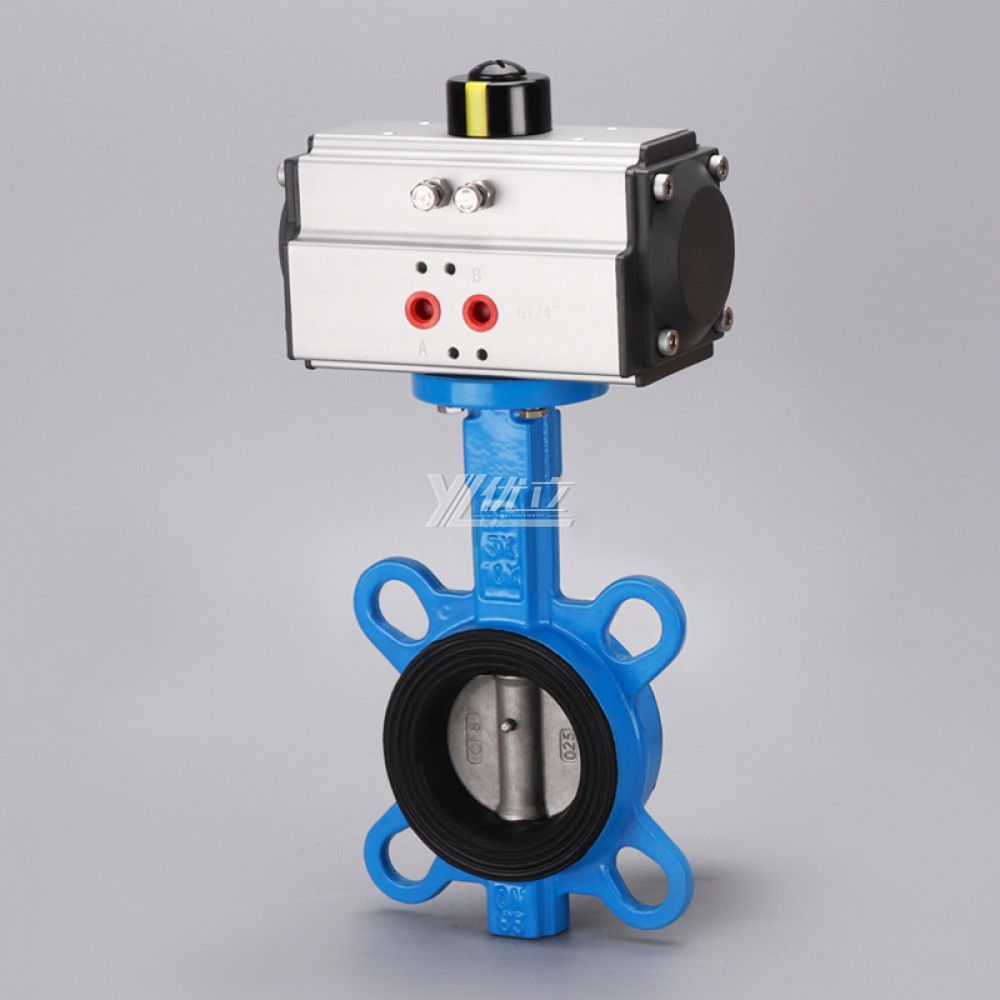

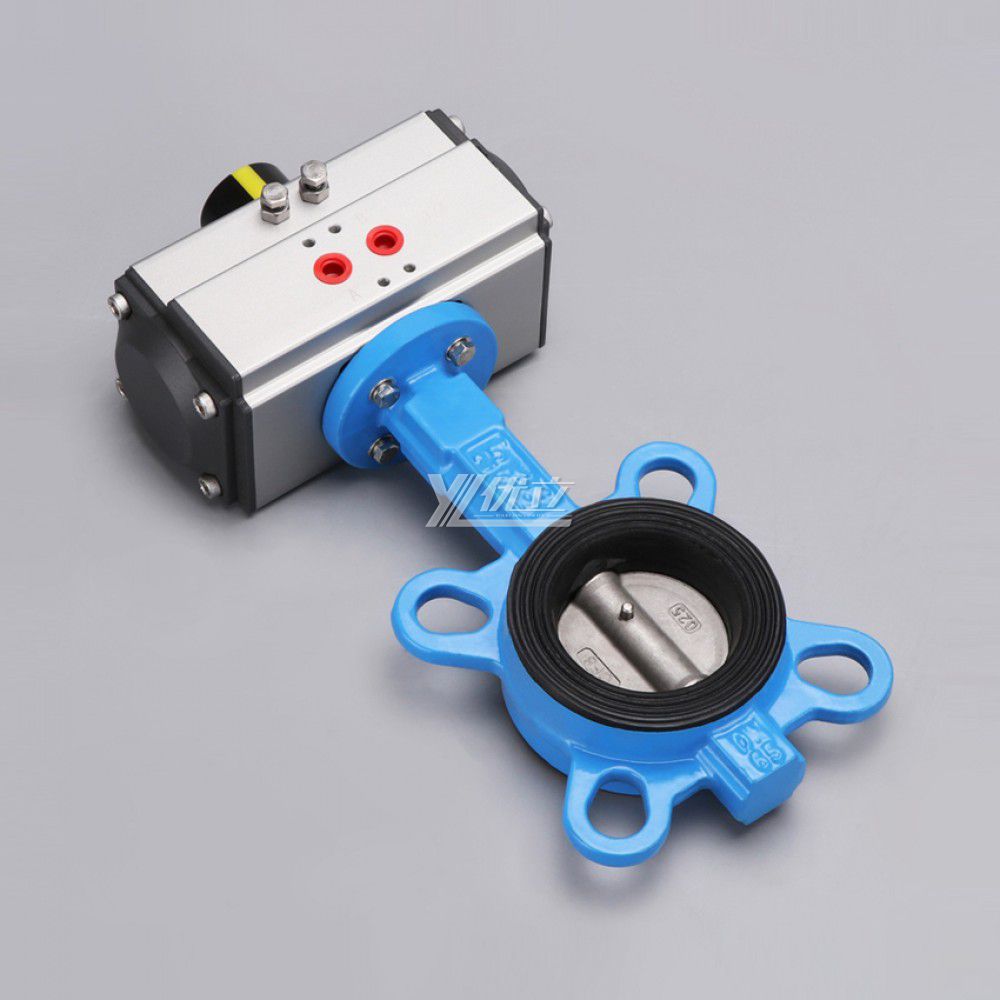

      Pneumatic Wafer Butterfly Valve



      Body material WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),Cast Iron,Aluminium Alloy etc.
      Full port 2"-12"(DN50-DN300)
      Working pressure JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40,1-4Mpa
      Medium temperature - 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)
      Connection type Wafer,Flange,Lug,vacuum
      Sealing EPDM(NBR,PTFE,Silicone,PFA,Metal,ETC)
      Structure Center sealed ,Single eccentric sealed ,Double eccentric,Triple eccentric sealed
      ISO 5211 Direct mounting pad Yes
      Pneumatic actuator Double acting,option(Spring return )
      Solenoid valve Option(DC24V,AC220V)
      Filter Option
      Handwheel Option
      Limit switch Optionn(APL210,APL410 explosion-proof,APL510 explosion-proof)
      Positioner Option(TY-1000,4-20ma Signal feedback)
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Hygienic Sanitary Butterfly Valves Sanitary Hygienic Manual Male Butterfly Valves Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle
    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve

      Model NO.:D016010002001DX001-01

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve
      NO. Mat Spec Wgt(kg) Ps
      1 Cast iron+EPDM Disc:Cast iron 1-1/2"-DN40 3kg AT52 60 1.3
      2 Cast iron+EPDM Disc:Cast iron 2"-DN50 3kg AT52 60 1.3
      3 Cast iron+EPDM Disc:Cast iron 2-1/2"-DN65 4.5kg AT63 80 2.1
      4 Cast iron+EPDM Disc:Cast iron 3"-DN80 5kg AT75 100 2.5
      5 Cast iron+EPDM Disc:Cast iron 4"-DN100 6.6kg AT83 115 3.1
      6 Cast iron+EPDM Disc:Cast iron 5"-DN125 9kg AT92 145 4.1
      7 Cast iron+EPDM Disc:Cast iron 6"-DN150 11.5kg AT105 195 5.5
      8 Cast iron+EPDM Disc:Cast iron 8"-DN200 19kg AT125 285 8.2
      9 Cast iron+EPDM Disc:Cast iron 10"-DN250 29kg AT140 430 12.5
      10 Cast iron+EPDM Disc:Cast iron 12"-DN300 55kg AT160 580 28.9
      11 Cast iron+EPDM Disc:304 1-1/2"-DN40 AT52 60 1.3
      12 Cast iron+EPDM Disc:304 2"-DN50 AT52 60 1.3
      13 Cast iron+EPDM Disc:304 2-1/2"-DN65 AT63 80 2.1
      14 Cast iron+EPDM Disc:304 3"-DN80 AT75 100 2.5
      15 Cast iron+EPDM Disc:304 4"-DN100 AT83 115 3.1
      16 Cast iron+EPDM Disc:304 5"-DN125 AT92 145 4.1
      17 Cast iron+EPDM Disc:304 6"-DN150 AT105 195 5.5
      18 Cast iron+EPDM Disc:304 8"-DN200 AT125 285 8.2
      19 Cast iron+EPDM Disc:304 10"-DN250 AT140 430 12.5
      20 Cast iron+EPDM Disc:304 12"-DN300 AT160 580 28.9

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve

      Model NO.:D016010002001DX001-01

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1.1
      1 Cast iron+EPDM Disc:Cast iron 1-1/2"-DN40 $18.89 90 3kg AT52 60 1.3
      2 Cast iron+EPDM Disc:Cast iron 2"-DN50 $18.89 90 3kg AT52 60 1.3
      3 Cast iron+EPDM Disc:Cast iron 2-1/2"-DN65 $21.62 103 4.5kg AT63 80 2.1
      4 Cast iron+EPDM Disc:Cast iron 3"-DN80 $25.82 123 5kg AT75 100 2.5
      5 Cast iron+EPDM Disc:Cast iron 4"-DN100 $32.54 155 6.6kg AT83 115 3.1
      6 Cast iron+EPDM Disc:Cast iron 5"-DN125 $46.18 220 9kg AT92 145 4.1
      7 Cast iron+EPDM Disc:Cast iron 6"-DN150 $54.58 260 11.5kg AT105 195 5.5
      8 Cast iron+EPDM Disc:Cast iron 8"-DN200 $88.17 420 19kg AT125 285 8.2
      9 Cast iron+EPDM Disc:Cast iron 10"-DN250 $142.75 680 29kg AT140 430 12.5
      10 Cast iron+EPDM Disc:Cast iron 12"-DN300 $182.63 870 55kg AT160 580 28.9
      11 Cast iron+EPDM Disc:304 1-1/2"-DN40 $21.62 103 AT52 60 1.3
      12 Cast iron+EPDM Disc:304 2"-DN50 $21.62 103 AT52 60 1.3
      13 Cast iron+EPDM Disc:304 2-1/2"-DN65 $24.56 117 AT63 80 2.1
      14 Cast iron+EPDM Disc:304 3"-DN80 $28.34 135 AT75 100 2.5
      15 Cast iron+EPDM Disc:304 4"-DN100 $38.84 185 AT83 115 3.1
      16 Cast iron+EPDM Disc:304 5"-DN125 $60.88 290 AT92 145 4.1
      17 Cast iron+EPDM Disc:304 6"-DN150 $69.27 330 AT105 195 5.5
      18 Cast iron+EPDM Disc:304 8"-DN200 $113.36 540 AT125 285 8.2
      19 Cast iron+EPDM Disc:304 10"-DN250 $188.93 900 AT140 430 12.5
      20 Cast iron+EPDM Disc:304 12"-DN300 $262.4 1250 AT160 580 28.9

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve

      Model NO.:D016010002001DX001-01

      YOULI Stainless Steel ANSI 150LB 304 316 Cast Iron JIS 10K Pn10-16 PTFE EPDM Soft Seal Pneumatic Actuator Wafer Butterfly Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 Cast iron+EPDM Disc:Cast iron 1-1/2"-DN40 $18.89 3kg AT52 60 1.3
      2 Cast iron+EPDM Disc:Cast iron 2"-DN50 $18.89 3kg AT52 60 1.3
      3 Cast iron+EPDM Disc:Cast iron 2-1/2"-DN65 $21.62 4.5kg AT63 80 2.1
      4 Cast iron+EPDM Disc:Cast iron 3"-DN80 $25.82 5kg AT75 100 2.5
      5 Cast iron+EPDM Disc:Cast iron 4"-DN100 $32.54 6.6kg AT83 115 3.1
      6 Cast iron+EPDM Disc:Cast iron 5"-DN125 $46.18 9kg AT92 145 4.1
      7 Cast iron+EPDM Disc:Cast iron 6"-DN150 $54.58 11.5kg AT105 195 5.5
      8 Cast iron+EPDM Disc:Cast iron 8"-DN200 $88.17 19kg AT125 285 8.2
      9 Cast iron+EPDM Disc:Cast iron 10"-DN250 $142.75 29kg AT140 430 12.5
      10 Cast iron+EPDM Disc:Cast iron 12"-DN300 $182.63 55kg AT160 580 28.9
      11 Cast iron+EPDM Disc:304 1-1/2"-DN40 $21.62 AT52 60 1.3
      12 Cast iron+EPDM Disc:304 2"-DN50 $21.62 AT52 60 1.3
      13 Cast iron+EPDM Disc:304 2-1/2"-DN65 $24.56 AT63 80 2.1
      14 Cast iron+EPDM Disc:304 3"-DN80 $28.34 AT75 100 2.5
      15 Cast iron+EPDM Disc:304 4"-DN100 $38.84 AT83 115 3.1
      16 Cast iron+EPDM Disc:304 5"-DN125 $60.88 AT92 145 4.1
      17 Cast iron+EPDM Disc:304 6"-DN150 $69.27 AT105 195 5.5
      18 Cast iron+EPDM Disc:304 8"-DN200 $113.36 AT125 285 8.2
      19 Cast iron+EPDM Disc:304 10"-DN250 $188.93 AT140 430 12.5
      20 Cast iron+EPDM Disc:304 12"-DN300 $262.4 AT160 580 28.9
