    Pneumatic Butterfly Valve
    Home » Product » Valve » Butterfly Valve » Pneumatic Butterfly Valve
  • Home
  • Product
  • About Us
  • News
  • Video
  • PDF File
  • Contact Us
  • Feedback
  • bbs
  • Inquiry
    •
    Valve
     • Ball Valve
    • Manual Ball Valve
    • Pneumatic Ball Valve
    • Electric Ball Valve
     • Butterfly Valve
    • Manual Butterfly Valve
    • Pneumatic Butterfly Valve
    • Electric Butterfly Valve
     • Gate Valve
    • Manual Gate Valve
    • Pneumatic Gate Valve
    • Electric Gate Valve
     • Globe Valve
    • Manual Globe Valve
    • Pneumatic Globe Valve
    • Electric Globe Valve
     • Solenoid Valve
     • Diaphragm Valves
    • Manual Diaphram Valve
    • Pneumatic Diaphrgam Valve
    • Electric Diaphragm Valve
     • Check Valve
     • Angle Seat Valve
     • Diverter Valve
    • Manual Diverter Valve
    • Pneumatic Diverter Valve
     • Sample Valve
    • Manual Sample Valve
    • Pneumatic Sample Valve
     • Safety Valve
     • Exhaust Valve
     • Constant Pressure Valves
     • Control Regulating Valve
    • Manual Control Regulating Valve
    • Pneumatic Control Regulating Valve
    • Electric Control Regulating Valve
    • Self Standing Control Regulating Valve
     • Mixproof Valve
     • Bottom Valve
     • Level Gauge
     • Breathing Valve
     • Knife Gate Valve
    • Manual Knife Gate Valve
    • Pneumatic Knife Gate Valve
    • Electric Knife Gate Valve
     • Hydraulic Control Valve
     • Needle Valve
     • Pressure Relief Valve
     • Steam Water Trap Valve
    Pump
     • Centrifugal Pump
     • Rotary Lobe Pump
     • Mixing Pump
     • CIP Self Priming Pump
     • Negative Pressure Pump
     • Emulsion Pump
    Pipe Fitting
     • Bend/Elbow
     • Tee
     • Cross
     • Reducer
     • Blind Cap
     • Straight Fitting
     • Sylphon Bellows Fitting
     • Metal Hose Fitting
     • End Head
    Manhole Cover
    Filter
    Sight Glass
    Spray Ball
    Pipe Hanger
    Union
    Clamp Ferrule
    Gasket
    Flange
    Tube
    Threaded Fitting
    Accessories
    Pressure Gauge
    YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve

    YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve

    Model NO.:D016010002010D-01

    Pur Qty. / Ref FOB Price

    1 SetUS $81.87-902.67 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Pneumatic

    Connection Form:Weld

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to BasketPDF Format.
    Basic Info

      Model NO.D016010002010D-01

      Product nameButterfly Valve

      ApplicationWater, gas,oil

      MOQ1pcs

      SealingEPDM,NBR,PTFE,Silicone,PFA,Metal,ETC

      FeatureSafe and Durable

      MaterialStainless Steel,Cast iron,WCB

      Connection FormWafer,Flange,Lug

      Nominal PressureAPI,ANSI CLASS 150-300,10K-20K,PN16-PN64

      CustomizationAvailable

      Temperature- 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

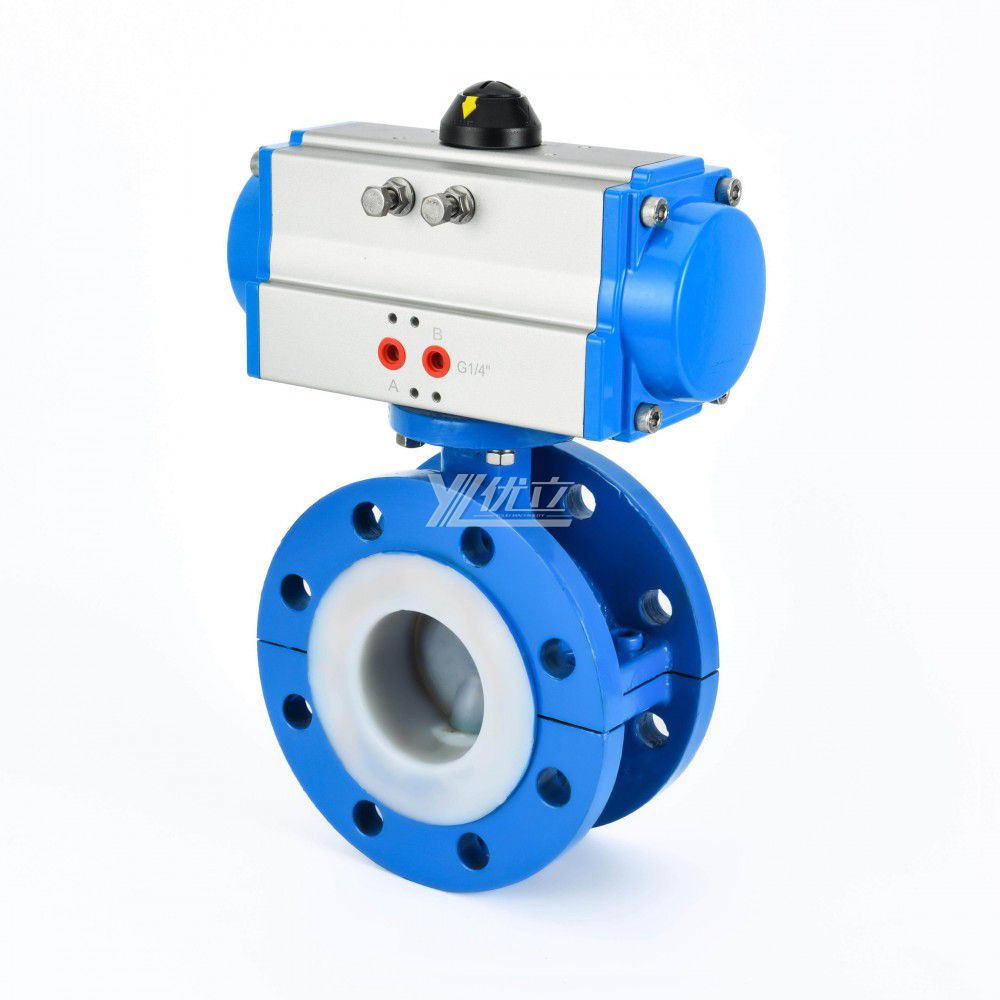

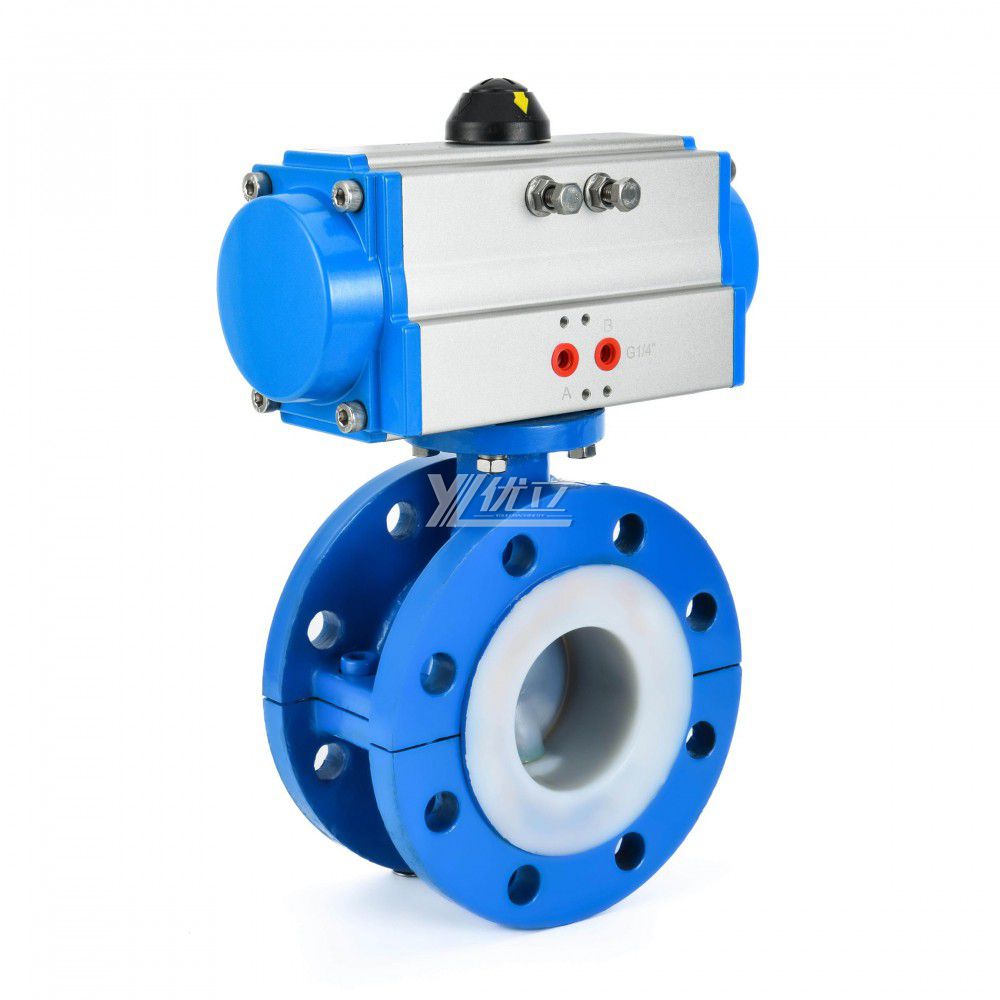

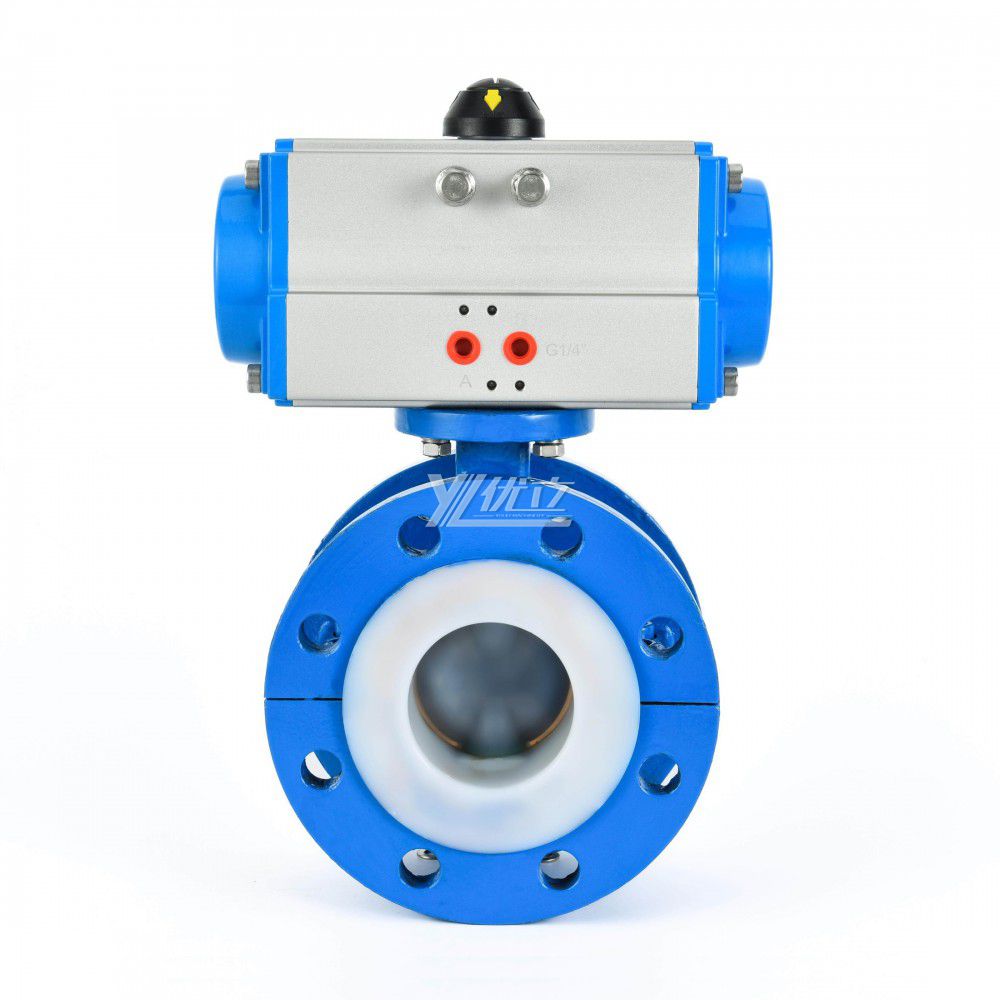

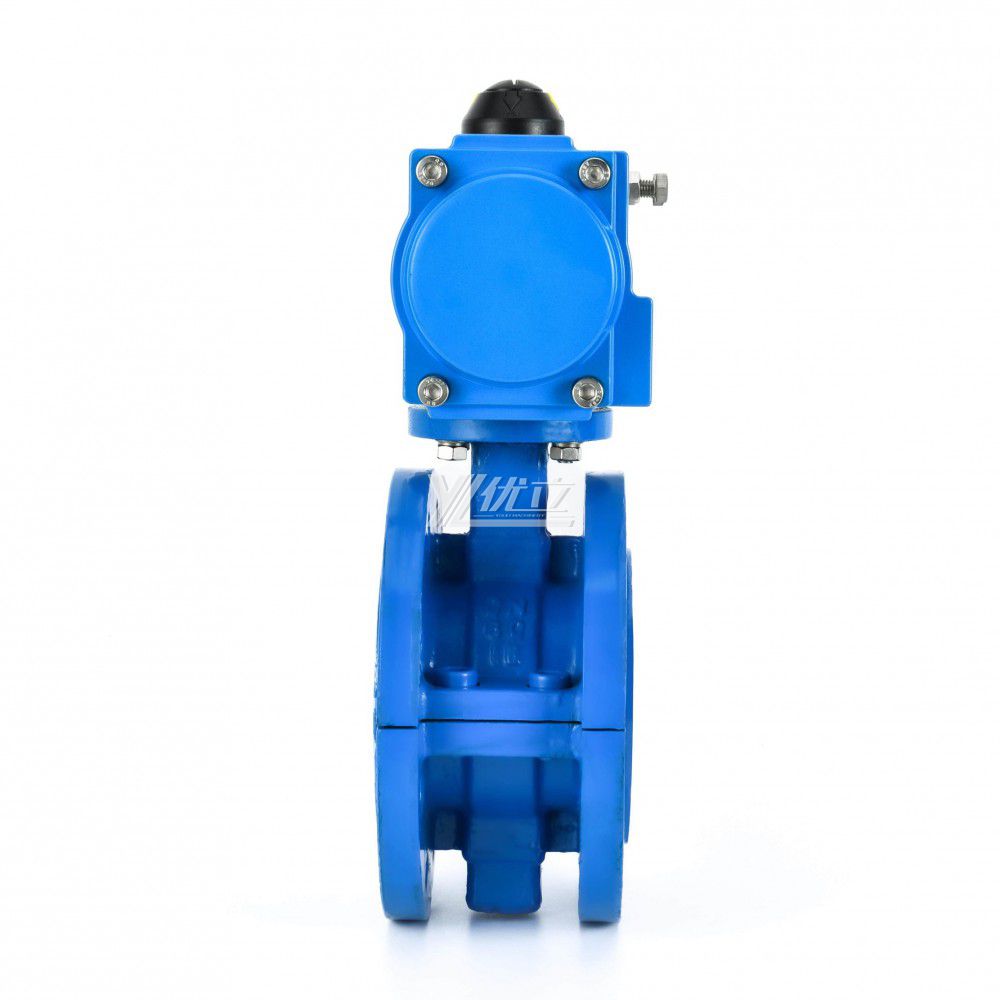

      Products Name:YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve

      F46 Pneumatic Butterfly Valve

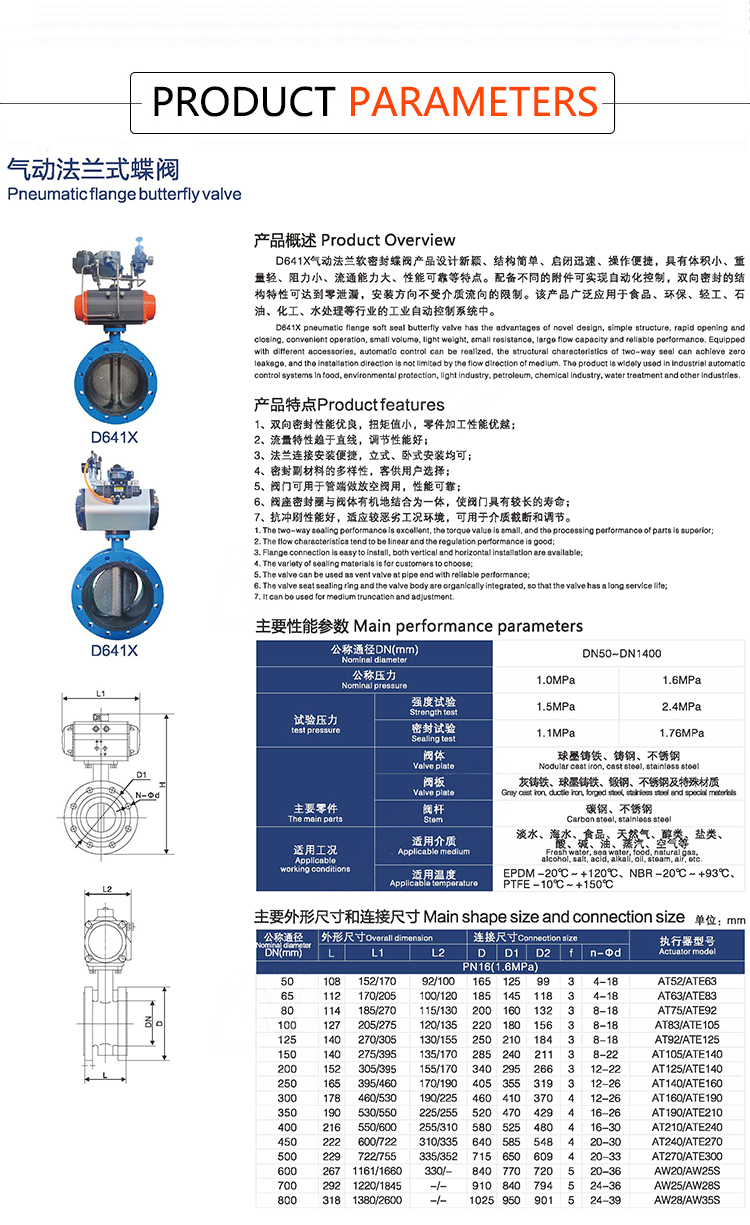

      Pneumatic Fluorine Lined Butterfly Valve



      Body material WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),Cast Iron,Aluminium Alloy etc.
      Full port 2"-12"(DN50-DN300)
      Working pressure JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40,1-4Mpa
      Medium temperature - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 425°C)
      Connection type Wafer,Flange,Lug,vacuum
      Sealing F4,F46,PTFE,PFA,Metal,ETC
      Structure Center sealed ,Single eccentric sealed ,Double eccentric,Triple eccentric sealed
      ISO 5211 Direct mounting pad Yes
      Pneumatic actuator Double acting,option(Spring return )
      Solenoid valve Option(DC24V,AC220V)
      Filter Option
      Handwheel Option
      Limit switch Optionn(APL210,APL410 explosion-proof,APL510 explosion-proof)
      Positioner Option(TY-1000,4-20ma Signal feedback)
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for Aqua regia, sulfuric acid, hydrochloric acid, aminofluoric acid, and various organic acids, strong acids, strong
      oxidants,corrosive gases, and liquid media etc
      Buyer's drawings or designs are available
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Hygienic Sanitary Butterfly Valves Sanitary Hygienic Manual Male Butterfly Valves Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle
    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve

      Model NO.:D016010002010D-01

      YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve
      NO. Mat Spec Wgt(kg) Ps
      1 WCB+F46 1-1/2"-DN40 AT52 60 1.3
      2 WCB+F46 2"-DN50 AT52 60 1.3
      3 WCB+F46 2-1/2"-DN65 AT63 80 2.1
      4 WCB+F46 3"-DN80 AT75 100 2.5
      5 WCB+F46 4"-DN100 AT83 115 3.1
      6 WCB+F46 5"-DN125 AT92 145 4.1
      7 WCB+F46 6"-DN150 AT105 195 5.5
      8 WCB+F46 8"-DN200 AT125 285 8.2
      9 WCB+F46 10"-DN250 AT140 430 12.5
      10 WCB+F46 12"-DN300 AT160 580 28.9
      11 Cast Iron+PTFE 1-1/2"-DN40 8.5kg AT52 60 1.3
      12 Cast Iron+PTFE 2"-DN50 8.5kg AT52 60 1.3
      13 Cast Iron+PTFE 2-1/2"-DN65 10.5kg AT63 80 2.1
      14 Cast Iron+PTFE 3"-DN80 11.6kg AT75 100 2.5
      15 Cast Iron+PTFE 4"-DN100 14.2kg AT83 115 3.1
      16 Cast Iron+PTFE 5"-DN125 19.2kg AT92 145 4.1
      17 Cast Iron+PTFE 6"-DN150 23.5kg AT105 195 5.5
      18 Cast Iron+PTFE 8"-DN200 35.5kg AT125 285 8.2
      19 Cast Iron+PTFE 10"-DN250 50.5kg AT140 430 12.5
      20 Cast Iron+PTFE 12"-DN300 77kg AT160 580 28.9
      21 304+PTFE 1-1/2"-DN40 AT52 60 1.3
      22 304+PTFE 2"-DN50 AT52 60 1.3
      23 304+PTFE 2-1/2"-DN65 AT63 80 2.1
      24 304+PTFE 3"-DN80 AT75 100 2.5
      25 304+PTFE 4"-DN100 AT83 115 3.1
      26 304+PTFE 5"-DN125 AT92 145 4.1
      27 304+PTFE 6"-DN150 AT105 195 5.5
      28 304+PTFE 8"-DN200 AT125 285 8.2
      29 304+PTFE 10"-DN250 AT140 430 12.5
      30 304+PTFE 12"-DN300 AT160 580 28.9

      YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve

      Model NO.:D016010002010D-01

      YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1.1
      1 WCB+F46 1-1/2"-DN40 $86.07 410 AT52 60 1.3
      2 WCB+F46 2"-DN50 $86.07 410 AT52 60 1.3
      3 WCB+F46 2-1/2"-DN65 $100.76 480 AT63 80 2.1
      4 WCB+F46 3"-DN80 $123.85 590 AT75 100 2.5
      5 WCB+F46 4"-DN100 $141.7 675 AT83 115 3.1
      6 WCB+F46 5"-DN125 $177.39 845 AT92 145 4.1
      7 WCB+F46 6"-DN150 $233.02 1110 AT105 195 5.5
      8 WCB+F46 8"-DN200 $299.14 1425 AT125 285 8.2
      9 WCB+F46 10"-DN250 $432.44 2060 AT140 430 12.5
      10 WCB+F46 12"-DN300 $577.29 2750 AT160 580 28.9
      11 Cast Iron+PTFE 1-1/2"-DN40 $81.87 390 8.5kg AT52 60 1.3
      12 Cast Iron+PTFE 2"-DN50 $81.87 390 8.5kg AT52 60 1.3
      13 Cast Iron+PTFE 2-1/2"-DN65 $97.61 465 10.5kg AT63 80 2.1
      14 Cast Iron+PTFE 3"-DN80 $114.41 545 11.6kg AT75 100 2.5
      15 Cast Iron+PTFE 4"-DN100 $138.97 662 14.2kg AT83 115 3.1
      16 Cast Iron+PTFE 5"-DN125 $185.99 886 19.2kg AT92 145 4.1
      17 Cast Iron+PTFE 6"-DN150 $234.06 1115 23.5kg AT105 195 5.5
      18 Cast Iron+PTFE 8"-DN200 $370.73 1766 35.5kg AT125 285 8.2
      19 Cast Iron+PTFE 10"-DN250 $618.23 2945 50.5kg AT140 430 12.5
      20 Cast Iron+PTFE 12"-DN300 $899.52 4285 77kg AT160 580 28.9
      21 304+PTFE 1-1/2"-DN40 $106.64 508 AT52 60 1.3
      22 304+PTFE 2"-DN50 $106.64 508 AT52 60 1.3
      23 304+PTFE 2-1/2"-DN65 $125.95 600 AT63 80 2.1
      24 304+PTFE 3"-DN80 $138.55 660 AT75 100 2.5
      25 304+PTFE 4"-DN100 $168.57 803 AT83 115 3.1
      26 304+PTFE 5"-DN125 $221.47 1055 AT92 145 4.1
      27 304+PTFE 6"-DN150 $268.7 1280 AT105 195 5.5
      28 304+PTFE 8"-DN200 $416.7 1985 AT125 285 8.2
      29 304+PTFE 10"-DN250 $654.96 3120 AT140 430 12.5
      30 304+PTFE 12"-DN300 $902.67 4300 AT160 580 28.9

      YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve

      Model NO.:D016010002010D-01

      YOULI 304 316 Stainless Steel Sulfuric Acid Pn16 WCB FEP F46 PFA F4 Pneumatic Fluorine Lined Flanged Butterfly Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 WCB+F46 1-1/2"-DN40 $86.07 AT52 60 1.3
      2 WCB+F46 2"-DN50 $86.07 AT52 60 1.3
      3 WCB+F46 2-1/2"-DN65 $100.76 AT63 80 2.1
      4 WCB+F46 3"-DN80 $123.85 AT75 100 2.5
      5 WCB+F46 4"-DN100 $141.7 AT83 115 3.1
      6 WCB+F46 5"-DN125 $177.39 AT92 145 4.1
      7 WCB+F46 6"-DN150 $233.02 AT105 195 5.5
      8 WCB+F46 8"-DN200 $299.14 AT125 285 8.2
      9 WCB+F46 10"-DN250 $432.44 AT140 430 12.5
      10 WCB+F46 12"-DN300 $577.29 AT160 580 28.9
      11 Cast Iron+PTFE 1-1/2"-DN40 $81.87 8.5kg AT52 60 1.3
      12 Cast Iron+PTFE 2"-DN50 $81.87 8.5kg AT52 60 1.3
      13 Cast Iron+PTFE 2-1/2"-DN65 $97.61 10.5kg AT63 80 2.1
      14 Cast Iron+PTFE 3"-DN80 $114.41 11.6kg AT75 100 2.5
      15 Cast Iron+PTFE 4"-DN100 $138.97 14.2kg AT83 115 3.1
      16 Cast Iron+PTFE 5"-DN125 $185.99 19.2kg AT92 145 4.1
      17 Cast Iron+PTFE 6"-DN150 $234.06 23.5kg AT105 195 5.5
      18 Cast Iron+PTFE 8"-DN200 $370.73 35.5kg AT125 285 8.2
      19 Cast Iron+PTFE 10"-DN250 $618.23 50.5kg AT140 430 12.5
      20 Cast Iron+PTFE 12"-DN300 $899.52 77kg AT160 580 28.9
      21 304+PTFE 1-1/2"-DN40 $106.64 AT52 60 1.3
      22 304+PTFE 2"-DN50 $106.64 AT52 60 1.3
      23 304+PTFE 2-1/2"-DN65 $125.95 AT63 80 2.1
      24 304+PTFE 3"-DN80 $138.55 AT75 100 2.5
      25 304+PTFE 4"-DN100 $168.57 AT83 115 3.1
      26 304+PTFE 5"-DN125 $221.47 AT92 145 4.1
      27 304+PTFE 6"-DN150 $268.7 AT105 195 5.5
      28 304+PTFE 8"-DN200 $416.7 AT125 285 8.2
      29 304+PTFE 10"-DN250 $654.96 AT140 430 12.5
      30 304+PTFE 12"-DN300 $902.67 AT160 580 28.9
