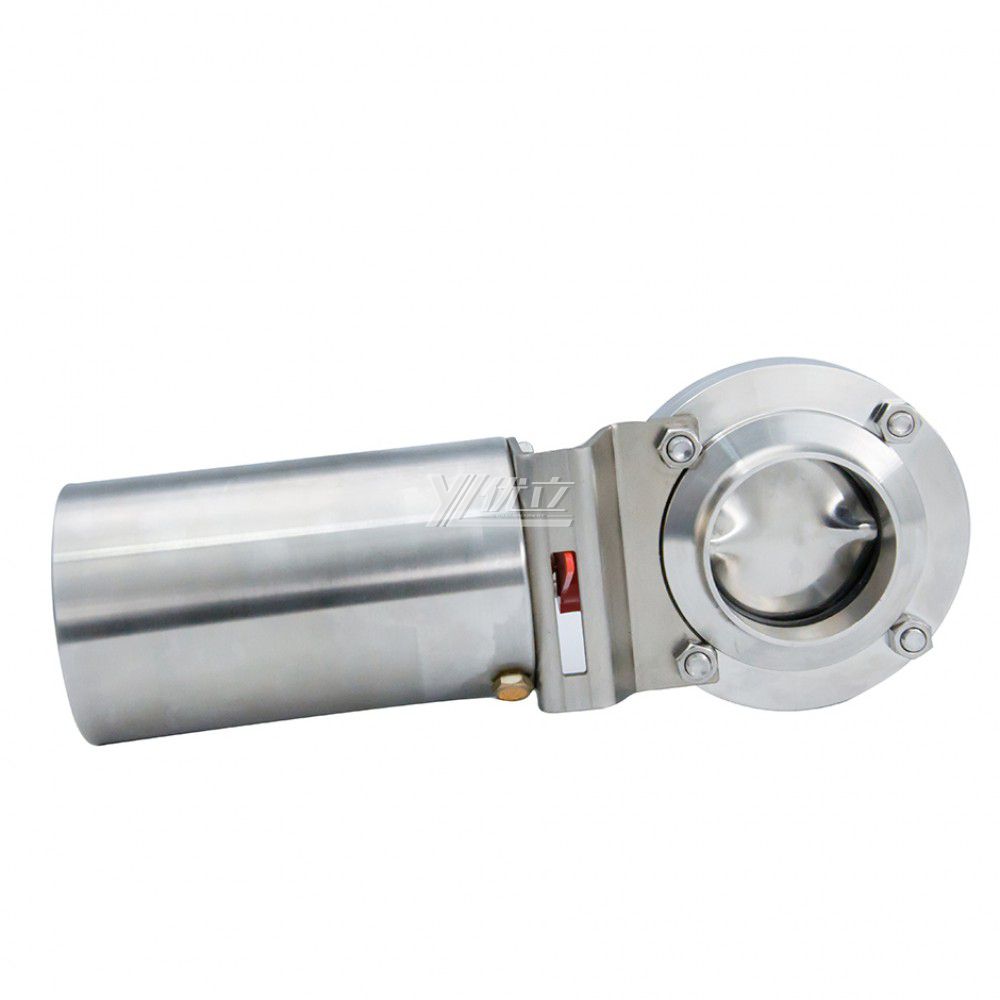

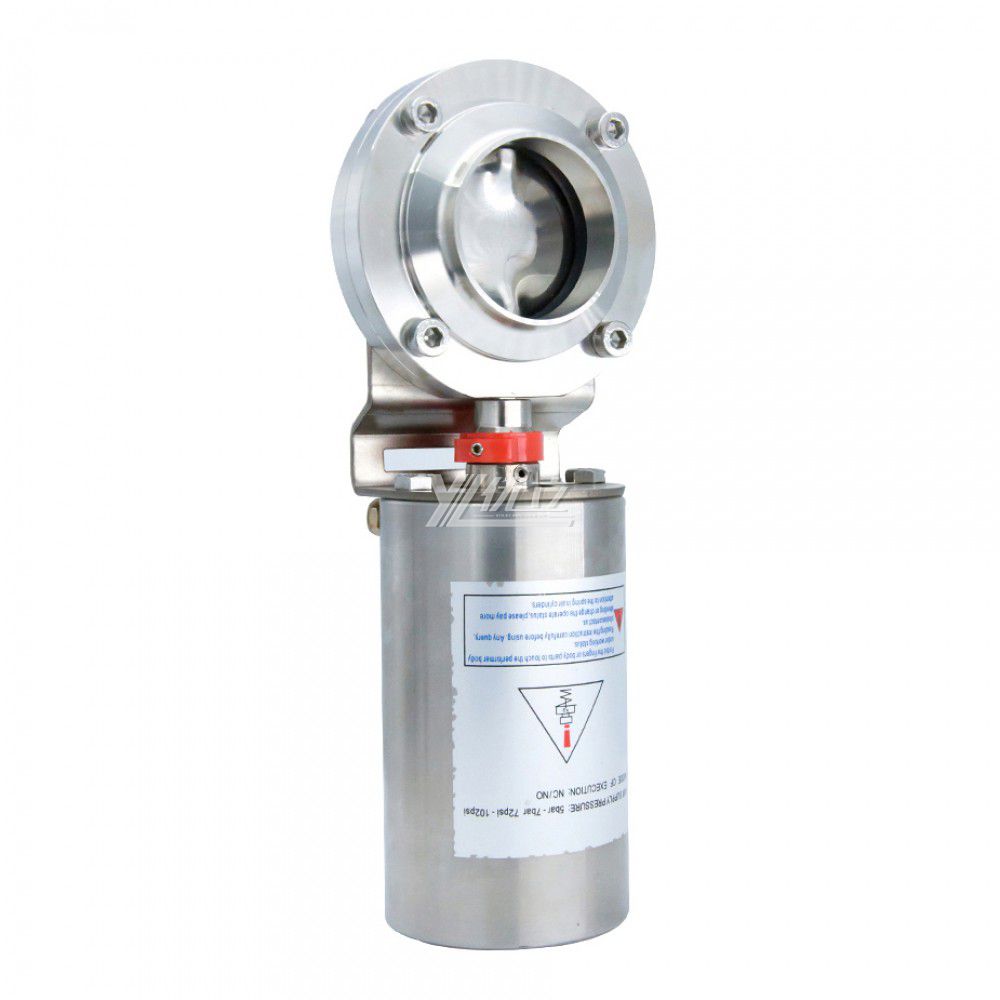

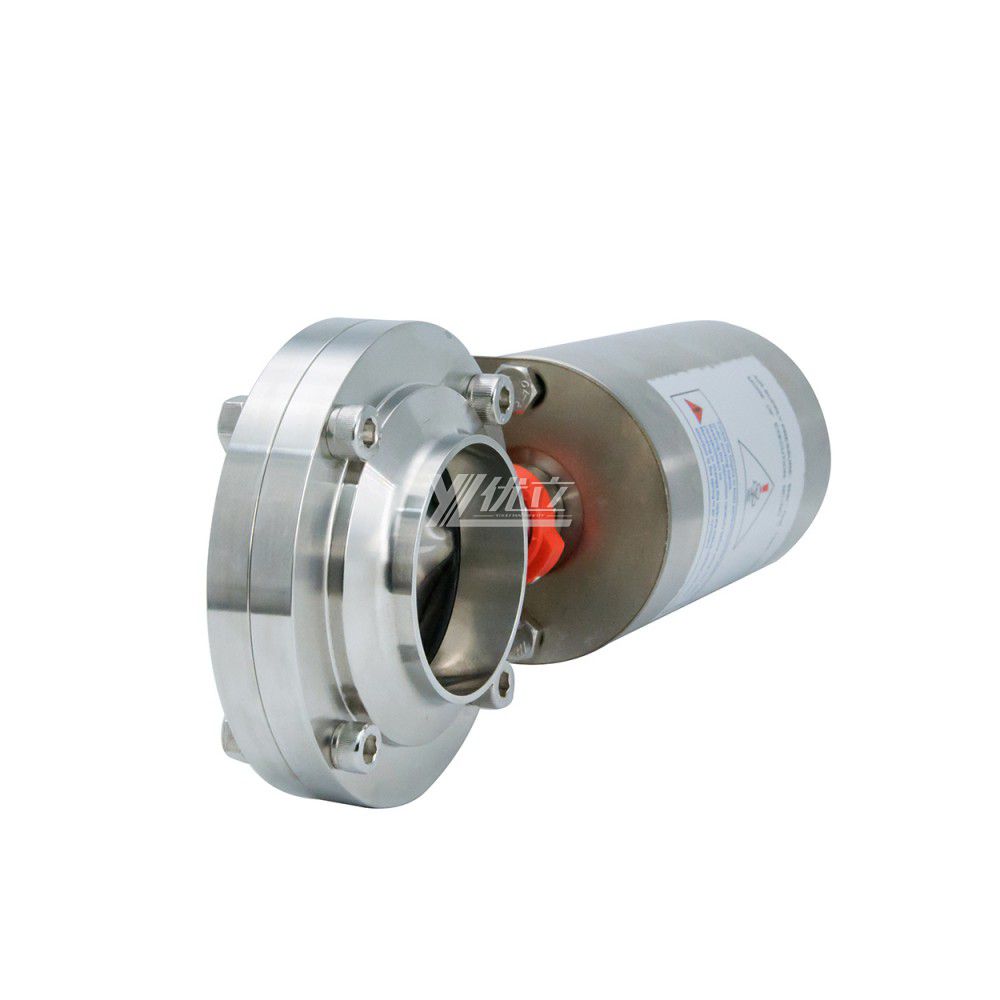

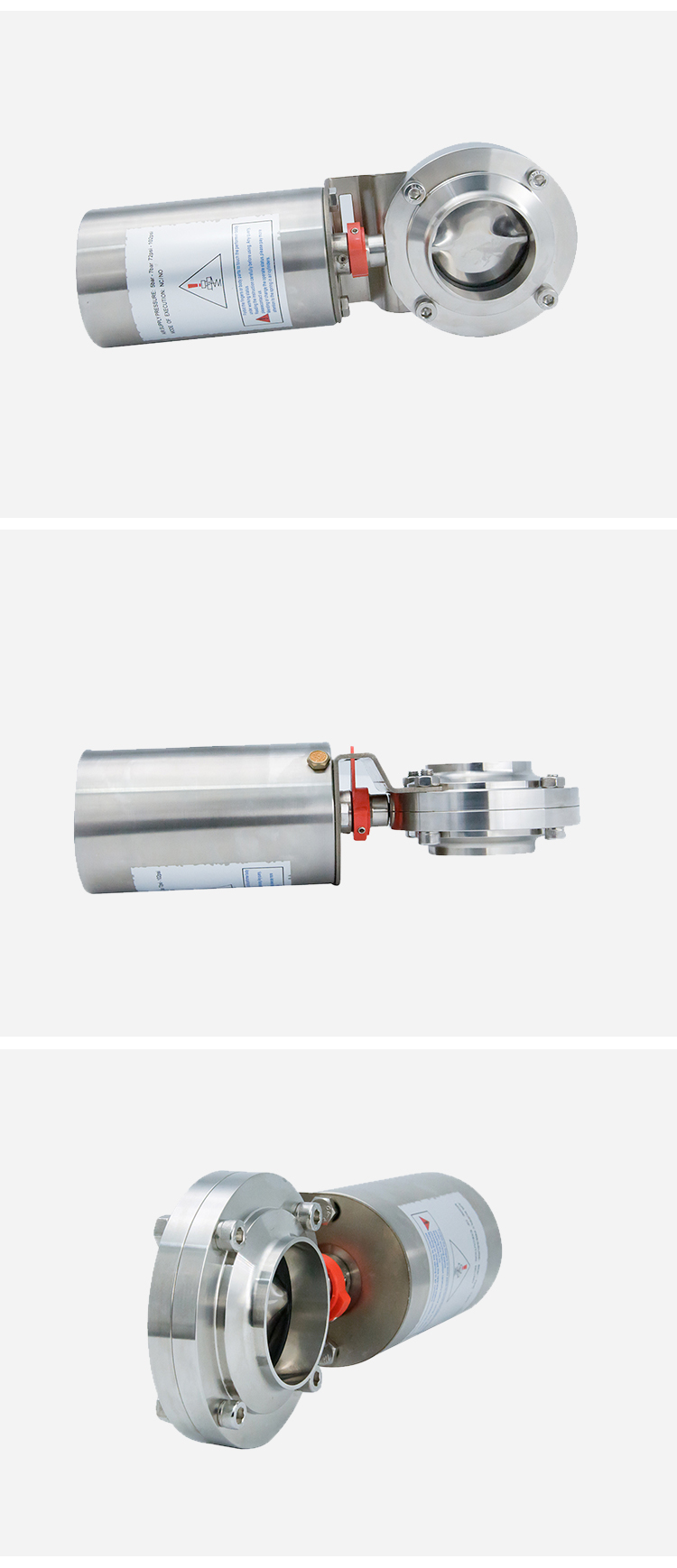

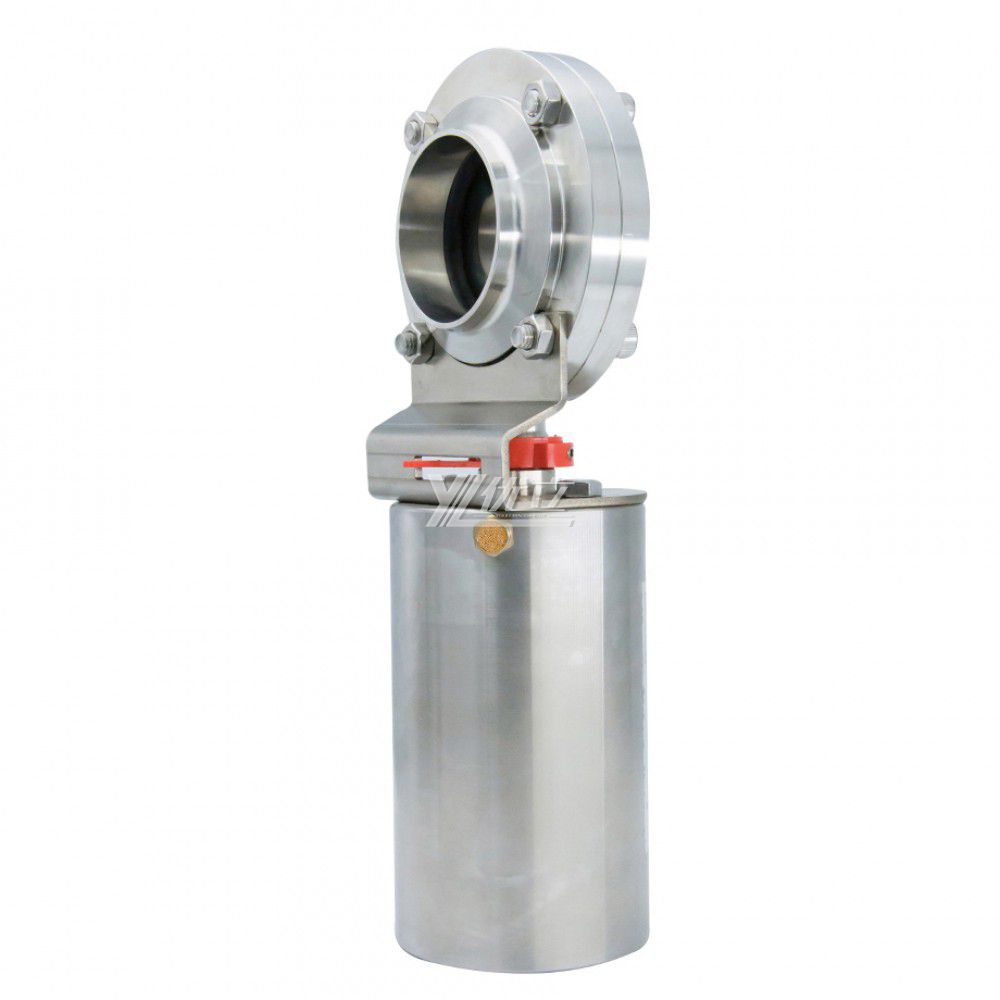

    Pneumatic Butterfly Valve
    Home » Product » Valve » Butterfly Valve » Pneumatic Butterfly Valve
  • Home
  • Product
  • About Us
  • News
  • Video
  • PDF File
  • Contact Us
  • Feedback
  • bbs
  • Inquiry
    •
    Valve
     • Ball Valve
    • Manual Ball Valve
    • Pneumatic Ball Valve
    • Electric Ball Valve
     • Butterfly Valve
    • Manual Butterfly Valve
    • Pneumatic Butterfly Valve
    • Electric Butterfly Valve
     • Gate Valve
    • Manual Gate Valve
    • Pneumatic Gate Valve
    • Electric Gate Valve
     • Globe Valve
    • Manual Globe Valve
    • Pneumatic Globe Valve
    • Electric Globe Valve
     • Solenoid Valve
     • Diaphragm Valves
    • Manual Diaphram Valve
    • Pneumatic Diaphrgam Valve
    • Electric Diaphragm Valve
     • Check Valve
     • Angle Seat Valve
     • Diverter Valve
    • Manual Diverter Valve
    • Pneumatic Diverter Valve
     • Sample Valve
    • Manual Sample Valve
    • Pneumatic Sample Valve
     • Safety Valve
     • Exhaust Valve
     • Constant Pressure Valves
     • Control Regulating Valve
    • Manual Control Regulating Valve
    • Pneumatic Control Regulating Valve
    • Electric Control Regulating Valve
    • Self Standing Control Regulating Valve
     • Mixproof Valve
     • Bottom Valve
     • Level Gauge
     • Breathing Valve
     • Knife Gate Valve
    • Manual Knife Gate Valve
    • Pneumatic Knife Gate Valve
    • Electric Knife Gate Valve
     • Hydraulic Control Valve
     • Needle Valve
     • Pressure Relief Valve
     • Steam Water Trap Valve
    Pump
     • Centrifugal Pump
     • Rotary Lobe Pump
     • Mixing Pump
     • CIP Self Priming Pump
     • Negative Pressure Pump
     • Emulsion Pump
    Pipe Fitting
     • Bend/Elbow
     • Tee
     • Cross
     • Reducer
     • Blind Cap
     • Straight Fitting
     • Sylphon Bellows Fitting
     • Metal Hose Fitting
     • End Head
    Manhole Cover
    Filter
    Sight Glass
    Spray Ball
    Pipe Hanger
    Union
    Clamp Ferrule
    Gasket
    Flange
    Tube
    Threaded Fitting
    Accessories
    Pressure Gauge
    https://www.ylvalves.com/upfile/video/106-40.jpg

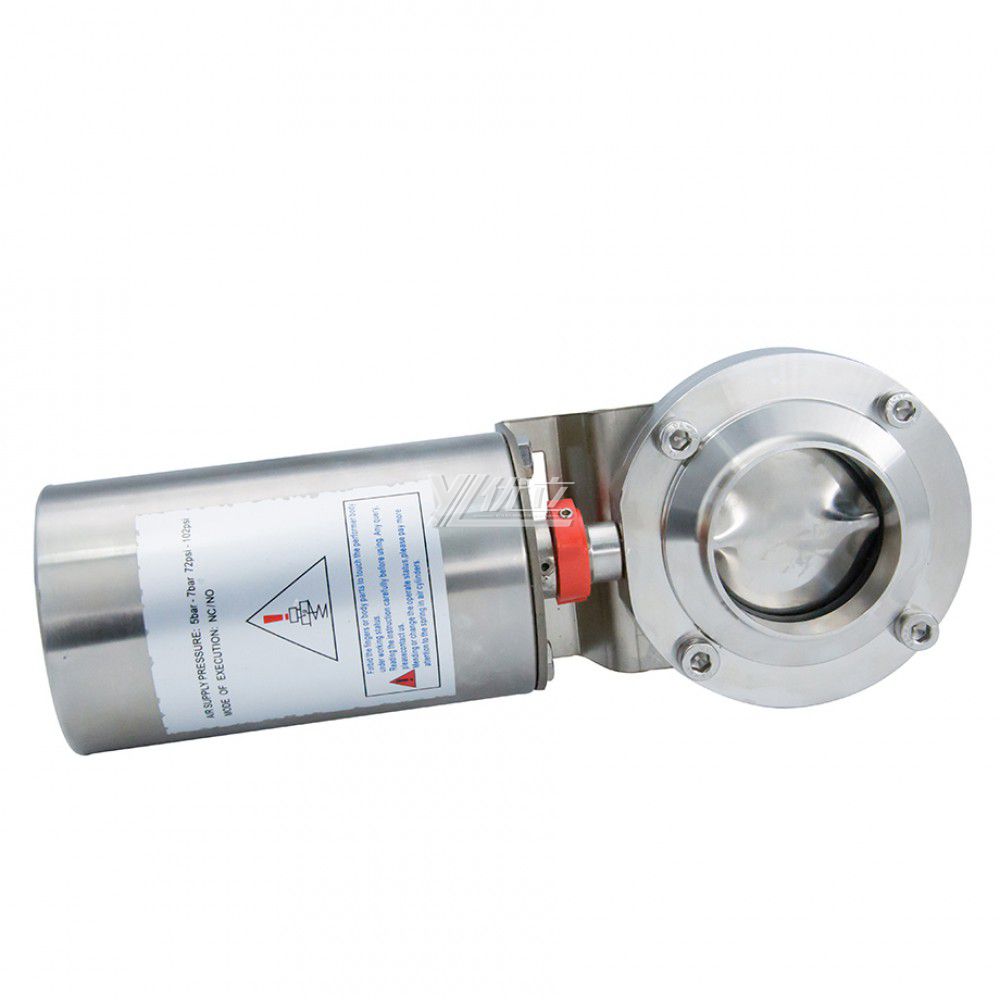

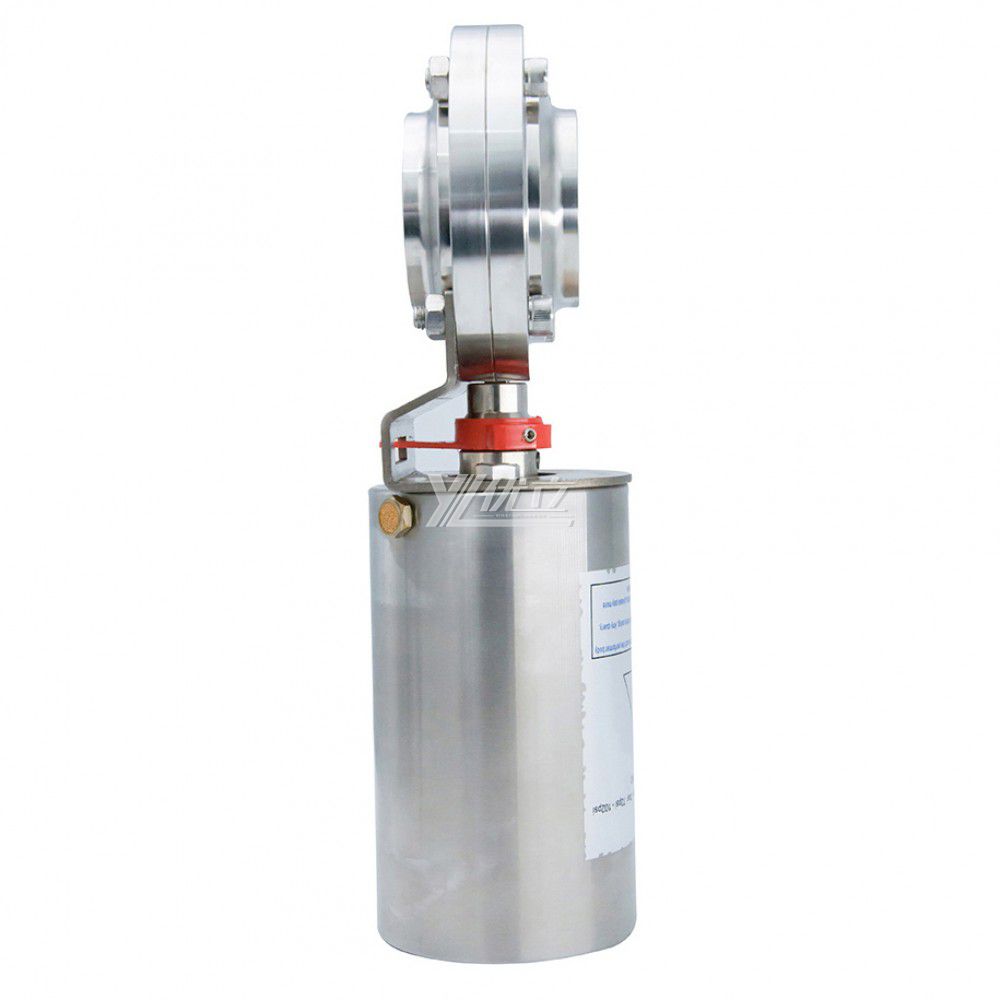

    YOULI YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator

    YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator

    Model NO.:D001001002001D-01

    Pur Qty. / Ref FOB Price

    1 PieceUS $43.89-190.84 / Piece

    Product Details:Ckeck View

    Min. Order:1 Piece

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Pneumatic

    Connection Form:Weld

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D001001002001D-01

      Working TemperatureNormal Temperature (-40°C-120°C)

      Material of Seal SurfaceSoft Sealed

      Valve BodyForge Welding

      ApplicationIndustrial Usage, Water Industrial Usage, Household Usage, Milk, Beer, Juice, Phramacy

      Connection StandardDIN, 3A, SMS, Rjt

      Flow Medium Parts304, 304L, 316L (1.4301, 1.4307, 1.4404)

      Port SizeDn10-150 or 1/2"-150

      Way of ConnectionWeld, Male, Clamp, Flange

      GasketSilicone, EPDM, Viton, NBR

      Kinds of HandlePull Handle, Gripper Hanle/Fiber Handle.

      Pressure Range0bar~0bar

      Temperature Range-20 Degree Celsius to 120 Degree Celsius

      Processing MachineForge Processing, Advance CNC Machine

      Working PrincipleRemote-Controlled Operation by The Driving Gear or

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

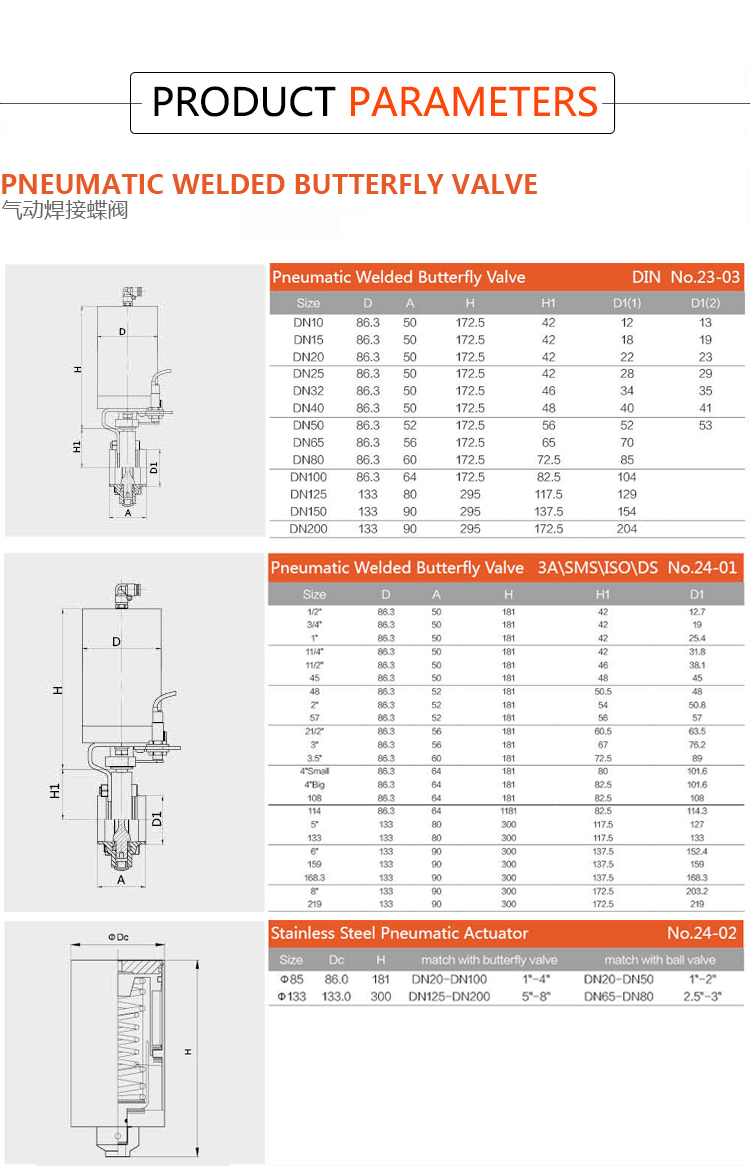

    Product Description

      Product Name:YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator

      Sanitary Butterfly Valve
      stainless steel Butterfly Valve



      Body material
      SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
      Full port
      1/2"-12",DN15-DN300,Φ19-Φ219
      Working pressure
      PN16,1.6Mpa,16Bar
      Medium temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Sterilization temperature
      150°C(max.20min)
      Connection type
      Weld, Thread,Socket,Clamped,Flanged
      Connection Standard
      BSPT,Optional(NPT, BSP, BSPP)
      Welding connection
      DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
      Sealing
      PTFE,RPTFE,PPL ETC
      Surface treatment
      Ra0.4-0.8μm
      Inside surface treatment
      Ra0.4-0.8μm
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      8481804090
      Trademark
      YOULI
      Application
      Suitable for beverage, fruit juice, wine, milk,drink,bio pharmaceutical etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Sanitary Pneumatic Butterfly Valves
    Related Video
    Related File
    NO. Name File Detail Size Down
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator

      Model NO.:D001001002001D-01

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator
      NO. Mat Spec Wgt(kg) Ps
      1 304 3/4"-Φ19MM 3.85kg
      2 304 1"-Φ25MM 3.9kg
      3 304 1-1/4"-Φ32MM 3.85kg
      4 304 1-1/2"-Φ38MM 4kg
      5 304 Φ45MM 4.1kg
      6 304 2"-Φ51MM 4.4kg
      7 304 Φ57MM 4.45kg
      8 304 2-1/2"-Φ63MM 4.7kg
      9 304 3"-Φ76MM 5.2kg
      10 304 3-1/2"-Φ89MM 5.6kg
      11 304 4"-Φ102MM 6kg
      12 304 Φ108MM
      13 304 Φ114MM
      14 304 5"-Φ133MM 17.32kg
      15 304 Φ154MM
      16 304 6"-Φ159MM 19kg
      17 304 Φ204MM 26kg
      18 304 8"-219MM 30kg
      19 316 3/4"-Φ19MM
      20 316 1"-Φ25MM
      21 316 1-1/4"-Φ32MM
      22 316 1-1/2"-Φ38MM
      23 316 Φ45MM
      24 316 2"-Φ51MM
      25 316 Φ57MM
      26 316 2-1/2"-Φ63MM
      27 316 3"-Φ76MM
      28 316 3-1/2"-Φ89MM
      29 316 4"-Φ102MM
      30 316 Φ108MM
      31 316 Φ114MM
      32 316 5"-Φ133MM
      33 316 Φ154MM
      34 316 6"-Φ159MM
      35 316 Φ204MM
      36 316 8"-219MM
      37 304 DN15
      38 304 DN20
      39 304 DN25
      40 304 DN32
      41 304 DN40
      42 304 DN50
      43 304 DN65
      44 304 DN80
      45 304 DN100
      46 304 DN125

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator

      Model NO.:D001001002001D-01

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 3/4"-Φ19MM $43.89 230 3.85kg
      2 304 1"-Φ25MM $43.89 230 3.9kg
      3 304 1-1/4"-Φ32MM $43.51 228 3.85kg
      4 304 1-1/2"-Φ38MM $43.13 226 4kg
      5 304 Φ45MM $46.18 242 4.1kg
      6 304 2"-Φ51MM $46.18 242 4.4kg
      7 304 Φ57MM $51.53 270 4.45kg
      8 304 2-1/2"-Φ63MM $51.53 270 4.7kg
      9 304 3"-Φ76MM 5.2kg
      10 304 3-1/2"-Φ89MM 5.6kg
      11 304 4"-Φ102MM 6kg
      12 304 Φ108MM
      13 304 Φ114MM
      14 304 5"-Φ133MM 17.32kg
      15 304 Φ154MM
      16 304 6"-Φ159MM 19kg
      17 304 Φ204MM 26kg
      18 304 8"-219MM 30kg
      19 316 3/4"-Φ19MM $51.91 272
      20 316 1"-Φ25MM $51.91 272
      21 316 1-1/4"-Φ32MM $50.57 265
      22 316 1-1/2"-Φ38MM $50.57 265
      23 316 Φ45MM $52.48 275
      24 316 2"-Φ51MM $52.48 275
      25 316 Φ57MM $57.25 300
      26 316 2-1/2"-Φ63MM $57.25 300
      27 316 3"-Φ76MM $62.98 330
      28 316 3-1/2"-Φ89MM $77.29 405
      29 316 4"-Φ102MM $77.29 405
      30 316 Φ108MM
      31 316 Φ114MM
      32 316 5"-Φ133MM
      33 316 Φ154MM
      34 316 6"-Φ159MM
      35 316 Φ204MM
      36 316 8"-219MM
      37 304 DN15
      38 304 DN20
      39 304 DN25
      40 304 DN32
      41 304 DN40
      42 304 DN50
      43 304 DN65
      44 304 DN80
      45 304 DN100
      46 304 DN125

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator

      Model NO.:D001001002001D-01

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316 Silicon Sanitary Butt Welded butterfly Valve Pneumatic Actuator
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 3/4"-Φ19MM $43.89 3.85kg
      2 304 1"-Φ25MM $43.89 3.9kg
      3 304 1-1/4"-Φ32MM $43.51 3.85kg
      4 304 1-1/2"-Φ38MM $43.13 4kg
      5 304 Φ45MM $46.18 4.1kg
      6 304 2"-Φ51MM $46.18 4.4kg
      7 304 Φ57MM $51.53 4.45kg
      8 304 2-1/2"-Φ63MM $51.53 4.7kg
      9 304 3"-Φ76MM 5.2kg
      10 304 3-1/2"-Φ89MM 5.6kg
      11 304 4"-Φ102MM 6kg
      12 304 Φ108MM
      13 304 Φ114MM
      14 304 5"-Φ133MM 17.32kg
      15 304 Φ154MM
      16 304 6"-Φ159MM 19kg
      17 304 Φ204MM 26kg
      18 304 8"-219MM 30kg
      19 316 3/4"-Φ19MM $51.91
      20 316 1"-Φ25MM $51.91
      21 316 1-1/4"-Φ32MM $50.57
      22 316 1-1/2"-Φ38MM $50.57
      23 316 Φ45MM $52.48
      24 316 2"-Φ51MM $52.48
      25 316 Φ57MM $57.25
      26 316 2-1/2"-Φ63MM $57.25
      27 316 3"-Φ76MM $62.98
      28 316 3-1/2"-Φ89MM $77.29
      29 316 4"-Φ102MM $77.29
      30 316 Φ108MM
      31 316 Φ114MM
      32 316 5"-Φ133MM
      33 316 Φ154MM
      34 316 6"-Φ159MM
      35 316 Φ204MM
      36 316 8"-219MM
      37 304 DN15
      38 304 DN20
      39 304 DN25
      40 304 DN32
      41 304 DN40
      42 304 DN50
      43 304 DN65
      44 304 DN80
      45 304 DN100
      46 304 DN125
