    Reducer

    YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer

    Model NO.:D017003002D-01

    Pur Qty. / Ref FOB Price

    1 PieceUS $1.16-85.69 / Piece

    Product Details:Ckeck View

    Min. Order:10 Pieces

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Type:Concentric

    Material:Stainless Steel

    Technics:Forged

    Standards:SMS,DIN,3A,ISO

    Customized:Customized

    Material Quality:SS304, SS304L ,SS316, SS316L

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Basic Info

      Model NO.D017003002D-01

      SpecificationsDn25>D15~Dn100>Dn80

      Availabe StandardSMS,DIN,3A,ISO

      Temperature Range-20degree Celsius~135degree Celsius

      Type of ReducerConcentric,Eccentric

      Available Polishing180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished

      Pressure Range1.5~3bar

      Available Thickness1.25mm,1.5mm,1.65mm,2mm,2.5mm,3mm

      Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends

      ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Product name:YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer

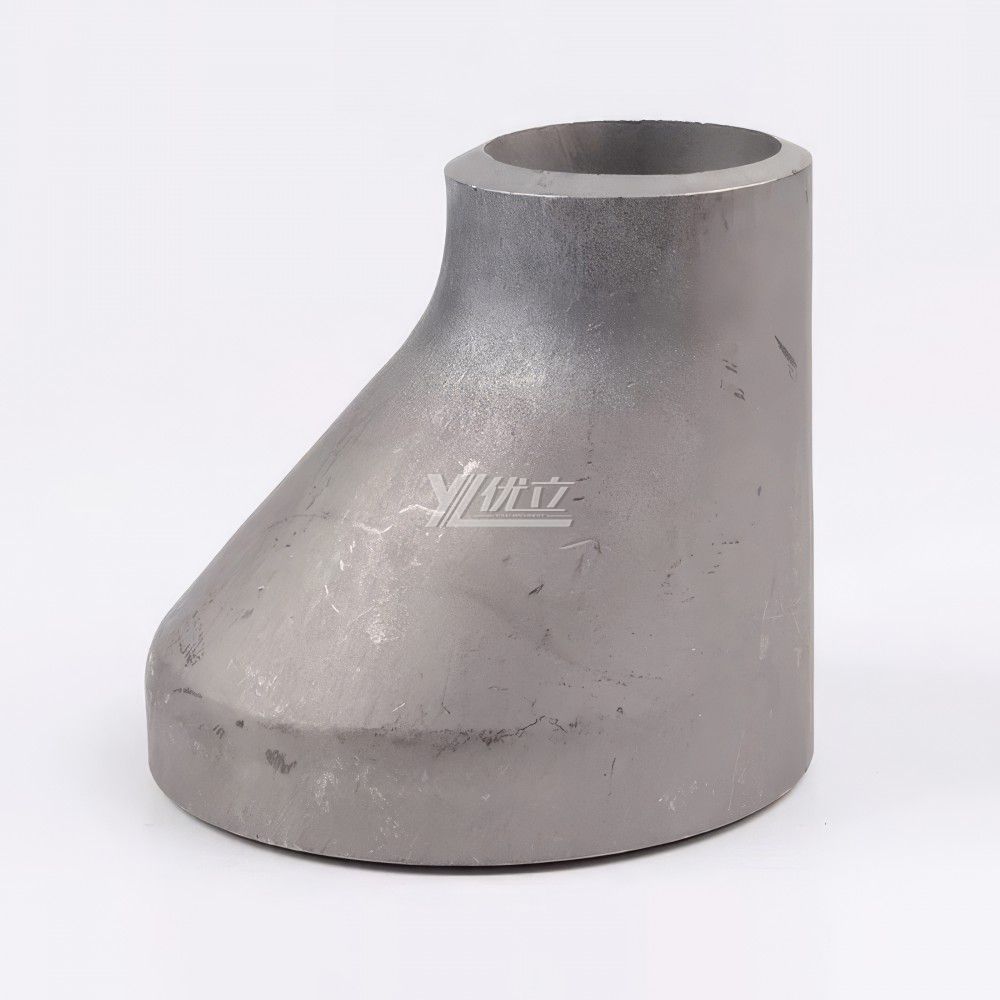

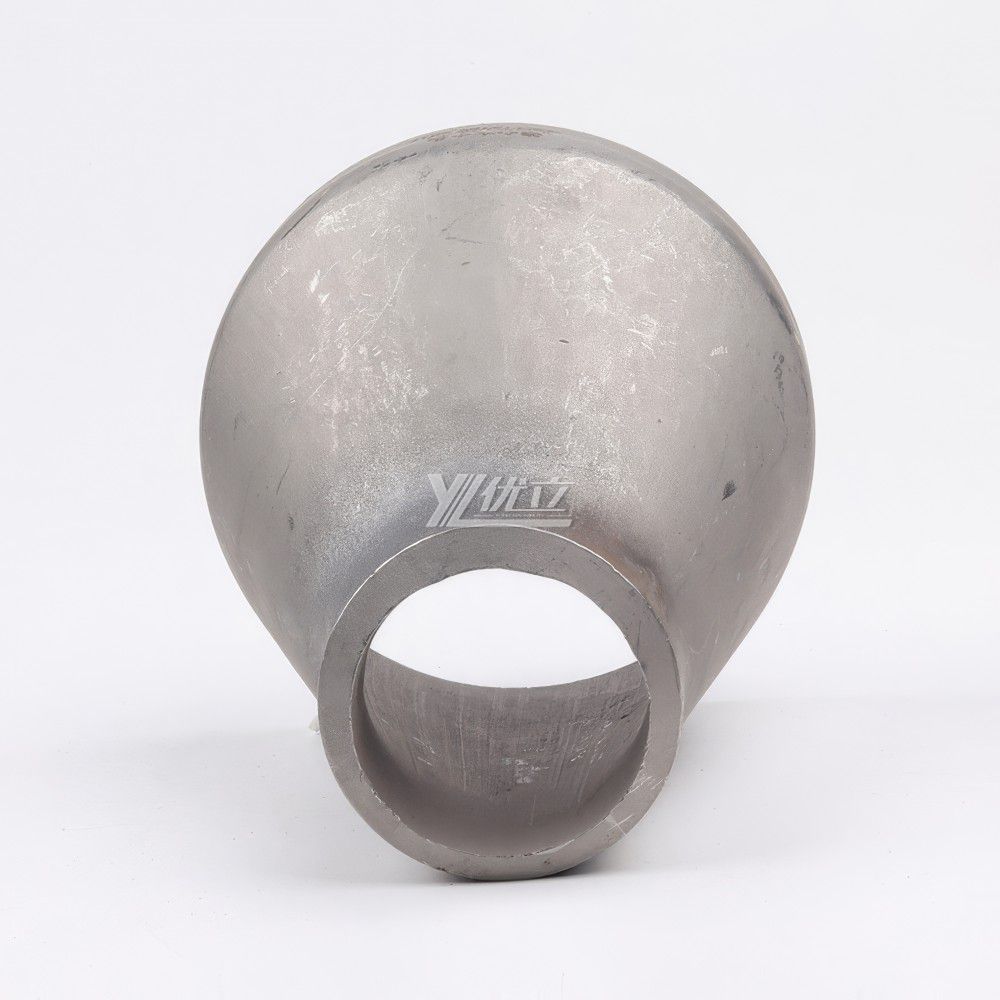

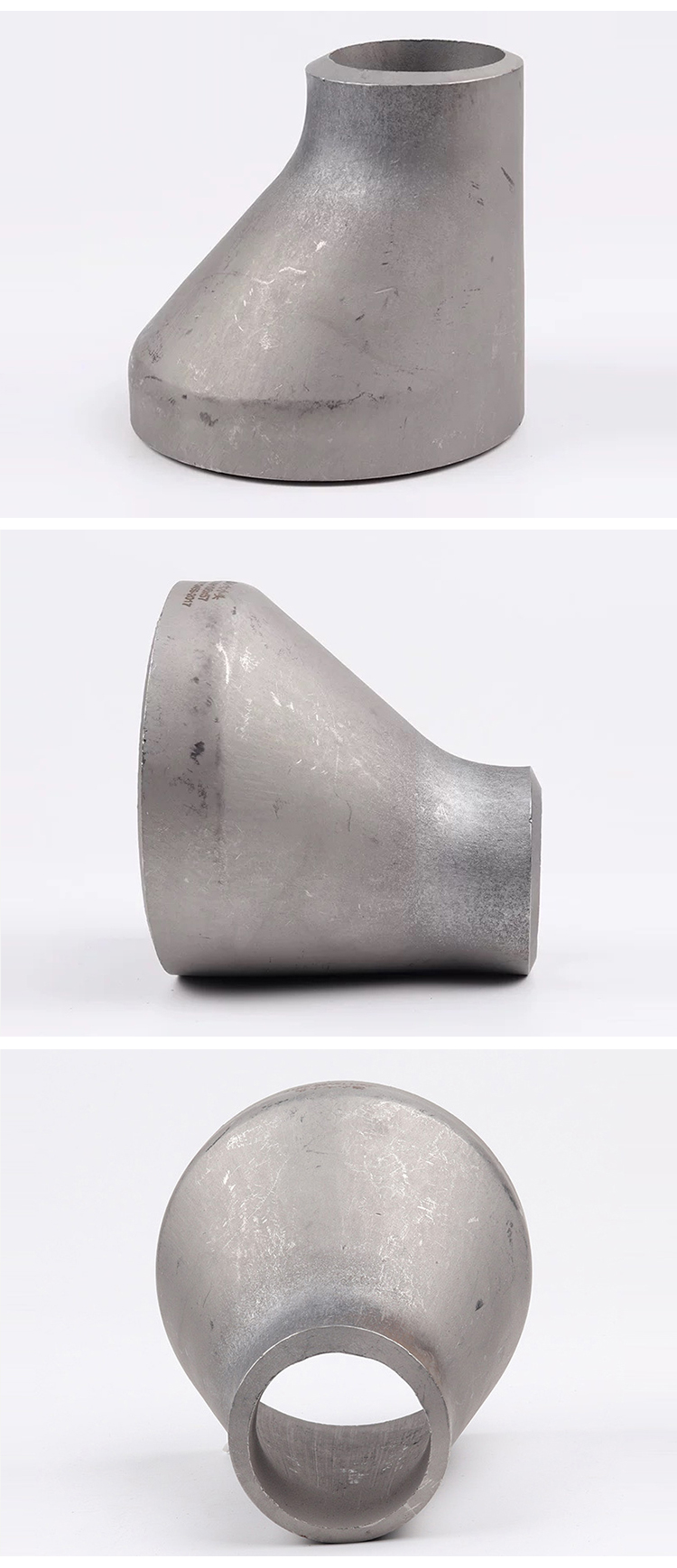

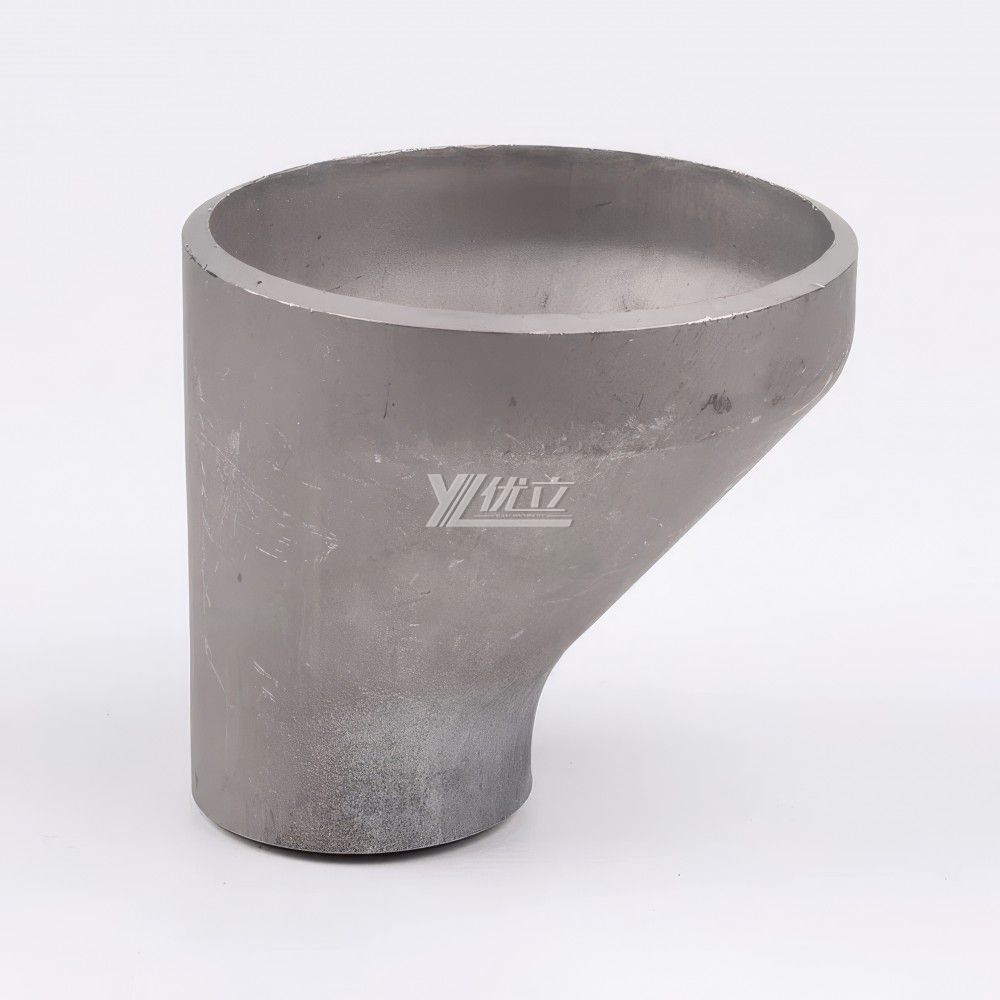

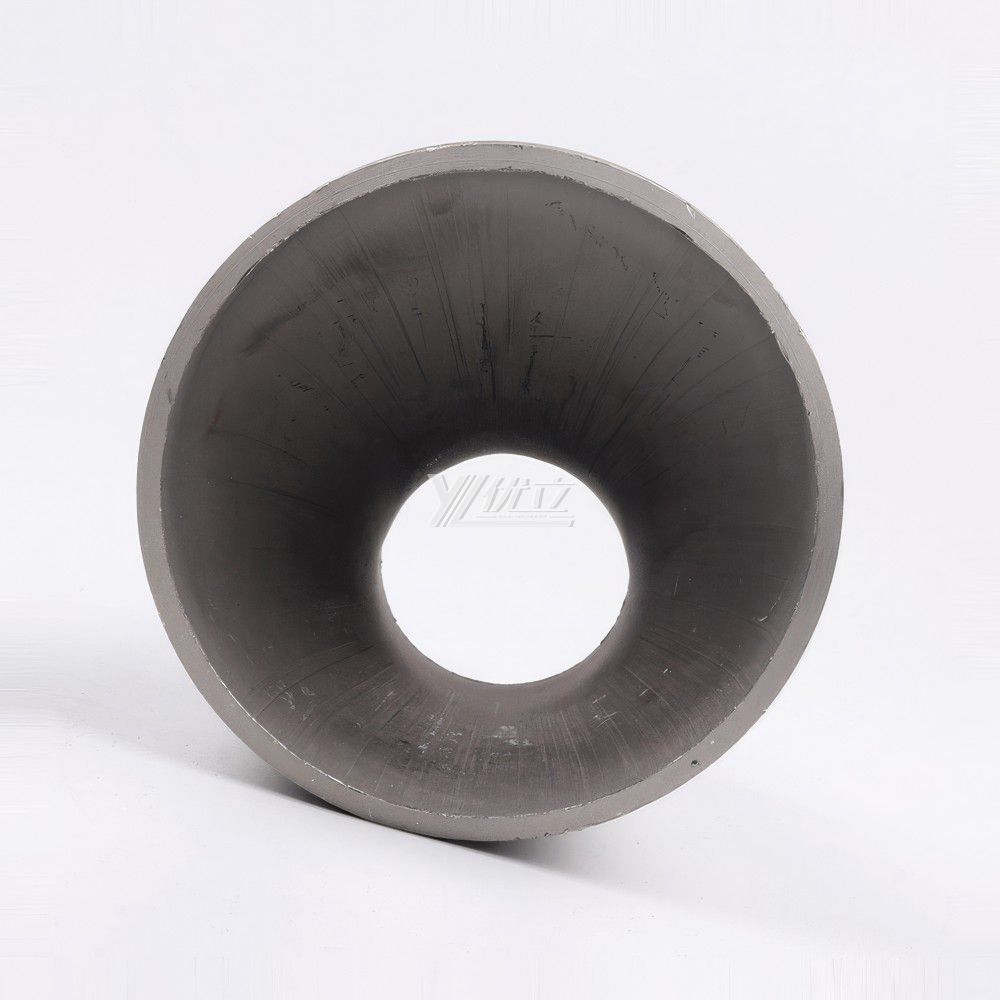

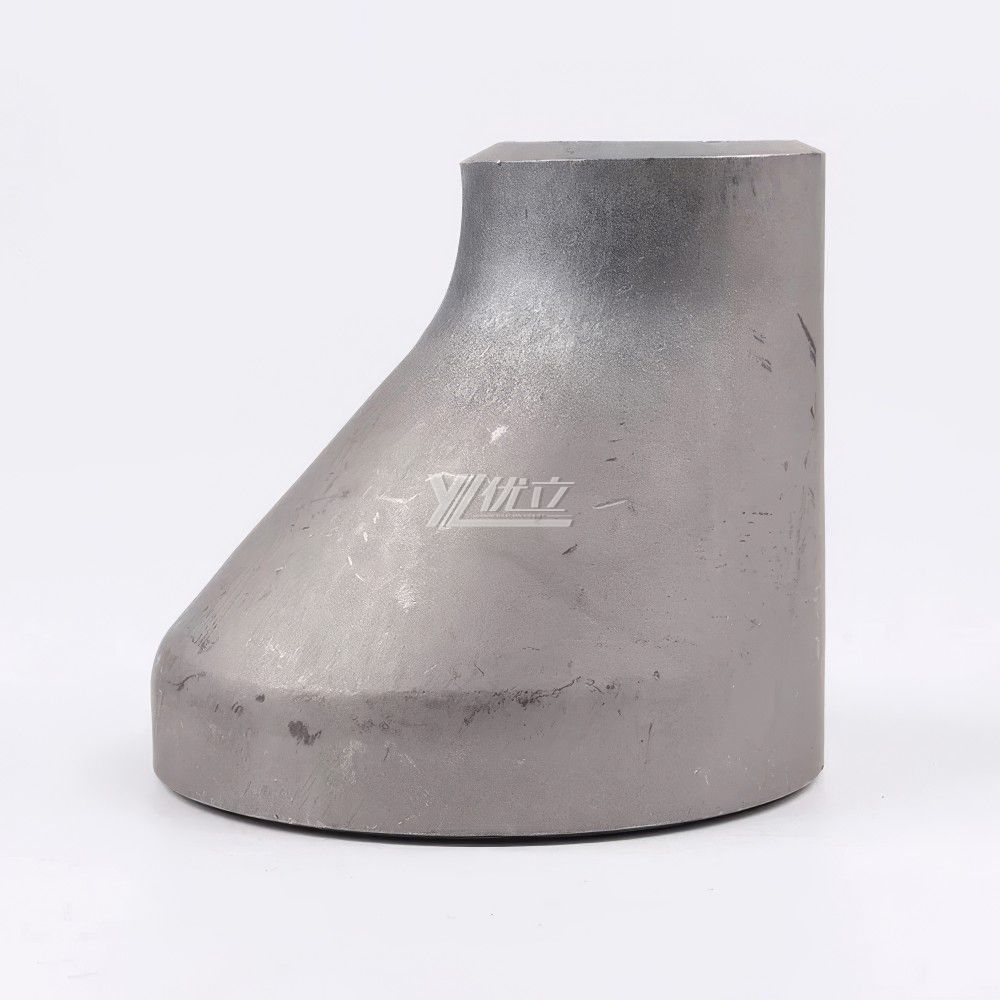

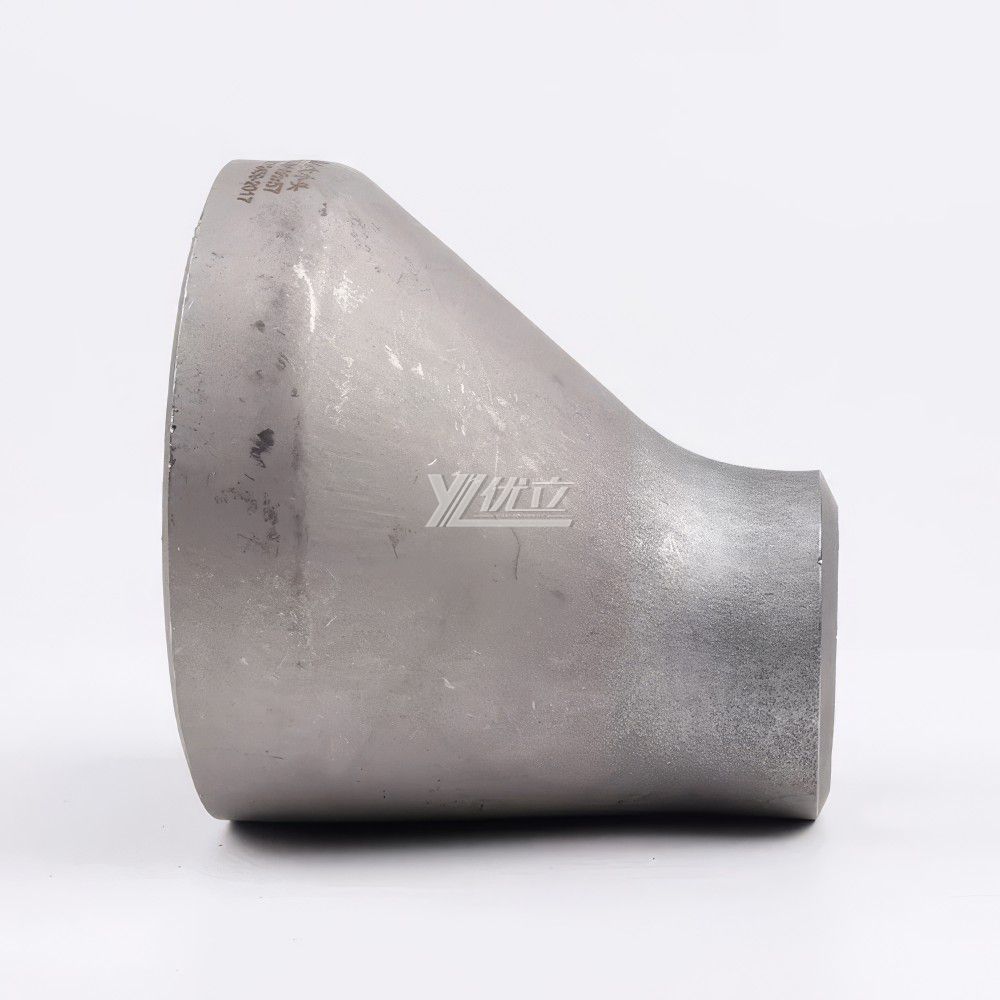

      Eccentric butt Welded Reducer
      butt Welded Reducer



      Body material
      SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
      Full port
      1/2"-40"(DN15-DN1000)
      Working pressure
      PN16,1.6Mpa,16Bar
      Working temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Welding connection
      DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
      Connection type
      Weld,Thread,Socket,Clamped,Flanged,Wafer,KF
      Ring type
      The types of sealing rings include O-ring, E-ring, U-ring, V-ring, Y-ring, rectangular ring, etc
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      7307220000
      Trademark
      YOULI
      Application
      Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      Sanitary fittings: Used in hygienic environments to ensure the smooth flow and safety of fluids. They are designed to prevent contamination and adhere to strict hygiene standards.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Related Video
    Related File
    NO. Name File Detail Size Down
    Online Message
      Message
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      It already exists in the list!
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer

      Model NO.:D017003002D-01

      YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer

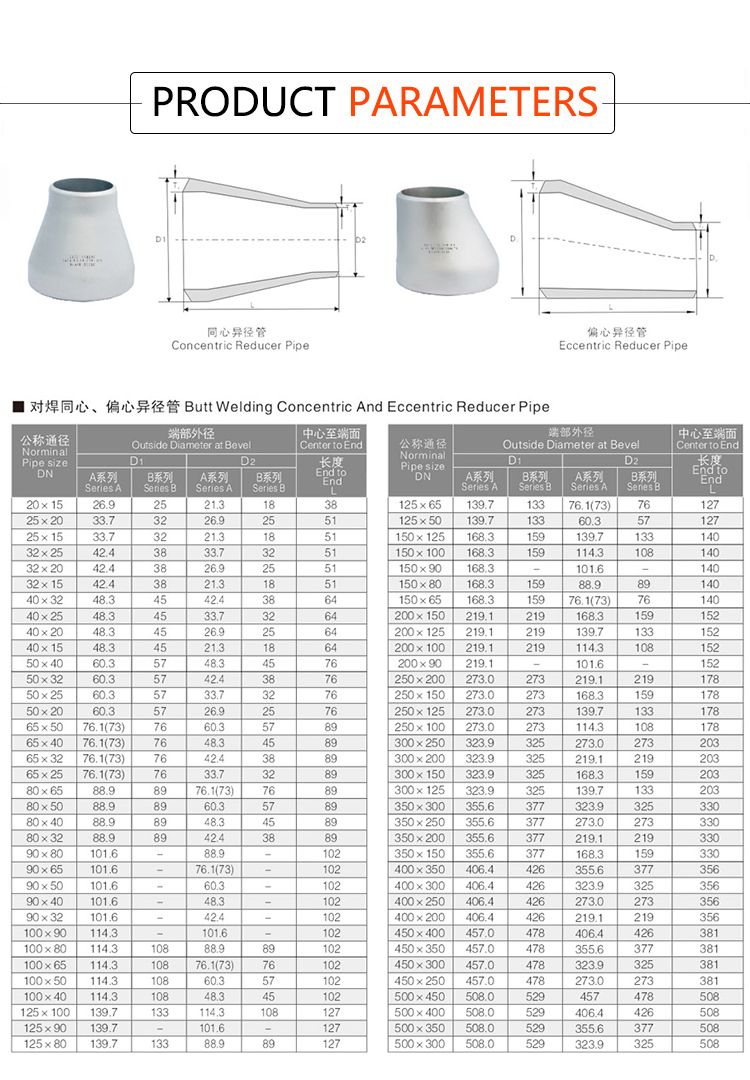

      NO. Mat Spec Wgt(kg) Ps
      1 304 Ф25*20*2
      2 304 Ф27*22*2
      3 304 Ф32*20*3
      4 304 Ф32*25*3
      5 304 Ф34*22*3
      6 304 Ф34*27*3
      7 304 Ф38*20*3
      8 304 Ф38*25*3
      9 304 Ф38*32*3
      10 304 Ф42*27*3
      11 304 Ф42*34*3
      12 304 Ф45*20*3
      13 304 Ф45*25*3
      14 304 Ф45*32*3
      15 304 Ф45*38*3
      16 304 Ф48*22*3
      17 304 Ф48*27*3
      18 304 Ф48*34*3
      19 304 Ф48*42*3
      20 304 Ф57*20*3
      21 304 Ф57*25*3
      22 304 Ф57*32*3
      23 304 Ф57*38*3
      24 304 Ф60*22*3
      25 304 Ф60*27*3
      26 304 Ф60*34*3
      27 304 Ф60*42*3
      28 304 Ф60*48*3
      29 304 Ф76*32*4
      30 304 Ф76*38*4
      31 304 Ф76*45*3
      32 304 Ф76*45*4
      33 304 Ф76*57*3
      34 304 Ф76*57*4
      35 304 Ф89*38*4
      36 304 Ф89*45*4
      37 304 Ф89*57*3
      38 304 Ф89*57*4
      39 304 Ф108*45*4
      40 304 Ф108*57*4
      41 304 Ф108*76*3
      42 304 Ф108*76*4
      43 304 Ф108*89*4
      44 304 Ф114*48*4
      45 304 Ф114*60*4
      46 304 Ф114*76*3
      47 304 Ф114*76*4
      48 304 Ф114*89*3
      49 304 Ф114*89*4
      50 304 Ф133*57*4
      51 304 Ф133*76*4
      52 304 Ф133*89*3
      53 304 Ф133*89*4
      54 304 Ф140*60*4
      55 304 Ф140*76*4
      56 304 Ф140*89*4
      57 304 Ф140*114*4
      58 304 Ф159*57*4
      59 304 Ф159*76*4
      60 304 Ф159*89*4
      61 304 Ф159*108*3
      62 304 Ф168*76*4
      63 304 Ф168*89*4
      64 304 Ф168*114*4
      65 304 Ф168*140*4
      66 304 Ф219*108*4
      67 304 Ф219*133*4
      68 304 Ф219*140*4
      69 304 Ф219*168*4
      70 304 Ф273*159*5
      71 304 Ф273*159*6
      72 304 Ф273*219*5
      73 304 Ф273*219*6
      74 304 Ф325*219*5
      75 304 Ф325*219*6
      76 304 Ф325*273*5
      77 304 Ф325*273*6

      YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer

      Model NO.:D017003002D-01

      YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 Ф25*20*2 $1.16 6.1
      2 304 Ф27*22*2 $1.16 6.1
      3 304 Ф32*20*3 $1.3 6.8
      4 304 Ф32*25*3 $1.16 6.1
      5 304 Ф34*22*3 $1.41 7.4
      6 304 Ф34*27*3 $1.3 6.8
      7 304 Ф38*20*3 $1.81 9.5
      8 304 Ф38*25*3 $1.68 8.8
      9 304 Ф38*32*3 $1.41 7.4
      10 304 Ф42*27*3 $1.93 10.1
      11 304 Ф42*34*3 $1.81 9.5
      12 304 Ф45*20*3 $2.84 14.9
      13 304 Ф45*25*3 $1.81 9.5
      14 304 Ф45*32*3 $2.33 12.2
      15 304 Ф45*38*3 $1.68 8.8
      16 304 Ф48*22*3 $3.09 16.2
      17 304 Ф48*27*3 $2.33 12.2
      18 304 Ф48*34*3 $2.06 10.8
      19 304 Ф48*42*3 $1.81 9.5
      20 304 Ф57*20*3 $4.62 24.2
      21 304 Ф57*25*3 $3.36 17.6
      22 304 Ф57*32*3 $2.84 14.9
      23 304 Ф57*38*3 $2.19 11.5
      24 304 Ф60*22*3 $5.15 27
      25 304 Ф60*27*3 $3.61 18.9
      26 304 Ф60*34*3 $3.09 16.2
      27 304 Ф60*42*3 $2.44 12.8
      28 304 Ф60*48*3 $2.33 12.2
      29 304 Ф76*32*4 $7.21 37.8
      30 304 Ф76*38*4 $5.94 31.1
      31 304 Ф76*45*3 $3.61 18.9
      32 304 Ф76*45*4 $5.15 27
      33 304 Ф76*57*3 $3.09 16.2
      34 304 Ф76*57*4 $4.64 24.3
      35 304 Ф89*38*4 $7.73 40.5
      36 304 Ф89*45*4 $6.45 33.8
      37 304 Ф89*57*3 $4.64 24.3
      38 304 Ф89*57*4 $6.45 33.8
      39 304 Ф108*45*4 $9.79 51.3
      40 304 Ф108*57*4 $7.73 40.5
      41 304 Ф108*76*3 $5.42 28.4
      42 304 Ф108*76*4 $7.21 37.8
      43 304 Ф108*89*4 $6.45 33.8
      44 304 Ф114*48*4 $11.6 60.8
      45 304 Ф114*60*4 $9.03 47.3
      46 304 Ф114*76*3 $6.18 32.4
      47 304 Ф114*76*4 $7.21 37.8
      48 304 Ф114*89*3 $5.67 29.7
      49 304 Ф114*89*4 $6.97 36.5
      50 304 Ф133*57*4 $15.46 81
      51 304 Ф133*76*4 $12.88 67.5
      52 304 Ф133*89*3 $8.51 44.6
      53 304 Ф133*89*4 $11.09 58.1
      54 304 Ф140*60*4 $15.97 83.7
      55 304 Ф140*76*4 $13.4 70.2
      56 304 Ф140*89*4 $12.12 63.5
      57 304 Ф140*114*4 $10.82 56.7
      58 304 Ф159*57*4 $28.34 148.5
      59 304 Ф159*76*4 $18.03 94.5
      60 304 Ф159*89*4 $15.21 79.7
      61 304 Ф159*108*3 $11.34 59.4
      62 304 Ф168*76*4 $19.33 101.3
      63 304 Ф168*89*4 $18.03 94.5
      64 304 Ф168*114*4 $16.76 87.8
      65 304 Ф168*140*4 $15.46 81
      66 304 Ф219*108*4 $32.25 169
      67 304 Ф219*133*4 $28.44 149
      68 304 Ф219*140*4 $28.44 149
      69 304 Ф219*168*4 $28.44 149
      70 304 Ф273*159*5 $56.68 297
      71 304 Ф273*159*6 $65.08 341
      72 304 Ф273*219*5 $46.37 243
      73 304 Ф273*219*6 $54.2 284
      74 304 Ф325*219*5 $74.05 388
      75 304 Ф325*219*6 $80.53 422
      76 304 Ф325*273*5 $72.9 382
      77 304 Ф325*273*6 $85.69 449

      YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer

      Model NO.:D017003002D-01

      YOULI Industrial Shot Blasting Pickling Stainless Steel ANSI WCB 304 SS316L 3 Way Pipe Fitting Eccentric Butt Welded Reducer
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 Ф25*20*2 $1.16
      2 304 Ф27*22*2 $1.16
      3 304 Ф32*20*3 $1.3
      4 304 Ф32*25*3 $1.16
      5 304 Ф34*22*3 $1.41
      6 304 Ф34*27*3 $1.3
      7 304 Ф38*20*3 $1.81
      8 304 Ф38*25*3 $1.68
      9 304 Ф38*32*3 $1.41
      10 304 Ф42*27*3 $1.93
      11 304 Ф42*34*3 $1.81
      12 304 Ф45*20*3 $2.84
      13 304 Ф45*25*3 $1.81
      14 304 Ф45*32*3 $2.33
      15 304 Ф45*38*3 $1.68
      16 304 Ф48*22*3 $3.09
      17 304 Ф48*27*3 $2.33
      18 304 Ф48*34*3 $2.06
      19 304 Ф48*42*3 $1.81
      20 304 Ф57*20*3 $4.62
      21 304 Ф57*25*3 $3.36
      22 304 Ф57*32*3 $2.84
      23 304 Ф57*38*3 $2.19
      24 304 Ф60*22*3 $5.15
      25 304 Ф60*27*3 $3.61
      26 304 Ф60*34*3 $3.09
      27 304 Ф60*42*3 $2.44
      28 304 Ф60*48*3 $2.33
      29 304 Ф76*32*4 $7.21
      30 304 Ф76*38*4 $5.94
      31 304 Ф76*45*3 $3.61
      32 304 Ф76*45*4 $5.15
      33 304 Ф76*57*3 $3.09
      34 304 Ф76*57*4 $4.64
      35 304 Ф89*38*4 $7.73
      36 304 Ф89*45*4 $6.45
      37 304 Ф89*57*3 $4.64
      38 304 Ф89*57*4 $6.45
      39 304 Ф108*45*4 $9.79
      40 304 Ф108*57*4 $7.73
      41 304 Ф108*76*3 $5.42
      42 304 Ф108*76*4 $7.21
      43 304 Ф108*89*4 $6.45
      44 304 Ф114*48*4 $11.6
      45 304 Ф114*60*4 $9.03
      46 304 Ф114*76*3 $6.18
      47 304 Ф114*76*4 $7.21
      48 304 Ф114*89*3 $5.67
      49 304 Ф114*89*4 $6.97
      50 304 Ф133*57*4 $15.46
      51 304 Ф133*76*4 $12.88
      52 304 Ф133*89*3 $8.51
      53 304 Ф133*89*4 $11.09
      54 304 Ф140*60*4 $15.97
      55 304 Ф140*76*4 $13.4
      56 304 Ф140*89*4 $12.12
      57 304 Ф140*114*4 $10.82
      58 304 Ф159*57*4 $28.34
      59 304 Ф159*76*4 $18.03
      60 304 Ф159*89*4 $15.21
      61 304 Ф159*108*3 $11.34
      62 304 Ф168*76*4 $19.33
      63 304 Ф168*89*4 $18.03
      64 304 Ф168*114*4 $16.76
      65 304 Ф168*140*4 $15.46
      66 304 Ф219*108*4 $32.25
      67 304 Ф219*133*4 $28.44
      68 304 Ф219*140*4 $28.44
      69 304 Ф219*168*4 $28.44
      70 304 Ф273*159*5 $56.68
      71 304 Ф273*159*6 $65.08
      72 304 Ф273*219*5 $46.37
      73 304 Ф273*219*6 $54.2
      74 304 Ф325*219*5 $74.05
      75 304 Ф325*219*6 $80.53
      76 304 Ф325*273*5 $72.9
      77 304 Ф325*273*6 $85.69
