    Reducer

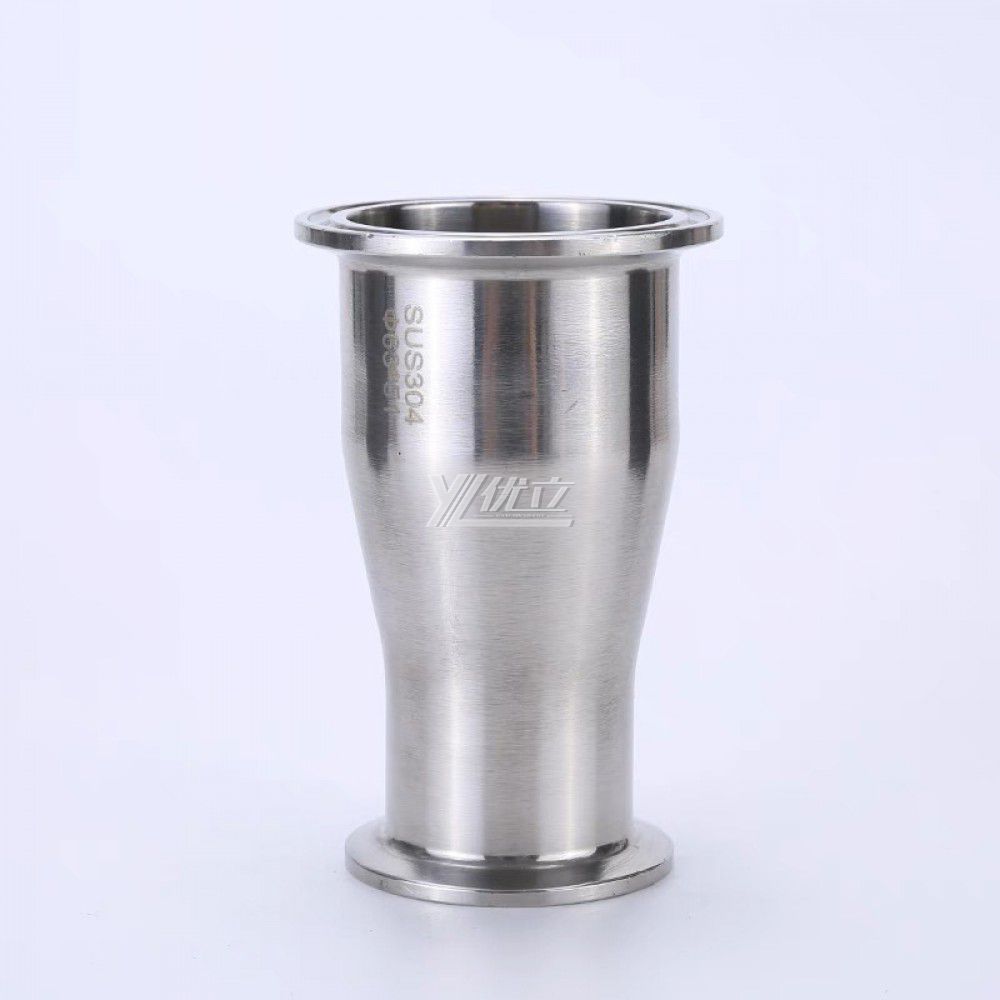

    YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer

    Model NO.:D003004002001D-01

    Pur Qty. / Ref FOB Price

    1 PieceUS $3.02-9.16 / Piece

    Product Details:Ckeck View

    Min. Order:1 Piece

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Type:Equal

    Connection:Tri Clamp Ends

    Material:Stainless Steel

    Shape:Equal Tee

    Lateral:90°Tee

    Head Code:Round

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Basic Info

      Model NO.D003004002001D-01

      Wall ThicknessSCH10

      FinishDull Polished and Mirror Polised

      TechnicsForged

      Pressure Rating0-10bar

      StandardDIN, 3A, SMS, Rjt

      CertificationISO, CE

      Material QualitySS304, SS304L ,SS316, SS316L

      Specifications1"-6",DIN 25-150

      Availabe StandardSMS,DIN,3A,Idf,Rjt, BS, ISO

      Temperature Range-20degree Celsius~135degree Celsius

      Type of ElbowEqual Tee,Reducing Tee,Short Tee,U Type Tee

      Available Polishing180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished

      Pressure Range1.5~3bar

      Available Thickness1.25mm,1.5mm,1.65mm,2mm,2.5mm,3mm

      Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends

      ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Product name:YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer

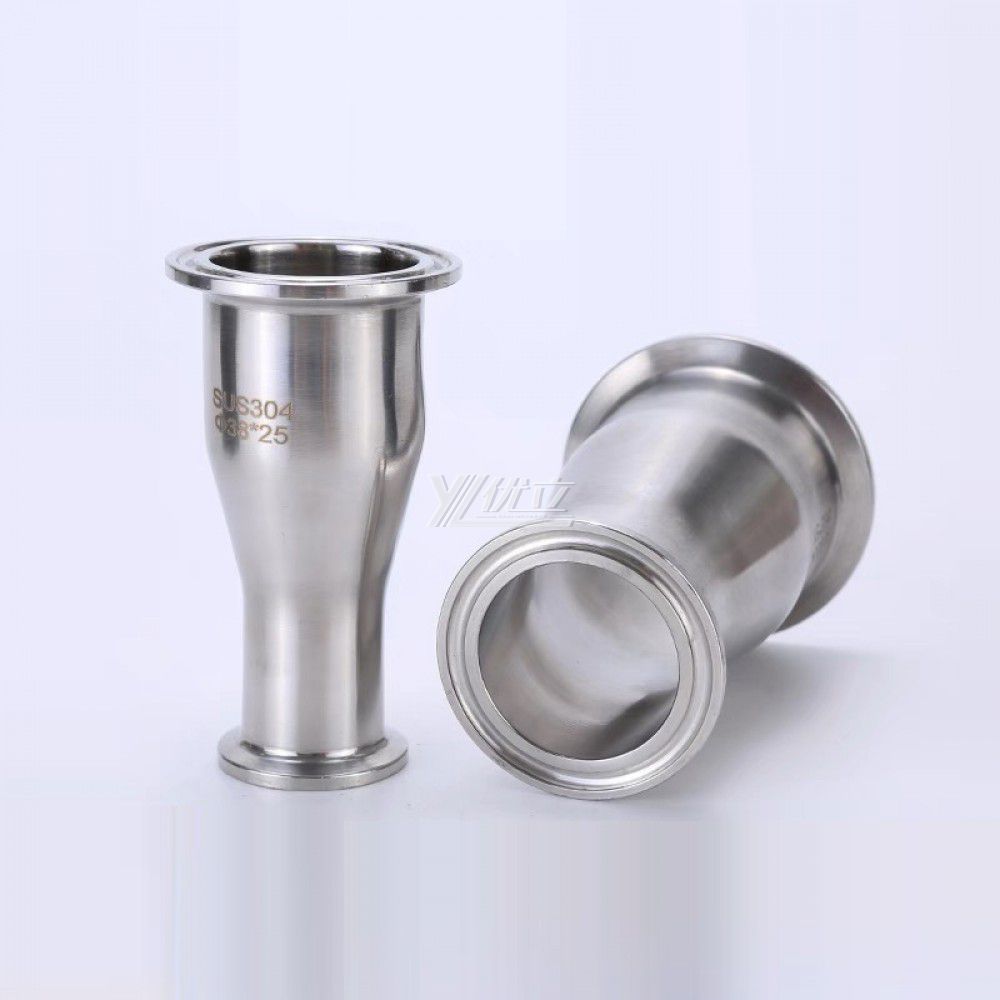

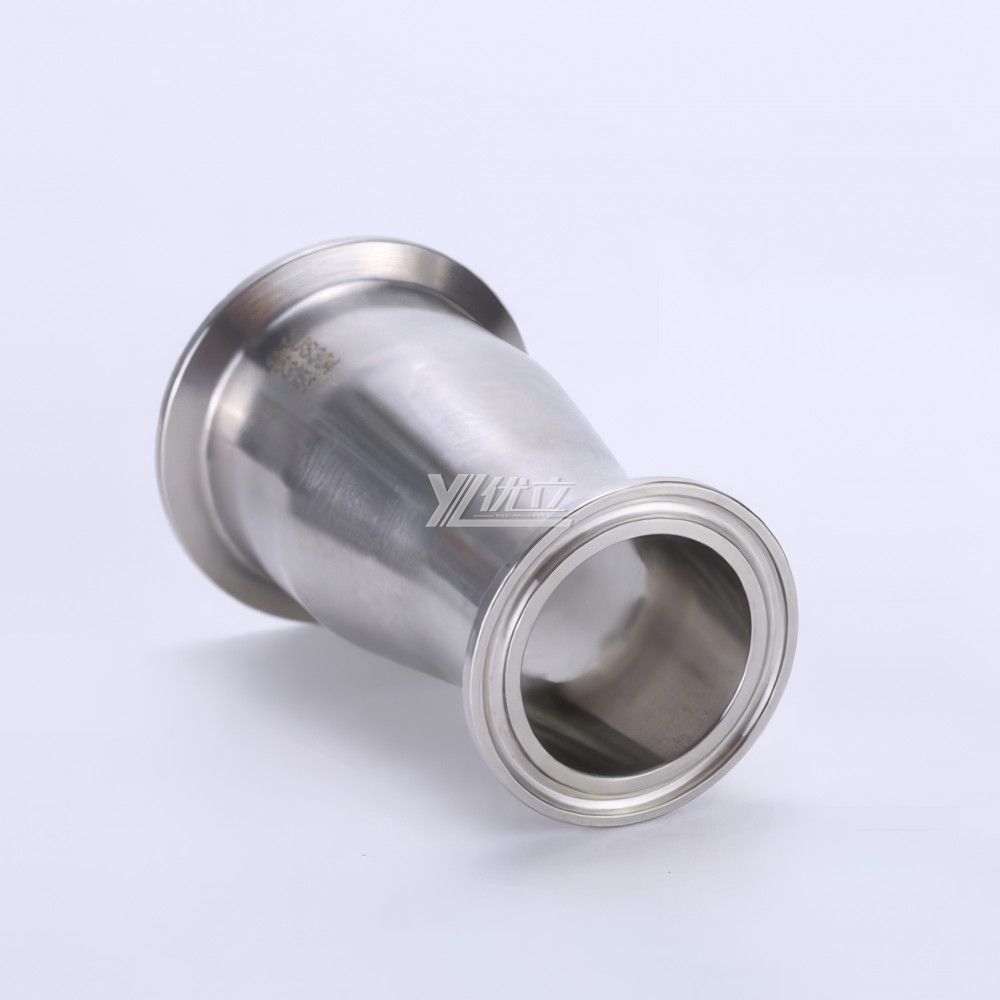

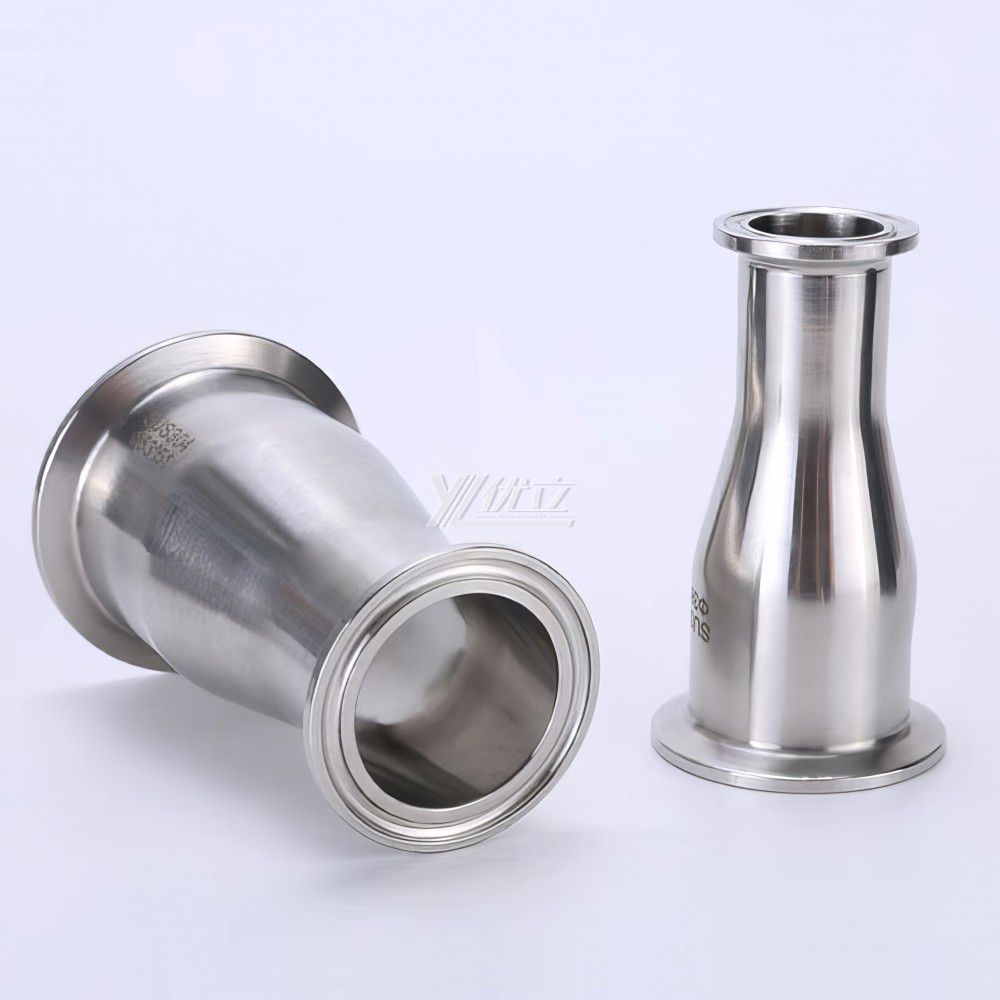

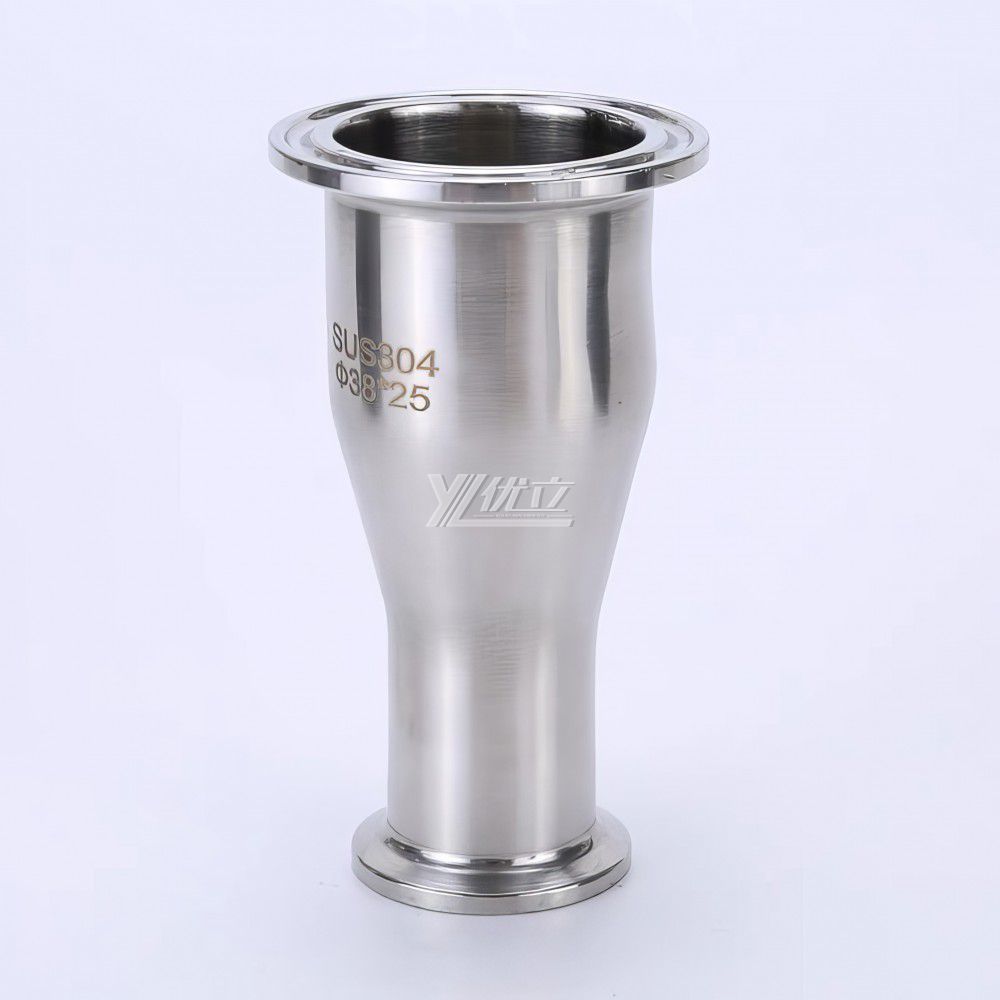

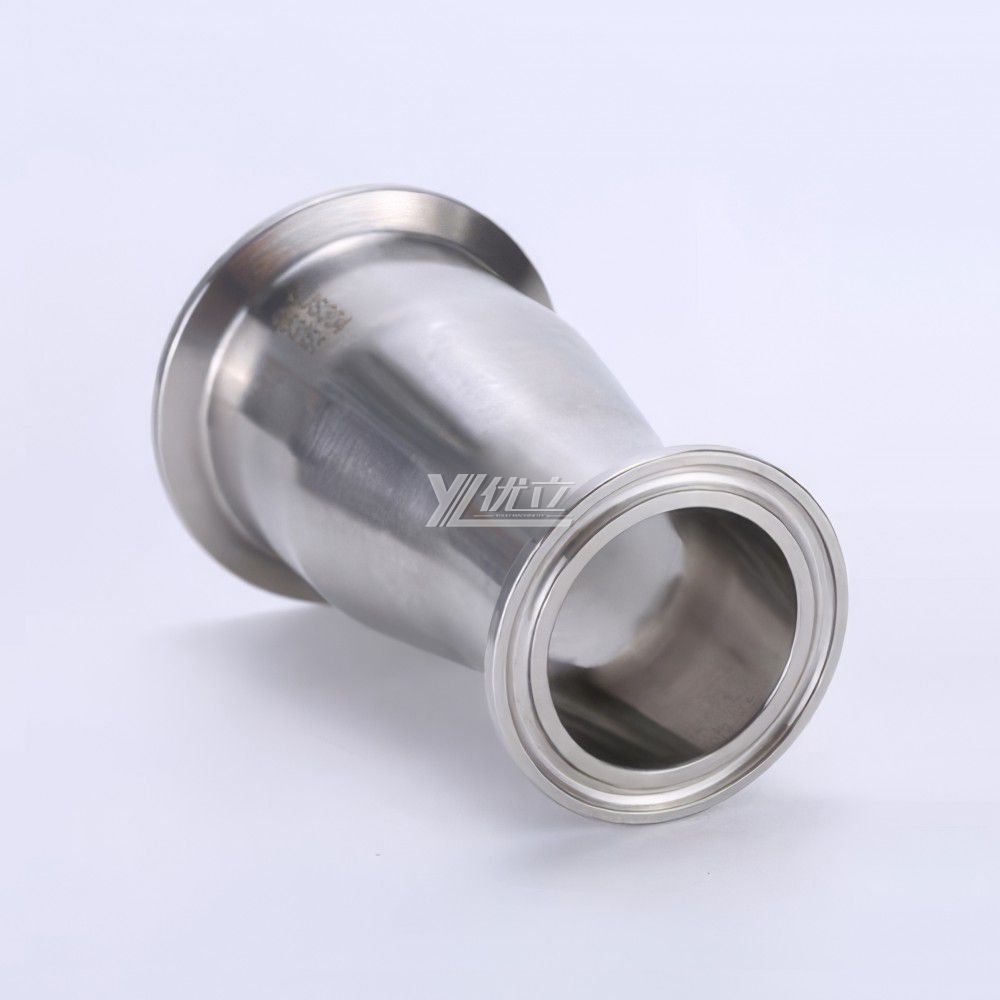

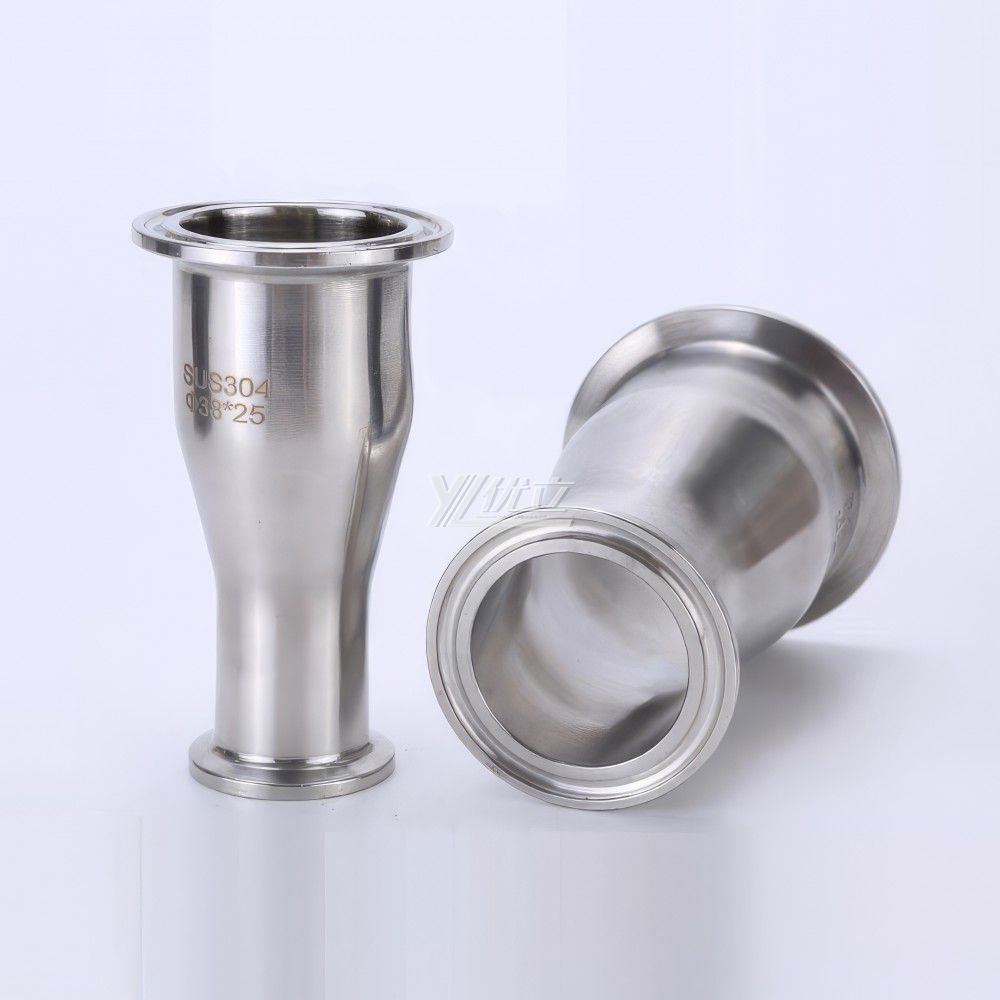

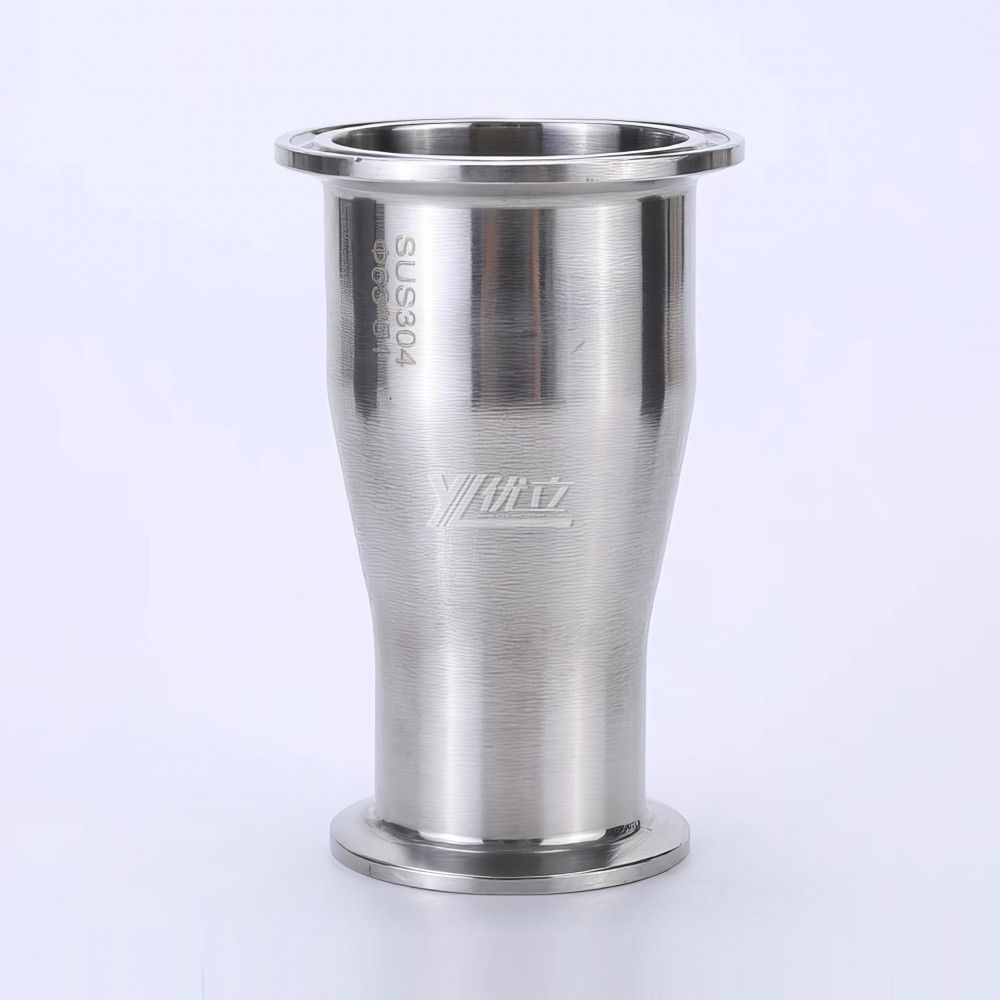

      Concentric Clamped Reducer
      Concentric Reducer



      Body material
      SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
      Full port
      1/2"-40"(DN15-DN1000)
      Working pressure
      PN16,1.6Mpa,16Bar
      Working temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Welding connection
      DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
      Connection type
      Weld,Thread,Socket,Clamped,Flanged,Wafer,KF
      Ring type
      The types of sealing rings include O-ring, E-ring, U-ring, V-ring, Y-ring, rectangular ring, etc
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      7307220000
      Trademark
      YOULI
      Application
      Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      Sanitary fittings: Used in hygienic environments to ensure the smooth flow and safety of fluids. They are designed to prevent contamination and adhere to strict hygiene standards.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Related Video
    Related File
    NO. Name File Detail Size Down
    Online Message
      Message
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      It already exists in the list!
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer

      Model NO.:D003004002001D-01

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer

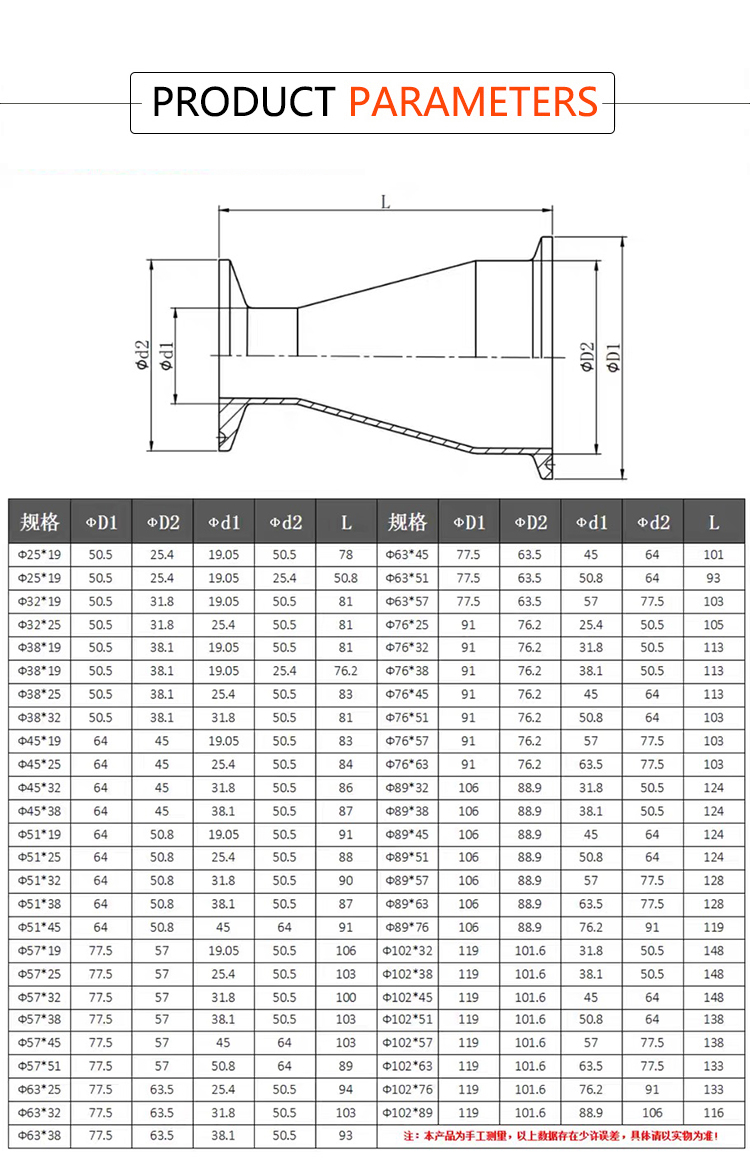

      NO. Mat Spec Wgt(kg) Ps
      1 304 Φ25x19mm K50.5* K50.5MM 0.125kg
      2 304 Φ32x19mm K50.5* K50.5MM 0.144kg
      3 304 Φ32x25mm K50.5* K50.5MM 0.144kg
      4 304 Φ38x19mm K50.5* K50.5MM 0.175kg
      5 304 Φ38x25mm K50.5* K50.5MM 0.19kg
      6 304 Φ38x32mm K50.5* K50.5MM 0.261kg
      7 304 Φ45x19mm K64* K50.5MM 0.342kg
      8 304 Φ45x25mm K64* K50.5MM 0.55kg
      9 304 Φ45x32mm K64* K50.5MM 0.65kg
      10 304 Φ45x38mm K64* K50.5MM 0.85kg
      11 304 Φ51x19mm K64* K50.5MM 1.1kg
      12 304 Φ51x25mm K64* K50.5MM 1.4kg
      13 304 Φ51x32mm K64* K50.5MM
      14 304 Φ51x38mm K64* K50.5MM
      15 304 Φ51x45mm K64* K50.5MM
      16 304 Φ57x19mm K77.5* K50.5MM
      17 304 Φ57x25mm K77.5* K50.5MM
      18 304 Φ57x32mm K77.5* K50.5MM
      19 304 Φ57x38mm K77.5* K50.5MM
      20 304 Φ57x45mm K77.5* K50.5MM
      21 304 Φ57x51mm K77.5* K64MM
      22 304 Φ63x19mm K77.5* K50.5MM
      23 304 Φ63x25mm K77.5* K50.5MM
      24 304 Φ63x32mm K77.5* K50.5MM
      25 304 Φ63x38mm K77.5* K50.5MM
      26 304 Φ63x45mm K77.5* K50.5MM
      27 304 Φ63x51mm K77.5* K64MM
      28 304 Φ63x57mm K77.5* K64MM
      29 304 Φ76x25mm K91* K50.5MM
      30 304 Φ76x32mm K91* K50.5MM
      31 304 Φ76x38mm K91* K50.5MM
      32 304 Φ76x45mm K91* K50.5MM
      33 304 Φ76x51mm K91* K64MM
      34 304 Φ76x57mm K91* K64MM
      35 304 Φ76x63mm K91* K77.5MM
      36 304 Φ89x32mm K106* K50.5MM
      37 304 Φ89x38mm K106* K50.5MM
      38 304 Φ89x45mm K106* K50.5MM
      39 304 Φ89x51mm K106* K64MM
      40 304 Φ89x57mm K106* K64MM
      41 304 Φ89x63mm K106* K77.5MM
      42 304 Φ89x76mm K106* K91MM
      43 304 Φ102x25mm K119* K50.5MM
      44 304 Φ102x32mm K119* K50.5MM
      45 304 Φ102x38mm K119* K50.5MM
      46 304 Φ102x45mm K119* K50.5MM
      47 304 Φ102x51mm K119* K64MM
      48 304 Φ102x57mm K119* K64MM
      49 304 Φ102x63mm K119* K77.5MM
      50 304 Φ102x76mm K119* K91MM
      51 304 Φ102x89mm K119* K106MM
      52 304 Φ108x32mm K119* K50.5MM
      53 304 Φ108x38mm K119* K50.5MM
      54 304 Φ108x45mm K119* K50.5MM
      55 304 Φ108x51mm K119* K64MM
      56 304 Φ108x57mm K119* K64MM
      57 304 Φ108x63mm K119* K77.5MM
      58 304 Φ108x76mm K119* K91MM
      59 304 Φ108x89mm K119* K106MM
      60 304 Φ108x102mm K119* K119MM

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer

      Model NO.:D003004002001D-01

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 Φ25x19mm K50.5* K50.5MM $3.02 15.8 0.125kg
      2 304 Φ32x19mm K50.5* K50.5MM $3.02 15.8 0.144kg
      3 304 Φ32x25mm K50.5* K50.5MM $3.02 15.8 0.144kg
      4 304 Φ38x19mm K50.5* K50.5MM $3.02 15.8 0.175kg
      5 304 Φ38x25mm K50.5* K50.5MM $3.02 15.8 0.19kg
      6 304 Φ38x32mm K50.5* K50.5MM $3.02 15.8 0.261kg
      7 304 Φ45x19mm K64* K50.5MM $3.21 16.8 0.342kg
      8 304 Φ45x25mm K64* K50.5MM $3.21 16.8 0.55kg
      9 304 Φ45x32mm K64* K50.5MM $3.21 16.8 0.65kg
      10 304 Φ45x38mm K64* K50.5MM $3.21 16.8 0.85kg
      11 304 Φ51x19mm K64* K50.5MM $3.4 17.8 1.1kg
      12 304 Φ51x25mm K64* K50.5MM $3.4 17.8 1.4kg
      13 304 Φ51x32mm K64* K50.5MM $3.4 17.8
      14 304 Φ51x38mm K64* K50.5MM $3.4 17.8
      15 304 Φ51x45mm K64* K50.5MM $3.4 17.8
      16 304 Φ57x19mm K77.5* K50.5MM $4.54 23.8
      17 304 Φ57x25mm K77.5* K50.5MM $4.54 23.8
      18 304 Φ57x32mm K77.5* K50.5MM $4.54 23.8
      19 304 Φ57x38mm K77.5* K50.5MM $4.54 23.8
      20 304 Φ57x45mm K77.5* K50.5MM $4.54 23.8
      21 304 Φ57x51mm K77.5* K64MM $4.54 23.8
      22 304 Φ63x19mm K77.5* K50.5MM $5.25 27.5
      23 304 Φ63x25mm K77.5* K50.5MM $5.25 27.5
      24 304 Φ63x32mm K77.5* K50.5MM $5.25 27.5
      25 304 Φ63x38mm K77.5* K50.5MM $5.25 27.5
      26 304 Φ63x45mm K77.5* K50.5MM $5.25 27.5
      27 304 Φ63x51mm K77.5* K64MM $5.25 27.5
      28 304 Φ63x57mm K77.5* K64MM $5.25 27.5
      29 304 Φ76x25mm K91* K50.5MM $5.82 30.5
      30 304 Φ76x32mm K91* K50.5MM $5.82 30.5
      31 304 Φ76x38mm K91* K50.5MM $5.82 30.5
      32 304 Φ76x45mm K91* K50.5MM $5.82 30.5
      33 304 Φ76x51mm K91* K64MM $5.82 30.5
      34 304 Φ76x57mm K91* K64MM $5.82 30.5
      35 304 Φ76x63mm K91* K77.5MM $5.82 30.5
      36 304 Φ89x32mm K106* K50.5MM $6.97 36.5
      37 304 Φ89x38mm K106* K50.5MM $6.97 36.5
      38 304 Φ89x45mm K106* K50.5MM $6.97 36.5
      39 304 Φ89x51mm K106* K64MM $6.97 36.5
      40 304 Φ89x57mm K106* K64MM $6.97 36.5
      41 304 Φ89x63mm K106* K77.5MM $7.54 39.5
      42 304 Φ89x76mm K106* K91MM $7.54 39.5
      43 304 Φ102x25mm K119* K50.5MM $8.68 45.5
      44 304 Φ102x32mm K119* K50.5MM $8.68 45.5
      45 304 Φ102x38mm K119* K50.5MM $8.68 45.5
      46 304 Φ102x45mm K119* K50.5MM $8.68 45.5
      47 304 Φ102x51mm K119* K64MM $8.68 45.5
      48 304 Φ102x57mm K119* K64MM $8.68 45.5
      49 304 Φ102x63mm K119* K77.5MM $8.68 45.5
      50 304 Φ102x76mm K119* K91MM $8.68 45.5
      51 304 Φ102x89mm K119* K106MM $8.68 45.5
      52 304 Φ108x32mm K119* K50.5MM $9.16 48
      53 304 Φ108x38mm K119* K50.5MM $9.16 48
      54 304 Φ108x45mm K119* K50.5MM $9.16 48
      55 304 Φ108x51mm K119* K64MM $9.16 48
      56 304 Φ108x57mm K119* K64MM $9.16 48
      57 304 Φ108x63mm K119* K77.5MM $9.16 48
      58 304 Φ108x76mm K119* K91MM $9.16 48
      59 304 Φ108x89mm K119* K106MM $9.16 48
      60 304 Φ108x102mm K119* K119MM $9.16 48

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer

      Model NO.:D003004002001D-01

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L 3A SMS DIN ISO Welded Pipe Fitting Concentric Clamped Reducer
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 Φ25x19mm K50.5* K50.5MM $3.02 0.125kg
      2 304 Φ32x19mm K50.5* K50.5MM $3.02 0.144kg
      3 304 Φ32x25mm K50.5* K50.5MM $3.02 0.144kg
      4 304 Φ38x19mm K50.5* K50.5MM $3.02 0.175kg
      5 304 Φ38x25mm K50.5* K50.5MM $3.02 0.19kg
      6 304 Φ38x32mm K50.5* K50.5MM $3.02 0.261kg
      7 304 Φ45x19mm K64* K50.5MM $3.21 0.342kg
      8 304 Φ45x25mm K64* K50.5MM $3.21 0.55kg
      9 304 Φ45x32mm K64* K50.5MM $3.21 0.65kg
      10 304 Φ45x38mm K64* K50.5MM $3.21 0.85kg
      11 304 Φ51x19mm K64* K50.5MM $3.4 1.1kg
      12 304 Φ51x25mm K64* K50.5MM $3.4 1.4kg
      13 304 Φ51x32mm K64* K50.5MM $3.4
      14 304 Φ51x38mm K64* K50.5MM $3.4
      15 304 Φ51x45mm K64* K50.5MM $3.4
      16 304 Φ57x19mm K77.5* K50.5MM $4.54
      17 304 Φ57x25mm K77.5* K50.5MM $4.54
      18 304 Φ57x32mm K77.5* K50.5MM $4.54
      19 304 Φ57x38mm K77.5* K50.5MM $4.54
      20 304 Φ57x45mm K77.5* K50.5MM $4.54
      21 304 Φ57x51mm K77.5* K64MM $4.54
      22 304 Φ63x19mm K77.5* K50.5MM $5.25
      23 304 Φ63x25mm K77.5* K50.5MM $5.25
      24 304 Φ63x32mm K77.5* K50.5MM $5.25
      25 304 Φ63x38mm K77.5* K50.5MM $5.25
      26 304 Φ63x45mm K77.5* K50.5MM $5.25
      27 304 Φ63x51mm K77.5* K64MM $5.25
      28 304 Φ63x57mm K77.5* K64MM $5.25
      29 304 Φ76x25mm K91* K50.5MM $5.82
      30 304 Φ76x32mm K91* K50.5MM $5.82
      31 304 Φ76x38mm K91* K50.5MM $5.82
      32 304 Φ76x45mm K91* K50.5MM $5.82
      33 304 Φ76x51mm K91* K64MM $5.82
      34 304 Φ76x57mm K91* K64MM $5.82
      35 304 Φ76x63mm K91* K77.5MM $5.82
      36 304 Φ89x32mm K106* K50.5MM $6.97
      37 304 Φ89x38mm K106* K50.5MM $6.97
      38 304 Φ89x45mm K106* K50.5MM $6.97
      39 304 Φ89x51mm K106* K64MM $6.97
      40 304 Φ89x57mm K106* K64MM $6.97
      41 304 Φ89x63mm K106* K77.5MM $7.54
      42 304 Φ89x76mm K106* K91MM $7.54
      43 304 Φ102x25mm K119* K50.5MM $8.68
      44 304 Φ102x32mm K119* K50.5MM $8.68
      45 304 Φ102x38mm K119* K50.5MM $8.68
      46 304 Φ102x45mm K119* K50.5MM $8.68
      47 304 Φ102x51mm K119* K64MM $8.68
      48 304 Φ102x57mm K119* K64MM $8.68
      49 304 Φ102x63mm K119* K77.5MM $8.68
      50 304 Φ102x76mm K119* K91MM $8.68
      51 304 Φ102x89mm K119* K106MM $8.68
      52 304 Φ108x32mm K119* K50.5MM $9.16
      53 304 Φ108x38mm K119* K50.5MM $9.16
      54 304 Φ108x45mm K119* K50.5MM $9.16
      55 304 Φ108x51mm K119* K64MM $9.16
      56 304 Φ108x57mm K119* K64MM $9.16
      57 304 Φ108x63mm K119* K77.5MM $9.16
      58 304 Φ108x76mm K119* K91MM $9.16
      59 304 Φ108x89mm K119* K106MM $9.16
      60 304 Φ108x102mm K119* K119MM $9.16
