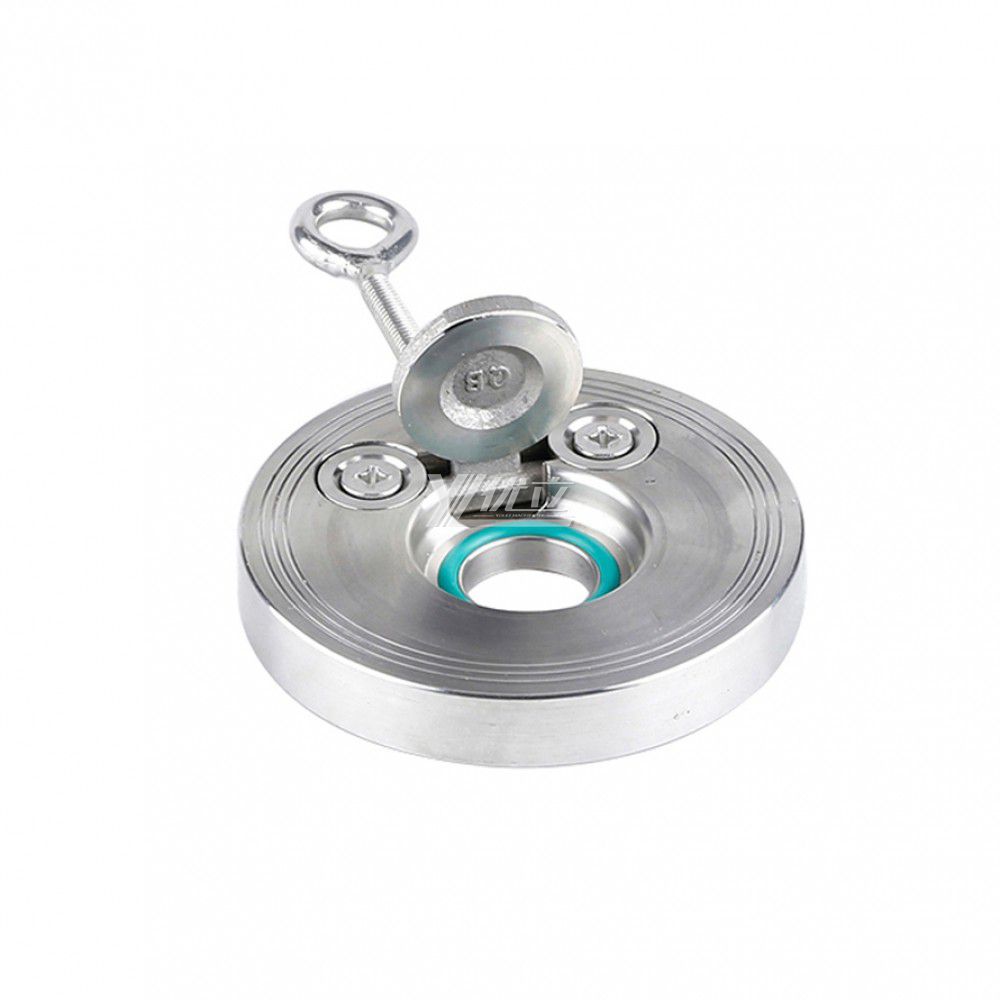

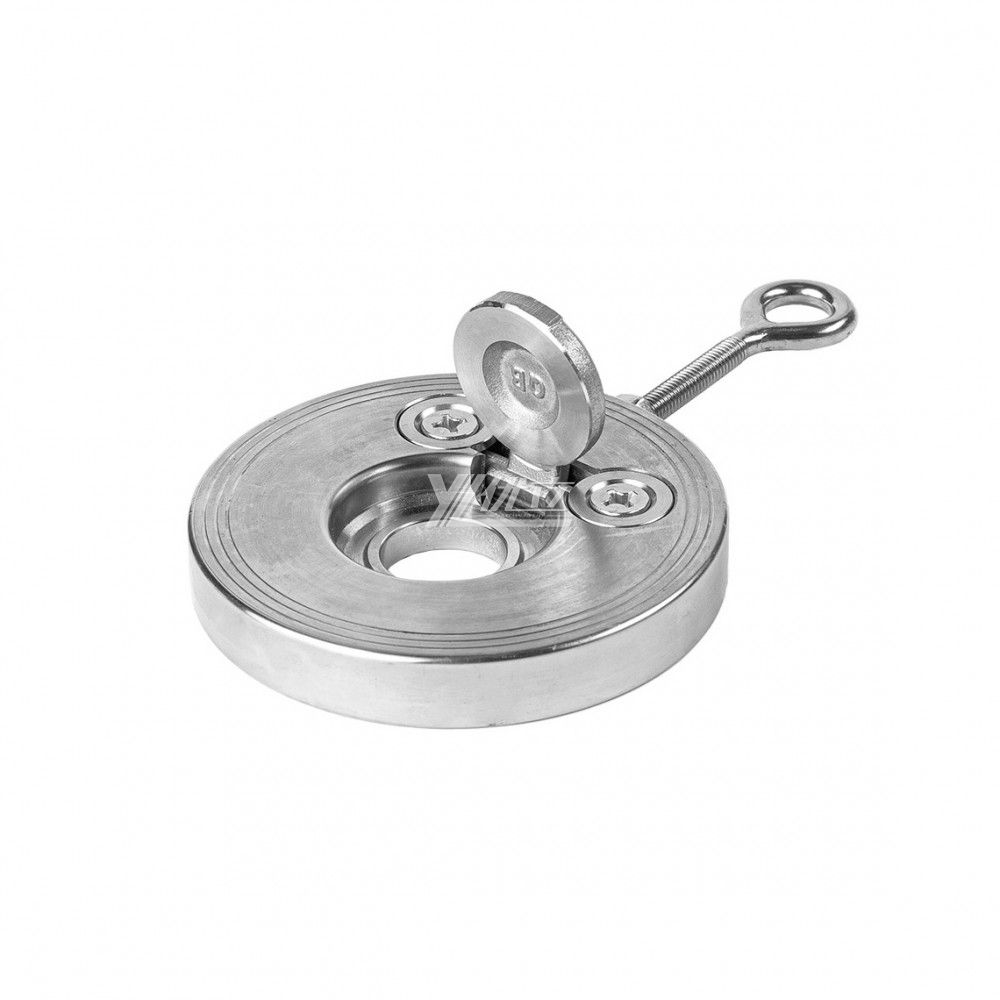

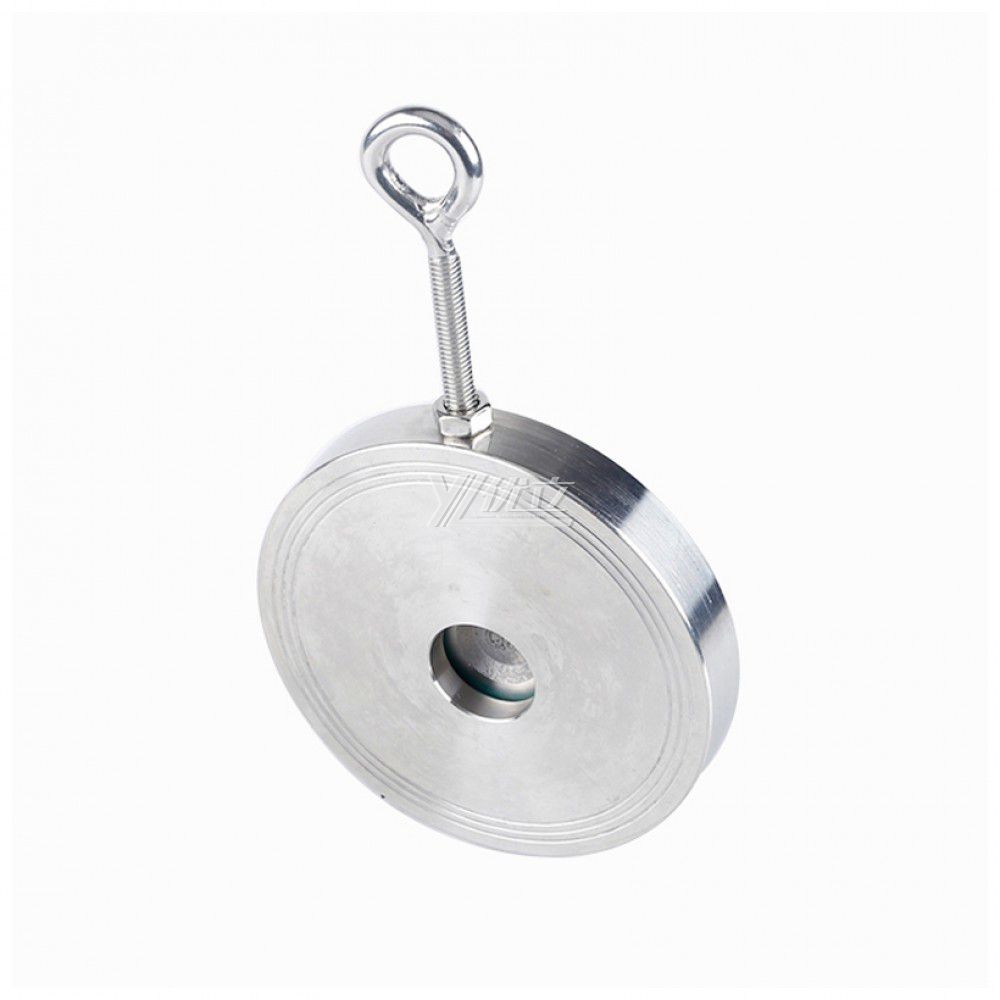

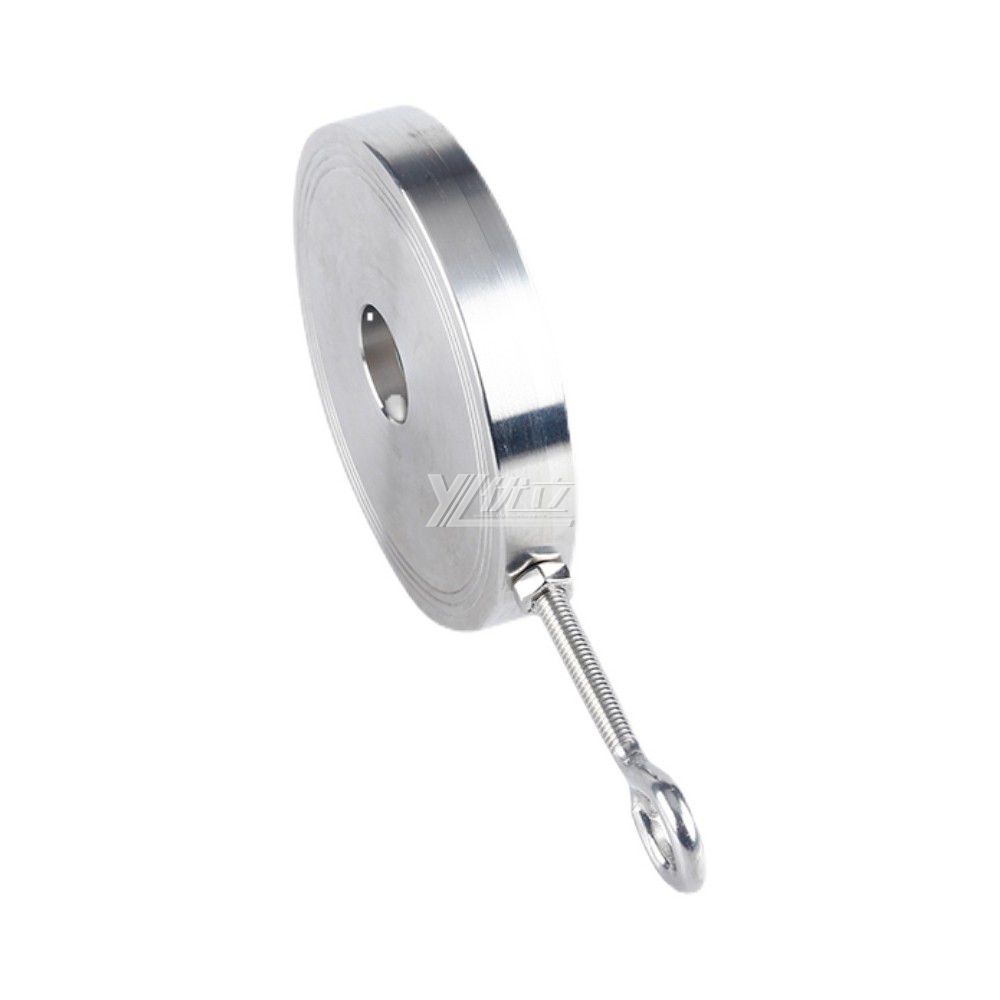

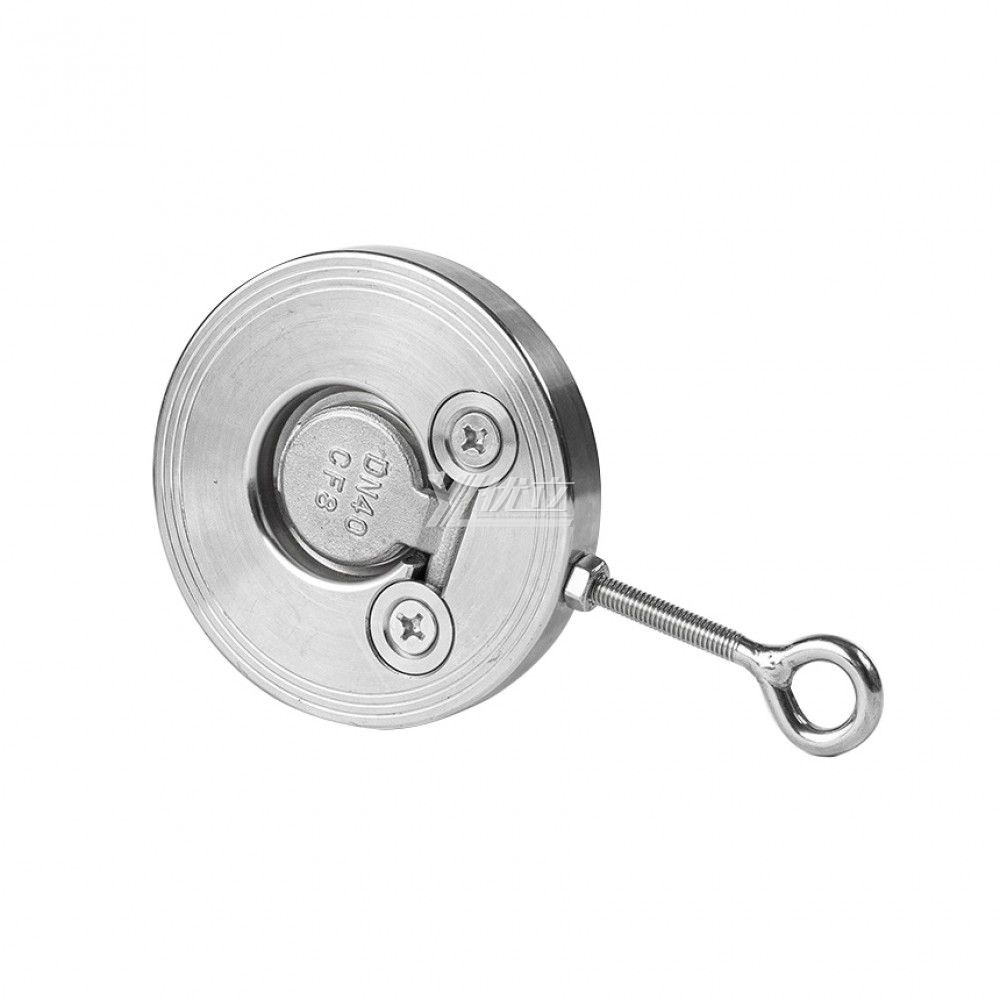

    YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve

    YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve

    Model NO.:D016002013D-01

    Pur Qty. / Ref FOB Price

    1 SetUS $9.54-114.5 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Hydraulic

    Connection Form:Weld,Thread,Socket,Clamped,Flanged

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D016002013D-01

      Product nameCheck Valve

      ApplicationWater, gas,oil

      MOQ1pcs

      Connection StandardBSPT,Optional(NPT, BSP, BSPP)

      SealingMetal(NBR,PTFE,Silicone,PFA,ETC)

      FeatureSafe and Durable

      MaterialStainless Steel,A105,LF2,F11,F304(L),F316(L),F5,F22 etc

      Nominal PressureJIS10-20K,API607,ANSI150-1500LB,16-160Bar,PN16-160,PN16,200WOG

      CustomizationAvailable

      Temperature- 20 ℃ ~ + 250°C,Optional(- 20℃ ~ + 425°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

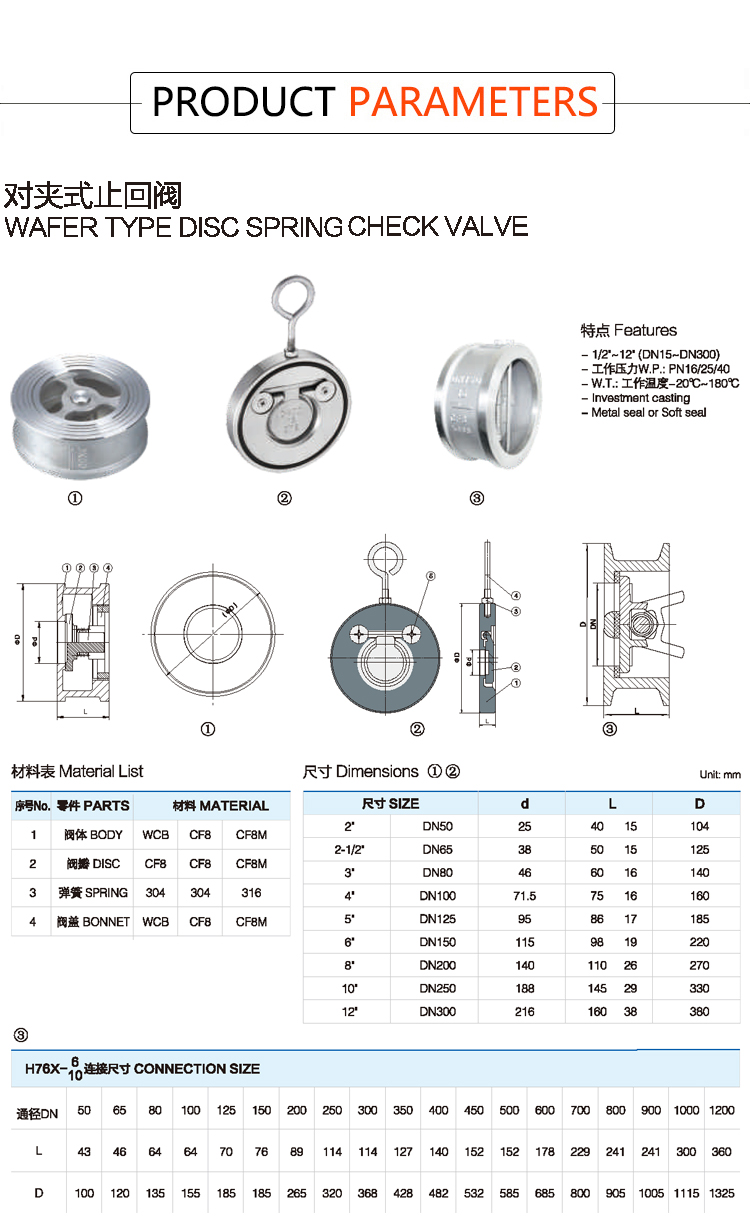

    Product Description

      Products Name:YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve

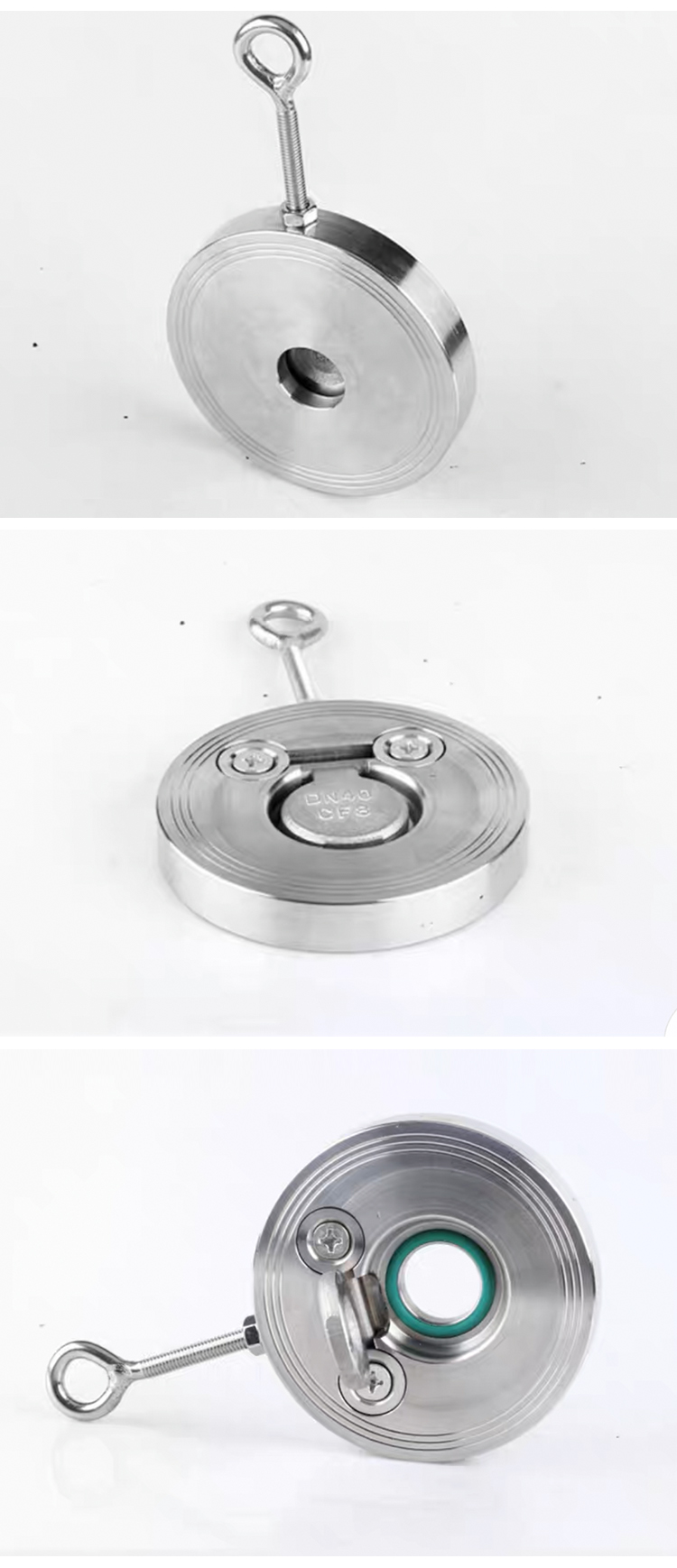

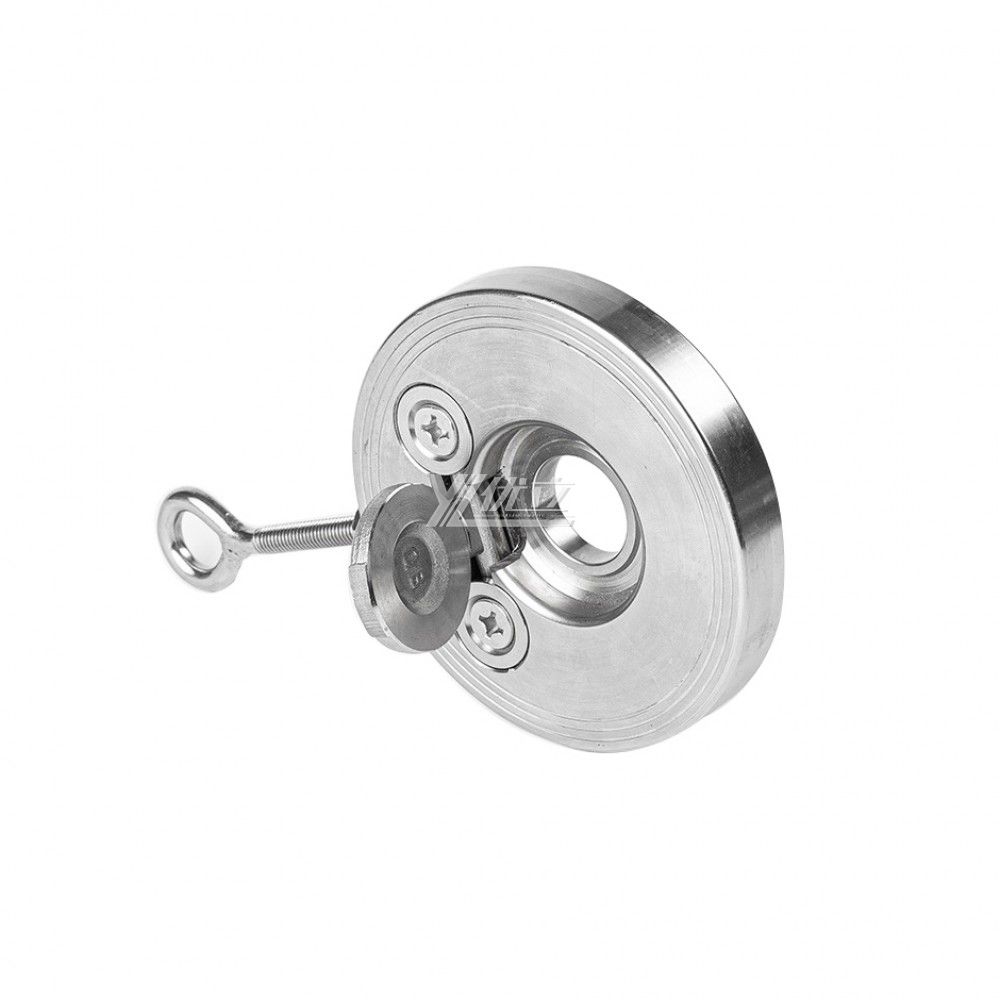

      304 wafer Check Valve
      wafer type Check Valve



      Body material WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),A105,LF2,F11,F304(L),F316(L),F5,F22 etc.
      Full port 1/2"-12"(DN15-DN300)
      Working pressure JIS10-20K,API607,ANSI150-2500LB,16-420Bar,PN16-420,200WOG
      Medium temperature - 20 ℃ ~ + 220°C,Optional(- 20℃ ~ + 425°C)
      Connection type Weld,Thread,Socket,Clamped,Flanged
      Thread Standard BSPT,Optional(NPT, BSP, BSPP)
      Production type Casting,Forged
      Sealing Metal,PTFE,RPTFE,PPL ETC
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A check valve, also called a one-way valve, is a device that allows the flow of fluids to move only in one direction. The primary purpose of a check valve is to prevent backflow in the system. Check valves are cheap, effective, and easy solutions to a potential issue.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Hygienic Sanitary Butterfly Valves Sanitary Hygienic Manual Male Butterfly Valves Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle
    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve

      Model NO.:D016002013D-01

      YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve
      NO. Mat Spec Wgt(kg) Ps
      1 304 1-1/2"-DN40 0.75kg
      2 304 2"-DN50 1.07kg
      3 304 2-1/2"-DN65 1.46kg
      4 304 3"-DN80 2.05kg
      5 304 4"-DN100 2.5kg
      6 304 5"-DN125 3.6kg
      7 304 6"-DN150 4.6kg
      8 304 8"-DN200 10.2kg
      9 316 1-1/2"-DN40
      10 316 2"-DN50
      11 316 2-1/2"-DN65
      12 316 3"-DN80
      13 316 4"-DN100
      14 316 5"-DN125
      15 316 6"-DN150
      16 316 8"-DN200
      17 WCB 1-1/2"-DN40
      18 WCB 2"-DN50
      19 WCB 2-1/2"-DN65
      20 WCB 3"-DN80
      21 WCB 4"-DN100
      22 WCB 5"-DN125
      23 WCB 6"-DN150
      24 WCB 8"-DN200

      YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve

      Model NO.:D016002013D-01

      YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 1-1/2"-DN40 $10.5 55 0.75kg
      2 304 2"-DN50 $11.45 60 1.07kg
      3 304 2-1/2"-DN65 $13.36 70 1.46kg
      4 304 3"-DN80 $15.27 80 2.05kg
      5 304 4"-DN100 $24.81 130 2.5kg
      6 304 5"-DN125 $32.44 170 3.6kg
      7 304 6"-DN150 $45.8 240 4.6kg
      8 304 8"-DN200 $80.15 420 10.2kg
      9 316 1-1/2"-DN40 $16.22 85
      10 316 2"-DN50 $17.18 90
      11 316 2-1/2"-DN65 $19.08 100
      12 316 3"-DN80 $22.9 120
      13 316 4"-DN100 $38.17 200
      14 316 5"-DN125 $45.8 240
      15 316 6"-DN150 $64.89 340
      16 316 8"-DN200 $114.5 600
      17 WCB 1-1/2"-DN40 $9.54 50
      18 WCB 2"-DN50 $10.5 55
      19 WCB 2-1/2"-DN65 $12.4 65
      20 WCB 3"-DN80 $14.31 75
      21 WCB 4"-DN100 $19.08 100
      22 WCB 5"-DN125 $24.81 130
      23 WCB 6"-DN150 $32.44 170
      24 WCB 8"-DN200 $53.44 280

      YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve

      Model NO.:D016002013D-01

      YOULI Easy-to-Install Stainless Steel Soft Seal ANSI 150LB 304 316 JIS 10K 1.6mpa Thin Wafer Type Disc Spring Check Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 1-1/2"-DN40 $10.5 0.75kg
      2 304 2"-DN50 $11.45 1.07kg
      3 304 2-1/2"-DN65 $13.36 1.46kg
      4 304 3"-DN80 $15.27 2.05kg
      5 304 4"-DN100 $24.81 2.5kg
      6 304 5"-DN125 $32.44 3.6kg
      7 304 6"-DN150 $45.8 4.6kg
      8 304 8"-DN200 $80.15 10.2kg
      9 316 1-1/2"-DN40 $16.22
      10 316 2"-DN50 $17.18
      11 316 2-1/2"-DN65 $19.08
      12 316 3"-DN80 $22.9
      13 316 4"-DN100 $38.17
      14 316 5"-DN125 $45.8
      15 316 6"-DN150 $64.89
      16 316 8"-DN200 $114.5
      17 WCB 1-1/2"-DN40 $9.54
      18 WCB 2"-DN50 $10.5
      19 WCB 2-1/2"-DN65 $12.4
      20 WCB 3"-DN80 $14.31
      21 WCB 4"-DN100 $19.08
      22 WCB 5"-DN125 $24.81
      23 WCB 6"-DN150 $32.44
      24 WCB 8"-DN200 $53.44
