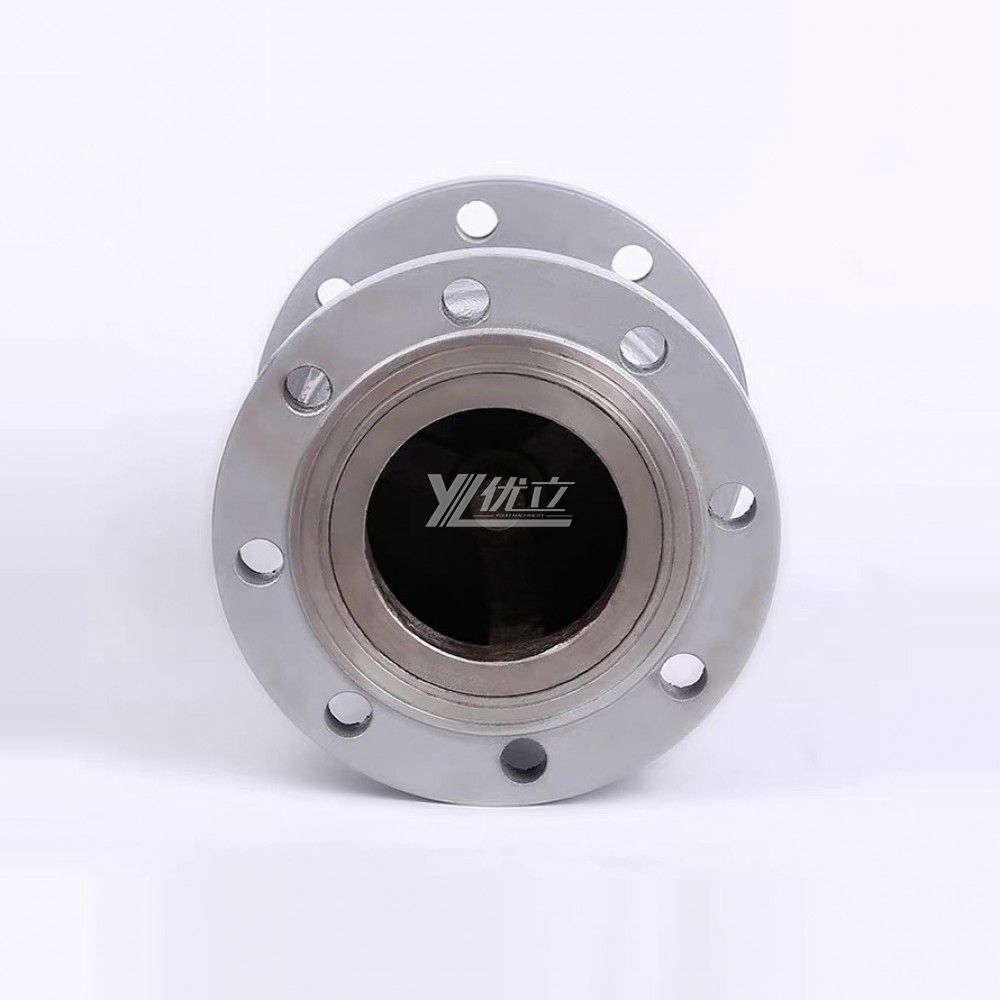

    YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve

    YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve

    Model NO.:D016002006D-01

    Pur Qty. / Ref FOB Price

    1 SetUS $19.08-553.44 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Hydraulic

    Connection Form:Weld,Thread,Socket,Clamped,Flanged

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D016002006D-01

      Product nameCheck Valve

      ApplicationWater, gas,oil

      TrademarkYOULI

      Connection StandardBSPT,Optional(NPT, BSP, BSPP)

      Connection FormWeld,Thread,Socket,Clamped,Flanged

      FeatureSafe and Durable

      MaterialStainless Steel,A105,LF2,F11,F304(L),F316(L),F5,F22 etc

      Nominal PressureJIS10-20K,API607,ANSI150-1500LB,16-160Bar,PN16-160,PN16,200WOG

      CustomizationAvailable

      Temperature- 20 ℃ ~ + 250°C,Optional(- 20℃ ~ + 425°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Products Name:YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve

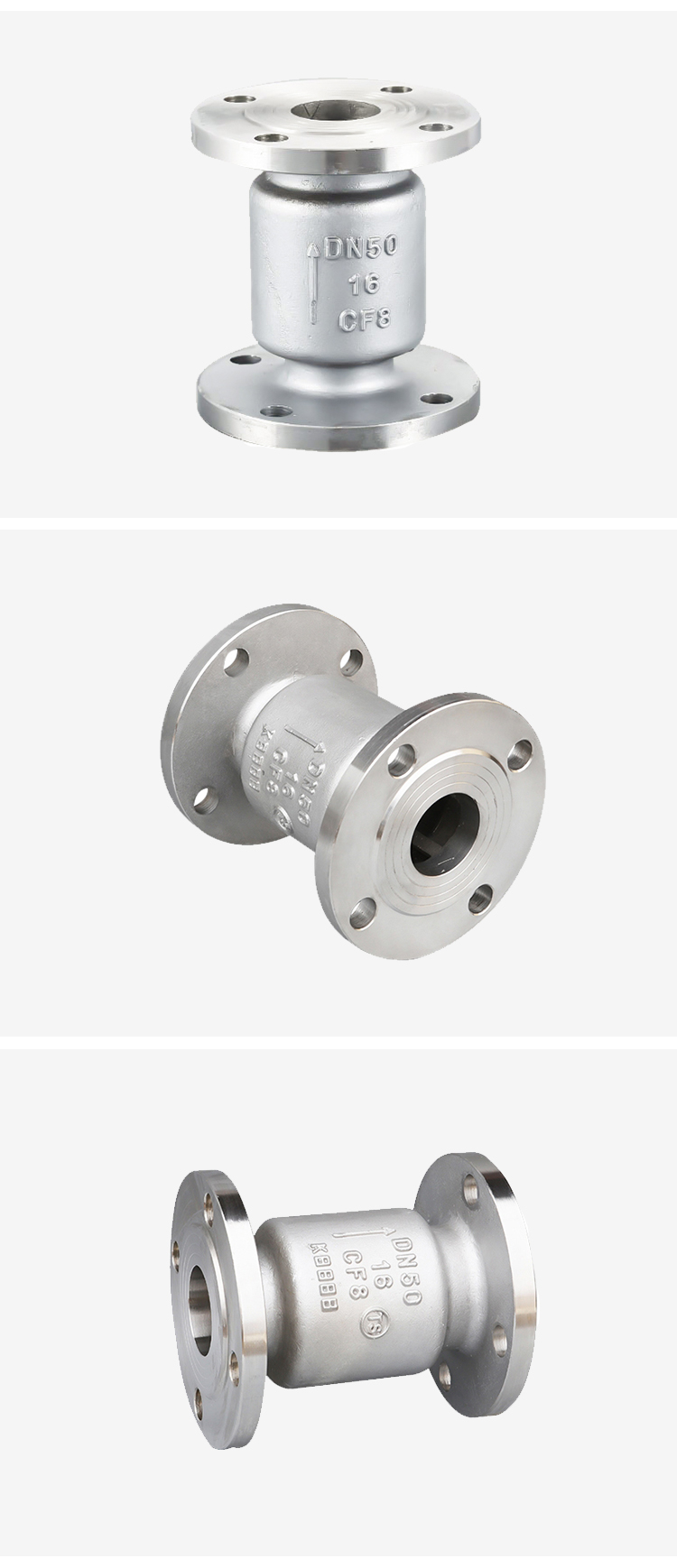

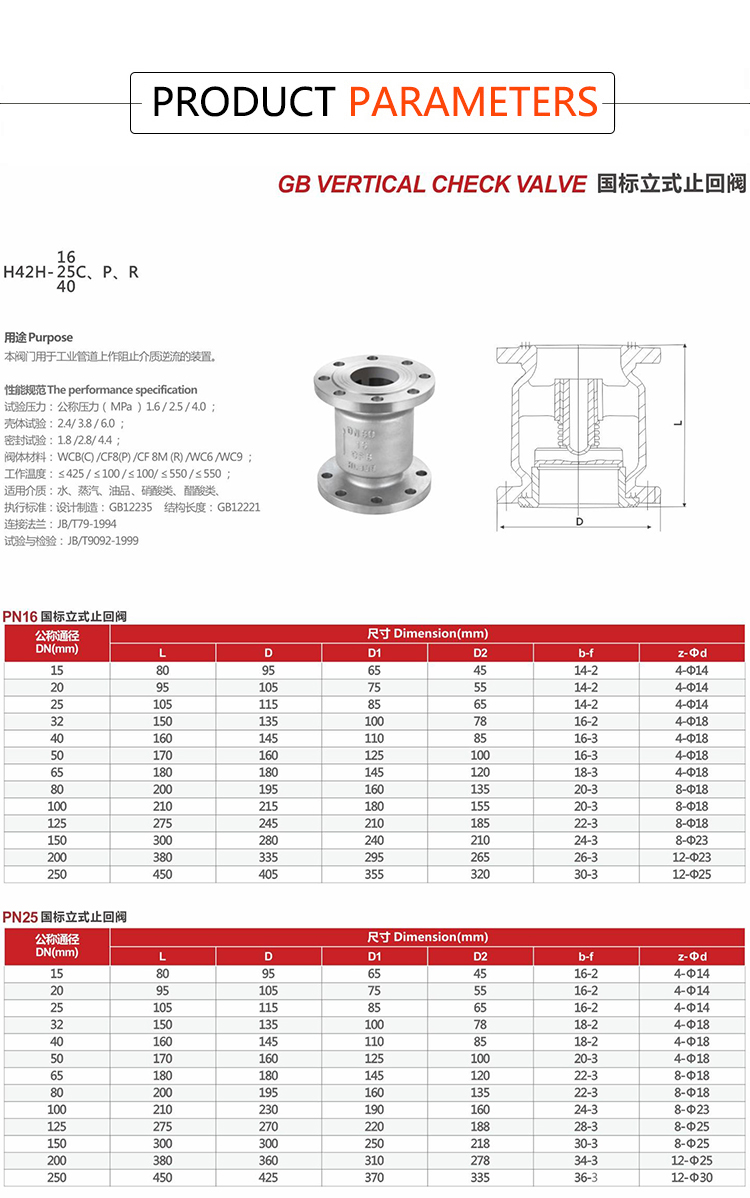

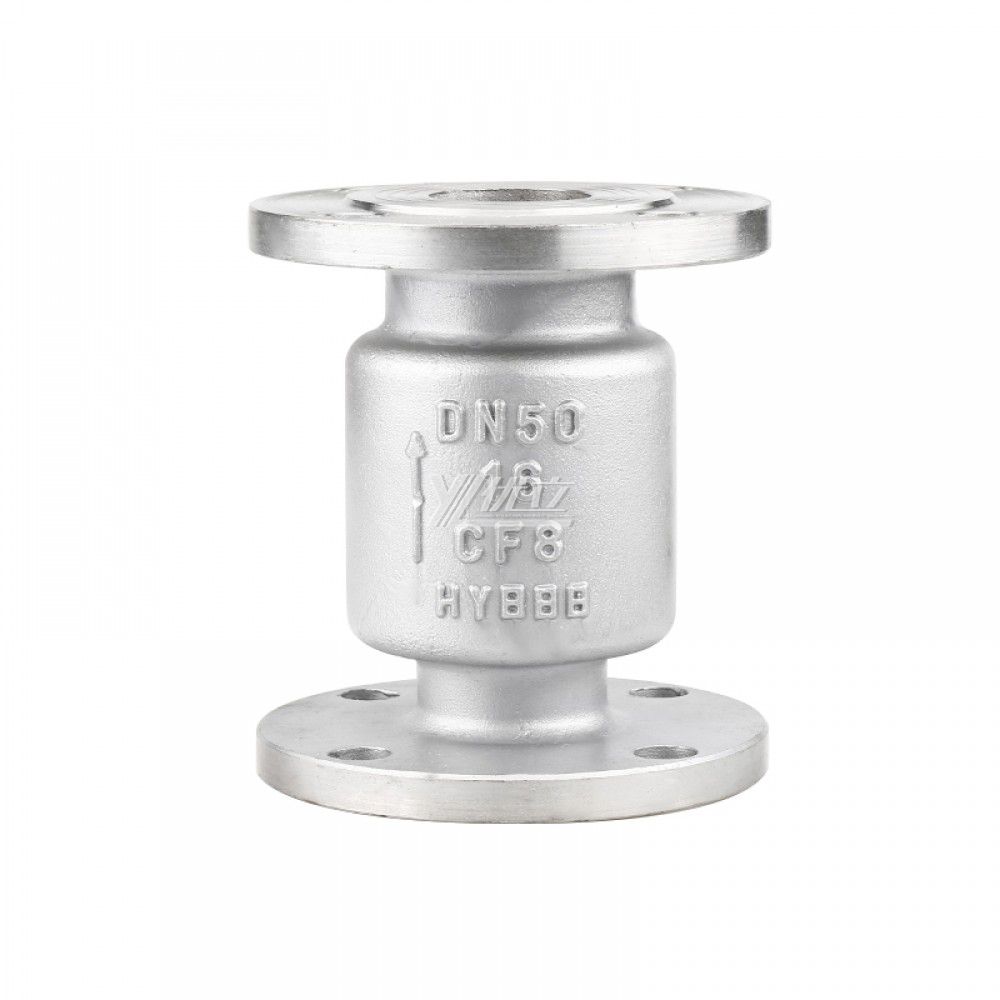

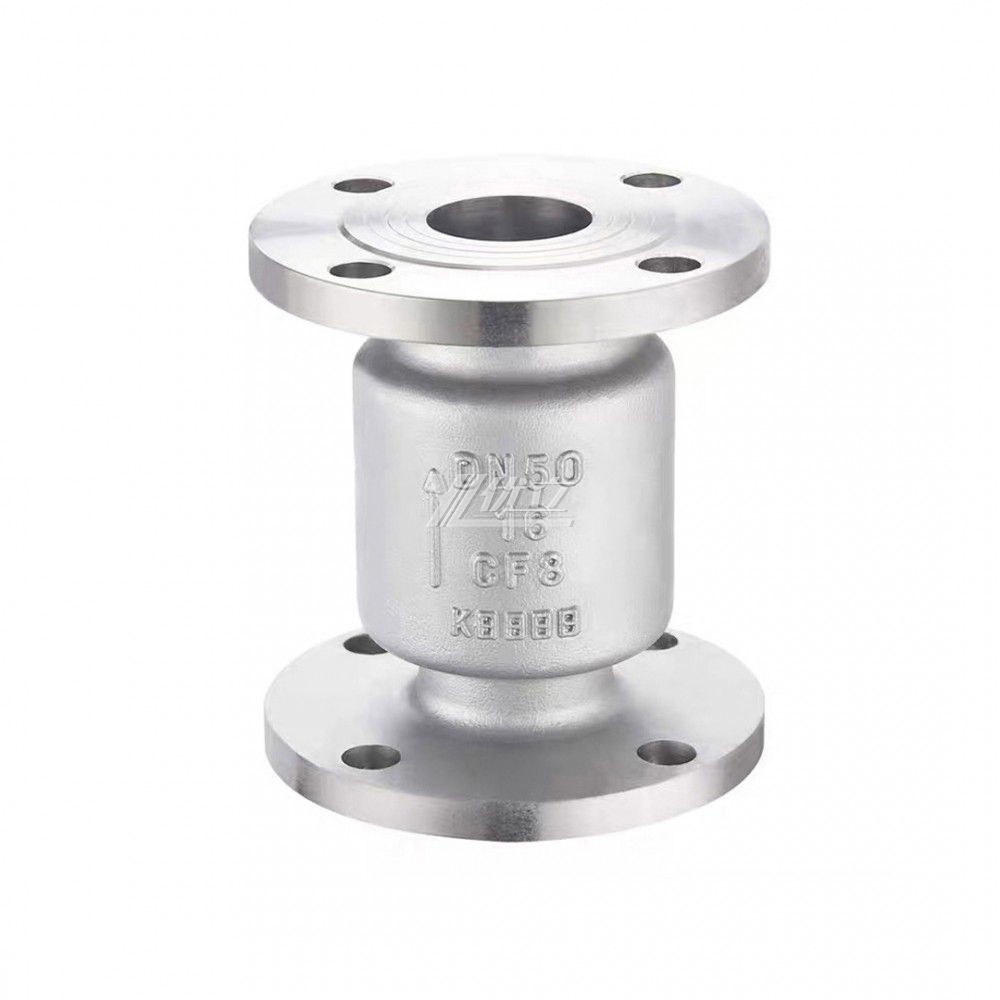

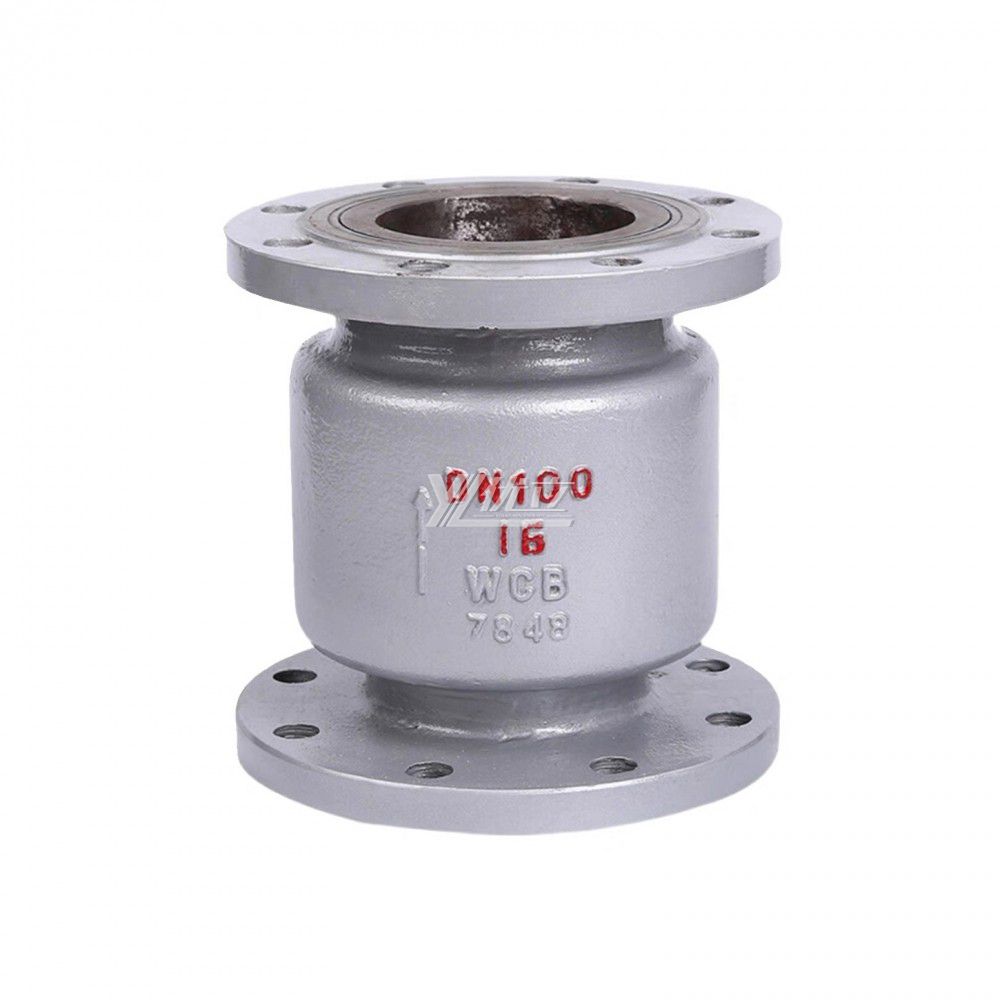

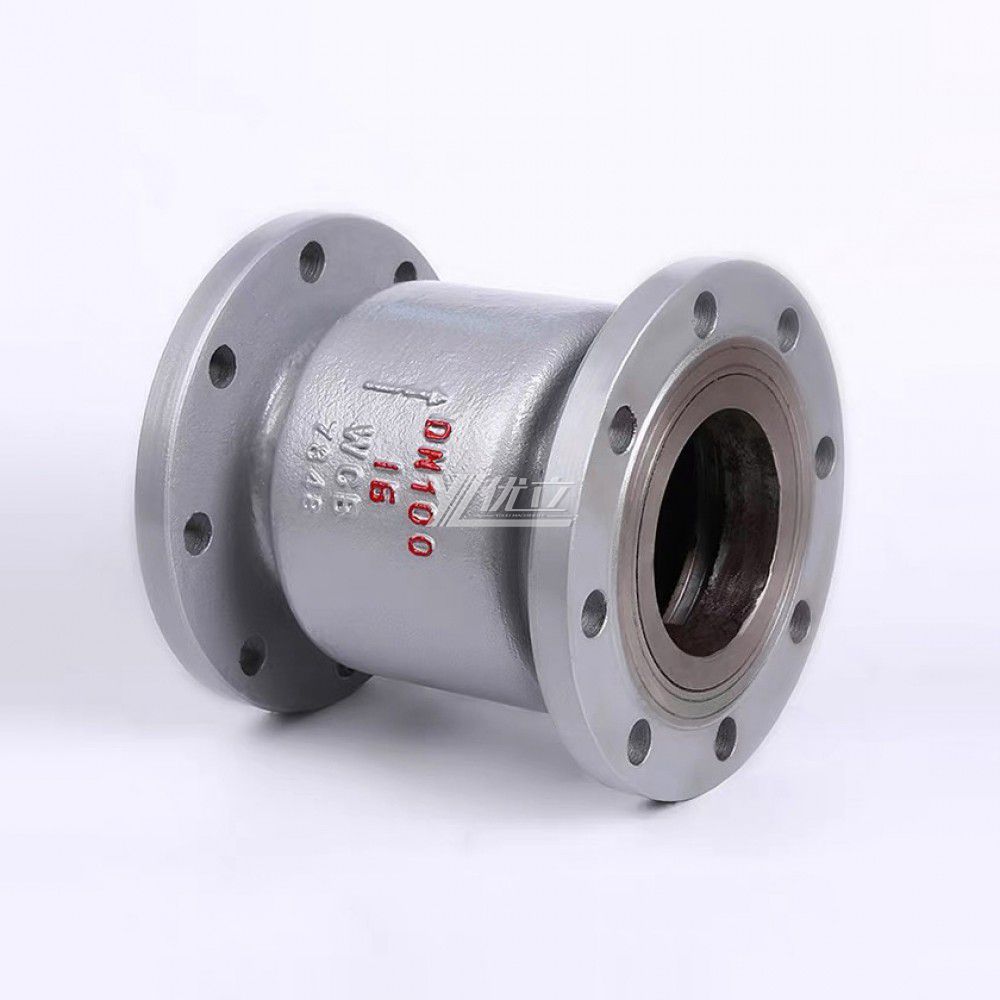

      Vertical Flanged Check Valve

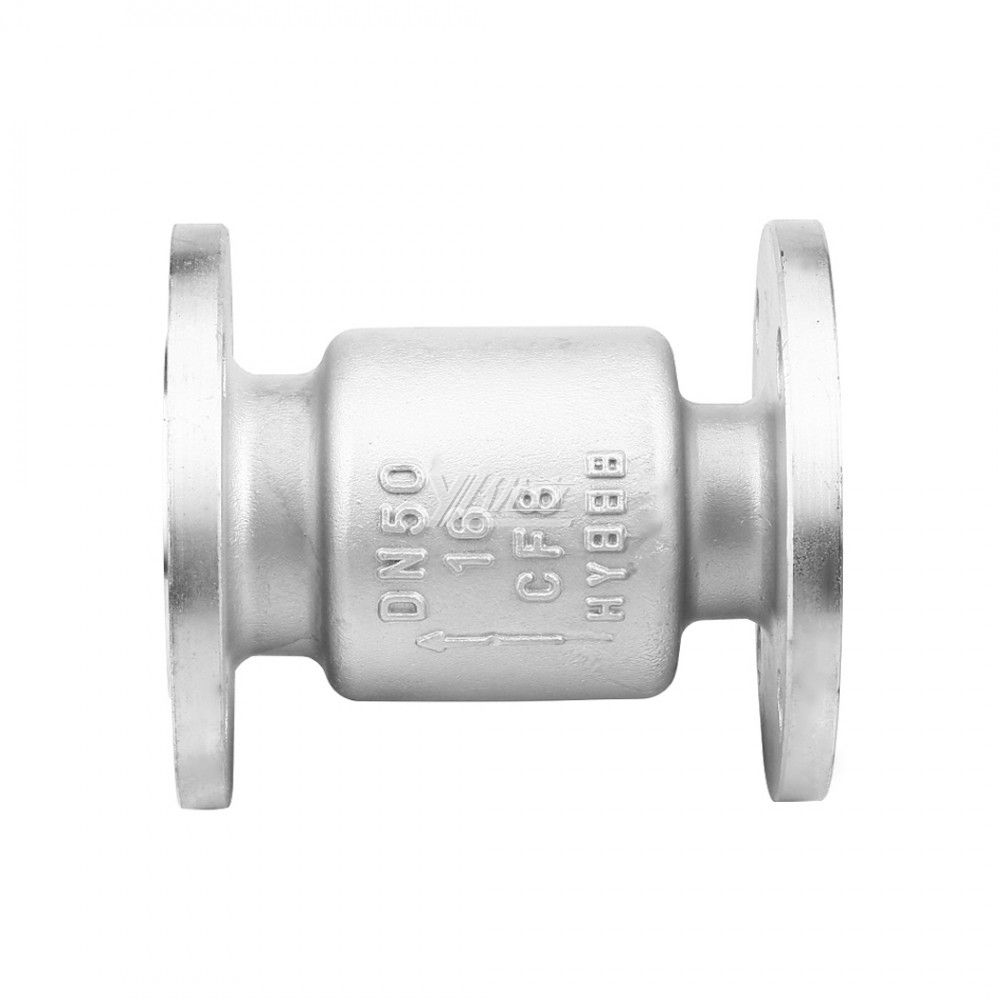

      Flanged Check Valve



      Body material WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),A105,LF2,F11,F304(L),F316(L),F5,F22 etc.
      Full port 1/2"-12"(DN15-DN300)
      Working pressure JIS10-20K,API607,ANSI150-2500LB,16-420Bar,PN16-420,200WOG
      Medium temperature - 20 ℃ ~ + 220°C,Optional(- 20℃ ~ + 425°C)
      Connection type Weld,Thread,Socket,Clamped,Flanged
      Thread Standard BSPT,Optional(NPT, BSP, BSPP)
      Production type Casting,Forged
      Sealing Metal,PTFE,RPTFE,PPL ETC
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A check valve, also called a one-way valve, is a device that allows the flow of fluids to move only in one direction. The primary purpose of a check valve is to prevent backflow in the system. Check valves are cheap, effective, and easy solutions to a potential issue.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Hygienic Sanitary Butterfly Valves Sanitary Hygienic Manual Male Butterfly Valves Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle
    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve

      Model NO.:D016002006D-01

      YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve
      NO. Mat Spec Wgt(kg) Ps
      1 304 1/2"-DN15 1.5kg PN16
      2 304 3/4"-DN20 1.75kg PN16
      3 304 1"-DN25 2.5kg PN16
      4 304 1-1/4"-DN32 3.5kg PN16
      5 304 1-1/2"-DN40 4.5kg PN16
      6 304 2"-DN50 5.5kg PN16
      7 304 2-1/2"-DN65 7.5kg PN16
      8 304 3"-DN80 9kg PN16
      9 304 4"-DN100 11.75kg PN16
      10 304 5"-DN125 18.5kg PN16
      11 304 6"-DN150 26kg PN16
      12 304 8"-DN200 40.5kg PN16
      13 316 1/2"-DN15 PN16
      14 316 3/4"-DN20 PN16
      15 316 1"-DN25 PN16
      16 316 1-1/4"-DN32 PN16
      17 316 1-1/2"-DN40 PN16
      18 316 2"-DN50 PN16
      19 316 2-1/2"-DN65 PN16
      20 316 3"-DN80 PN16
      21 316 4"-DN100 PN16
      22 316 5"-DN125 PN16
      23 316 6"-DN150 PN16
      24 316 8"-DN200 PN16
      25 WCB 1/2"-DN15 PN16
      26 WCB 3/4"-DN20 PN16
      27 WCB 1"-DN25 PN16
      28 WCB 1-1/4"-DN32 PN16
      29 WCB 1-1/2"-DN40 PN16
      30 WCB 2"-DN50 PN16
      31 WCB 2-1/2"-DN65 PN16
      32 WCB 3"-DN80 PN16
      33 WCB 4"-DN100 PN16
      34 WCB 5"-DN125 PN16
      35 WCB 6"-DN150 PN16
      36 WCB 8"-DN200 PN16

      YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve

      Model NO.:D016002006D-01

      YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 1/2"-DN15 $30.53 160 1.5kg PN16
      2 304 3/4"-DN20 $32.44 170 1.75kg PN16
      3 304 1"-DN25 $38.17 200 2.5kg PN16
      4 304 1-1/4"-DN32 $43.89 230 3.5kg PN16
      5 304 1-1/2"-DN40 $48.66 255 4.5kg PN16
      6 304 2"-DN50 $59.16 310 5.5kg PN16
      7 304 2-1/2"-DN65 $74.43 390 7.5kg PN16
      8 304 3"-DN80 $85.88 450 9kg PN16
      9 304 4"-DN100 $110.69 580 11.75kg PN16
      10 304 5"-DN125 $164.12 860 18.5kg PN16
      11 304 6"-DN150 $219.47 1150 26kg PN16
      12 304 8"-DN200 $381.68 2000 40.5kg PN16
      13 316 1/2"-DN15 $40.08 210 PN16
      14 316 3/4"-DN20 $47.71 250 PN16
      15 316 1"-DN25 $53.44 280 PN16
      16 316 1-1/4"-DN32 $59.16 310 PN16
      17 316 1-1/2"-DN40 $70.61 370 PN16
      18 316 2"-DN50 $76.34 400 PN16
      19 316 2-1/2"-DN65 $104.96 550 PN16
      20 316 3"-DN80 $124.05 650 PN16
      21 316 4"-DN100 $152.67 800 PN16
      22 316 5"-DN125 $257.63 1350 PN16
      23 316 6"-DN150 $314.89 1650 PN16
      24 316 8"-DN200 $553.44 2900 PN16
      25 WCB 1/2"-DN15 $19.08 100 PN16
      26 WCB 3/4"-DN20 $19.08 100 PN16
      27 WCB 1"-DN25 $19.08 100 PN16
      28 WCB 1-1/4"-DN32 $20.99 110 PN16
      29 WCB 1-1/2"-DN40 $23.85 125 PN16
      30 WCB 2"-DN50 $28.63 150 PN16
      31 WCB 2-1/2"-DN65 $38.17 200 PN16
      32 WCB 3"-DN80 $46.76 245 PN16
      33 WCB 4"-DN100 $61.07 320 PN16
      34 WCB 5"-DN125 $87.02 456 PN16
      35 WCB 6"-DN150 $108.78 570 PN16
      36 WCB 8"-DN200 $171.76 900 PN16

      YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve

      Model NO.:D016002006D-01

      YOULI Stainless Steel High Temperature Steam ANSI 150LB 304 316 1.6mpa WCB Non-return NRV Vertical Type Flanged Check Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 1/2"-DN15 $30.53 1.5kg PN16
      2 304 3/4"-DN20 $32.44 1.75kg PN16
      3 304 1"-DN25 $38.17 2.5kg PN16
      4 304 1-1/4"-DN32 $43.89 3.5kg PN16
      5 304 1-1/2"-DN40 $48.66 4.5kg PN16
      6 304 2"-DN50 $59.16 5.5kg PN16
      7 304 2-1/2"-DN65 $74.43 7.5kg PN16
      8 304 3"-DN80 $85.88 9kg PN16
      9 304 4"-DN100 $110.69 11.75kg PN16
      10 304 5"-DN125 $164.12 18.5kg PN16
      11 304 6"-DN150 $219.47 26kg PN16
      12 304 8"-DN200 $381.68 40.5kg PN16
      13 316 1/2"-DN15 $40.08 PN16
      14 316 3/4"-DN20 $47.71 PN16
      15 316 1"-DN25 $53.44 PN16
      16 316 1-1/4"-DN32 $59.16 PN16
      17 316 1-1/2"-DN40 $70.61 PN16
      18 316 2"-DN50 $76.34 PN16
      19 316 2-1/2"-DN65 $104.96 PN16
      20 316 3"-DN80 $124.05 PN16
      21 316 4"-DN100 $152.67 PN16
      22 316 5"-DN125 $257.63 PN16
      23 316 6"-DN150 $314.89 PN16
      24 316 8"-DN200 $553.44 PN16
      25 WCB 1/2"-DN15 $19.08 PN16
      26 WCB 3/4"-DN20 $19.08 PN16
      27 WCB 1"-DN25 $19.08 PN16
      28 WCB 1-1/4"-DN32 $20.99 PN16
      29 WCB 1-1/2"-DN40 $23.85 PN16
      30 WCB 2"-DN50 $28.63 PN16
      31 WCB 2-1/2"-DN65 $38.17 PN16
      32 WCB 3"-DN80 $46.76 PN16
      33 WCB 4"-DN100 $61.07 PN16
      34 WCB 5"-DN125 $87.02 PN16
      35 WCB 6"-DN150 $108.78 PN16
      36 WCB 8"-DN200 $171.76 PN16
