Model NO. : D019001004D-01

Product name : Filter

Application : Water, gas,oil

MOQ : 1pcs

Connection Standard : BSPT,Optional(NPT, BSP, BSPP)

Sealing : Metal(NBR,PTFE,Silicone,PFA,ETC)

Feature : Safe and Durable

Material : Stainless Steel,A105,LF2,F11,F304(L),F316(L),F5,F22 etc

Nominal Pressure : JIS10-20K,API607,ANSI150-1500LB,16-160Bar,PN16-160,PN16,200WOG

Customization : Available

Temperature : - 20 ℃ ~ + 250°C,Optional(- 20℃ ~ + 425°C)

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

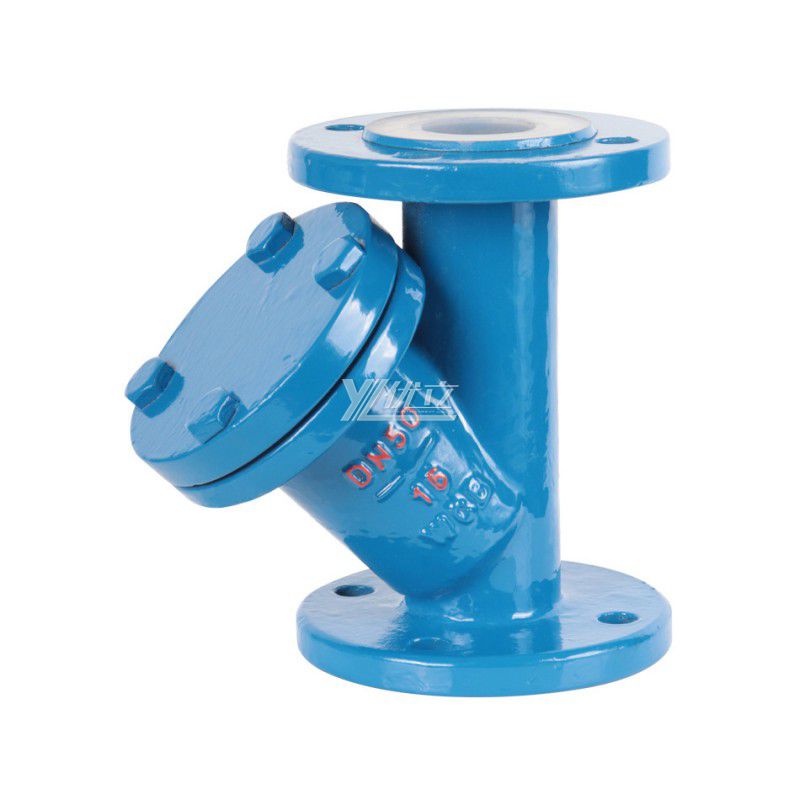

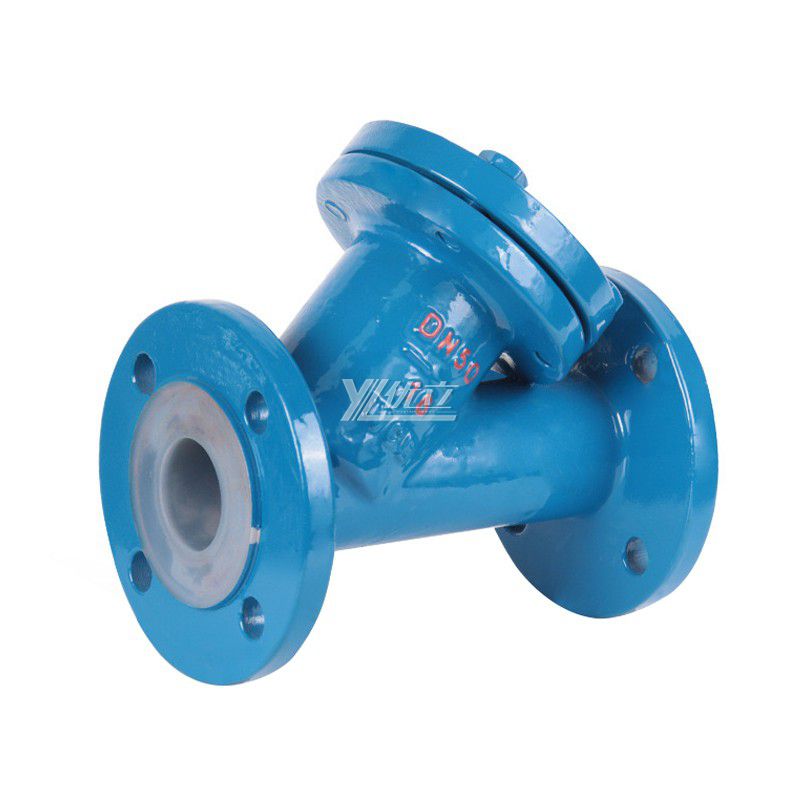

Products Name:YOULI Stainless Steel Pipeline 304 316 WCB ANSI 150LB JIS 10K PN16 Fluorine Lined F46 PFA Y Type Flange Strainer Filter

WCB Flanged Filter
Fluorine lined Flanged Strainer

Operating Principle

Filter is an indispensable filtering device in pipeline systems for conveying media. It is usually installed at the inlet end of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the medium and protect the normal use of valves and equipment. The Y-shaped filter has the characteristics of advanced structure, low resistance, and convenient discharge. The applicable media for Y-shaped filters can be water, oil, and gas. The general water network has a mesh size of 18-30, the ventilation network has a mesh size of 10-100, and the oil network has a mesh size of 100-480. The basket filter is mainly composed of a connecting pipe, a main pipe, a filter blue, a flange, a flange cover, and fasteners. When the liquid enters the filter blue through the main pipe, solid impurity particles are blocked inside the filter blue, while clean fluid passes through the filter blue and is discharged from the filter outlet.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
