Model NO. : D019001003D-01

Product name : Filter

Application : Water, gas,oil

MOQ : 1pcs

Connection Standard : BSPT,Optional(NPT, BSP, BSPP)

Sealing : Metal(NBR,PTFE,Silicone,PFA,ETC)

Feature : Safe and Durable

Material : Stainless Steel,A105,LF2,F11,F304(L),F316(L),F5,F22 etc

Nominal Pressure : JIS10-20K,API607,ANSI150-1500LB,16-160Bar,PN16-160,PN16,200WOG

Customization : Available

Temperature : - 20 ℃ ~ + 250°C,Optional(- 20℃ ~ + 425°C)

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

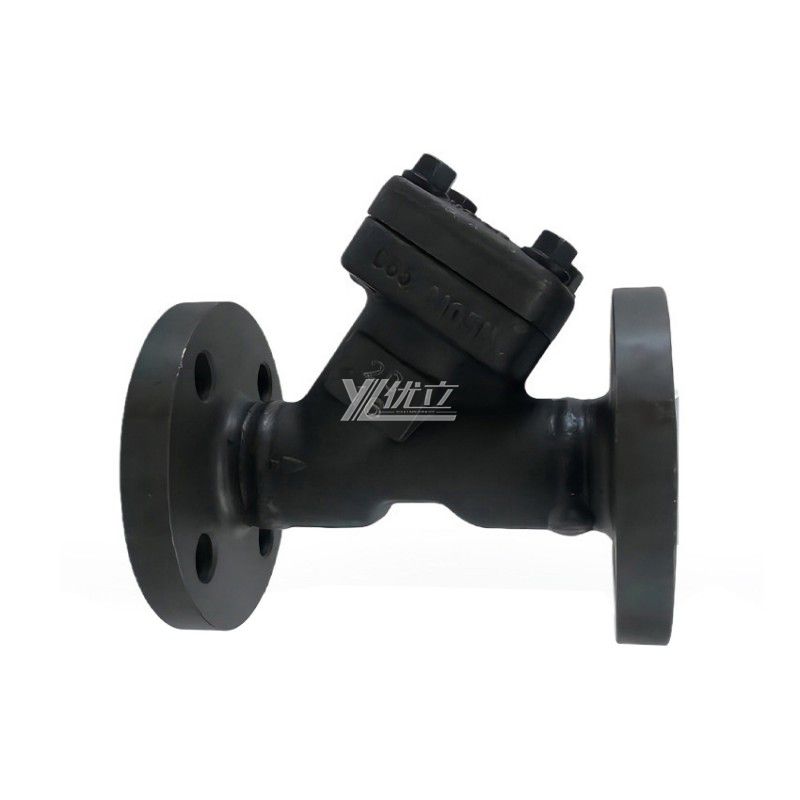

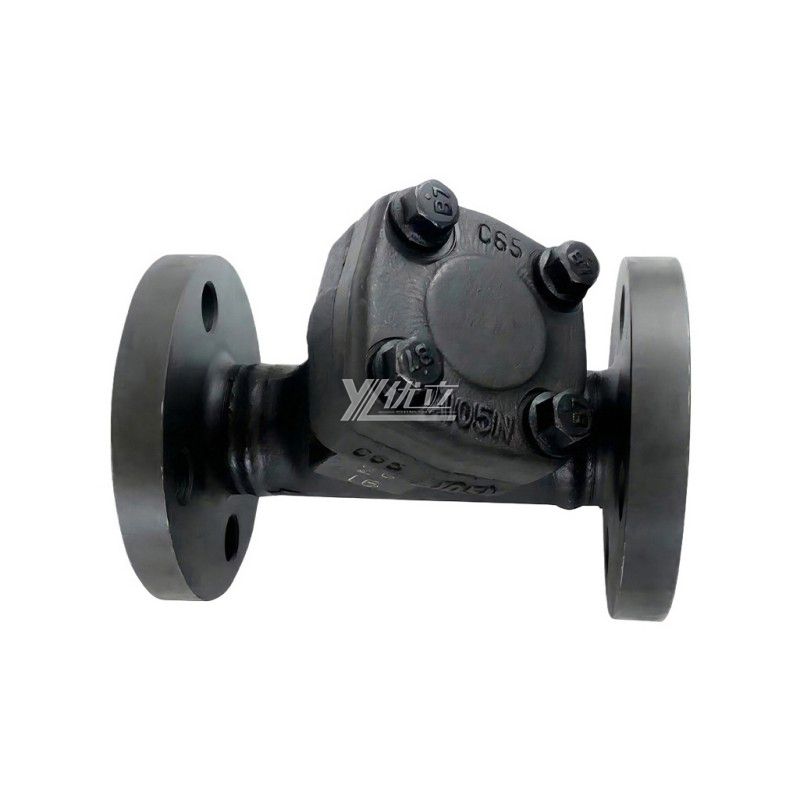

Products Name:YOULI Stainless Steel Pipeline 60 Mesh 304 316 A105 ANSI 150-800LB JIS 10K PN16 Forged Y Type Flange Strainer Filter

Forged Flanged Filter
Flanged Strainer

Operating Principle

Filter is an indispensable filtering device in pipeline systems for conveying media. It is usually installed at the inlet end of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the medium and protect the normal use of valves and equipment. The Y-shaped filter has the characteristics of advanced structure, low resistance, and convenient discharge. The applicable media for Y-shaped filters can be water, oil, and gas. The general water network has a mesh size of 18-30, the ventilation network has a mesh size of 10-100, and the oil network has a mesh size of 100-480. The basket filter is mainly composed of a connecting pipe, a main pipe, a filter blue, a flange, a flange cover, and fasteners. When the liquid enters the filter blue through the main pipe, solid impurity particles are blocked inside the filter blue, while clean fluid passes through the filter blue and is discharged from the filter outlet.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
