    Union

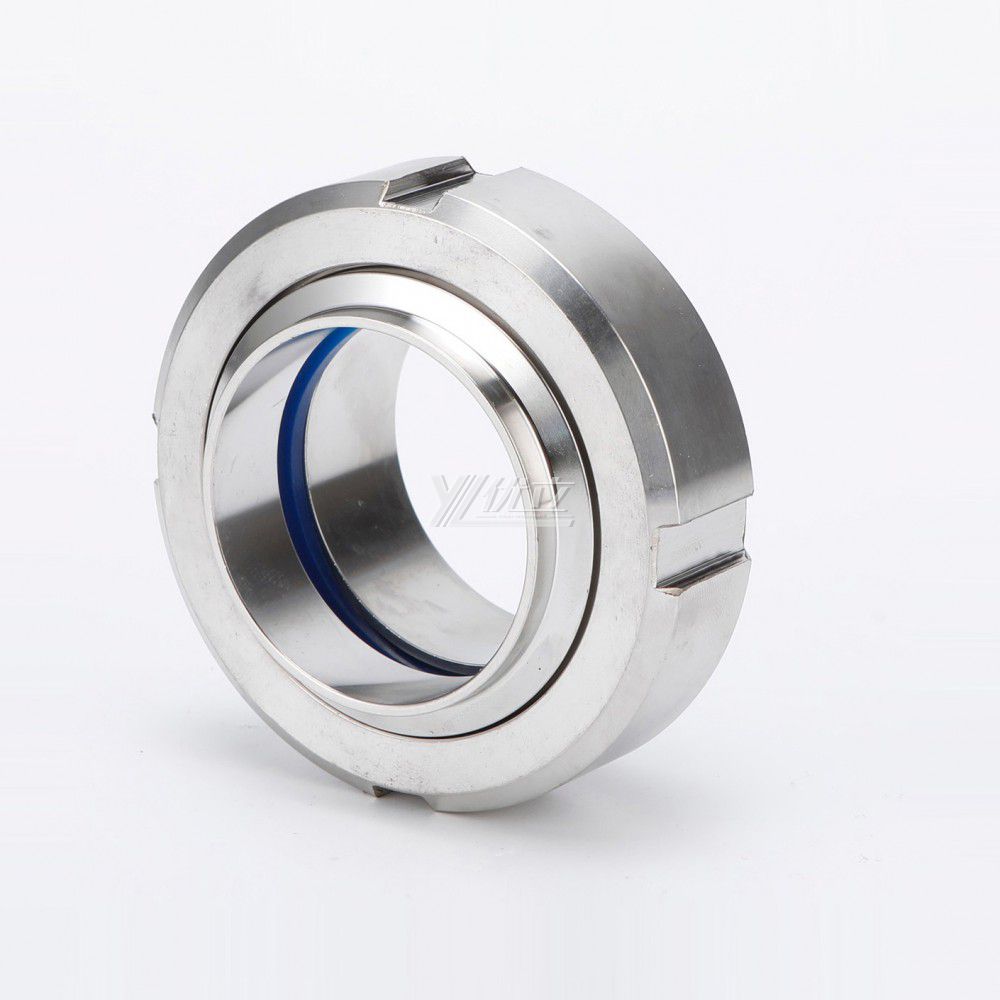

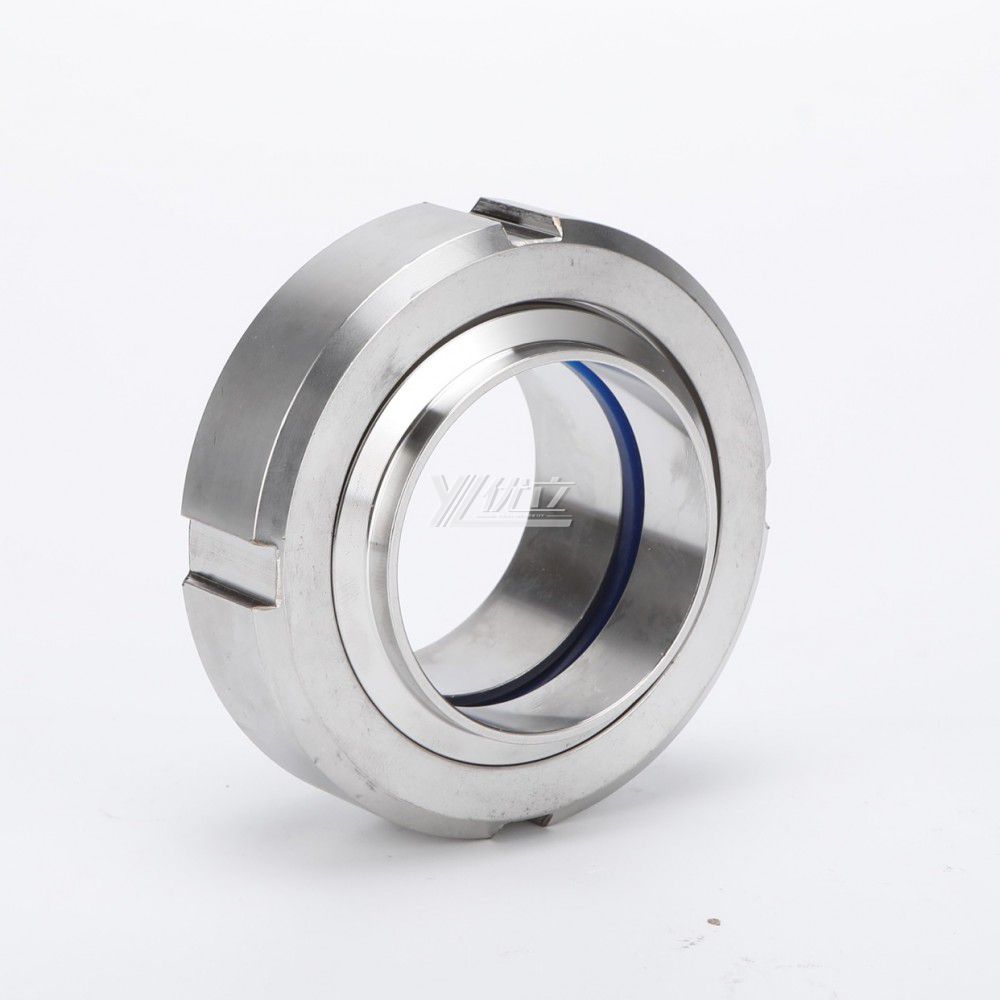

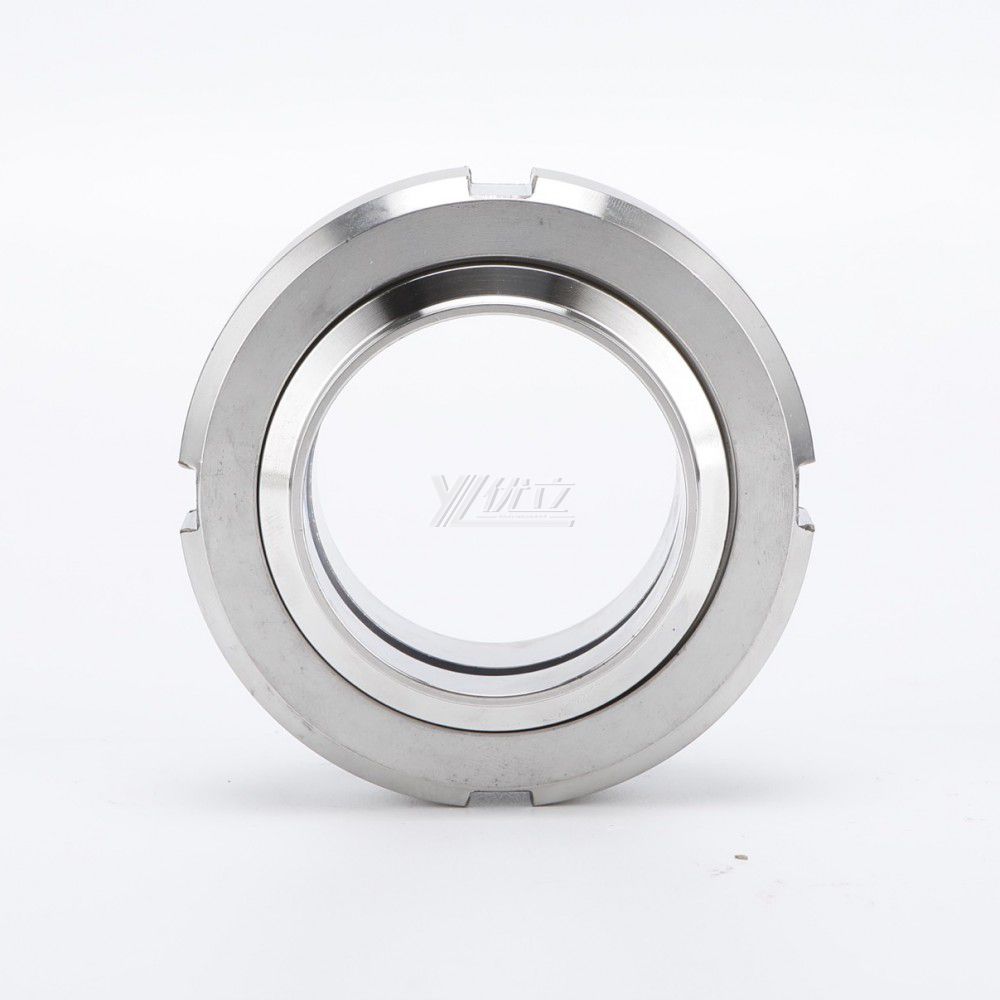

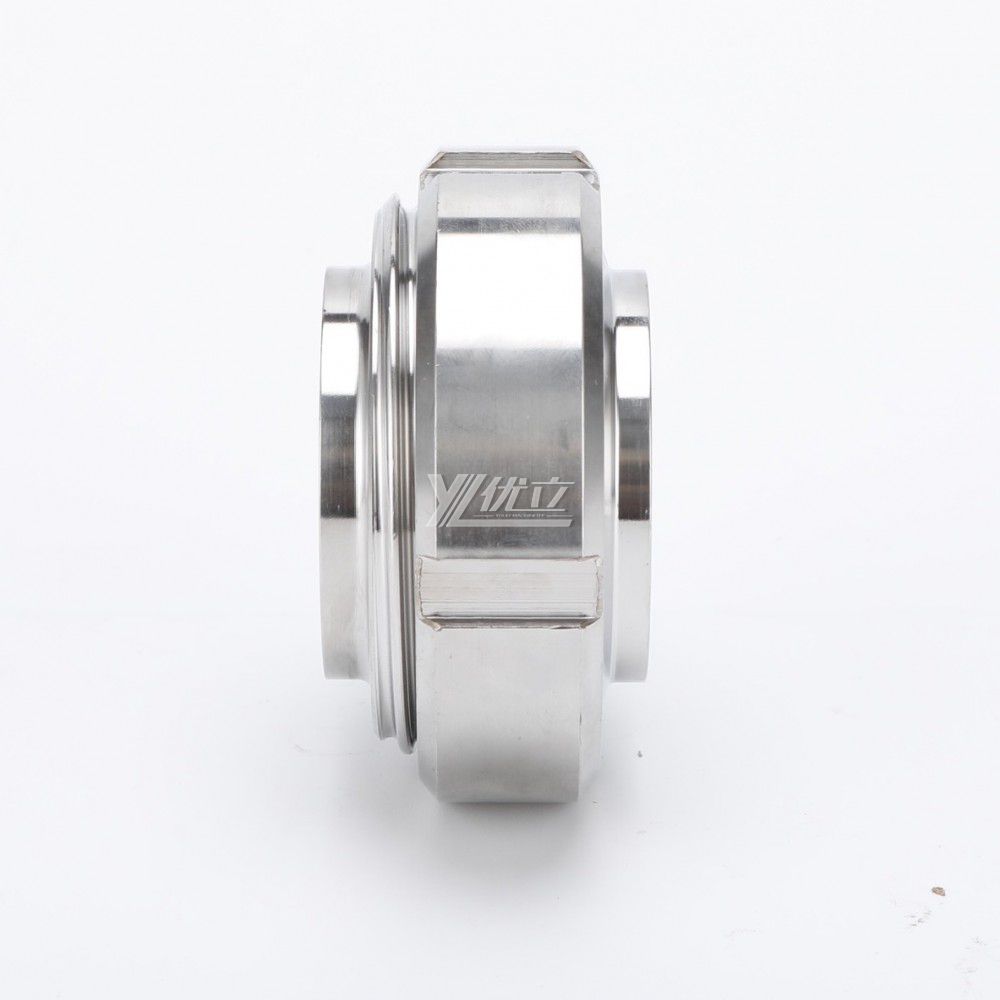

    YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union

    Model NO.:D009001001D-01

    Pur Qty. / Ref FOB Price

    1 SetUS $4.01-59.16 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Material:Stainless Steel

    Connection:Welding

    Material Quality:SS304,SS316L

    Available Standard:ISO, DIN11850,DIN11851, SMS,Idf

    Size:Dn20-150 & 3/4"-6",19mm-152.4mm

    Connection Standard:Welded

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Basic Info

      Model NO.D009001001D-01

      Seat MaterialEPDM,Silione,Viton,PTFE,NBR

      Working Pressure8bar,0.08MPa

      Temperature Range-20degree Celsius~135degree Celsius

      Shape of NutHexagonal Shape,Round Shape

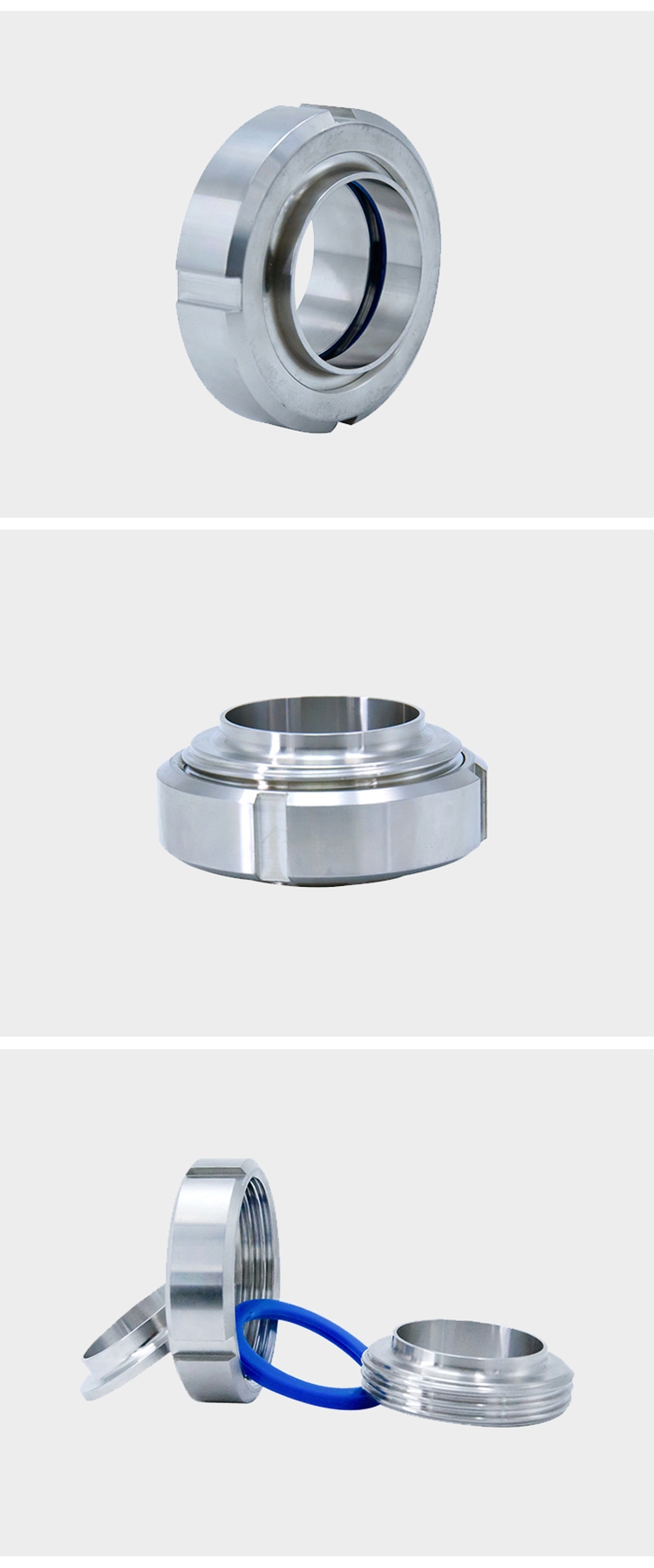

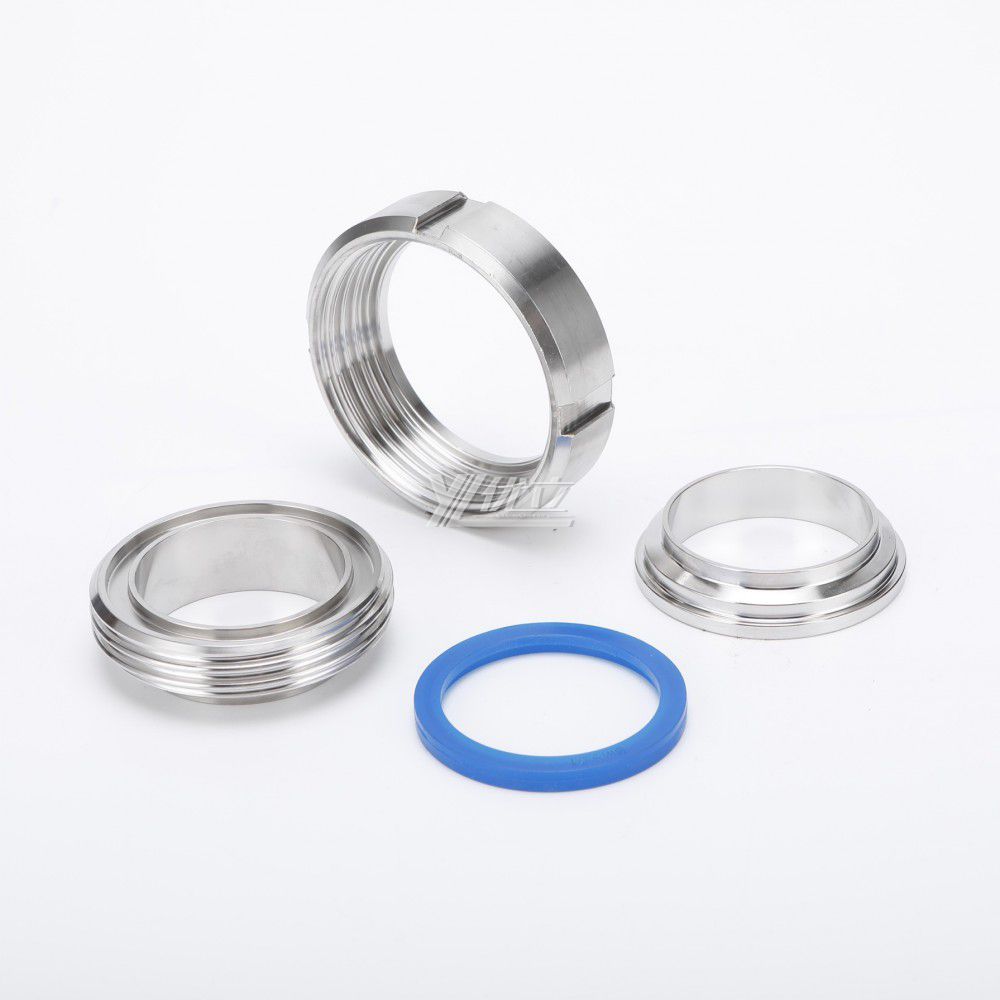

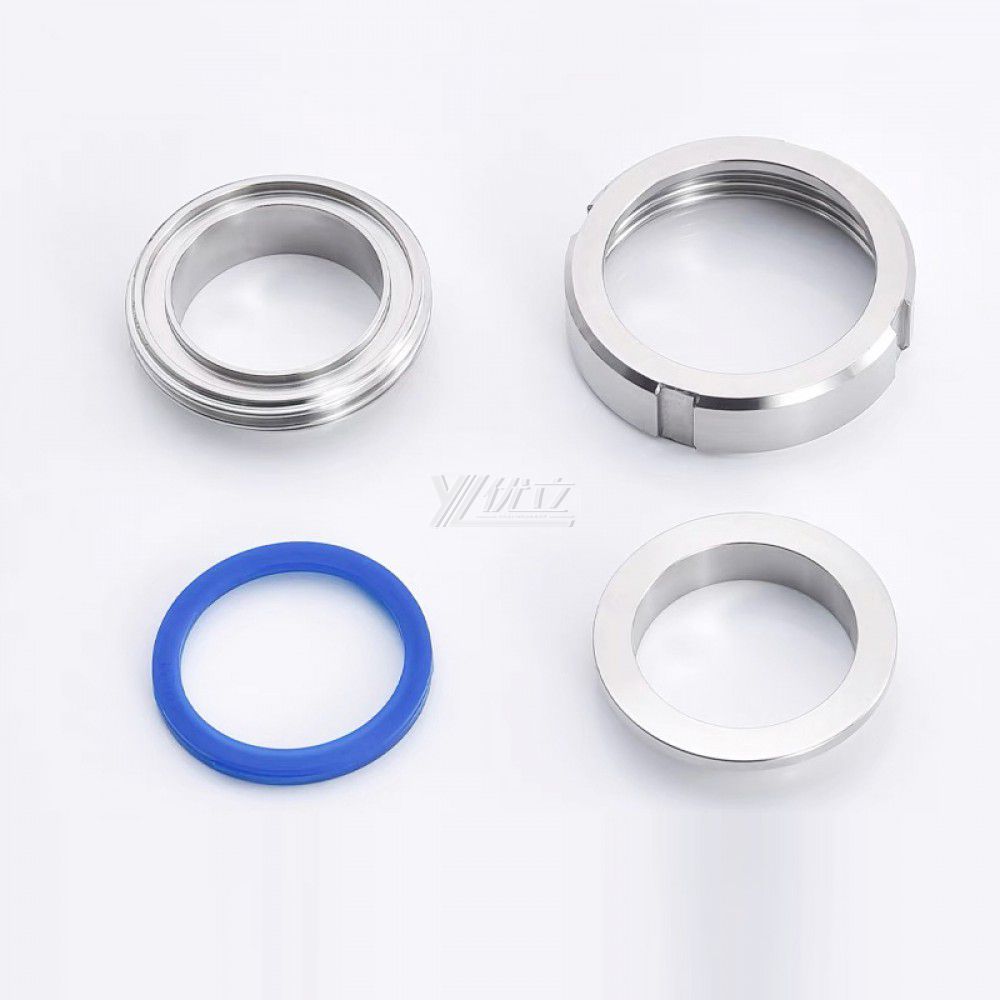

      Parts of Complete UnionLiner,Nut,Male and Gaskets

      Processing MachineForge Processing,Advance CNC Machine

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Products Name:YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union

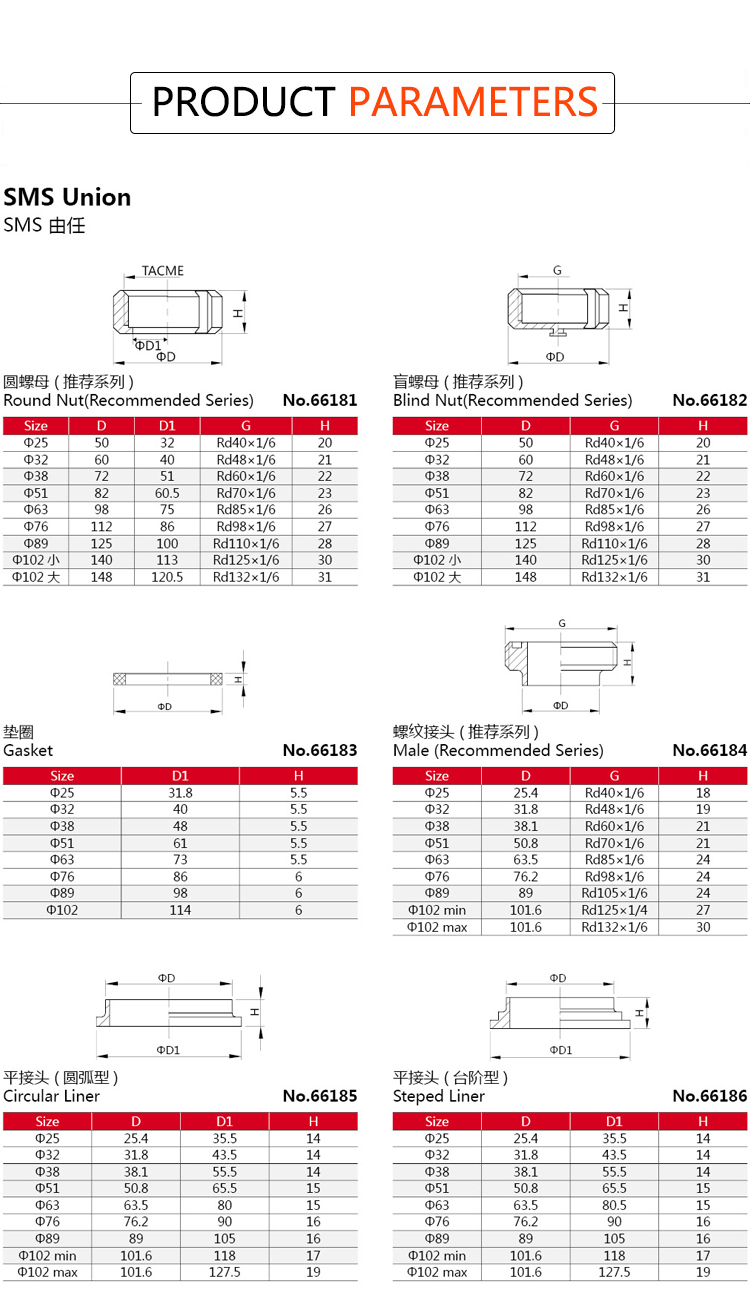

      SMS Union
      Union



      Body material
      SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
      Full port
      1/2"-40"(DN15-DN1000)
      Working pressure
      PN16,1.6Mpa,16Bar
      Working temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Welding connection
      DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
      Connection type
      Weld,Thread,Socket,Clamped,Flanged,Wafer,KF
      Ring type
      The types of sealing rings include O-ring, E-ring, U-ring, V-ring, Y-ring, rectangular ring, etc
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      7307220000
      Trademark
      YOULI
      Application
      Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      union used for convenient connection, disassembly and maintenance of pipelines. It works by allowing a certain degree of movement in the pipeline system.





      Applications

      Pipe Hanger used to support and organize pipes. It helps maintain the stability and orderliness of pipes, ensuring the smooth flow of materials.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Related Video
    Related File
    NO. Name File Detail Size Down
    Online Message
      Message
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      It already exists in the list!
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union

      Model NO.:D009001001D-01

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union
      NO. Mat Spec Wgt(kg) Ps
      1 304 3/4"-Φ19MM 0.136kg
      2 304 1"-Φ25MM 0.2kg
      3 304 1-1/4"-Φ32MM 0.23kg
      4 304 1-1/2"-Φ38MM 0.32kg
      5 304 Φ45MM 0.35kg
      6 304 2"-Φ51MM 0.38kg
      7 304 Φ57MM 0.48kg
      8 304 2-1/2"-Φ63MM 0.56kg
      9 304 3"-Φ76MM 0.74kg
      10 304 3-1/2"-Φ89MM 0.91kg
      11 304 4"-Φ102MM 1.22kg
      12 316L 3/4"-Φ19MM
      13 316L 1"-Φ25MM
      14 316L 1-1/4"-Φ32MM
      15 316L 1-1/2"-Φ38MM
      16 316L Φ45MM
      17 316L 2"-Φ51MM
      18 316L Φ57MM
      19 316L 2-1/2"-Φ63MM
      20 316L 3"-Φ76MM
      21 316L 3-1/2"-Φ89MM
      22 316L 4"-Φ102MM
      23 304 DN15
      24 304 DN20
      25 304 DN25
      26 304 DN32
      27 304 DN40
      28 304 DN50
      29 304 DN65
      30 304 DN80
      31 304 DN100
      32 304 DN125
      33 304 DN150
      34 316L DN15
      35 316L DN20
      36 316L DN25
      37 316L DN32
      38 316L DN40
      39 316L DN50
      40 316L DN65
      41 316L DN80
      42 316L DN100
      43 316L DN125
      44 316L DN150

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union

      Model NO.:D009001001D-01

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 3/4"-Φ19MM $4.01 21 0.136kg
      2 304 1"-Φ25MM $4.39 23 0.2kg
      3 304 1-1/4"-Φ32MM $5.15 27 0.23kg
      4 304 1-1/2"-Φ38MM $6.11 32 0.32kg
      5 304 Φ45MM $6.3 33 0.35kg
      6 304 2"-Φ51MM $6.68 35 0.38kg
      7 304 Φ57MM $6.87 36 0.48kg
      8 304 2-1/2"-Φ63MM $9.92 52 0.56kg
      9 304 3"-Φ76MM $11.83 62 0.74kg
      10 304 3-1/2"-Φ89MM $16.98 89 0.91kg
      11 304 4"-Φ102MM $18.13 95 1.22kg
      12 316L 3/4"-Φ19MM $4.58 24
      13 316L 1"-Φ25MM $4.58 24
      14 316L 1-1/4"-Φ32MM $6.01 31.5
      15 316L 1-1/2"-Φ38MM $6.68 35
      16 316L Φ45MM $6.97 36.5
      17 316L 2"-Φ51MM $7.35 38.5
      18 316L Φ57MM $8.11 42.5
      19 316L 2-1/2"-Φ63MM $10.69 56
      20 316L 3"-Φ76MM $12.4 65
      21 316L 3-1/2"-Φ89MM $15.27 80
      22 316L 4"-Φ102MM $17.94 94
      23 304 DN15 $4.39 23
      24 304 DN20 $4.77 25
      25 304 DN25 $5.06 26.5
      26 304 DN32 $5.82 30.5
      27 304 DN40 $6.58 34.5
      28 304 DN50 $7.82 41
      29 304 DN65 $11.26 59
      30 304 DN80 $14.31 75
      31 304 DN100 $19.66 103
      32 304 DN125 $35.31 185
      33 304 DN150 $49.62 260
      34 316L DN15 $4.87 25.5
      35 316L DN20 $5.44 28.5
      36 316L DN25 $5.92 31
      37 316L DN32 $6.58 34.5
      38 316L DN40 $7.54 39.5
      39 316L DN50 $8.97 47
      40 316L DN65 $13.17 69
      41 316L DN80 $17.56 92
      42 316L DN100 $22.52 118
      43 316L DN125 $41.98 220
      44 316L DN150 $59.16 310

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union

      Model NO.:D009001001D-01

      YOULI Hygienic Food Grade Sanitary Stainless Steel 304 SS316L DIN SMS 3A DN25 Round Nut Pipe Fitting 11850 Complete Sets Union
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 3/4"-Φ19MM $4.01 0.136kg
      2 304 1"-Φ25MM $4.39 0.2kg
      3 304 1-1/4"-Φ32MM $5.15 0.23kg
      4 304 1-1/2"-Φ38MM $6.11 0.32kg
      5 304 Φ45MM $6.3 0.35kg
      6 304 2"-Φ51MM $6.68 0.38kg
      7 304 Φ57MM $6.87 0.48kg
      8 304 2-1/2"-Φ63MM $9.92 0.56kg
      9 304 3"-Φ76MM $11.83 0.74kg
      10 304 3-1/2"-Φ89MM $16.98 0.91kg
      11 304 4"-Φ102MM $18.13 1.22kg
      12 316L 3/4"-Φ19MM $4.58
      13 316L 1"-Φ25MM $4.58
      14 316L 1-1/4"-Φ32MM $6.01
      15 316L 1-1/2"-Φ38MM $6.68
      16 316L Φ45MM $6.97
      17 316L 2"-Φ51MM $7.35
      18 316L Φ57MM $8.11
      19 316L 2-1/2"-Φ63MM $10.69
      20 316L 3"-Φ76MM $12.4
      21 316L 3-1/2"-Φ89MM $15.27
      22 316L 4"-Φ102MM $17.94
      23 304 DN15 $4.39
      24 304 DN20 $4.77
      25 304 DN25 $5.06
      26 304 DN32 $5.82
      27 304 DN40 $6.58
      28 304 DN50 $7.82
      29 304 DN65 $11.26
      30 304 DN80 $14.31
      31 304 DN100 $19.66
      32 304 DN125 $35.31
      33 304 DN150 $49.62
      34 316L DN15 $4.87
      35 316L DN20 $5.44
      36 316L DN25 $5.92
      37 316L DN32 $6.58
      38 316L DN40 $7.54
      39 316L DN50 $8.97
      40 316L DN65 $13.17
      41 316L DN80 $17.56
      42 316L DN100 $22.52
      43 316L DN125 $41.98
      44 316L DN150 $59.16
