    YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass

    YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass

    Model NO.:D006007001D-01

    Pur Qty. / Ref FOB Price

    1 PieceUS $8.4-167.94 / Piece

    Product Details:Ckeck View

    Min. Order:1 Piece

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Material Quality:SS304, SS304L ,SS316, SS316L

    Availabe Standard:SMS,DIN,AAA,Idf,ISO,Rj

    Temperature Range:-20degree Celsius~135degree Celsius

    Seal Material:Silicone, EPDM, Viton, NBR

    Glass material:Heavy Wall Borosilicate Tubing Polycarbonate Tub

    Pressure Range:1.5~3bar

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D006007001D-01

      StructureStraight Way,Cross

      Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends

      ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

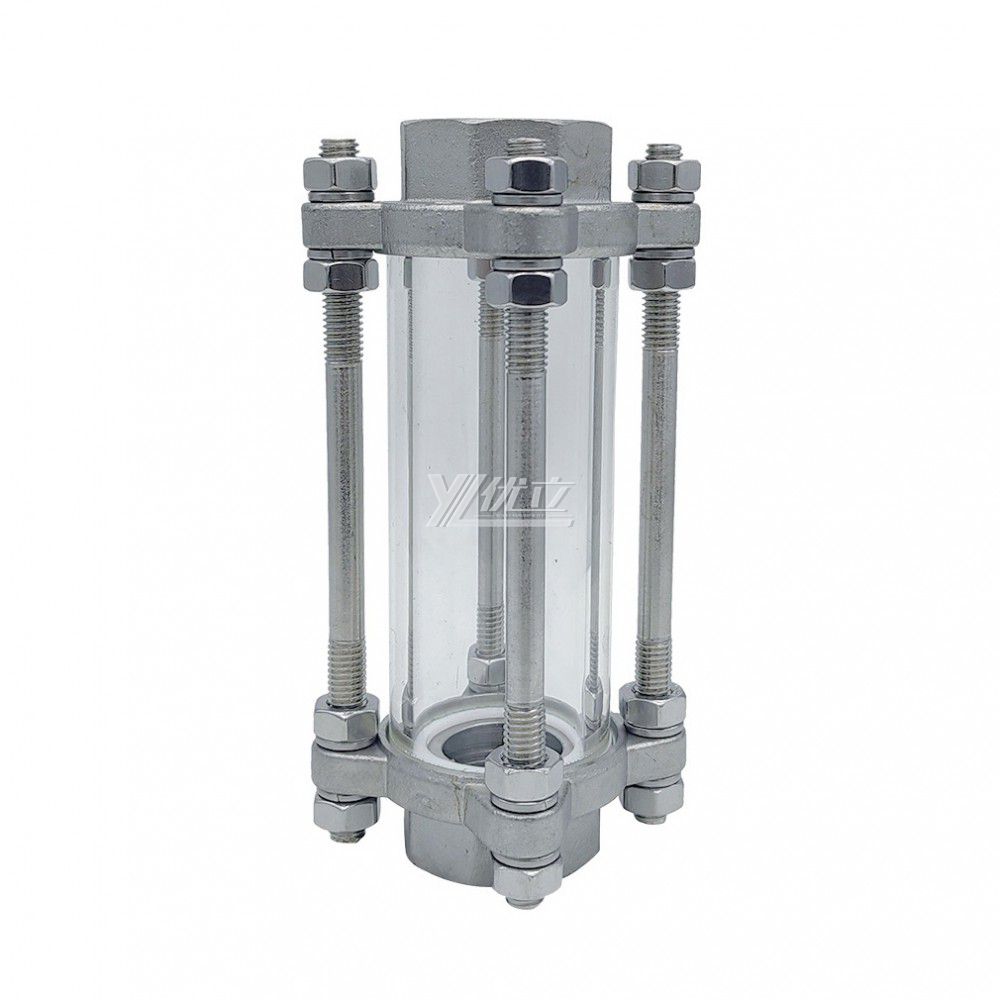

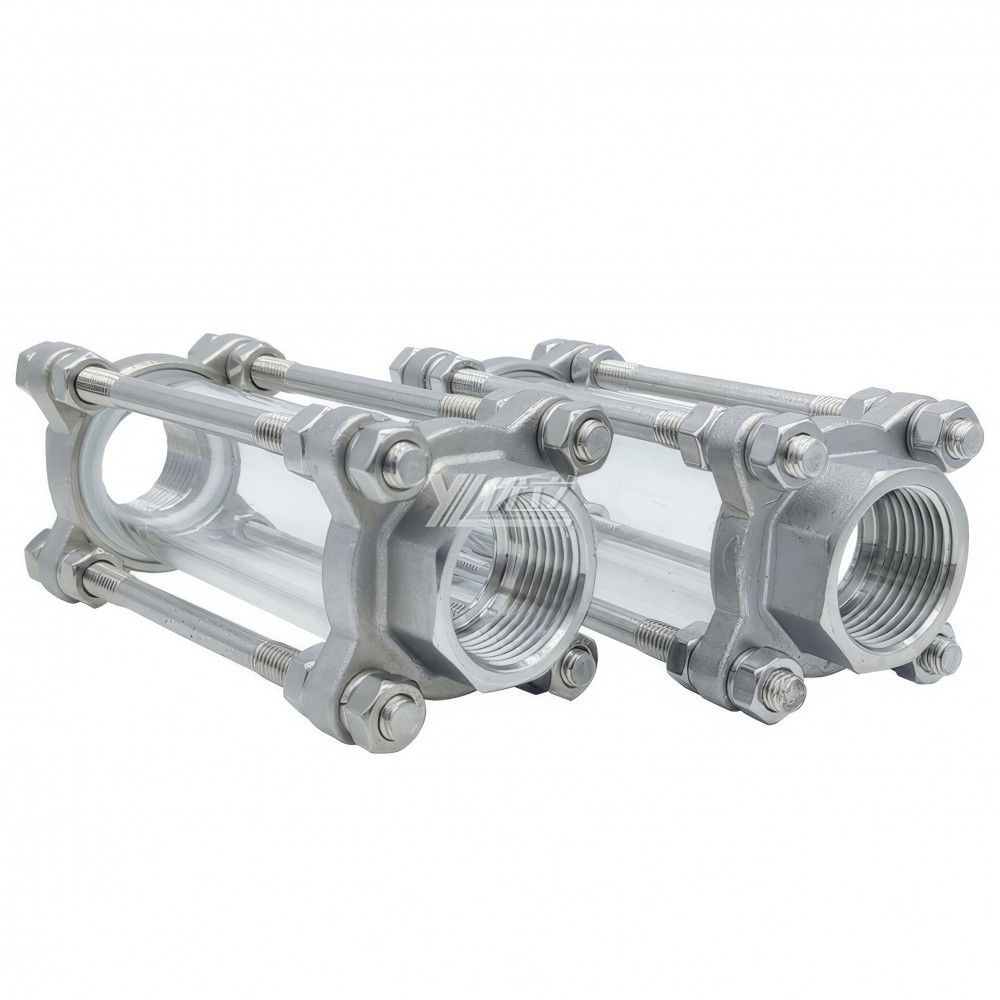

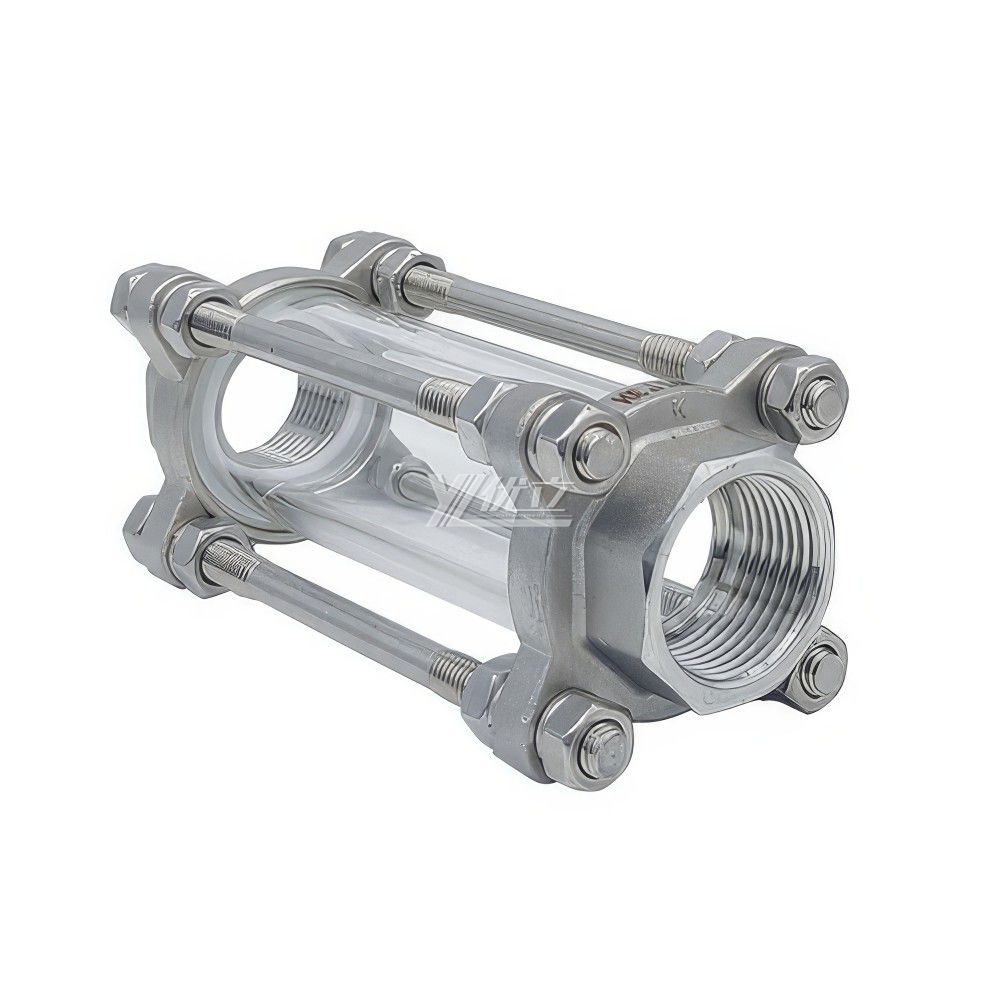

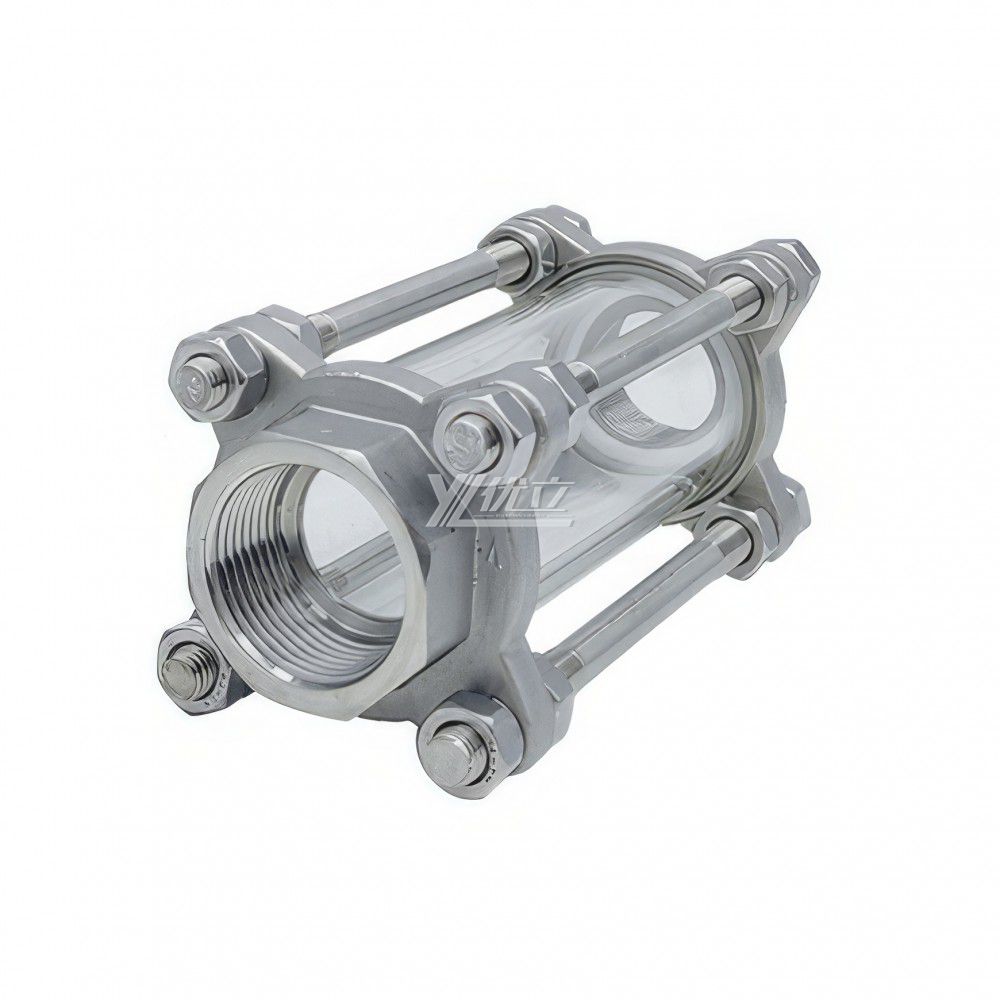

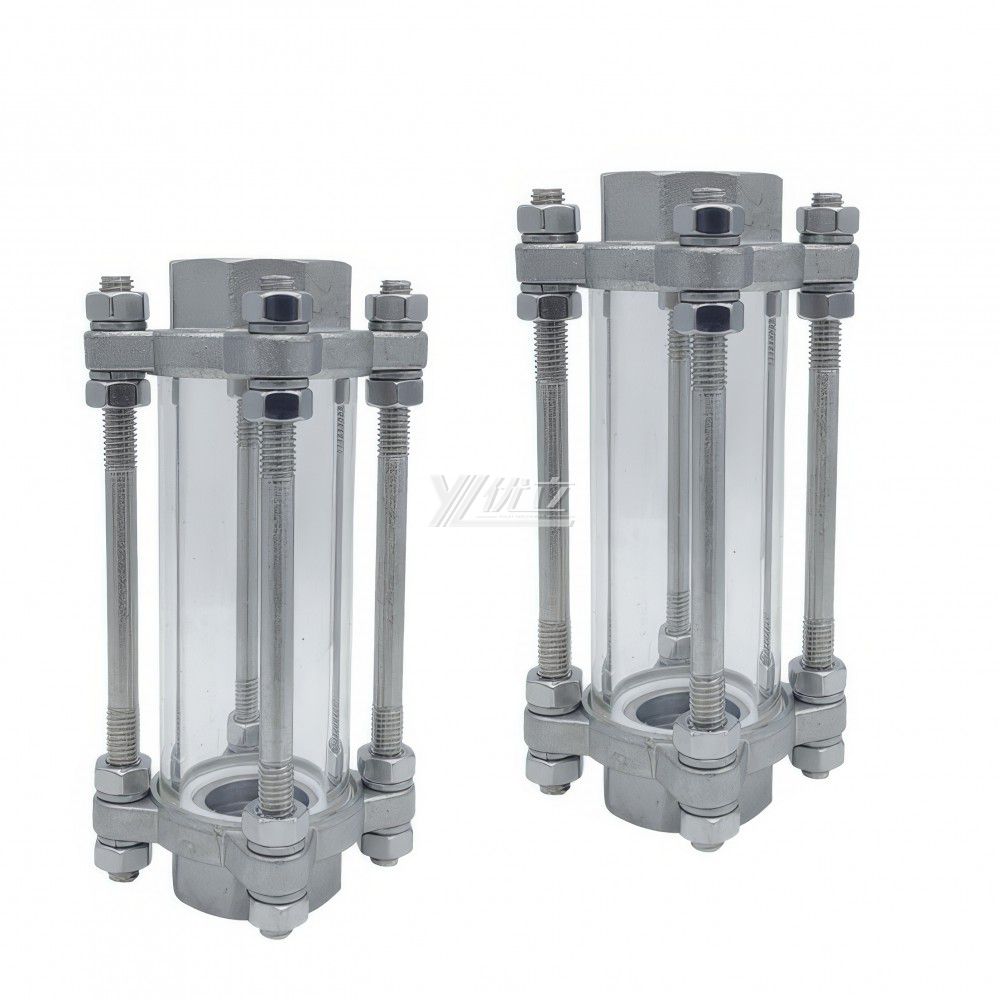

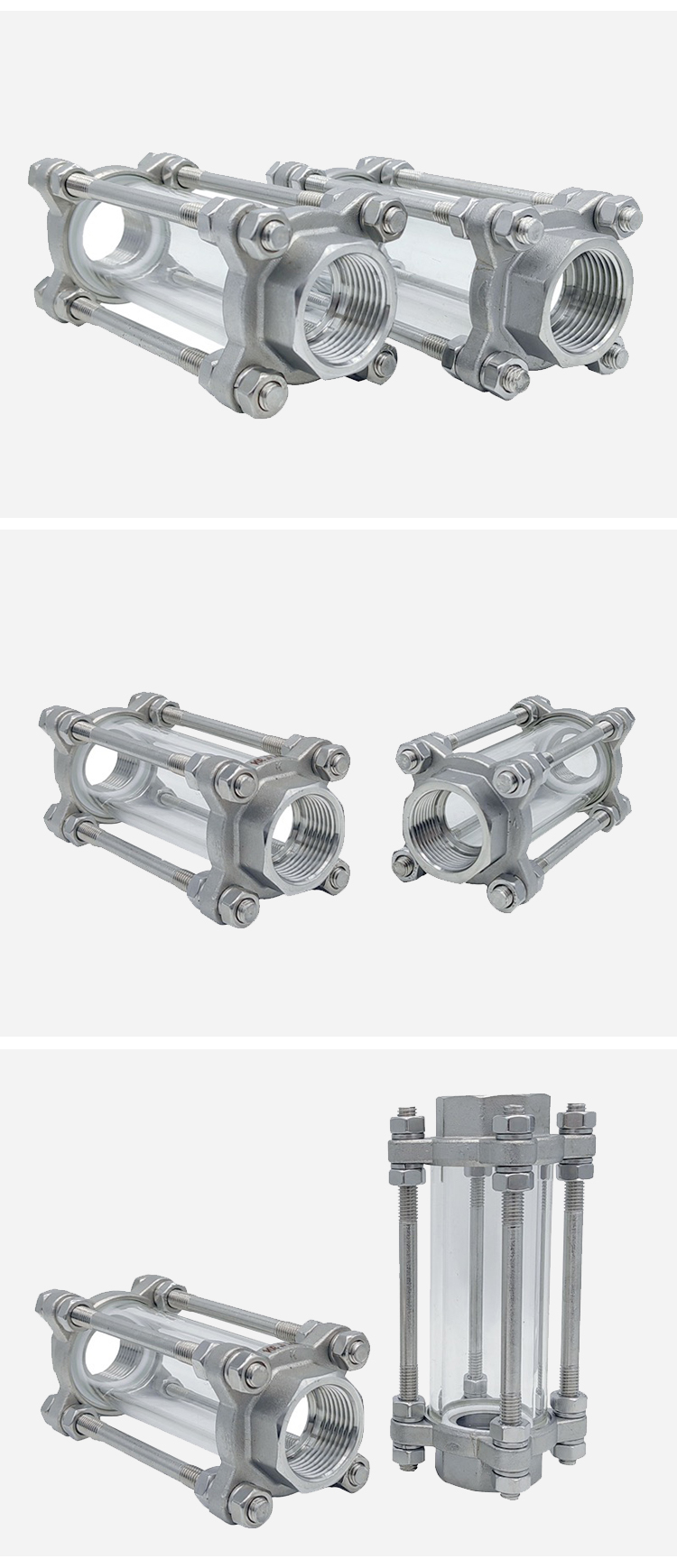

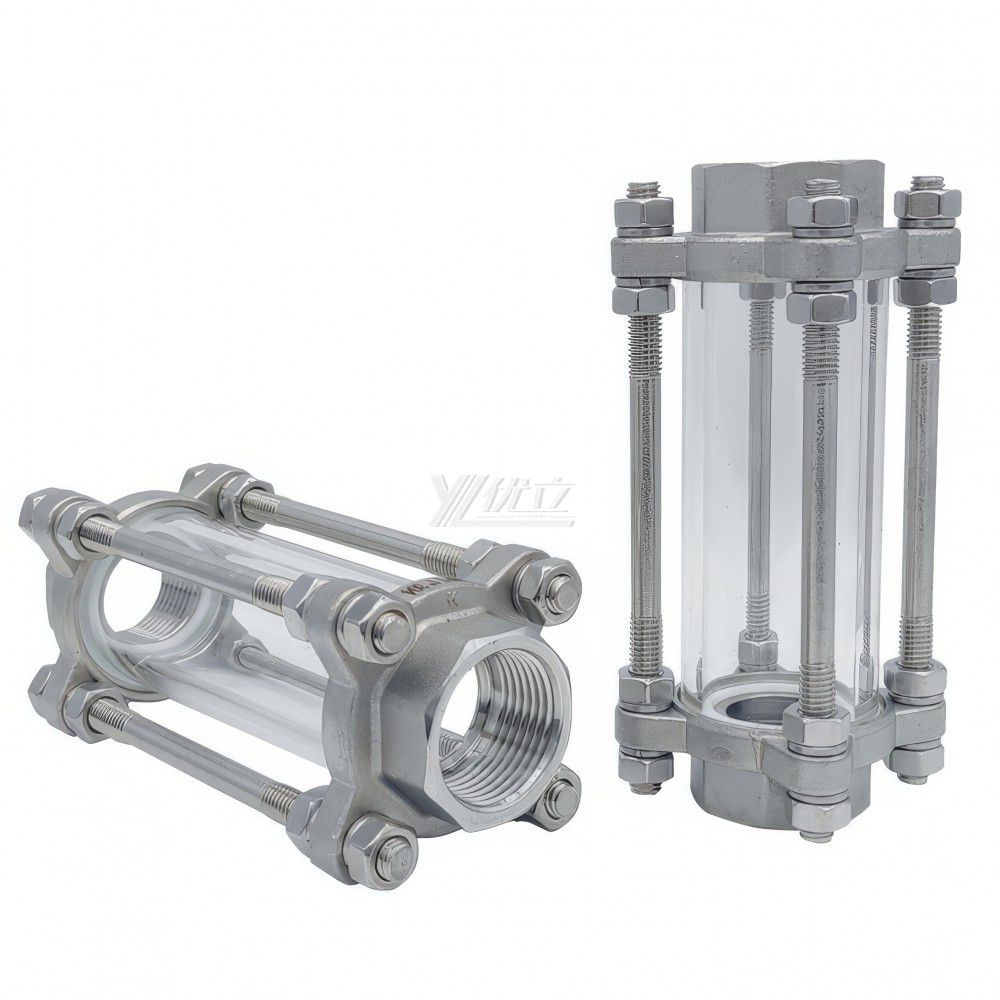

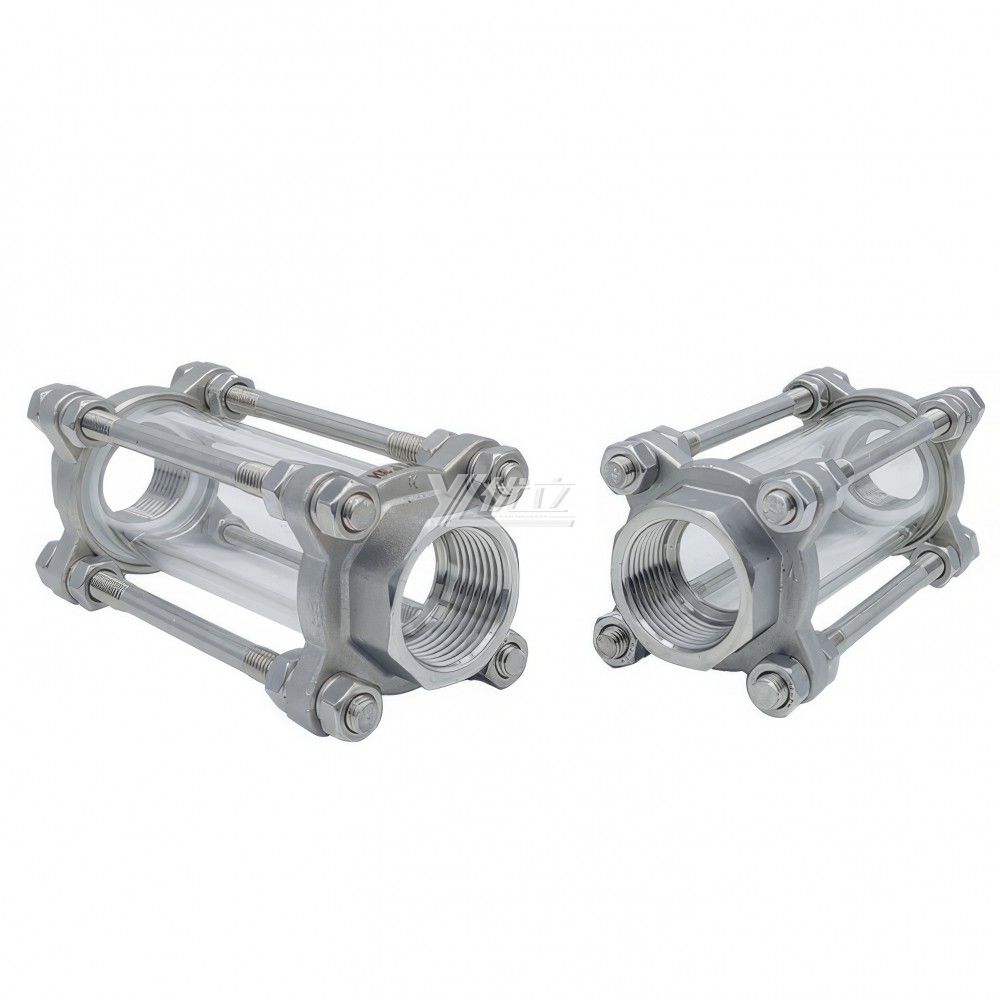

      Product name:YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass

      Female Sight Glass
      Sanitary Sight Glass





      Material
      SUS201,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),WCB,etc.
      Size
      1/2"-12"(DN15-DN300)
      Working pressure
      PN10-25,16-25Bar,JIS10K,API607,ANSI150LB
      Working temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Glass temperature
      - 20 ℃ ~ + 250°C,Optional(- 20℃ ~ + 300°C)
      Connection type
      Weld,Thread,Socket,Clamped,Wafer,Flanged
      Connection Standard
      BSPT,Optional(NPT, BSP, BSPP)
      Standard
      DIN,ISO,3A
      Glass material
      Borosilicate glass,Quartz glass
      Gasket
      NBR,PTFE,Metal,VITON,Graphite
      Lining Seal
      F46,F4,PFA
      HS Code
      7020001990
      MOQ
      1PC
      Place of Origin
      ZHE
      Brand Name
      YOULI
      Application
      Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Sanitay Union Type View Sight Glass
    Related Video
    Related File
    NO. Name File Detail Size Down
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass

      Model NO.:D006007001D-01

      YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass
      NO. Mat Spec Wgt(kg) Ps
      1 304 1/4"-DN8 0.5kg
      2 304 3/8"-DN10 0.5kg
      3 304 1/2"-DN15 0.5kg
      4 304 3/4"-DN20 0.78kg
      5 304 1"-DN25 1kg
      6 304 1-1/4"-DN32 1kg
      7 304 1-1/2"-DN40
      8 304 2"-DN50
      9 304 2-1/2"-DN65
      10 304 3"-DN80
      11 304 4"-DN100
      12 316 1/4"-DN8
      13 316 3/8"-DN10
      14 316 1/2"-DN15
      15 316 3/4"-DN20
      16 316 1"-DN25
      17 316 1-1/4"-DN32
      18 316 1-1/2"-DN40
      19 316 2"-DN50
      20 316 2-1/2"-DN65
      21 316 3"-DN80
      22 316 4"-DN100

      YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass

      Model NO.:D006007001D-01

      YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1.1
      1 304 1/4"-DN8 $8.4 40 0.5kg
      2 304 3/8"-DN10 $8.4 40 0.5kg
      3 304 1/2"-DN15 $8.4 40 0.5kg
      4 304 3/4"-DN20 $12.6 60 0.78kg
      5 304 1"-DN25 $13.65 65 1kg
      6 304 1-1/4"-DN32 $16.79 80 1kg
      7 304 1-1/2"-DN40 $25.19 120
      8 304 2"-DN50 $31.49 150
      9 304 2-1/2"-DN65 $52.48 250
      10 304 3"-DN80 $83.97 400
      11 304 4"-DN100 $125.95 600
      12 316 1/4"-DN8 $16.79 80
      13 316 3/8"-DN10 $16.79 80
      14 316 1/2"-DN15 $14.69 70
      15 316 3/4"-DN20 $14.69 70
      16 316 1"-DN25 $18.89 90
      17 316 1-1/4"-DN32 $20.99 100
      18 316 1-1/2"-DN40 $31.49 150
      19 316 2"-DN50 $37.79 180
      20 316 2-1/2"-DN65 $83.97 400
      21 316 3"-DN80 $125.95 600
      22 316 4"-DN100 $167.94 800

      YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass

      Model NO.:D006007001D-01

      YOULI High Quality BSP NPT BSPT Screw Stainless Steel 304 316L Flow Straight Female Threaded Sight Glass
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 1/4"-DN8 $8.4 0.5kg
      2 304 3/8"-DN10 $8.4 0.5kg
      3 304 1/2"-DN15 $8.4 0.5kg
      4 304 3/4"-DN20 $12.6 0.78kg
      5 304 1"-DN25 $13.65 1kg
      6 304 1-1/4"-DN32 $16.79 1kg
      7 304 1-1/2"-DN40 $25.19
      8 304 2"-DN50 $31.49
      9 304 2-1/2"-DN65 $52.48
      10 304 3"-DN80 $83.97
      11 304 4"-DN100 $125.95
      12 316 1/4"-DN8 $16.79
      13 316 3/8"-DN10 $16.79
      14 316 1/2"-DN15 $14.69
      15 316 3/4"-DN20 $14.69
      16 316 1"-DN25 $18.89
      17 316 1-1/4"-DN32 $20.99
      18 316 1-1/2"-DN40 $31.49
      19 316 2"-DN50 $37.79
      20 316 2-1/2"-DN65 $83.97
      21 316 3"-DN80 $125.95
      22 316 4"-DN100 $167.94
