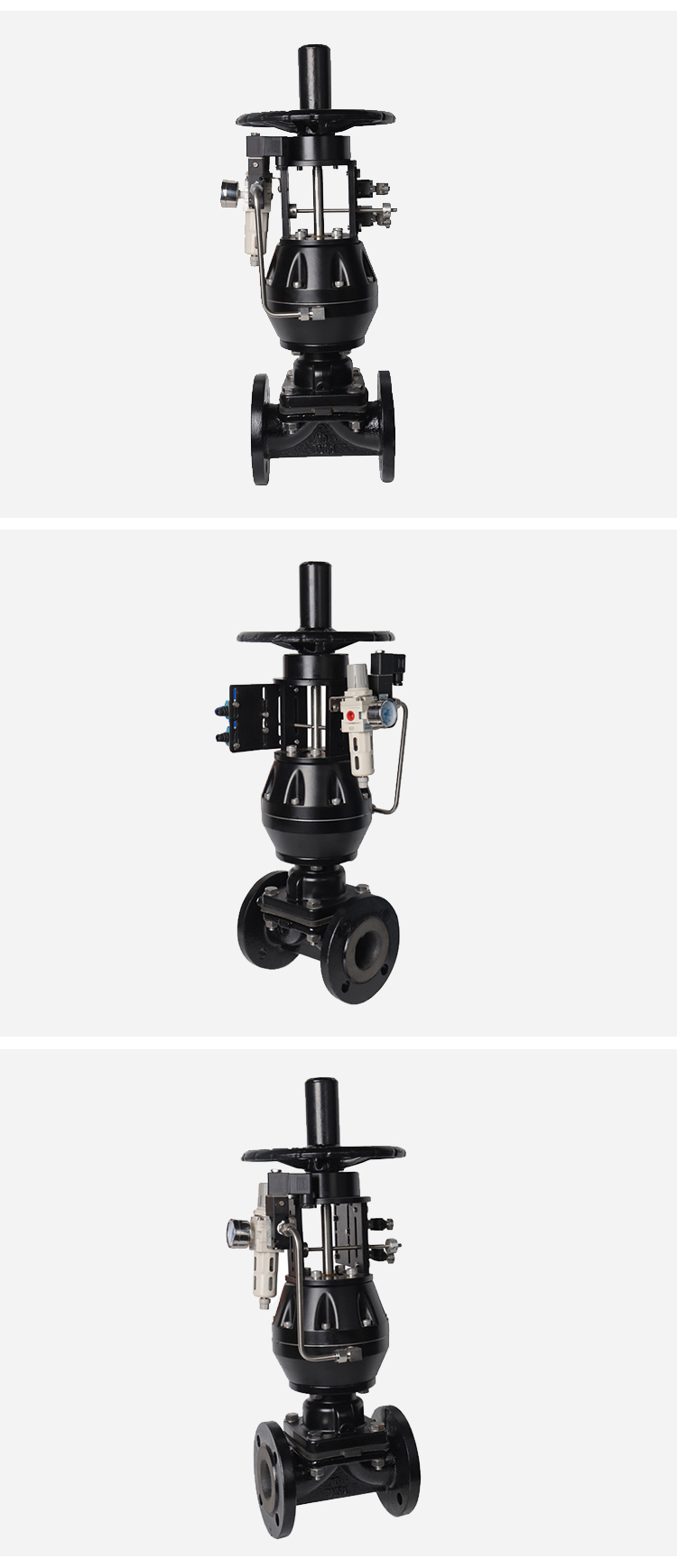

    YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve

    YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve

    Model NO.:D016019002002D-01

    Pur Qty. / Ref FOB Price

    1 SetUS $164.12-1853.05 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Pneumatic

    Connection Form:Weld,Thread,Socket,Clamped,Flanged

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D016019002002D-01

      Product nameDiaphragm Valve

      ApplicationWater, gas,oil

      TrademarkYOULI

      Connection StandardBSPT,Optional(NPT, BSP, BSPP)

      SealingNBR,EPDM,F4,F46,PFA ETC.

      Connection FormWeld,Thread,Socket,Clamped,Flanged

      FeatureSafe and Durable

      MaterialStainless Steel,Carbon steel

      Nominal PressureJIS10-20K,API607,ANSI150-1500LB,16-160Bar,PN16-160,PN16,200WOG

      Temperature- 20 ℃ ~ + 80°C,Optional(- 20℃ ~ + 180°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

      Products Name:YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve

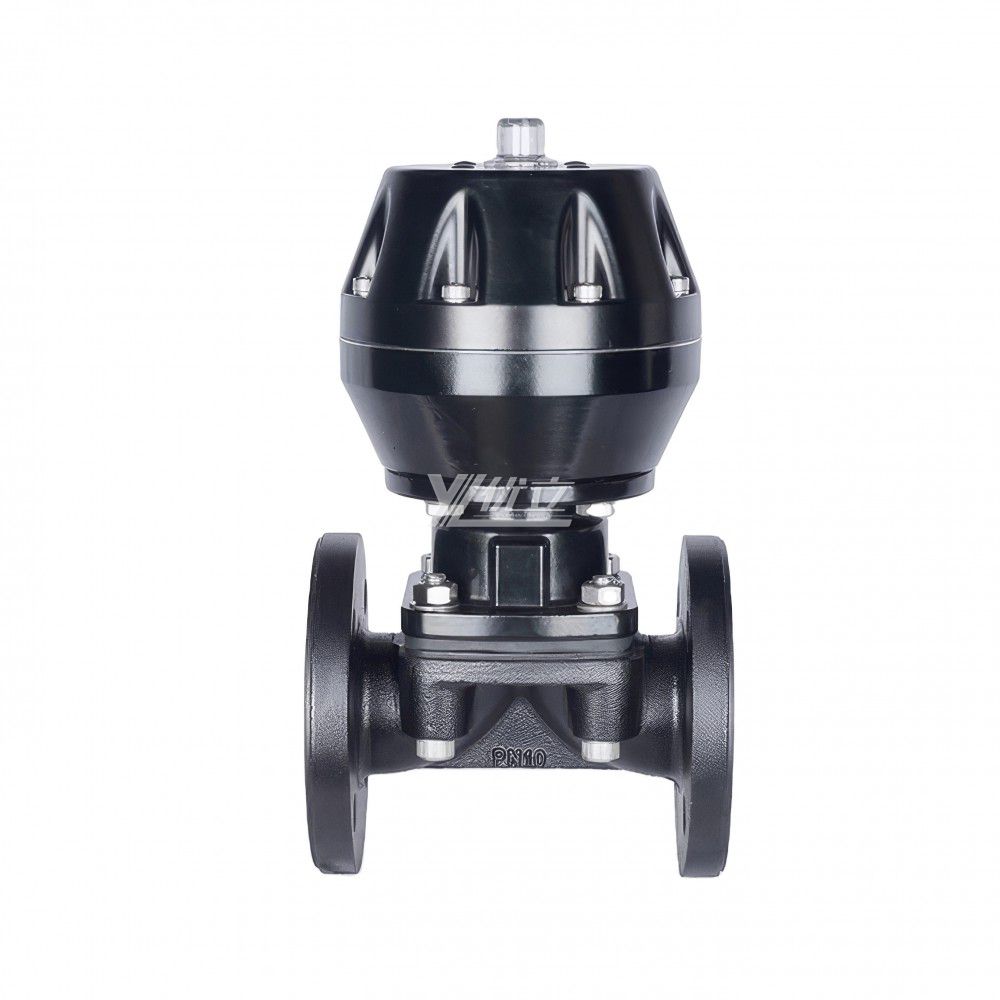

      Flanged Diaphragm Valve
      Diaphragm Valve



      Body material WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M) etc.
      Lining material FEP(F46),PTFE(F4),PFA,PO,NBR,EPDM
      Full port 1/2"-12",DN15-DN300
      Working pressure ANSI CLASS 150-300,JIS10K-20K,PN16-PN64
      Medium temperature - 20 ℃ ~ + 80°C,Optional(- 20℃ ~ + 180°C)
      Connection type Thread,Flanged
      Thread Standard BSPT,Optional(NPT, BSP, BSPP)
      lined Sealing NBR,EPDM,F4,F46,PFA ETC.
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries.The valve is excellent for flow control as well as for open/closeduties.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Stainless Steel Hygienic Sanitary Butterfly Valves Sanitary Hygienic Manual Male Butterfly Valves Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle
    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve

      Model NO.:D016019002002D-01

      YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve
      NO. Mat Spec Wgt(kg) Ps
      1 WCB+Rubber 1/2"-DN15 6kg Single action
      2 WCB+Rubber 3/4"-DN20 6.5kg Single action
      3 WCB+Rubber 1"-DN25 6.8kg Single action
      4 WCB+Rubber 1-1/4"-DN32 8kg Single action
      5 WCB+Rubber 1-1/2"-DN40 15kg Single action
      6 WCB+Rubber 2"-DN50 18kg Single action
      7 WCB+Rubber 2-1/2"-DN65 25kg Single action
      8 WCB+Rubber 3"-DN80 35kg Single action
      9 WCB+Rubber 4"-DN100 57kg Single action
      10 WCB+Rubber 5"-DN125 75kg Single action
      11 WCB+Rubber 6"-DN150 Single action
      12 WCB+Rubber 8"-DN200 Single action
      13 WCB+Rubber 1/2"-DN15 Double action
      14 WCB+Rubber 3/4"-DN20 Double action
      15 WCB+Rubber 1"-DN25 Double action
      16 WCB+Rubber 1-1/4"-DN32 Double action
      17 WCB+Rubber 1-1/2"-DN40 Double action
      18 WCB+Rubber 2"-DN50 Double action
      19 WCB+Rubber 2-1/2"-DN65 Double action
      20 WCB+Rubber 3"-DN80 Double action
      21 WCB+Rubber 4"-DN100 Double action
      22 WCB+Rubber 5"-DN125 Double action
      23 WCB+Rubber 6"-DN150 Double action
      24 WCB+Rubber 8"-DN200 Double action

      YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve

      Model NO.:D016019002002D-01

      YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 WCB+Rubber 1/2"-DN15 $164.12 860 6kg Single action
      2 WCB+Rubber 3/4"-DN20 $164.12 860 6.5kg Single action
      3 WCB+Rubber 1"-DN25 $164.12 860 6.8kg Single action
      4 WCB+Rubber 1-1/4"-DN32 $232.82 1220 8kg Single action
      5 WCB+Rubber 1-1/2"-DN40 $274.81 1440 15kg Single action
      6 WCB+Rubber 2"-DN50 $309.16 1620 18kg Single action
      7 WCB+Rubber 2-1/2"-DN65 $360.69 1890 25kg Single action
      8 WCB+Rubber 3"-DN80 $490.46 2570 35kg Single action
      9 WCB+Rubber 4"-DN100 $601.15 3150 57kg Single action
      10 WCB+Rubber 5"-DN125 $765.27 4010 75kg Single action
      11 WCB+Rubber 6"-DN150 $1022.9 5360 Single action
      12 WCB+Rubber 8"-DN200 $1853.05 9710 Single action
      13 WCB+Rubber 1/2"-DN15 $164.12 860 Double action
      14 WCB+Rubber 3/4"-DN20 $164.12 860 Double action
      15 WCB+Rubber 1"-DN25 $164.12 860 Double action
      16 WCB+Rubber 1-1/4"-DN32 $185.11 970 Double action
      17 WCB+Rubber 1-1/2"-DN40 $250 1310 Double action
      18 WCB+Rubber 2"-DN50 $288.17 1510 Double action
      19 WCB+Rubber 2-1/2"-DN65 $318.7 1670 Double action
      20 WCB+Rubber 3"-DN80 $412.21 2160 Double action
      21 WCB+Rubber 4"-DN100 $559.16 2930 Double action
      22 WCB+Rubber 5"-DN125 $713.74 3740 Double action
      23 WCB+Rubber 6"-DN150 $893.13 4680 Double action
      24 WCB+Rubber 8"-DN200 $1734.73 9090 Double action

      YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve

      Model NO.:D016019002002D-01

      YOULI ANSI 150LB EG641J Stainless Steel 304 316 1.6mpa WCB Rubber Lined Pneumatic Flange Diaphragm Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 WCB+Rubber 1/2"-DN15 $164.12 6kg Single action
      2 WCB+Rubber 3/4"-DN20 $164.12 6.5kg Single action
      3 WCB+Rubber 1"-DN25 $164.12 6.8kg Single action
      4 WCB+Rubber 1-1/4"-DN32 $232.82 8kg Single action
      5 WCB+Rubber 1-1/2"-DN40 $274.81 15kg Single action
      6 WCB+Rubber 2"-DN50 $309.16 18kg Single action
      7 WCB+Rubber 2-1/2"-DN65 $360.69 25kg Single action
      8 WCB+Rubber 3"-DN80 $490.46 35kg Single action
      9 WCB+Rubber 4"-DN100 $601.15 57kg Single action
      10 WCB+Rubber 5"-DN125 $765.27 75kg Single action
      11 WCB+Rubber 6"-DN150 $1022.9 Single action
      12 WCB+Rubber 8"-DN200 $1853.05 Single action
      13 WCB+Rubber 1/2"-DN15 $164.12 Double action
      14 WCB+Rubber 3/4"-DN20 $164.12 Double action
      15 WCB+Rubber 1"-DN25 $164.12 Double action
      16 WCB+Rubber 1-1/4"-DN32 $185.11 Double action
      17 WCB+Rubber 1-1/2"-DN40 $250 Double action
      18 WCB+Rubber 2"-DN50 $288.17 Double action
      19 WCB+Rubber 2-1/2"-DN65 $318.7 Double action
      20 WCB+Rubber 3"-DN80 $412.21 Double action
      21 WCB+Rubber 4"-DN100 $559.16 Double action
      22 WCB+Rubber 5"-DN125 $713.74 Double action
      23 WCB+Rubber 6"-DN150 $893.13 Double action
      24 WCB+Rubber 8"-DN200 $1734.73 Double action
