    https://www.ylvalves.com/upfile/goods/D001-Sanitary_Valve/D001001-Butterfly_Valve/VIDEO_Butterfly_Valve_01.jpg

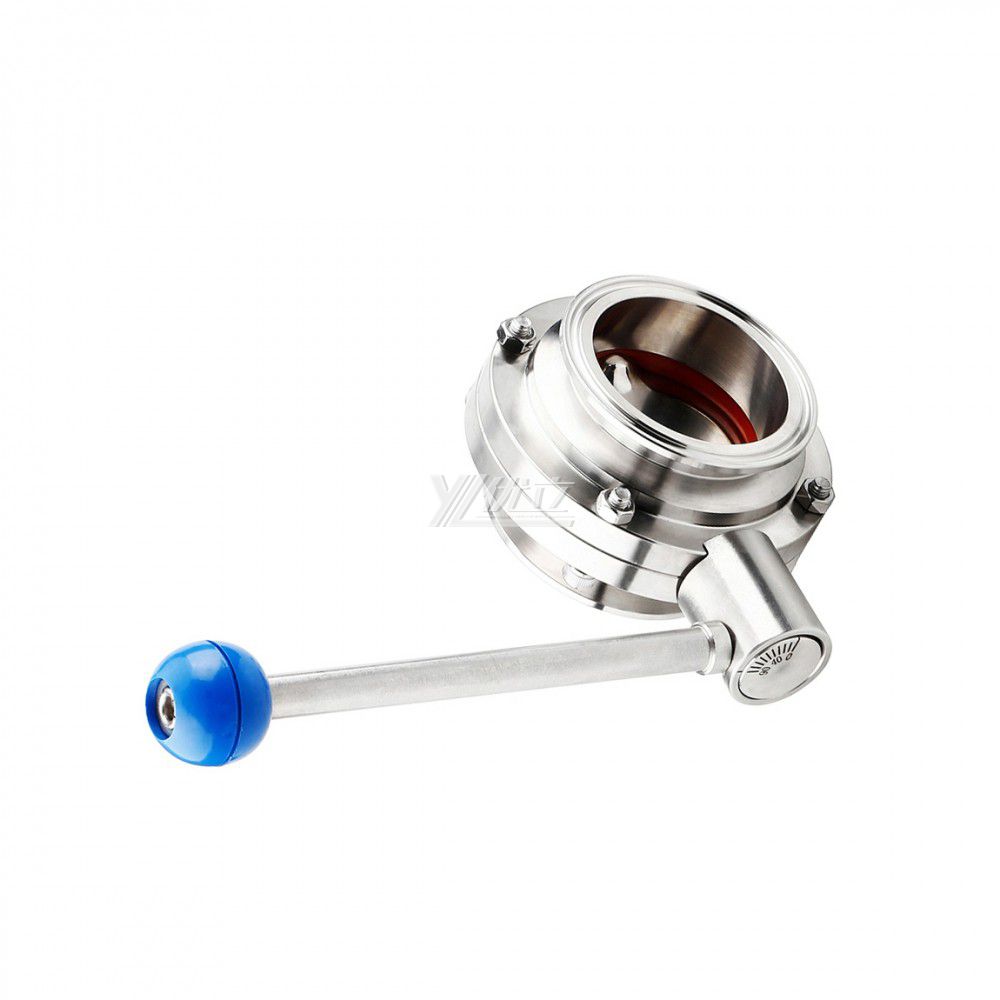

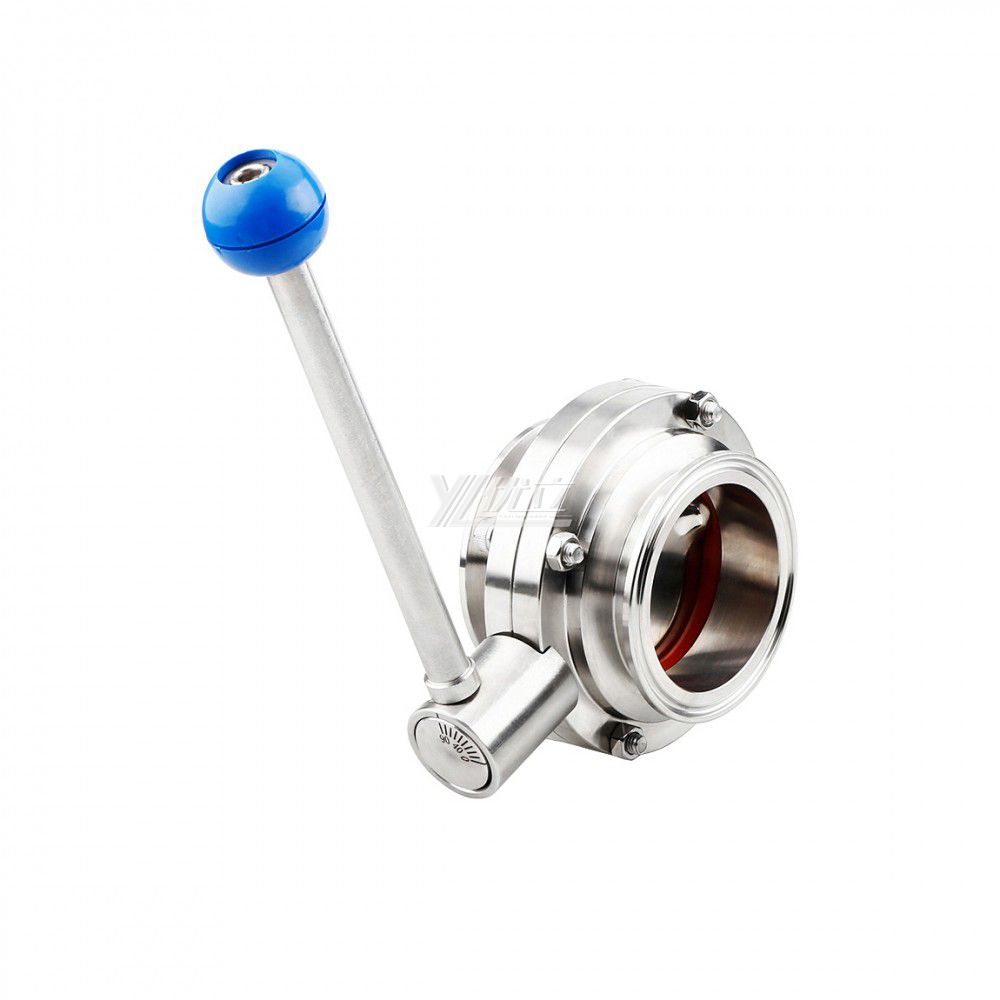

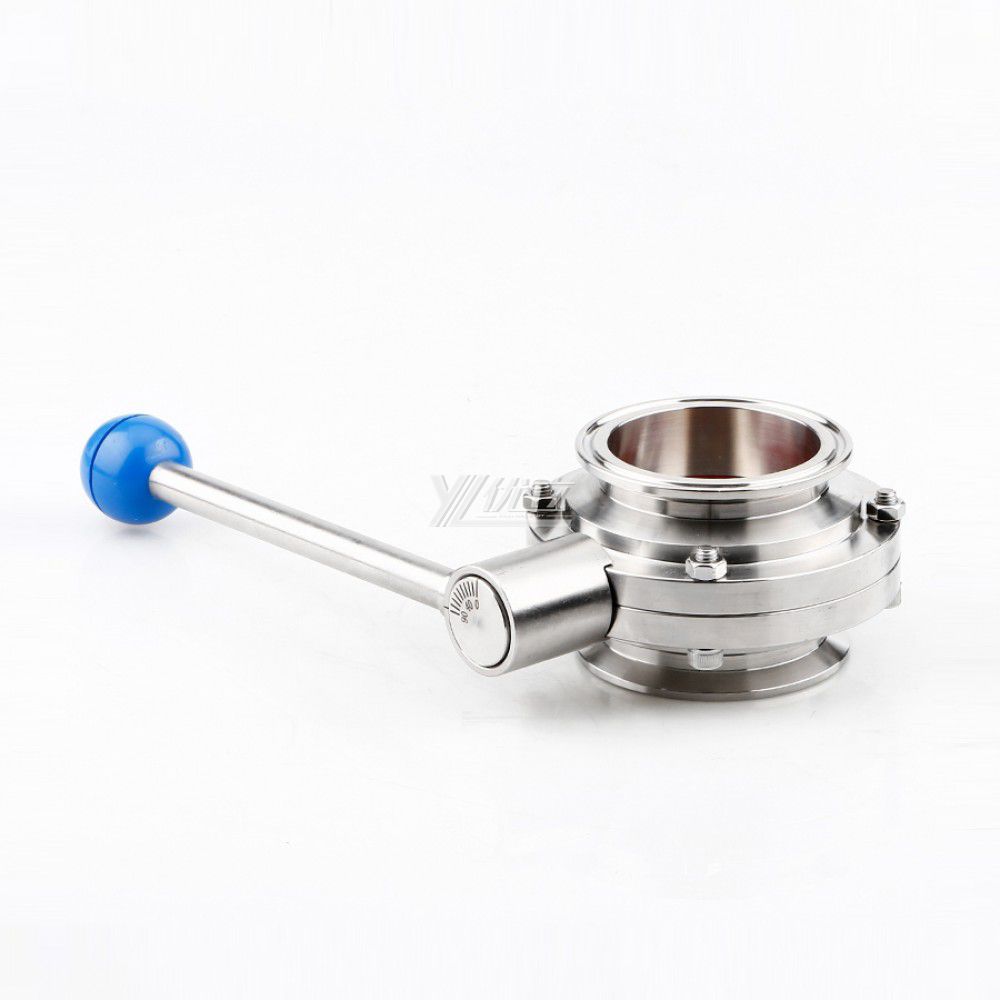

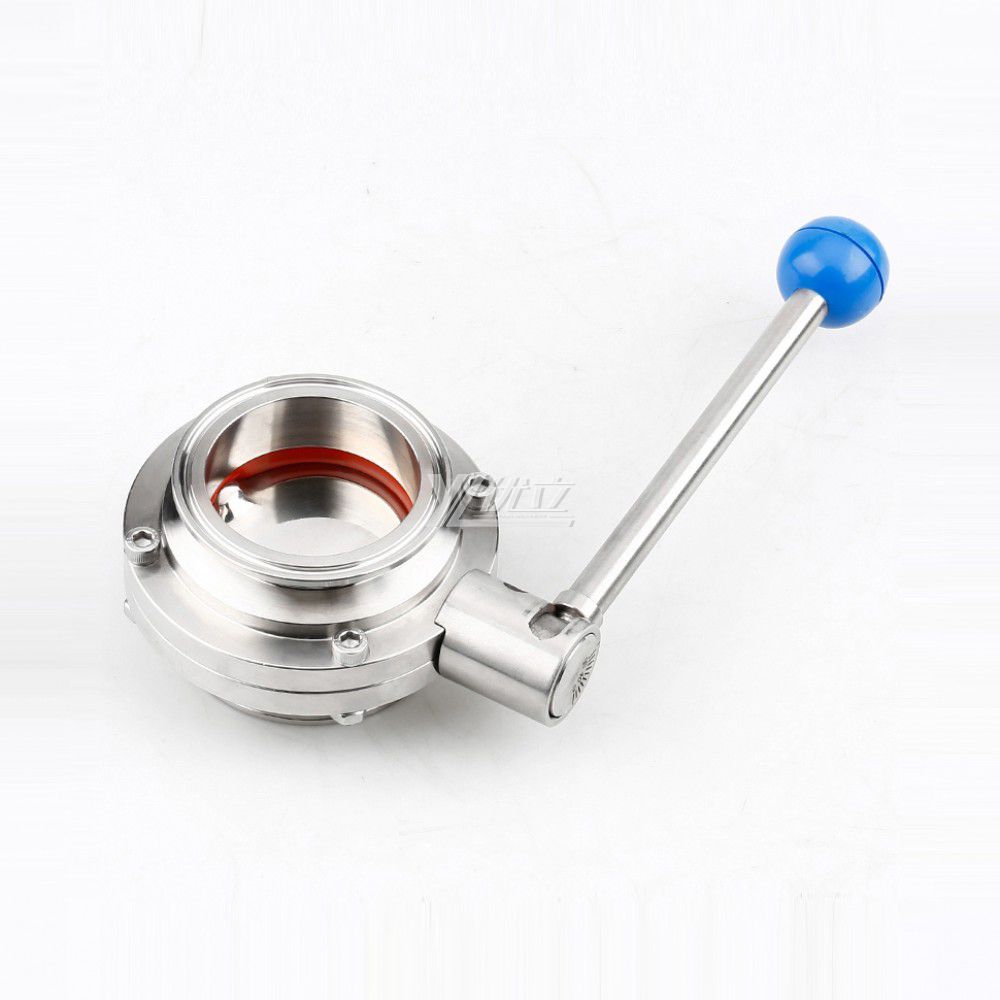

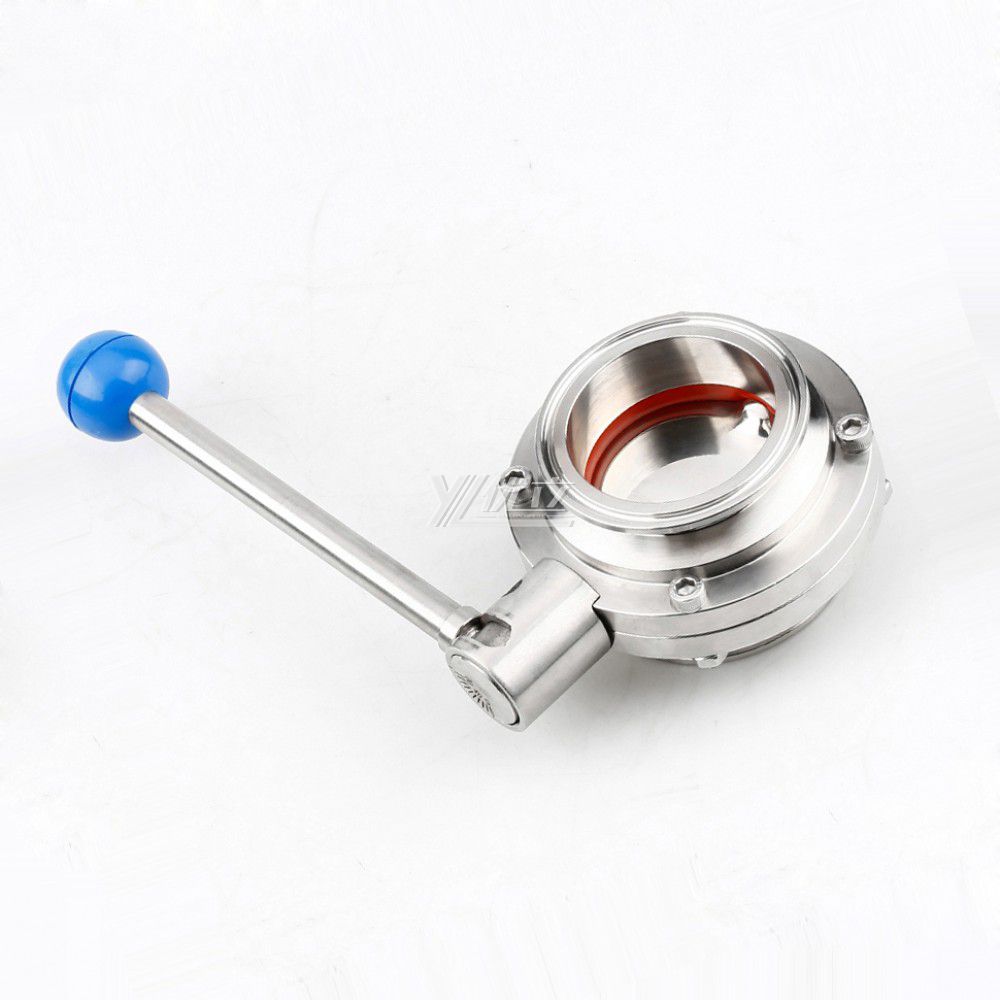

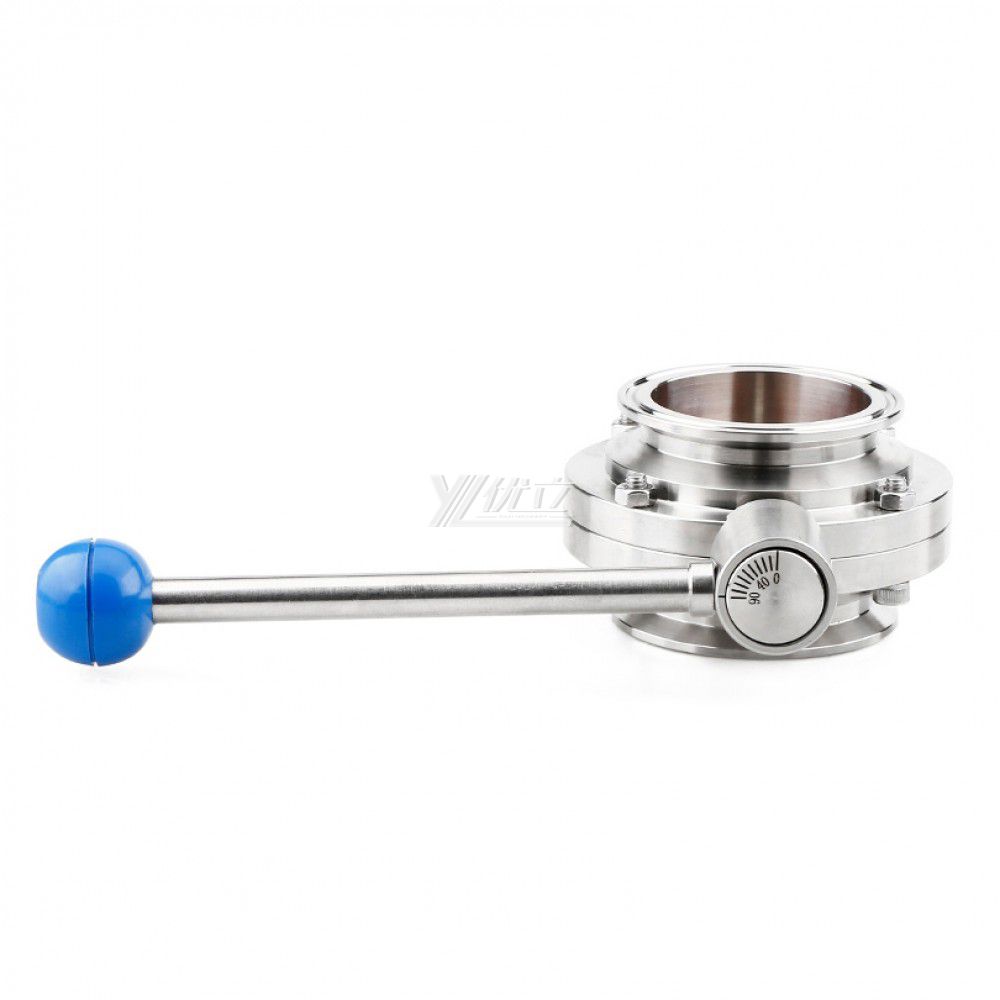

    YOULI YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve

    YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve

    Model NO.:D001001001002DX005-01

    Pur Qty. / Ref FOB Price

    1 SetUS $17.37-37.6 / Set

    Product Details:Ckeck View

    Min. Order:1 Set

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Driving Mode:Manual

    Connection Form:Weld

    Structure:Centre Sealing

    Seal Form:Force Sealed

    Valve Stem:Normal

    Work Pressure:Low Pressure (Pn<1.6mpa)

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to BasketPDF Format.
    Basic Info

      Model NO.D001001001002DX005-01

      Working TemperatureNormal Temperature (-40°C-120°C)

      Material of Seal SurfaceSoft Sealed

      Valve BodyForge Welding

      ApplicationIndustrial Usage, Water Industrial Usage, Household Usage, Milk, Beer, Juice, Phramacy

      Connection StandardDIN, 3A, SMS, Rjt

      Flow Medium Parts304, 304L, 316L (1.4301, 1.4307, 1.4404)

      Port SizeDn10-150 or 1/2"-150

      Way of ConnectionWeld, Male, Clamp, Flange

      GasketSilicone, EPDM, Viton, NBR

      Kinds of HandlePull Handle, Gripper Hanle/Fiber Handle.

      Pressure Range0bar~0bar

      Temperature Range-20 Degree Celsius to 120 Degree Celsius

      Processing MachineForge Processing, Advance CNC Machine

      Working PrincipleRemote-Controlled Operation by The Driving Gear or

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

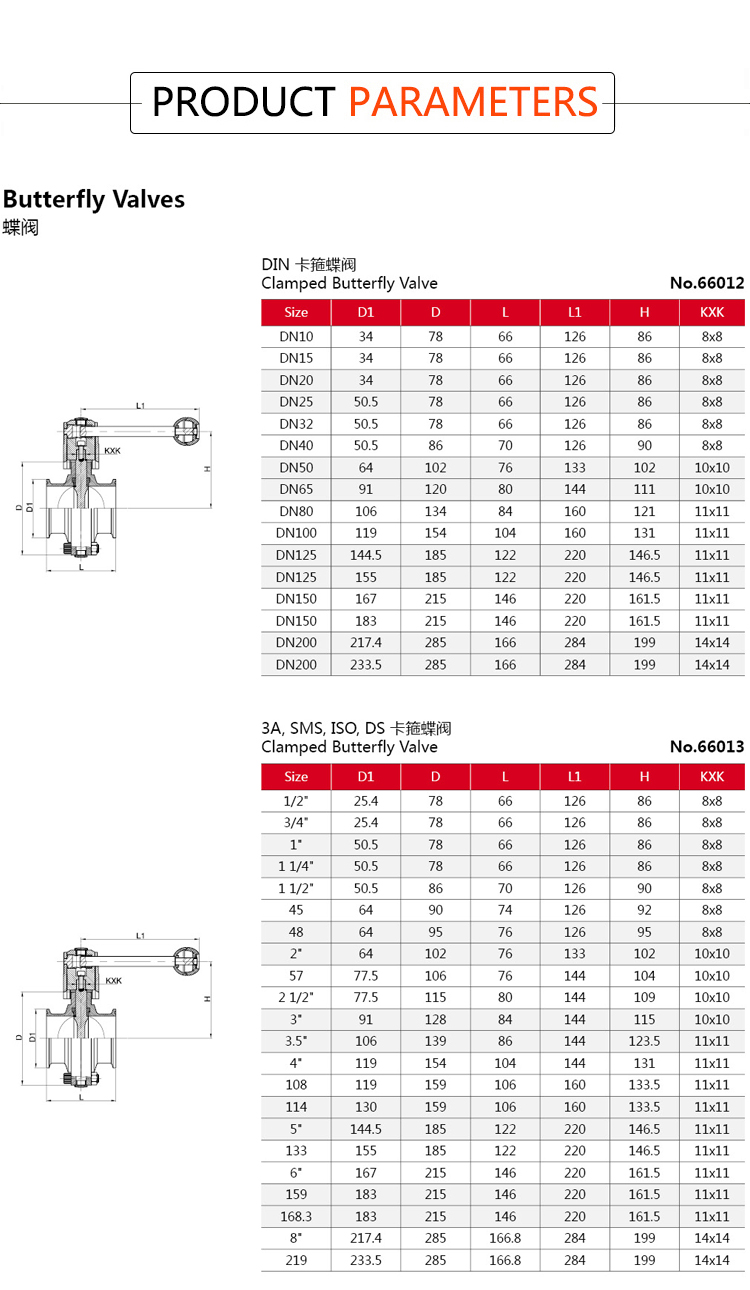

    Product Description

      Products Name:YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve

      manual Butterfly Valve
      Sanitary Clamped Butterfly Valve



      Body material
      SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
      Full port
      1/2"-12",DN15-DN300,Φ19-Φ219
      Working pressure
      PN16,1.6Mpa,16Bar
      Medium temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Sterilization temperature
      150°C(max.20min)
      Connection type
      Weld, Thread,Socket,Clamped,Flanged
      Connection Standard
      BSPT,Optional(NPT, BSP, BSPP)
      Welding connection
      DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
      Sealing
      PTFE,RPTFE,PPL ETC
      Surface treatment
      Ra0.4-0.8μm
      Inside surface treatment
      Ra0.4-0.8μm
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      8481804090
      Trademark
      YOULI
      Application
      Suitable for beverage, fruit juice, wine, milk,drink,bio pharmaceutical etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Related Video
    Related File
    NO. Name File Detail Size Down
    1 001-Catalogue-YOULI.pdf 001-Catalogue-YOULI.pdf 23M .
    2 002-Catalogue-YOULI.pdf 002-Catalogue-YOULI.pdf 5.29M .
    3 003-Catalogue-YOULI.pdf 003-Catalogue-YOULI.pdf 21.5M .
    4 005-Catalogue-YOULI-Manhole.pdf 005-Catalogue-YOULI-Manhole.pdf 41.5M .
    5 004-Catalogue-YOULI-Sanitary_Valve.pdf 004-Catalogue-YOULI-Sanitary_Valve.pdf 6.04M .
    6 006-Catalogue-YOULI-Electric_Actuator.pdf 006-Catalogue-YOULI-Electric_Actuator.pdf 6.45M .
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve

      Model NO.:D001001001002DX005-01

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve
      NO. Mat Spec Wgt(kg) Ps
      1 304 3/4"-Φ19MM K50.5MM
      2 304 1"-Φ25MM K50.5MM 1.06kg
      3 304 1-1/4"-Φ32MM K50.5MM 1.02kg
      4 304 1-1/2"-Φ38MM K50.5MM 0.94kg
      5 304 Φ45MM K64MM
      6 304 2"-Φ51MM K64MM 1.27kg
      7 304 Φ57MM K77.5MM
      8 304 2-1/2"-Φ63MM K77.5MM 1.73kg
      9 304 3"-Φ76MM K91MM 1.89kg
      10 304 3-1/2"-Φ89MM K106MM 2.47kg
      11 304 4"-Φ102MM K119MM 3.2kg
      12 304 Φ108MM K119MM

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve

      Model NO.:D001001001002DX005-01

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 3/4"-Φ19MM K50.5MM $18.32 96
      2 304 1"-Φ25MM K50.5MM $17.37 91 1.06kg
      3 304 1-1/4"-Φ32MM K50.5MM $17.37 91 1.02kg
      4 304 1-1/2"-Φ38MM K50.5MM $17.37 91 0.94kg
      5 304 Φ45MM K64MM $19.27 101
      6 304 2"-Φ51MM K64MM $19.27 101 1.27kg
      7 304 Φ57MM K77.5MM $24.62 129
      8 304 2-1/2"-Φ63MM K77.5MM $24.05 126 1.73kg
      9 304 3"-Φ76MM K91MM $27.86 146 1.89kg
      10 304 3-1/2"-Φ89MM K106MM $31.87 167 2.47kg
      11 304 4"-Φ102MM K119MM $37.6 197 3.2kg
      12 304 Φ108MM K119MM $37.6 197

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve

      Model NO.:D001001001002DX005-01

      YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon with Scale Sanitary Manual Tri Clamped Butterfly Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 3/4"-Φ19MM K50.5MM $18.32
      2 304 1"-Φ25MM K50.5MM $17.37 1.06kg
      3 304 1-1/4"-Φ32MM K50.5MM $17.37 1.02kg
      4 304 1-1/2"-Φ38MM K50.5MM $17.37 0.94kg
      5 304 Φ45MM K64MM $19.27
      6 304 2"-Φ51MM K64MM $19.27 1.27kg
      7 304 Φ57MM K77.5MM $24.62
      8 304 2-1/2"-Φ63MM K77.5MM $24.05 1.73kg
      9 304 3"-Φ76MM K91MM $27.86 1.89kg
      10 304 3-1/2"-Φ89MM K106MM $31.87 2.47kg
      11 304 4"-Φ102MM K119MM $37.6 3.2kg
      12 304 Φ108MM K119MM $37.6
