    Clamp Ferrule

    YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter

    Model NO.:D010004004D-01

    Pur Qty. / Ref FOB Price

    1 PieceUS $0.63-6.07 / Piece

    Product Details:Ckeck View

    Min. Order:1 Piece

    Port:Ningbo, China

    Production Capacity:5000pieces/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Standard:DIN, ANSI, GB, JIS, BSW, SMS

    Material:Stainless Steel

    Connection:Welding

    Surface Treatment:Galvanized Sheet

    Head Type:Round

    Specifictaion:Dn25-Dn100, 1"- 4"

    HS Code:7307290000

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Basic Info

      Model NO.D010004004D-01

      Standard AvailableISO, Idf, DIN, 3A, SMS

      Material QualitySUS304, SUS316L

      Connection AvailableClamping, Threading, Welding

      Internal Surface TreatmentRa0.8um-1.6um

      External Surface TreatmentRa0.8um-1.6um

      ApplicationDairy Products, Beer, Food, Beverage, Pharmaceutic

      Temperature Range-73.3 Celsuis Degree-204.4 Celsuis Degree

      Pressure Range0-10bar, 0MPa-1.0MPa

      HS Code7307290000

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

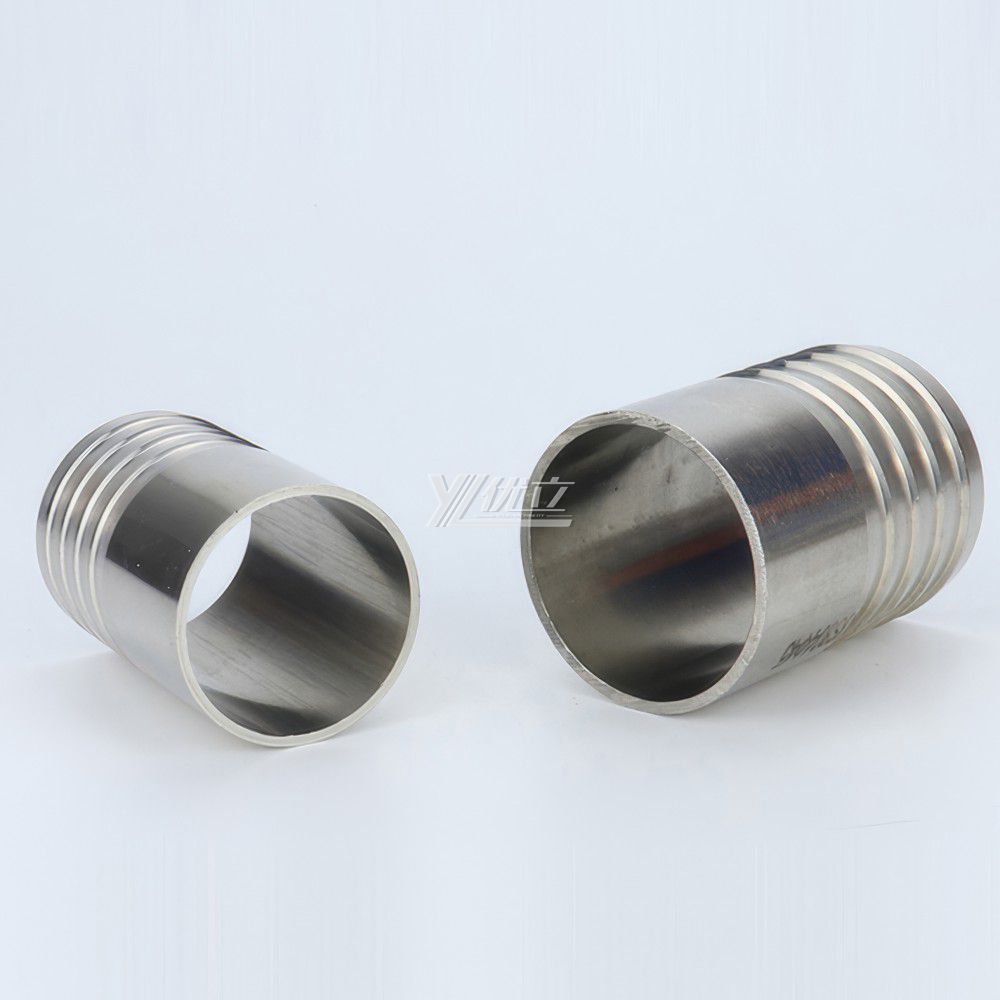

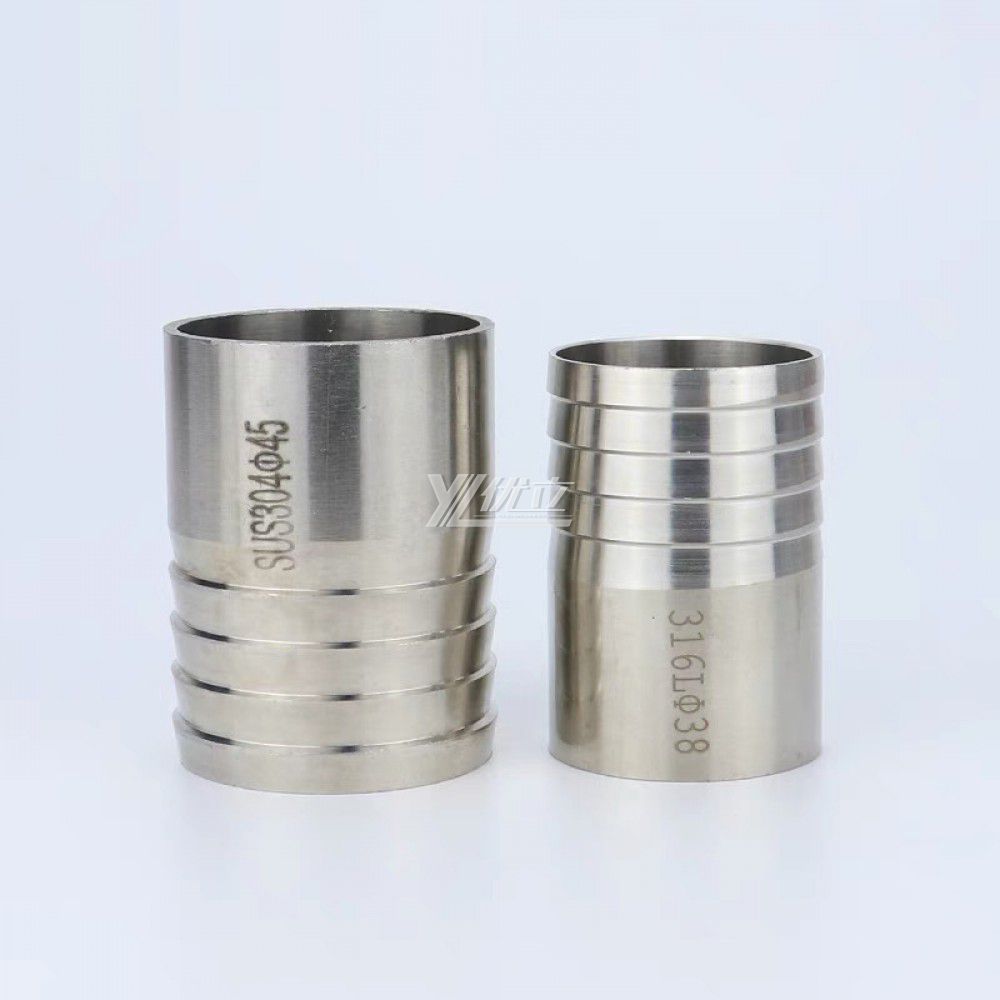

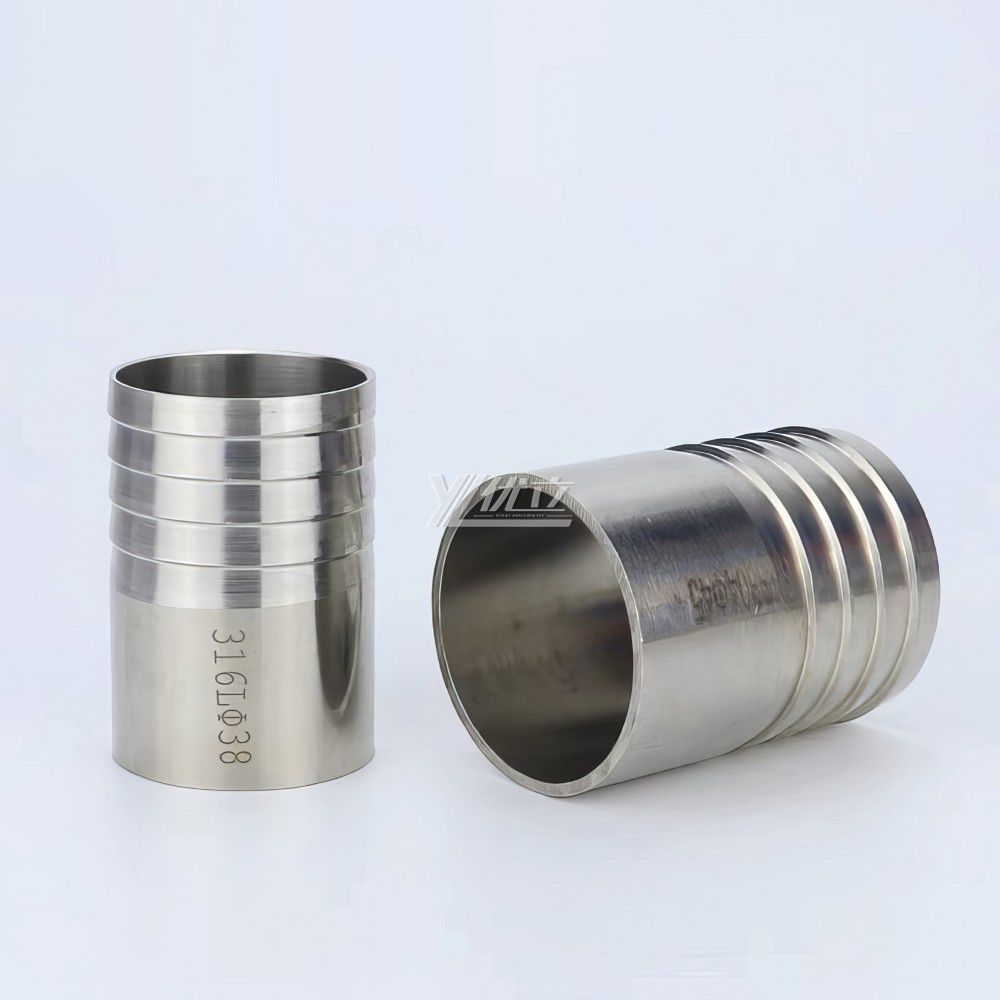

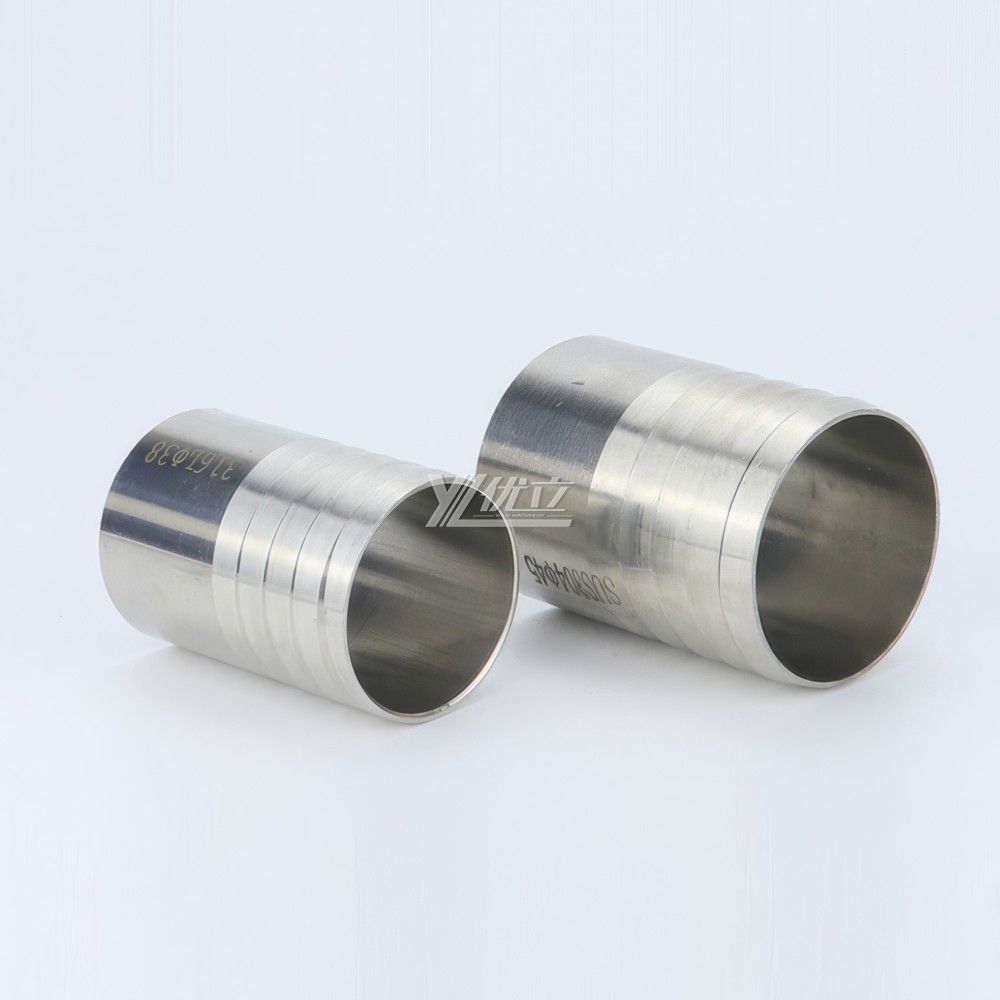

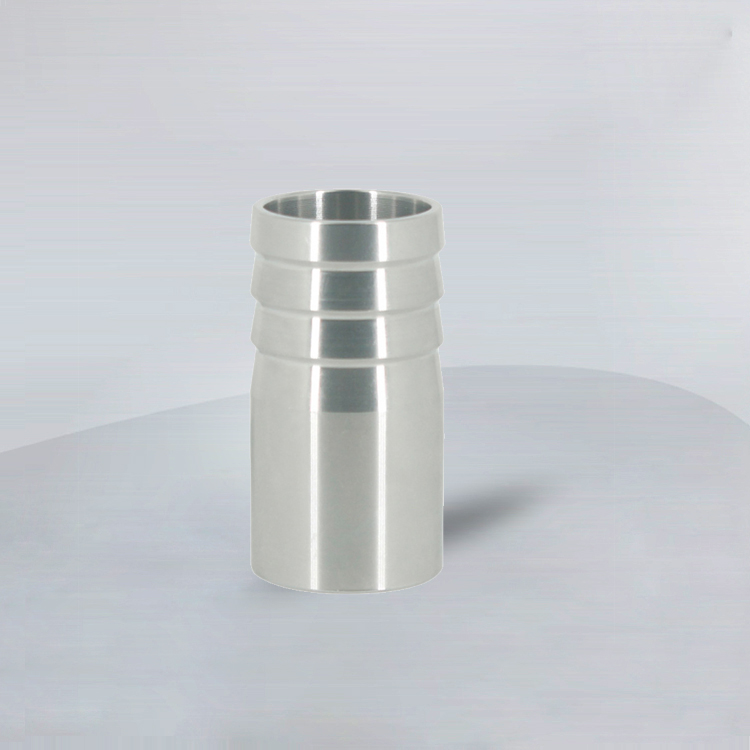

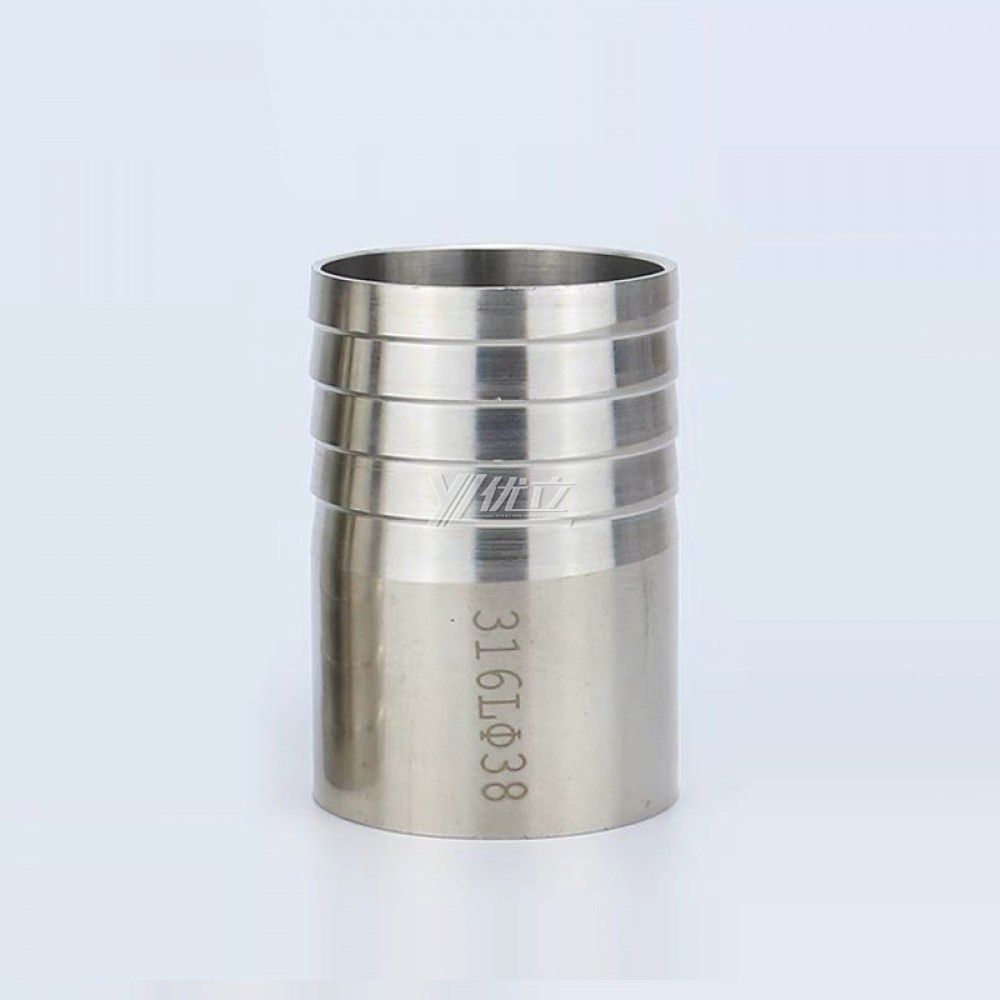

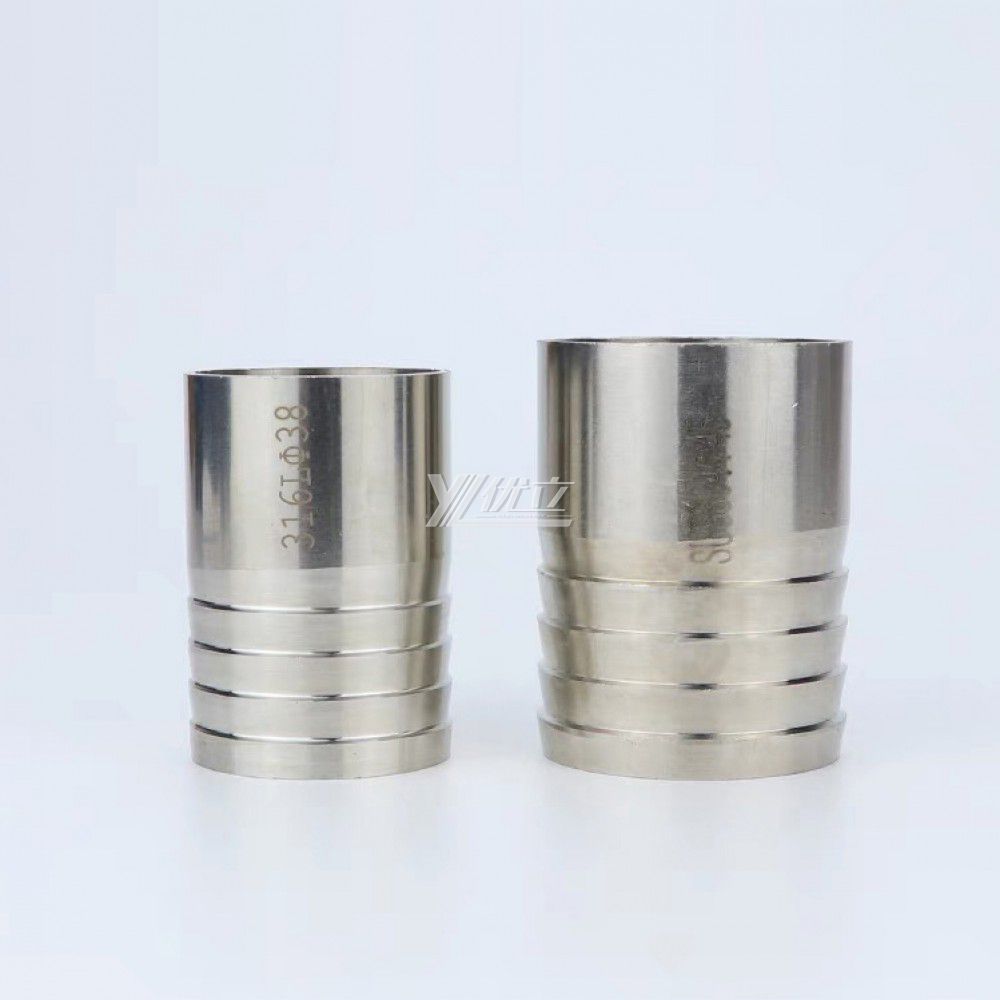

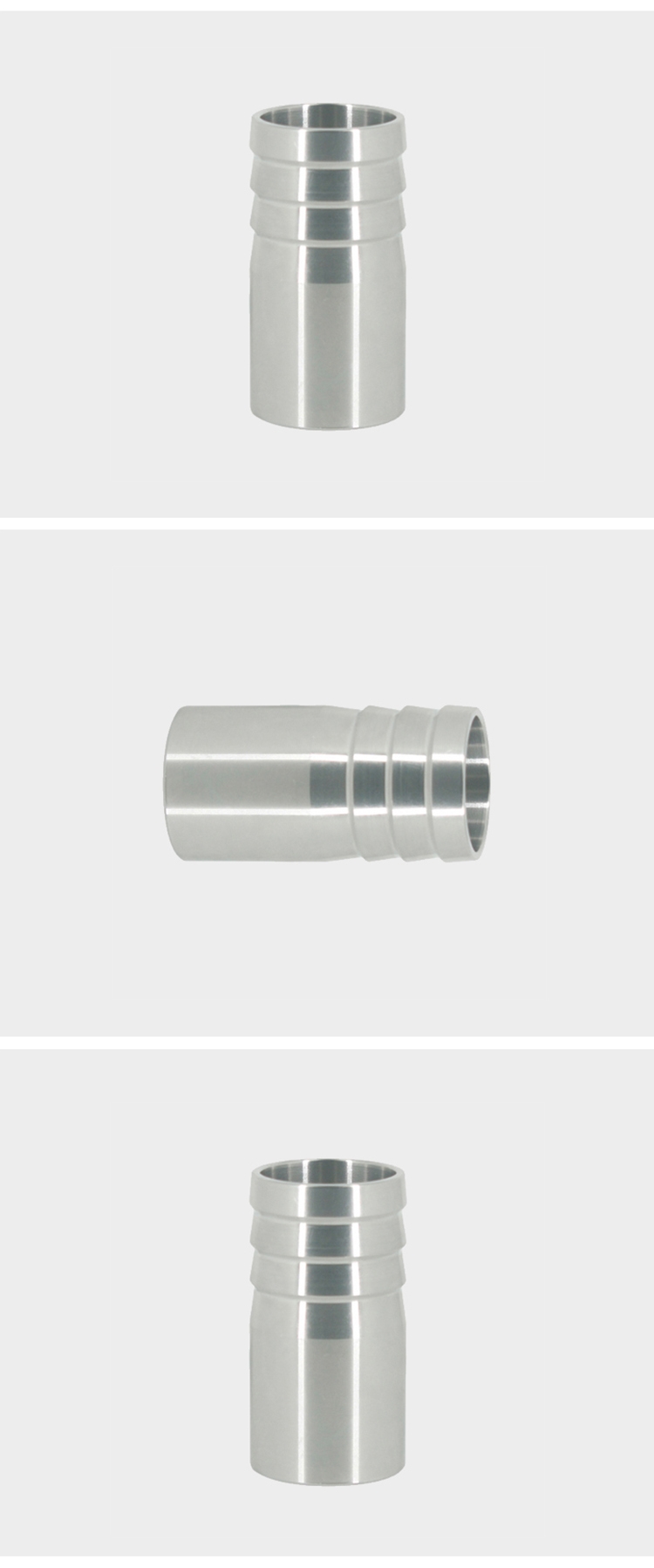

      Products Name:YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter

      Welding Hose Adapter
      Sanitary Welding Hose Adapter



      Body material
      SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
      Full port
      1/2"-40"(DN15-DN1000)
      Working pressure
      PN16,1.6Mpa,16Bar
      Working temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Welding connection
      DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
      Connection type
      Weld,Thread,Socket,Clamped,Flanged,Wafer,KF
      Ring type
      The types of sealing rings include O-ring, E-ring, U-ring, V-ring, Y-ring, rectangular ring, etc
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      7307220000
      Trademark
      YOULI
      Application
      Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      The clamp quick coupling joint consists of a male and a female part. When in use, insert the male part into the female part. Then, apply a clamp around the joint. The clamp exerts pressure, compressing a sealing element between the two parts. This creates a tight seal, preventing leakage of fluid or gas. The design allows for quick and easy connection and disconnection, making it highly convenient for various applications.





      Applications

      Pipe Hanger used to support and organize pipes. It helps maintain the stability and orderliness of pipes, ensuring the smooth flow of materials.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    Related Video
    Related File
    NO. Name File Detail Size Down
    Related products
    Online Message
      Message
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      It already exists in the list!
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter

      Model NO.:D010004004D-01

      YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter

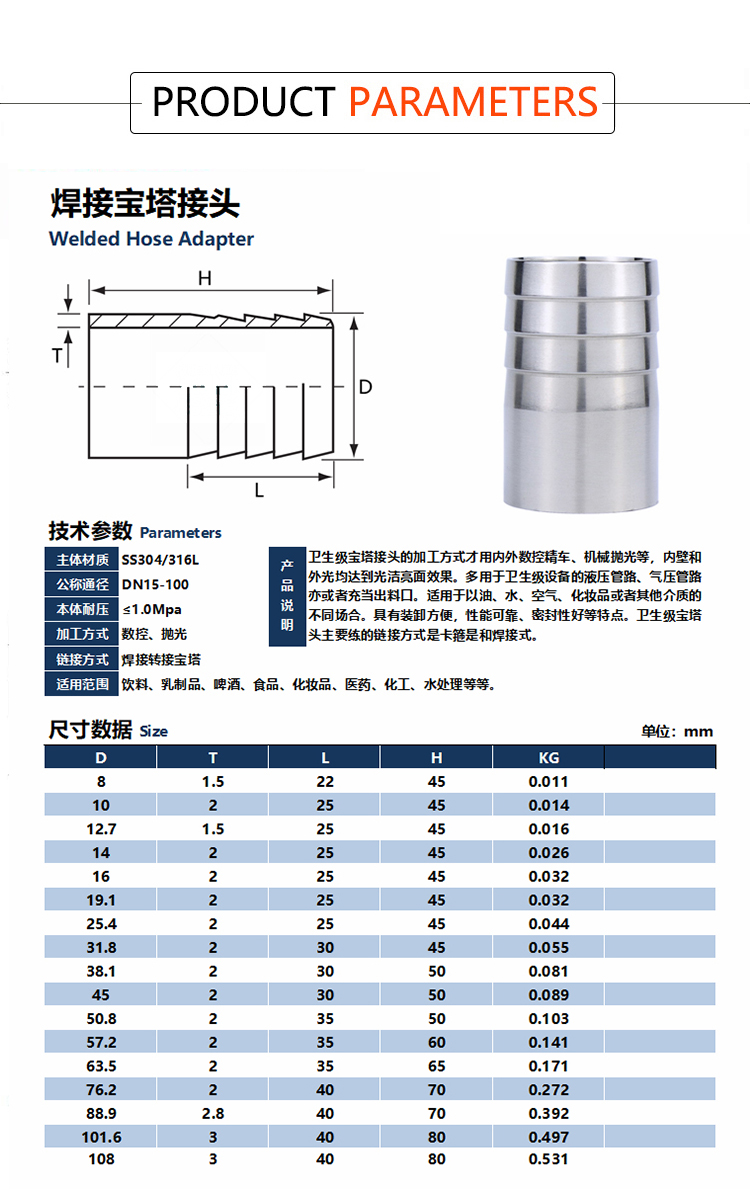

      NO. Mat Spec Wgt(kg) Ps
      1 304 3/4"-Φ19MM 0.032kg
      2 304 1"-Φ25MM 0.044kg
      3 304 1-1/4"-Φ32MM 0.055kg
      4 304 1-1/2"-Φ38MM 0.081kg
      5 304 Φ45MM 0.089kg
      6 304 2"-Φ51MM 0.103kg
      7 304 Φ57MM 0.141kg
      8 304 2-1/2"-Φ63MM 0.171kg
      9 304 3"-Φ76MM 0.272kg
      10 304 3-1/2"-Φ89MM 0.392kg
      11 304 4"-Φ102MM 0.497kg
      12 316L 3/4"-Φ19MM
      13 316L 1"-Φ25MM
      14 316L 1-1/4"-Φ32MM
      15 316L 1-1/2"-Φ38MM
      16 316L Φ45MM
      17 316L 2"-Φ51MM
      18 316L Φ57MM
      19 316L 2-1/2"-Φ63MM
      20 316L 3"-Φ76MM
      21 316L 3-1/2"-Φ89MM
      22 316L 4"-Φ102MM

      YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter

      Model NO.:D010004004D-01

      YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 3/4"-Φ19MM $0.63 3.3 0.032kg
      2 304 1"-Φ25MM $0.63 3.3 0.044kg
      3 304 1-1/4"-Φ32MM $0.92 4.8 0.055kg
      4 304 1-1/2"-Φ38MM $1.11 5.8 0.081kg
      5 304 Φ45MM $1.3 6.8 0.089kg
      6 304 2"-Φ51MM $1.3 6.8 0.103kg
      7 304 Φ57MM $1.68 8.8 0.141kg
      8 304 2-1/2"-Φ63MM $2 10.5 0.171kg
      9 304 3"-Φ76MM $2.77 14.5 0.272kg
      10 304 3-1/2"-Φ89MM $3.4 17.8 0.392kg
      11 304 4"-Φ102MM $3.97 20.8 0.497kg
      12 316L 3/4"-Φ19MM $0.95 5
      13 316L 1"-Φ25MM $1.13 5.9
      14 316L 1-1/4"-Φ32MM $1.41 7.4
      15 316L 1-1/2"-Φ38MM $1.7 8.9
      16 316L Φ45MM $1.89 9.9
      17 316L 2"-Φ51MM $1.89 9.9
      18 316L Φ57MM $2.46 12.9
      19 316L 2-1/2"-Φ63MM $3.03 15.9
      20 316L 3"-Φ76MM $4.16 21.8
      21 316L 3-1/2"-Φ89MM $4.92 25.8
      22 316L 4"-Φ102MM $6.07 31.8

      YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter

      Model NO.:D010004004D-01

      YOULI Best-in-Class Hygienic Food Grade Sanitary Stainless Steel 304 316L SMS Welding Hose Adapter
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 3/4"-Φ19MM $0.63 0.032kg
      2 304 1"-Φ25MM $0.63 0.044kg
      3 304 1-1/4"-Φ32MM $0.92 0.055kg
      4 304 1-1/2"-Φ38MM $1.11 0.081kg
      5 304 Φ45MM $1.3 0.089kg
      6 304 2"-Φ51MM $1.3 0.103kg
      7 304 Φ57MM $1.68 0.141kg
      8 304 2-1/2"-Φ63MM $2 0.171kg
      9 304 3"-Φ76MM $2.77 0.272kg
      10 304 3-1/2"-Φ89MM $3.4 0.392kg
      11 304 4"-Φ102MM $3.97 0.497kg
      12 316L 3/4"-Φ19MM $0.95
      13 316L 1"-Φ25MM $1.13
      14 316L 1-1/4"-Φ32MM $1.41
      15 316L 1-1/2"-Φ38MM $1.7
      16 316L Φ45MM $1.89
      17 316L 2"-Φ51MM $1.89
      18 316L Φ57MM $2.46
      19 316L 2-1/2"-Φ63MM $3.03
      20 316L 3"-Φ76MM $4.16
      21 316L 3-1/2"-Φ89MM $4.92
      22 316L 4"-Φ102MM $6.07
