Model NO. : D002003001D-01

Layout Type : Verticle

Mixing Drum Shape : Disc

Additional Capabilities : Milling

Operating type : Cycle Operating

Condition : New

Material : Ss304,Ss316L

Motor : ABB Motor

Power : 120degree Celsius

Connection : Clamp,Threaded

Capacity : 10ton, 20ton, 30ton, 40ton, 50ton

Standard : SMS,DIN

Pressure : 0-10bar

Model : Hhb-10~Hhb-50

Hopper Volumn : 45L~65L

HS Code : 8413709990

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

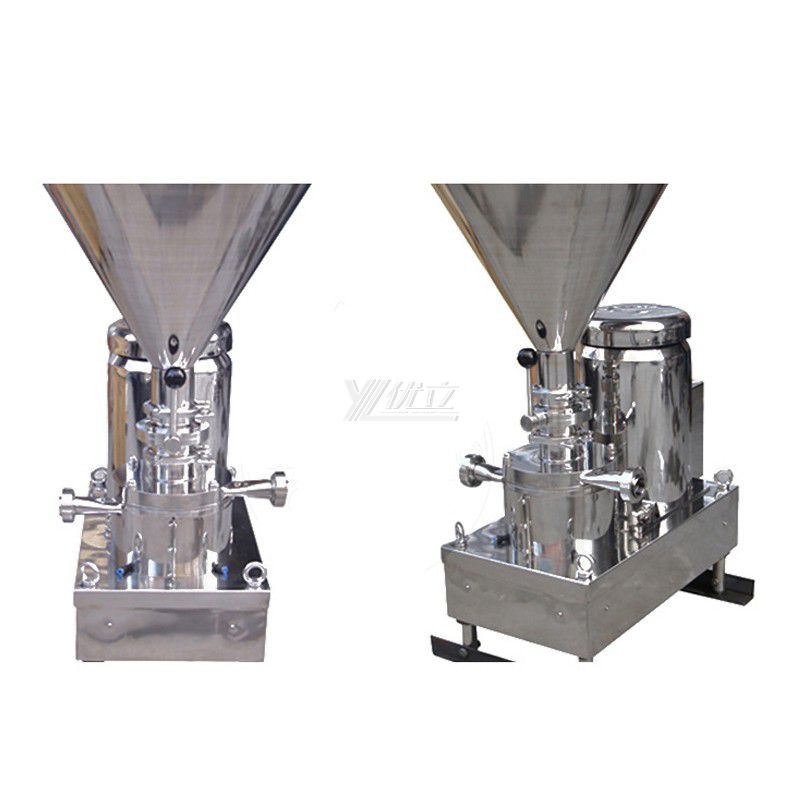

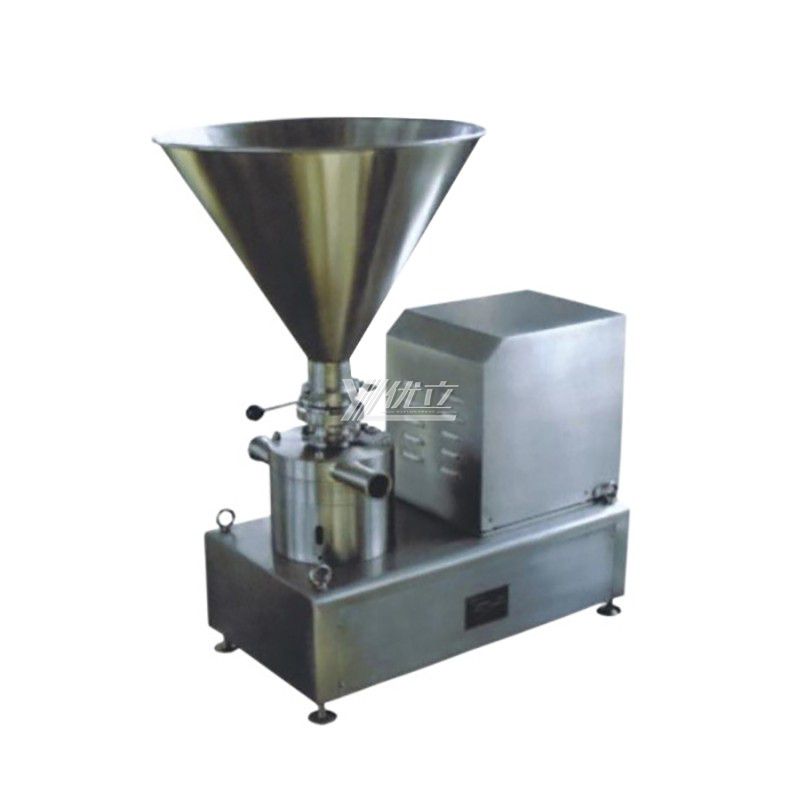

Products Name:YOULI DIN SMS Connect Hygienic Food Grade Stainless Steel 304 316L Water Water Powder Milk Powder Tri Clamp Sanitary Mixing Pump

Mixing Pump
sanitary Pump

Operating Principle

The mixer basically consists of a casing and a centrifugal pump impeller which are mounted vertically. The suction side has a double-wall tube that keeps the inlet of solids separate from that of liquids, thus avoiding the formation of flocs before the material enters the casing. The liquid enters the mixing chamber at a high velocity, thereby creating a vacuum on the center of the impeller, which causes the suction of the solids. The fall of the solids can be regulated by means of a valve situated at the bottom of the hopper. It is important to keep low pressure at the suction and at the dishcrage sides of the blender. Avoid cavitation. Thus a feeding pump must be provided only for the applications that really require it (considerable pressure drops at the suction side, high viscosity products, etc.), please, keep in mind that the suction capacity will decrease. When discharge pressure is high, a centrifugal pump needs to be fittedto the discharge side of the blender. For viscosities above 500 CP, the feeding pump and the discharge pump must be positive displacement pumps.

Applications

Pipe Hanger used to support and organize pipes. It helps maintain the stability and orderliness of pipes, ensuring the smooth flow of materials.
