Model NO. : D026004002D-01

Type : Flexible Ball Valve

Function : Bypass-Valve

Temperature : Normal Temperature

Application : Milk,Juice

Material Quality : SS304,SS316L

Available Standard : ISO, DIN, 3A,SMS etc

Size : Dn25-100 & 1"-4"

Connection : Welded, Clamped, Threaded, Flanged

Working Principal : Manual Operation or Driving Device Operation

Body Construction : 3-Piece Precision Cast Body

Flow Pattern : Straight

Seat Material : PTFE, PCTFE, Peek or Upon Your Request

Working Pressure : 8bar,0.08MPa

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

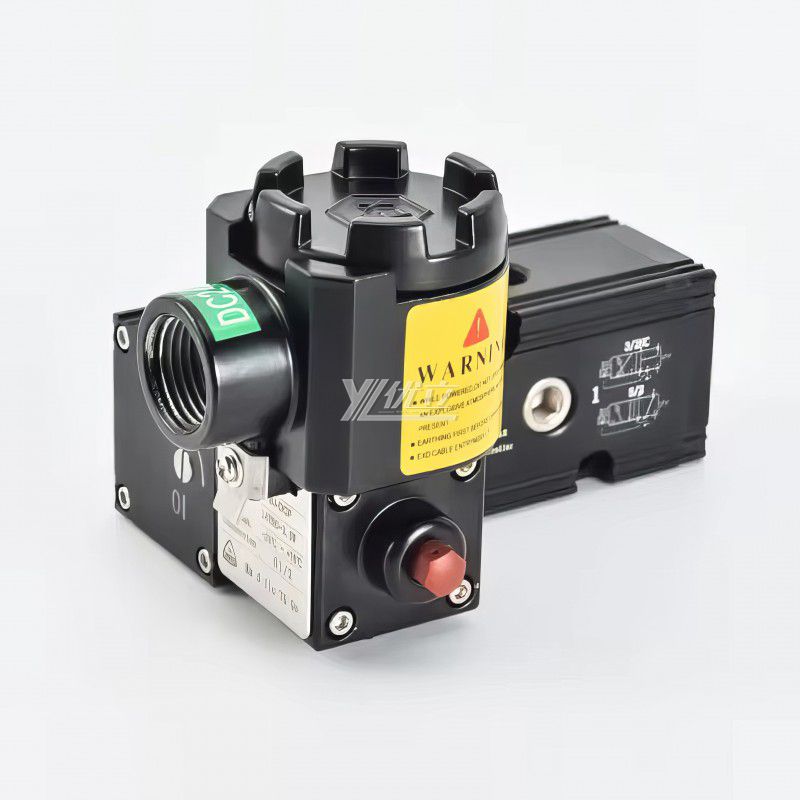

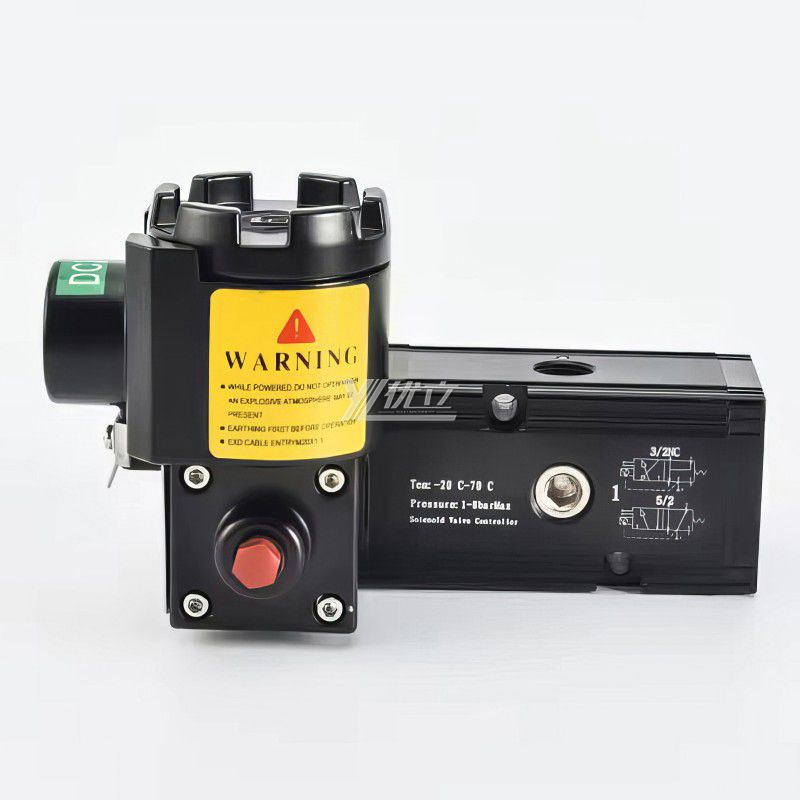

Products Name:YOULI Innovative Durable Anti-leakage 1/4" IP66 DC24V AC220V ExdllCT6 Two-position Five-way Explosion-proof Solenoid Valve

solenoid valve
DC24V solenoid valve

Operating Principle

The solenoid valve includes four functions: NAMUR board connection, pipe connection, and 2/3/2/5. It can directly control single acting and double acting pneumatic actuators, and is equipped with a safe and reliable manual device. The four directions can be freely changed, making it a true multifunctional solenoid valve. Due to its unique circuit structure, all breathing holes on the electromagnetic valve body are connected to the exhaust hole, and there are no breathing holes on the surface of the valve body that are connected to the atmosphere. This effectively prevents external liquids, dust, and impurities from entering the valve body, making it particularly suitable for use outdoors or in work environments with severe dust pollution.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
