Model NO. : D001010002001D-01

Type : Self-Operated

Material Quality : SS304,SS316L

Standards : SMS,DIN,3A

Seal : EPDM,PTFE

Signal Range : 4~20mA

Pressure : 1MPa

Temperature : -10~150 Degree Celsius

Flow Kvs : 1.6-100kv

Outside Surface : Ra-1.6um

Inside Surface : Ra-0.6um

Size : 1"-5",Dn25-Dn125

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

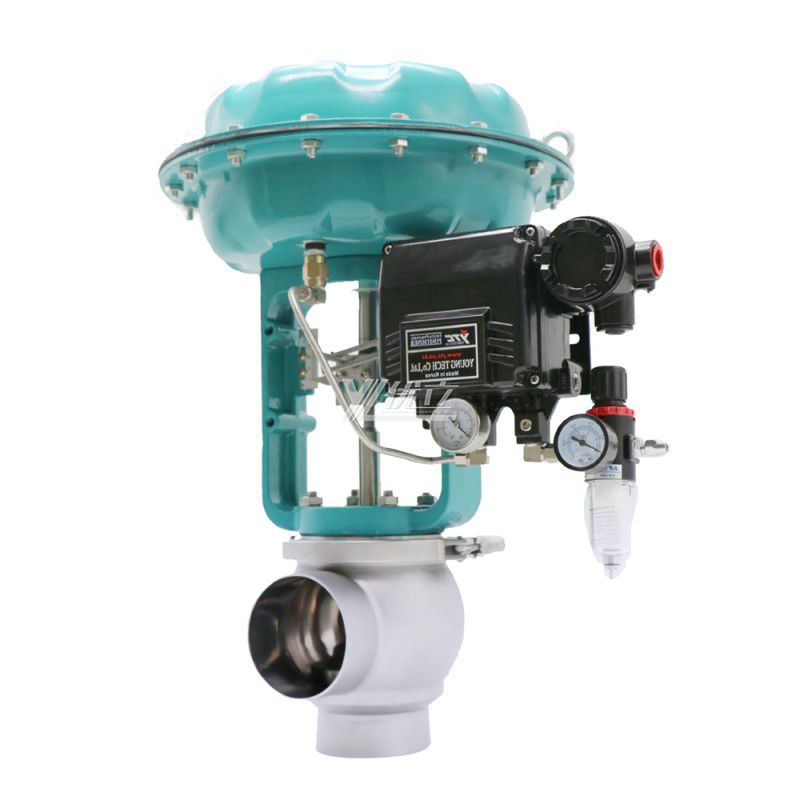

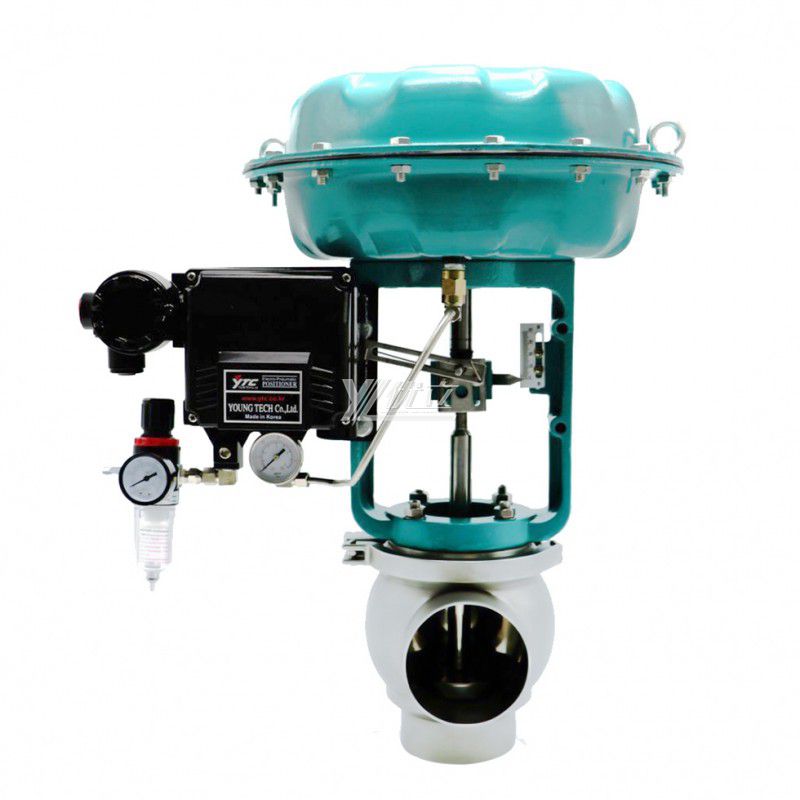

Products Name:YOULI Hygienic Food Grade Stainless Steel 304 316L Pneumatic Diaphragm Flow Regulating Valve

Flow Regulating Valve
Pneumatic Diaphragm Flow Regulating Valve

Selection Reference Data

The Quality Requirement for Compressed Air Used in Actuator

Operatiing principles

Constant pressure valve operated by compressed air, automatically run without sensor on piping system ot other auxiliary instruments, and only one compressed air pressure regulating valve that maintains perssure stability can be realized the normal work of the valve.
Diaphragm slice and valve rod can be fit to transport product an pressure changes to make a quick response, and the corresponding change the valve stem position, in order to continue to keep the preset pressure vavle.
Constant pressure valve - V: inlet pressure constant , in conveying medium pressure higher than the set pressure under the condition of the valve opens, the transmission medium pressure decreases flow has become, conveying medium pressure is insufficient valve closed.
Constant pressure valve - A: outlet pressure constant, when transmitting medium pressure is higher than the set perssure under the condition of the valve will be closed, conveying medium pressure decreasees flow changes, conveying medium pressure is insufficient valve opens.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
