YOULI Stainless Steel 304 316 Cast Iron JIS 10K Pn16 EPDM Water Motorized AC220V Electric Center Flange Butterfly Valve-Electric Butterfly Valve-WenZhou YouLi Machinery Co., Ltd.

Model NO.	D016010003002D-01
FOB Price	US $67.32-490.24 / Set
Product Details	Ckeck View
Min. Order	1 Set
Port	Ningbo, China
Production Capacity	5000sets/Month
Payment Terms	L/C, T/T, D/P, Western Union, Paypal, Money Gram
PDF Format	Click Download
Driving Mode	Electric
Connection Form	Wafer
Structure	Centre Sealing
Seal Form	Force Sealed
Valve Stem	Normal
Work Pressure	Low Pressure (Pn<1.6mpa)
TAG	Stainless Steel Hygienic Sanitary Butterfly Valves 、 Sanitary Hygienic Manual Male Butterfly Valves 、 Stainless Steel SS304 Hygienic Weld Butterfly Valve with Multi-Position Handle 、

Inquiry

Basic Info

Model NO. : D016010003002D-01

Product name : Butterfly Valve

Application : Water, gas,oil

MOQ : 1pcs

Sealing : EPDM,NBR,PTFE,Silicone,PFA,Metal,ETC

Feature : Safe and Durable

Material : Stainless Steel,Cast iron,WCB

Connection Form : Wafer,Flange,Lug

Nominal Pressure : API,ANSI CLASS 150-300,10K-20K,PN16-PN64

Customization : Available

Temperature : - 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

Product Description

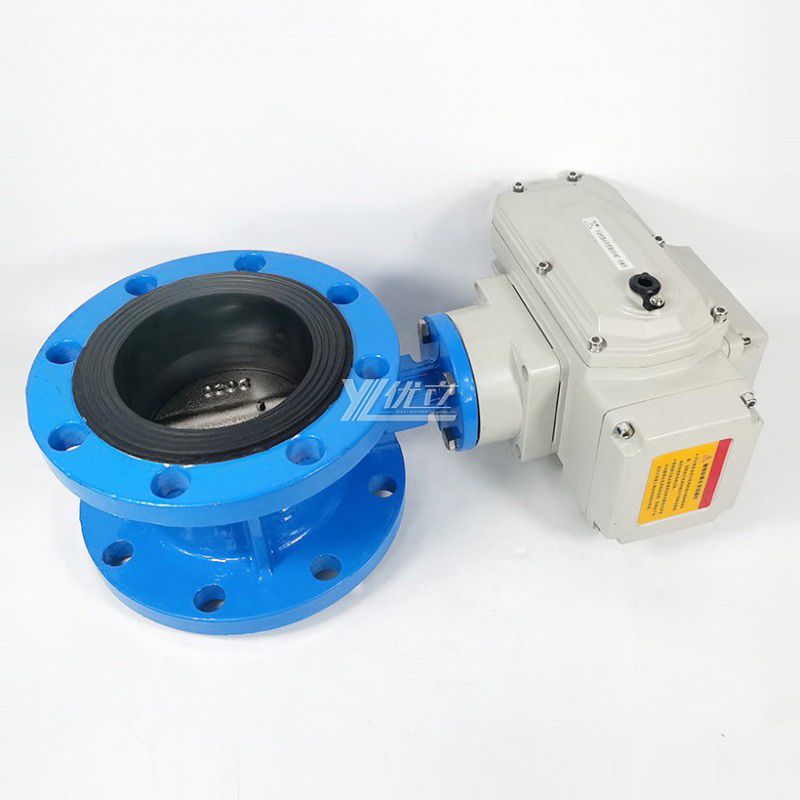

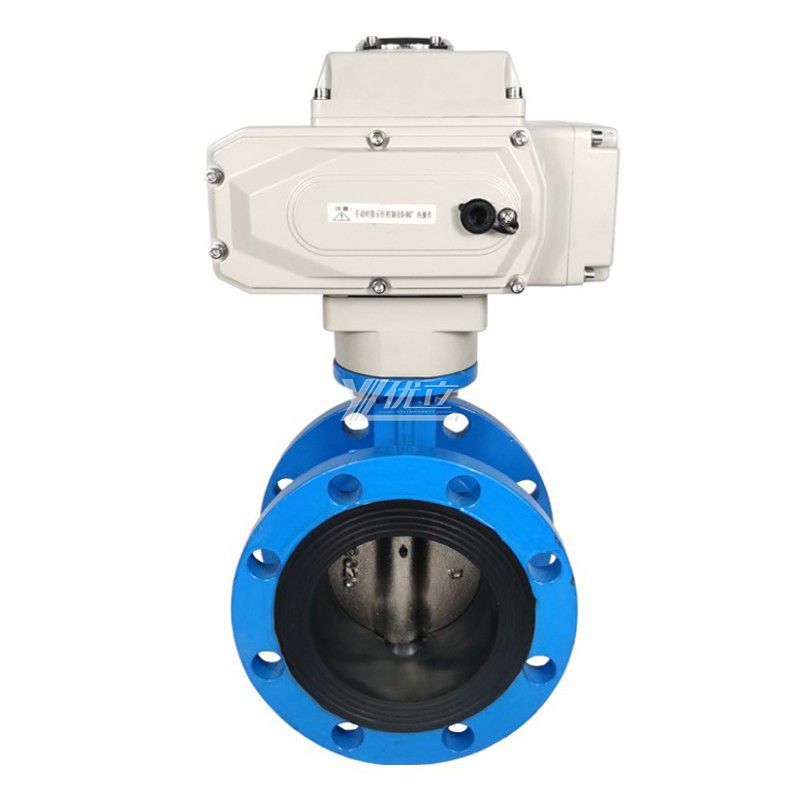

Products Name:YOULI Stainless Steel 304 316 Cast Iron JIS 10K Pn16 EPDM Water Motorized AC220V Electric Center Flange Butterfly Valve

Electric Butterfly Valve
Electric flanged Butterfly Valve

Body material	Carbon Steel(WCB),SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),Cast Iron,Aluminium Alloy etc.
Full port	2"-12"(DN50-DN300)
Working pressure	JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40,1-4Mpa
Medium temperature	- 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C)
Connection type	Wafer,Flange,Lug,vacuum
Sealing	EPDM(NBR,PTFE,Silicone,PFA,Metal,ETC)
Structure	Center sealed ,Single eccentric sealed ,Double eccentric,Triple eccentric sealed
ISO 5211 Direct mounting pad	Yes
Electric actuator	03-Type,05-Type,10-Type,20-Type,200-Type
Voltage	DC24V,DC220V,AC24V,AC110V,AC220V,AC380V
No/Off type	Yes
Run time	30s,option(5s/8s/15s/50s/100s)
Waterproof level	IP-67,option(IP-68)
Rotation angle	option(4-20ma,0-10V,RS485)
Explosion proof	option(Ex db lC T4/T6 Gb:Ex tb HC T130℃/T80'℃ Db)
Production process	Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Capacity to produce	10000PCS/Mouth
Certification	CE, ISO, our factory has been inspected by leyon and TUV
MOQ	1PC
HS Code	8481804090
Trademark	YOULI
Application	Suitable for water, oil, air and some corrosive liquid etc
Application	Buyer's drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Or as buyer's requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 10 to 15 days after receiving the deposit

Operating Principle

A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

Comyany information

Packaging Shipping

Our Service

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome to order our products

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
