Model NO. : D016001002021D-01

Type : Flexible Ball Valve

Function : Bypass-Valve

Temperature : Normal Temperature

Application : Milk,Juice

Material Quality : SS304,SS316L

Available Standard : ISO, DIN, 3A,SMS etc

Size : Dn25-100 & 1"-4"

Connection : Welded, Clamped, Threaded, Flanged

Working Principal : Manual Operation or Driving Device Operation

Body Construction : 3-Piece Precision Cast Body

Flow Pattern : Straight

Seat Material : PTFE, PCTFE, Peek or Upon Your Request

Working Pressure : 8bar,0.08MPa

Temperature Range : -20degree Celsius~135degree Celsius

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

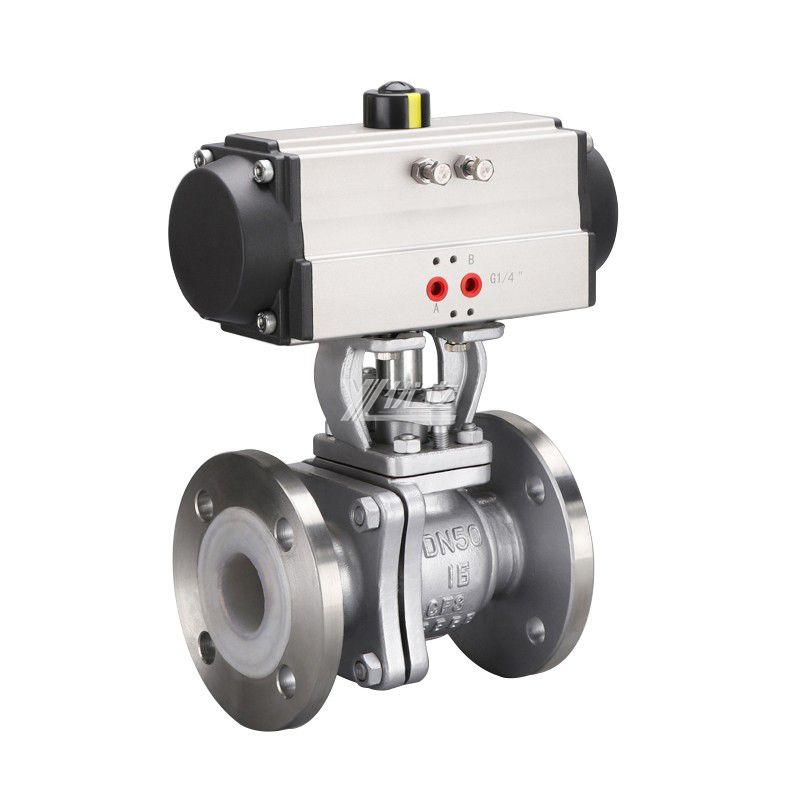

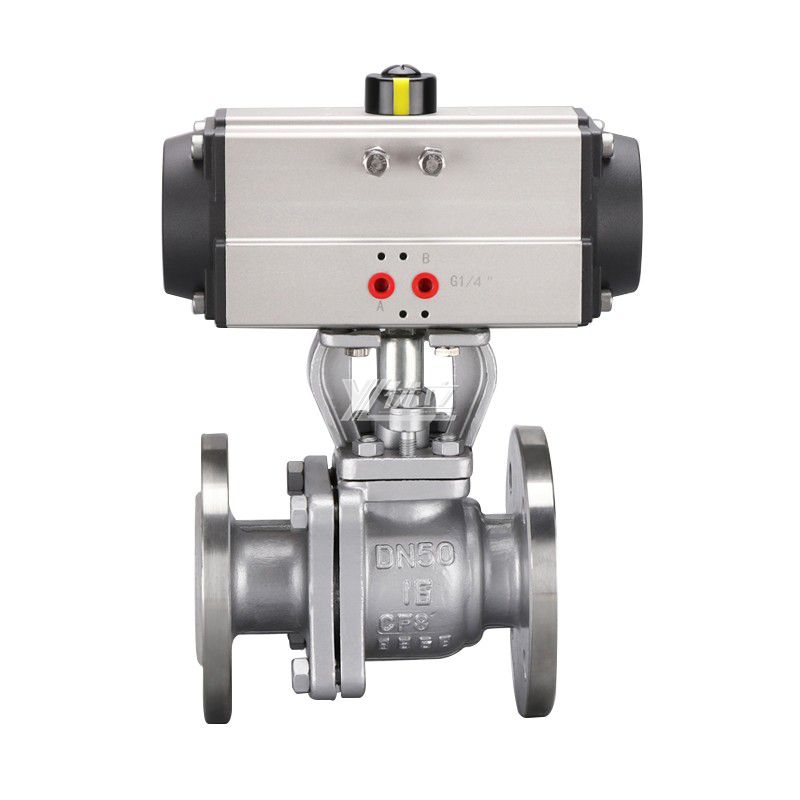

Products YOULI ANSI 150LB Stainless Steel 304 316 JIS 10K 1.6mpa WCB Fluorine Lining F4 F46 FPA Pneumatic Actuator Flanged Ball Valve

Pneumatic F4 Fluorine Lining Ball Valve
Pneumatic actuator Ball Valve

Operating Principle

A ball valve is a form of quarter-turn valve which uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. The shut position 1/4 turn could be in either CW or CCW direction.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

Our Service

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
