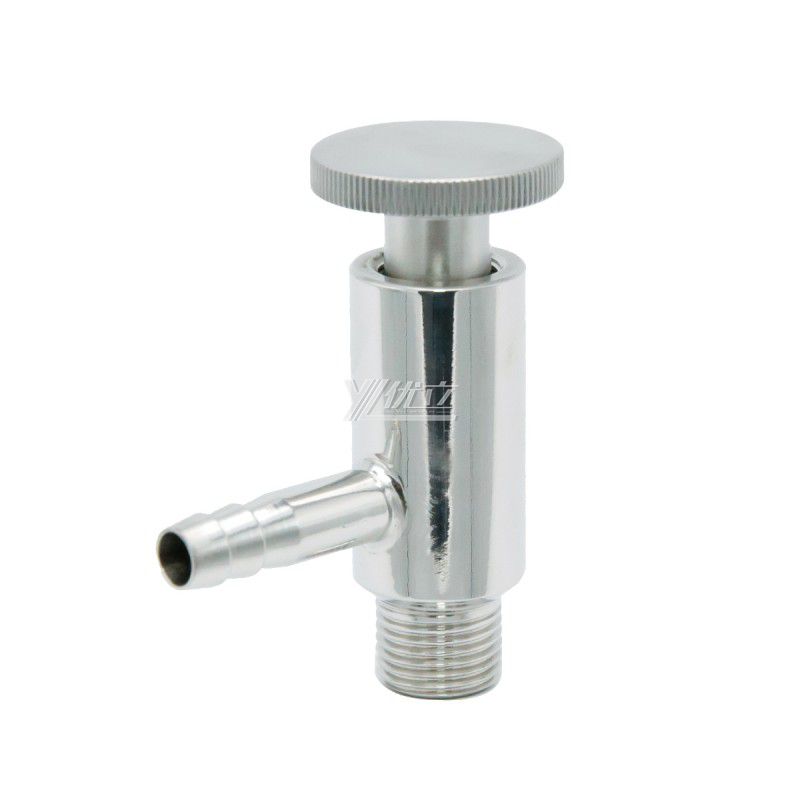

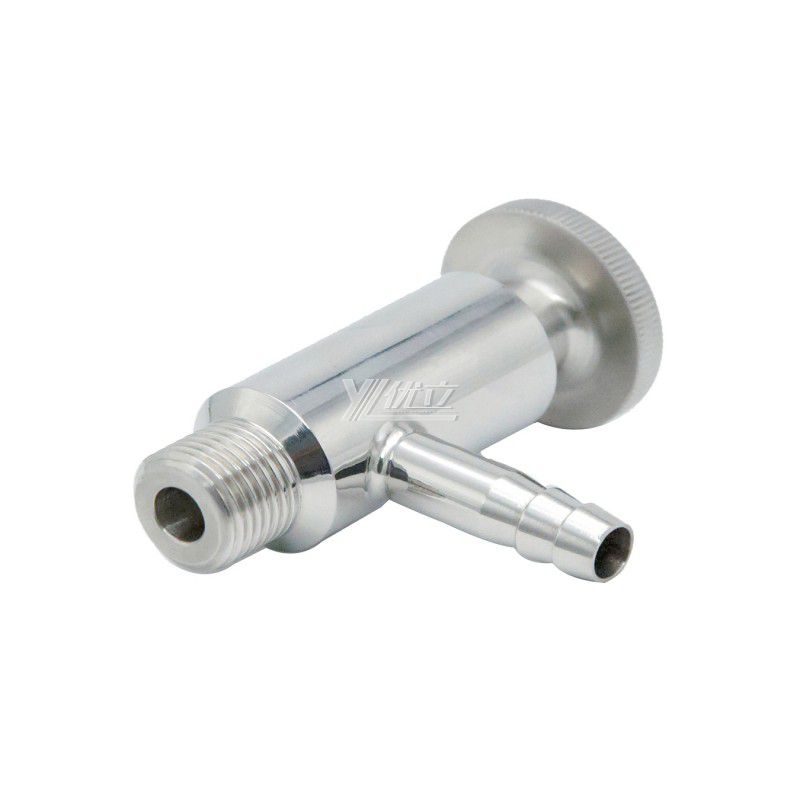

YOULI Professional Manufacture Hygienic Food Grade Sanitary Medical Stainless Steel 304 316L Manual Male Threaded Sample Valve-Manual Sample Valve-WenZhou YouLi Machinery Co., Ltd.

Model NO.	D001003001003DX001-01
FOB Price	US $6.54-10.73 / Piece
Product Details	Ckeck View
Min. Order	1 Piece
Port	Ningbo, China
Production Capacity	5000sets/Month
Payment Terms	L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Quality	304, 304L, 316L (1.4301, 1.4307, 1.4404)
Connection Ends	Threaded Triclamp, Welded
Size	1/2", 3/4"
Gasket	EPDM, Silicone, PTFE in Accordance with FDA 17
Max. Pressure	10bar 145psi
Temperature	20degree Celsius~135degree Celsius
TAG	Sanitary Sampling Valves 、 1/2" Sampling Valves 、 SS304 Clamped Sampling Valve 、 Stainless Steel Sampling Cock Valve 、 Stainless Steel Food Grade Sampling Valve 、 Food Grade Aseptic Sampling Valve 、

Inquiry

Basic Info

Model NO. : D001003001003DX001-01

Clamped Size : 50.5mm, 34mm

Internal Surface : Ra0.8um

Thread&Welded Size : 25.4mm

External Surface : Shot Blasting

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

Product Description

Products Name:YOULI Professional Manufacture Hygienic Food Grade Sanitary Medical Stainless Steel 304 316L Manual Male Threaded Sample Valve /strong>

Threaded Sample Valve
Sanitary Sample Valve<

Body material	SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc.
Full port	1/4"-1/2"(DN8-DN15)
Working pressure	PN16,1.6Mpa,16Bar
Working temperature	- 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
Welding connection	DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc
Connection type	Weld,Thread,Socket,Clamped,Flanged,Wafer,KF
Ring type	The types of sealing rings include O-ring, E-ring, U-ring, V-ring, Y-ring, rectangular ring, etc
Production process	Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Capacity to produce	10000PCS/Mouth
Certification	CE, ISO, our factory has been inspected by leyon and TUV
MOQ	1PC
HS Code	7307220000
Trademark	YOULI
Application	Suitable for water, oil, air and some corrosive liquid etc
Application	Buyer's drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Or as buyer's requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 10 to 15 days after receiving the deposit

Operating Principle

Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

Our Service

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome to order our products

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

NO.	Mat	Spec	Wgt(kg)	Ps
1	304	1/4"-DN8	0.3kg	Round handle
2	304	3/8"-DN10		Round handle
3	304	1/2"-DN15		Round handle
4	304	3/4"-DN20		Round handle
5	316L	1/4"-DN8		Round handle
6	316L	3/8"-DN10		Round handle
7	316L	1/2"-DN15		Round handle
8	316L	3/4"-DN20		Round handle

NO.	Mat	Spec	SPrice($)	CPrice(RMB)	Wgt(kg)	Ps1.15
1	304	1/4"-DN8	$6.54	25	0.3kg	Round handle
2	304	3/8"-DN10	$6.54	25		Round handle
3	304	1/2"-DN15	$6.54	25		Round handle
4	304	3/4"-DN20	$7.85	30		Round handle
5	316L	1/4"-DN8	$9.42	36		Round handle
6	316L	3/8"-DN10	$9.42	36		Round handle
7	316L	1/2"-DN15	$9.42	36		Round handle
8	316L	3/4"-DN20	$10.73	41		Round handle

NO.	Mat	Spec	SPrice($)	Wgt(kg)	Ps
1	304	1/4"-DN8	$6.54	0.3kg	Round handle
2	304	3/8"-DN10	$6.54		Round handle
3	304	1/2"-DN15	$6.54		Round handle
4	304	3/4"-DN20	$7.85		Round handle
5	316L	1/4"-DN8	$9.42		Round handle
6	316L	3/8"-DN10	$9.42		Round handle
7	316L	1/2"-DN15	$9.42		Round handle
8	316L	3/4"-DN20	$10.73		Round handle
