    YOULI YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve

    YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve

    Model NO.:D016001001003D-01

    Pur Qty. / Ref FOB Price

    1 PieceUS $4.39-156.3 / Piece

    Product Details:Ckeck View

    Min. Order:1 Piece

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Material:Stainless Steel

    Driving Mode:Manual

    Structure:BALL

    Size:1/4"-4",DN8-DN100

    Nominal Pressure:PN16-64,1.6-6.4Mpa,16-64Bar,1000PSI,1000-2000WOG

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D016001001003D-01

      Product nameBall Valves

      ApplicationWater, gas,oil

      TrademarkYOULI

      Connection typeBSPT,Optional(NPT, BSP, BSPP)

      FeatureSafe and Durable

      MaterialStainless Steel

      Connection FormWeld,Thread,Socket,Clamped,Flanged,Wafer

      Nominal PressurePN16-64,1.6-6.4Mpa,16-64Bar,1000PSI,1000-2000WOG

      CustomizationAvailable

      Temperature- 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

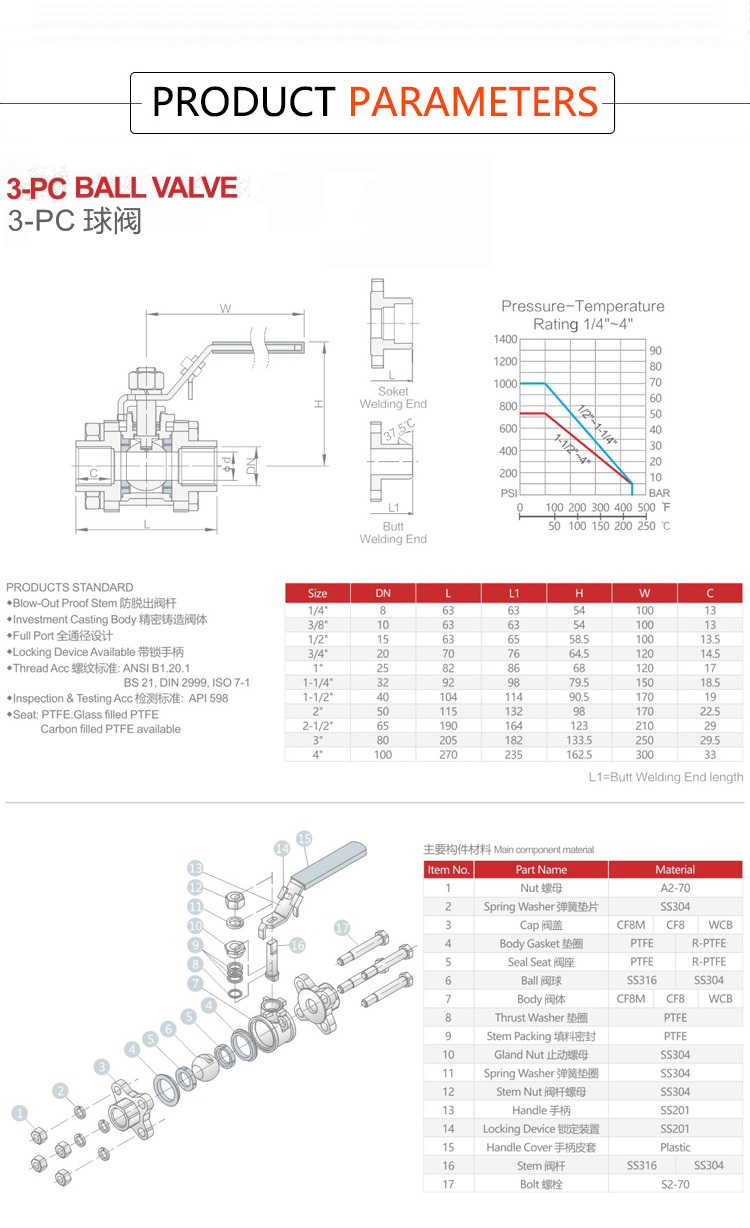

    Product Description

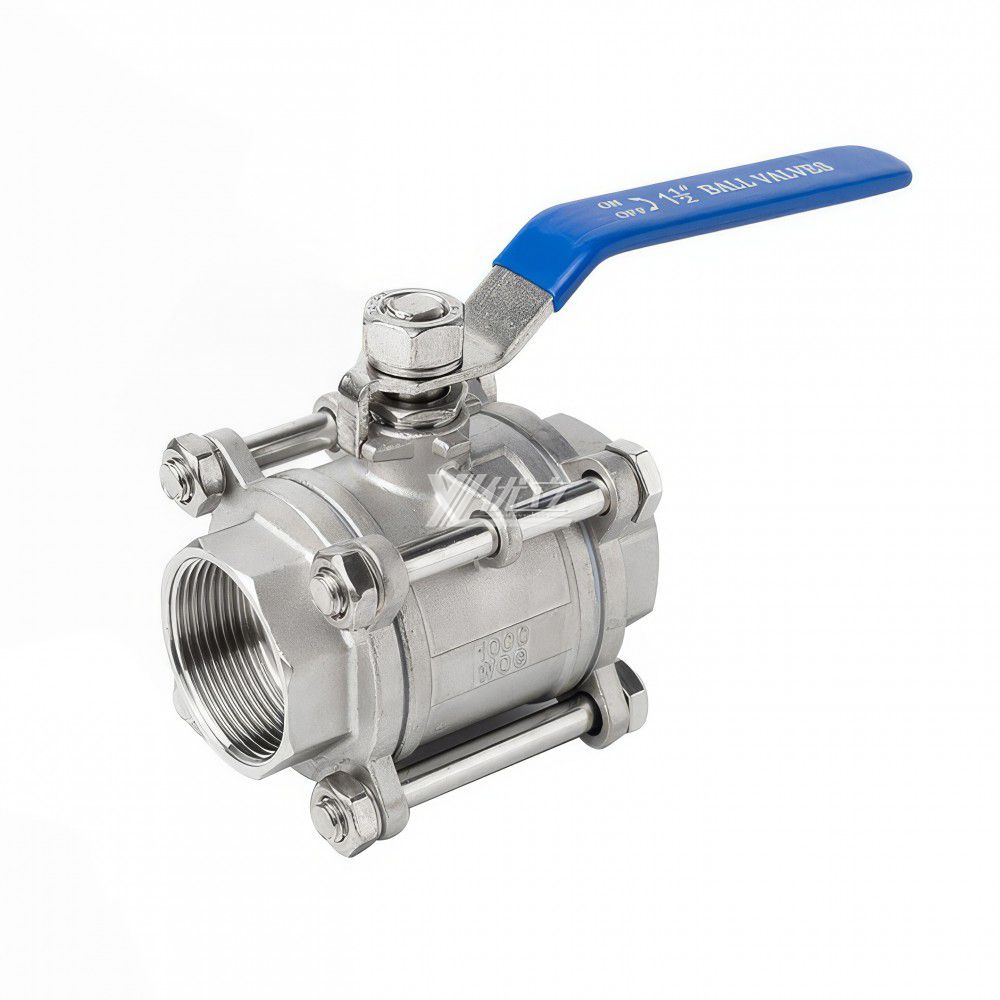

      Products Name:YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve

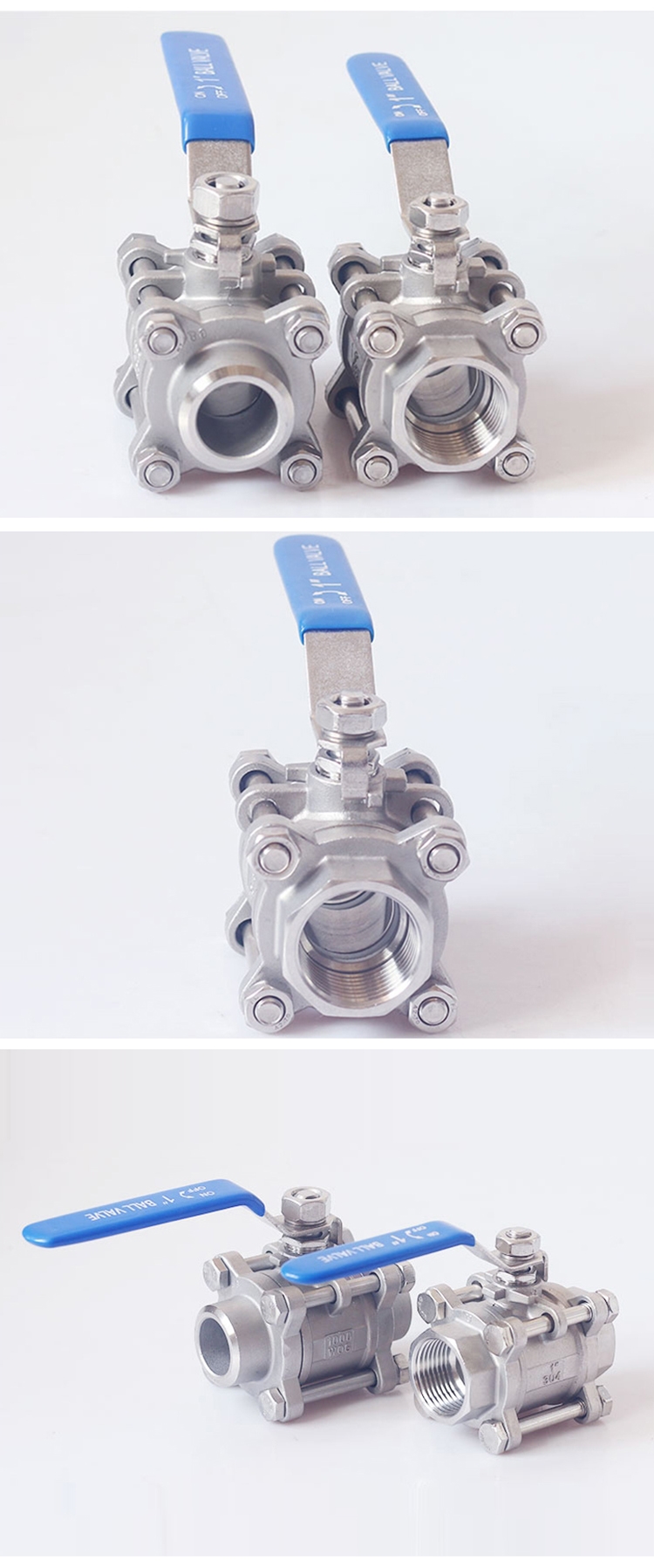

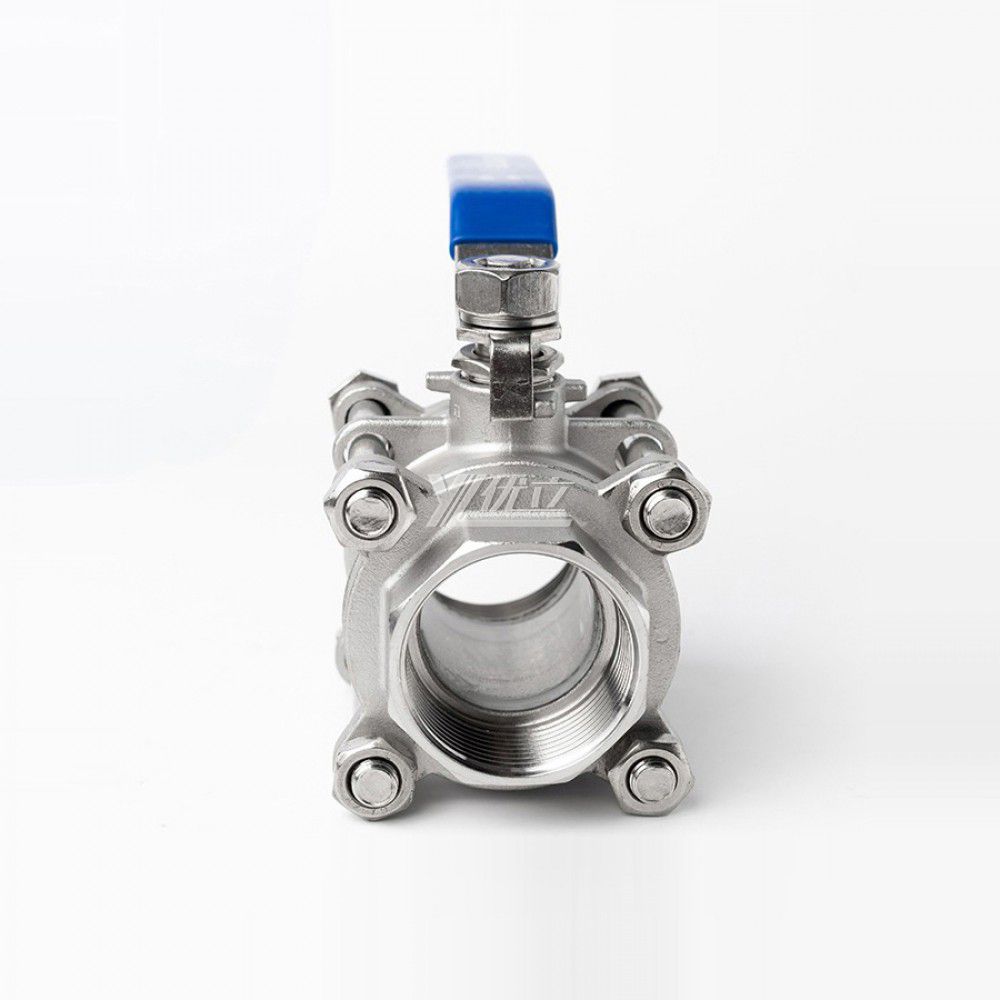

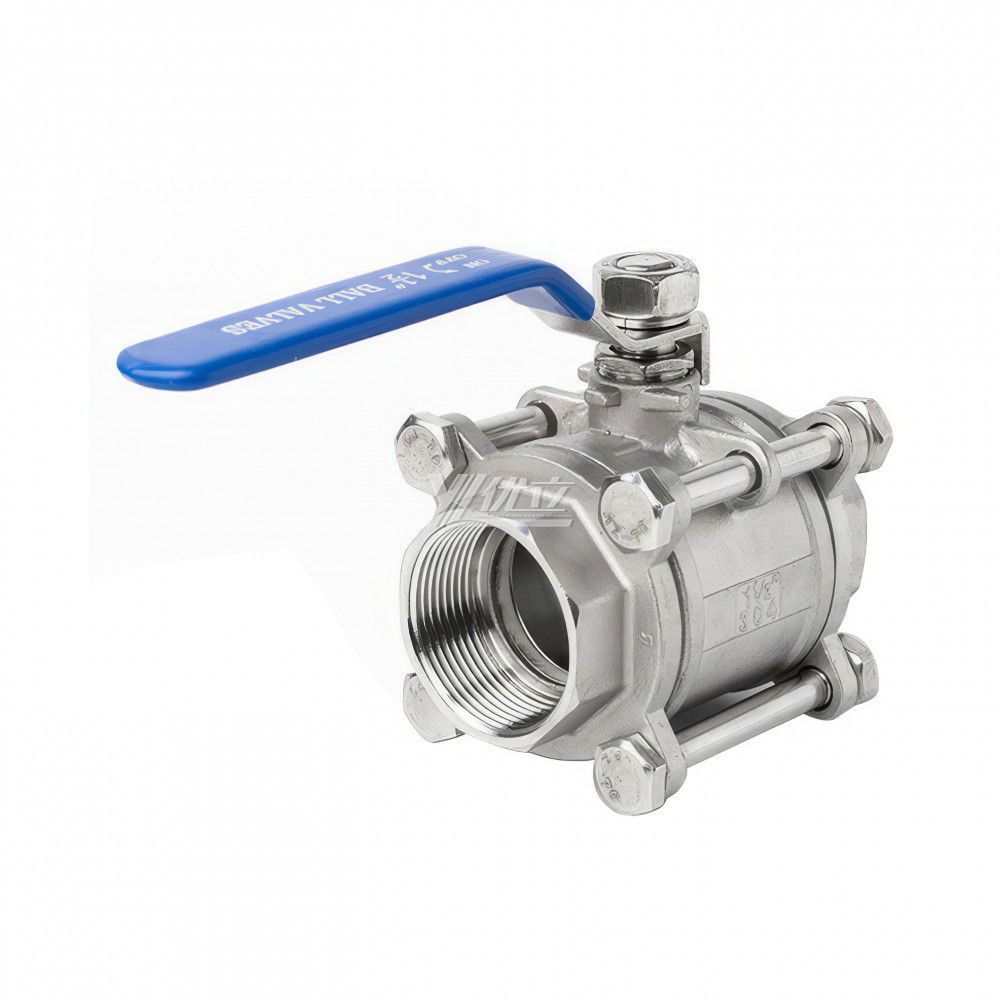

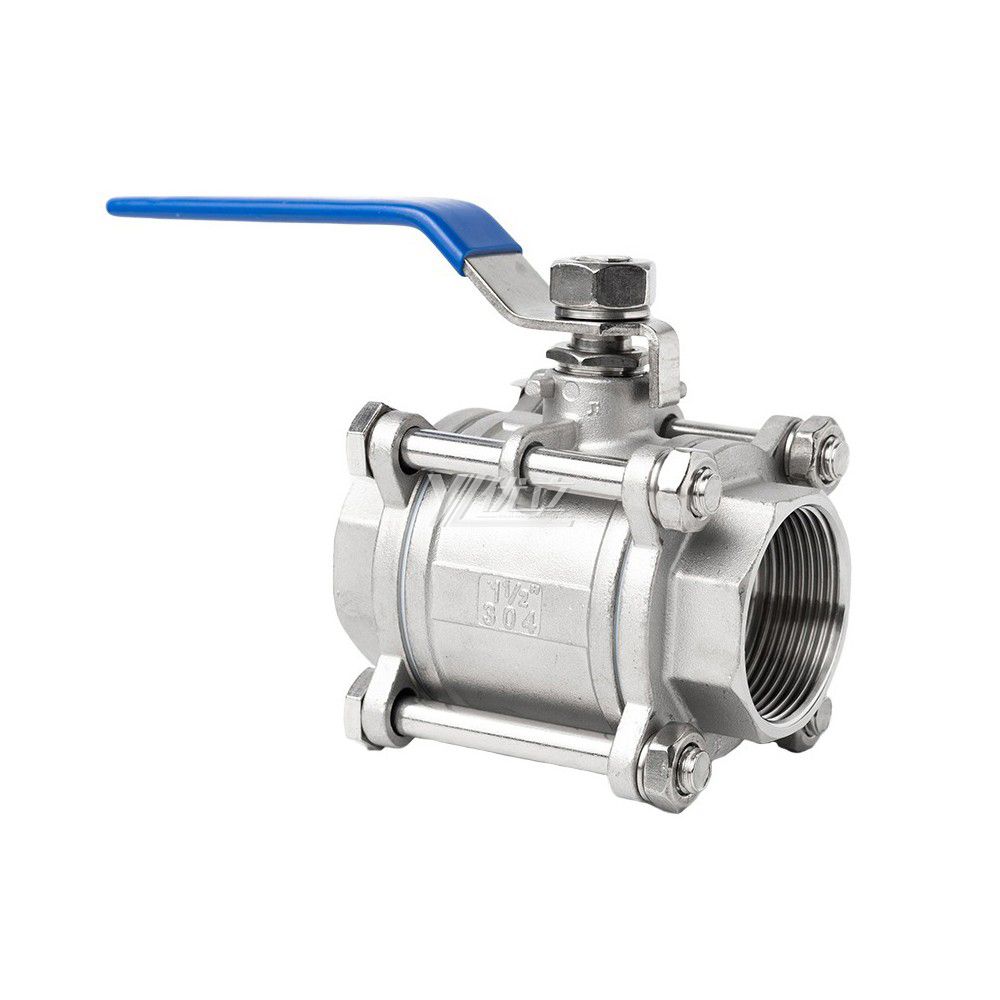

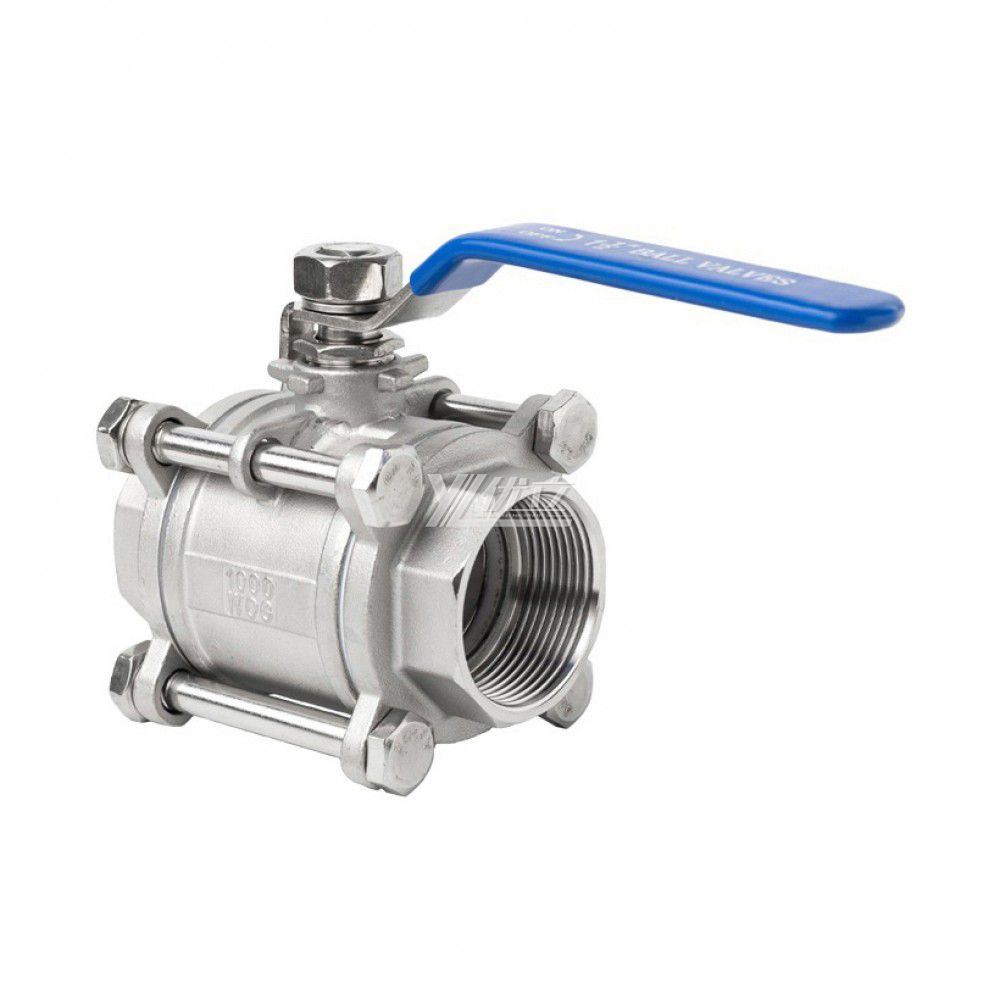

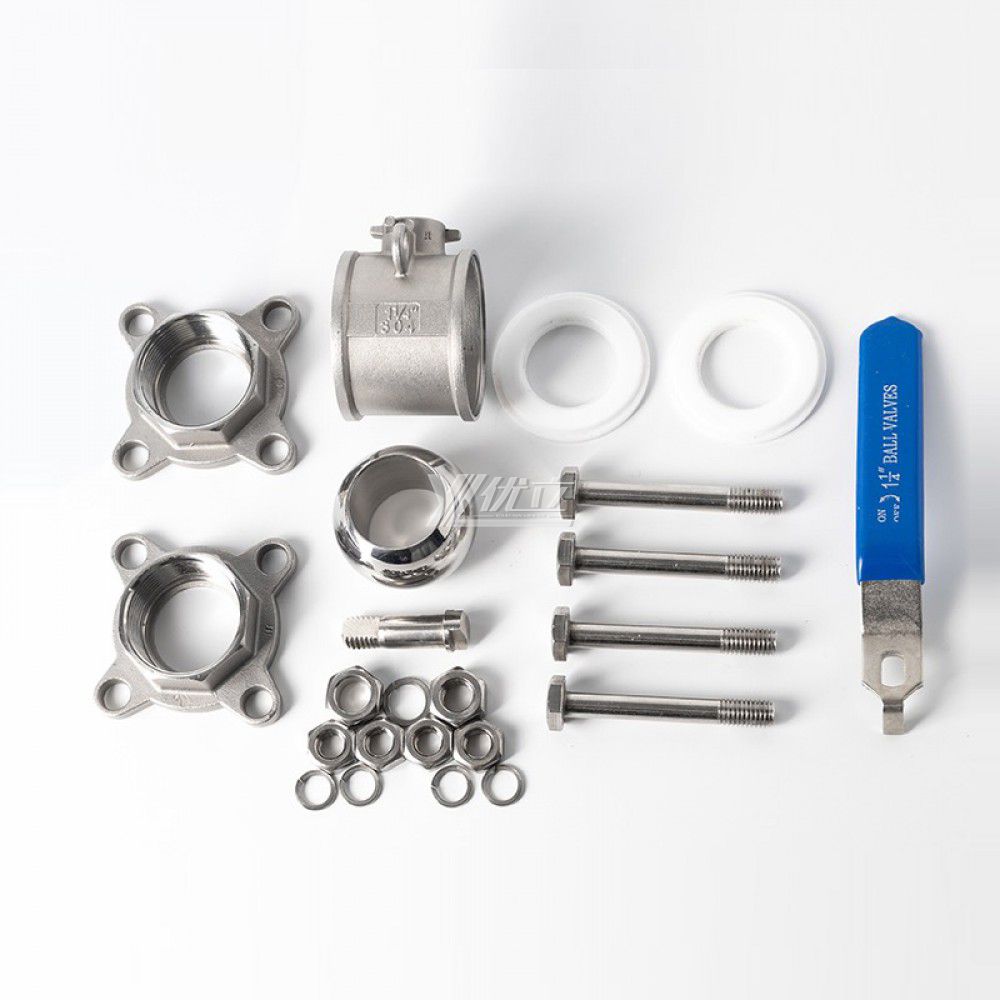

      three piece thread Ball Valve
      Ball Valve



      Body material
      SUS201,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),WCB,etc.
      Full port
      1/4"-4"(DN8-DN100)
      Working pressure
      PN16-64,1.6-6.4Mpa,16-64Bar,1000PSI,1000-2000WOG
      Medium temperature
      - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Connection type
      Weld, Thread,Socket,Clamped,Flanged
      Connection Standard
      BSPT,Optional(NPT, BSP, BSPP)
      Sealing
      PTFE,RPTFE,PPL ETC
      ISO 5211 Direct mounting pad
      Yes
      Investment casting
      Yes
      Blow-out proof stem
      Yes
      Anti-static device
      option
      Locking device handle
      option
      Production process
      Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce
      10000PCS/Mouth
      Certification
      CE, ISO, our factory has been inspected by leyon and TUV
      MOQ
      1PC
      HS Code
      8481804090
      Trademark
      YOULI
      Application
      Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available
      Package
      Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details
      According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A ball valve is a form of quarter-turn valve which uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. The shut position 1/4 turn could be in either CW or CCW direction.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    hygienic sanitary three ways ball valves stainless steel T port three-way ball valves stainless steel sanitary three-way ball valves sanitary three-way ball valves Stainless Steel Sanitary Tc Manual 3-Way Ball Valve Stainless Steel Sanitary Manual Th
    Related Video
    Related File
    NO. Name File Detail Size Down
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve

      Model NO.:D016001001003D-01

      YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve
      NO. Mat Spec Wgt(kg) Ps
      1 304 1/4"-DN8 0.355kg
      2 304 3/8"-DN10 0.34kg
      3 304 1/2"-DN15 0.424kg
      4 304 3/4"-DN20 0.54kg
      5 304 1"-DN25 0.76kg
      6 304 1-1/4"-DN32 1.147kg
      7 304 1-1/2"-DN40 1.5kg
      8 304 2"-DN50 2.27kg
      9 304 2-1/2"-DN65 4.705kg
      10 304 3"-DN80 7.1kg
      11 304 4"-DN100 13kg
      12 316 1/4"-DN8
      13 316 3/8"-DN10
      14 316 1/2"-DN15
      15 316 3/4"-DN20
      16 316 1"-DN25
      17 316 1-1/4"-DN32
      18 316 1-1/2"-DN40
      19 316 2"-DN50
      20 316 2-1/2"-DN65
      21 316 3"-DN80
      22 316 4"-DN100

      YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve

      Model NO.:D016001001003D-01

      YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1
      1 304 1/4"-DN8 $4.39 23 0.355kg
      2 304 3/8"-DN10 $4.39 23 0.34kg
      3 304 1/2"-DN15 $4.39 23 0.424kg
      4 304 3/4"-DN20 $5.73 30 0.54kg
      5 304 1"-DN25 $7.63 40 0.76kg
      6 304 1-1/4"-DN32 $11.07 58 1.147kg
      7 304 1-1/2"-DN40 $14.69 77 1.5kg
      8 304 2"-DN50 $21.95 115 2.27kg
      9 304 2-1/2"-DN65 $45.8 240 4.705kg
      10 304 3"-DN80 $66.79 350 7.1kg
      11 304 4"-DN100 $114.5 600 13kg
      12 316 1/4"-DN8 $5.34 28
      13 316 3/8"-DN10 $5.34 28
      14 316 1/2"-DN15 $5.34 28
      15 316 3/4"-DN20 $7.06 37
      16 316 1"-DN25 $9.54 50
      17 316 1-1/4"-DN32 $14.12 74
      18 316 1-1/2"-DN40 $18.89 99
      19 316 2"-DN50 $28.44 149
      20 316 2-1/2"-DN65 $62.6 328
      21 316 3"-DN80 $91.98 482
      22 316 4"-DN100 $156.3 819

      YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve

      Model NO.:D016001001003D-01

      YOULI High Temperature 300 Degrees Celsius NPT BSP 1000psi 16-64bar 304 316 WCB Metal Seal Manual Three Piece Thread Ball Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 1/4"-DN8 $4.39 0.355kg
      2 304 3/8"-DN10 $4.39 0.34kg
      3 304 1/2"-DN15 $4.39 0.424kg
      4 304 3/4"-DN20 $5.73 0.54kg
      5 304 1"-DN25 $7.63 0.76kg
      6 304 1-1/4"-DN32 $11.07 1.147kg
      7 304 1-1/2"-DN40 $14.69 1.5kg
      8 304 2"-DN50 $21.95 2.27kg
      9 304 2-1/2"-DN65 $45.8 4.705kg
      10 304 3"-DN80 $66.79 7.1kg
      11 304 4"-DN100 $114.5 13kg
      12 316 1/4"-DN8 $5.34
      13 316 3/8"-DN10 $5.34
      14 316 1/2"-DN15 $5.34
      15 316 3/4"-DN20 $7.06
      16 316 1"-DN25 $9.54
      17 316 1-1/4"-DN32 $14.12
      18 316 1-1/2"-DN40 $18.89
      19 316 2"-DN50 $28.44
      20 316 2-1/2"-DN65 $62.6
      21 316 3"-DN80 $91.98
      22 316 4"-DN100 $156.3
