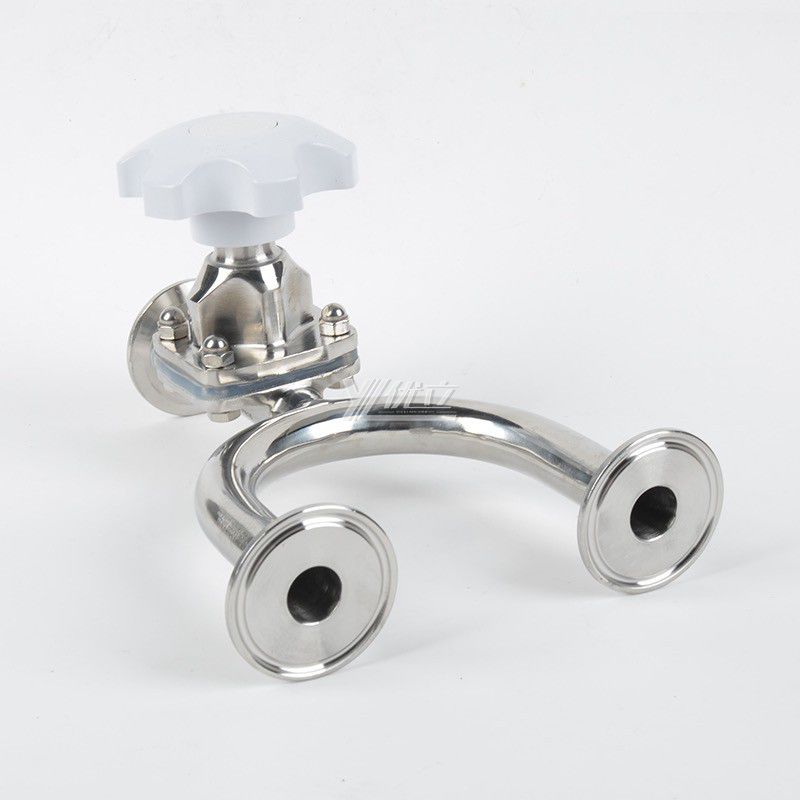

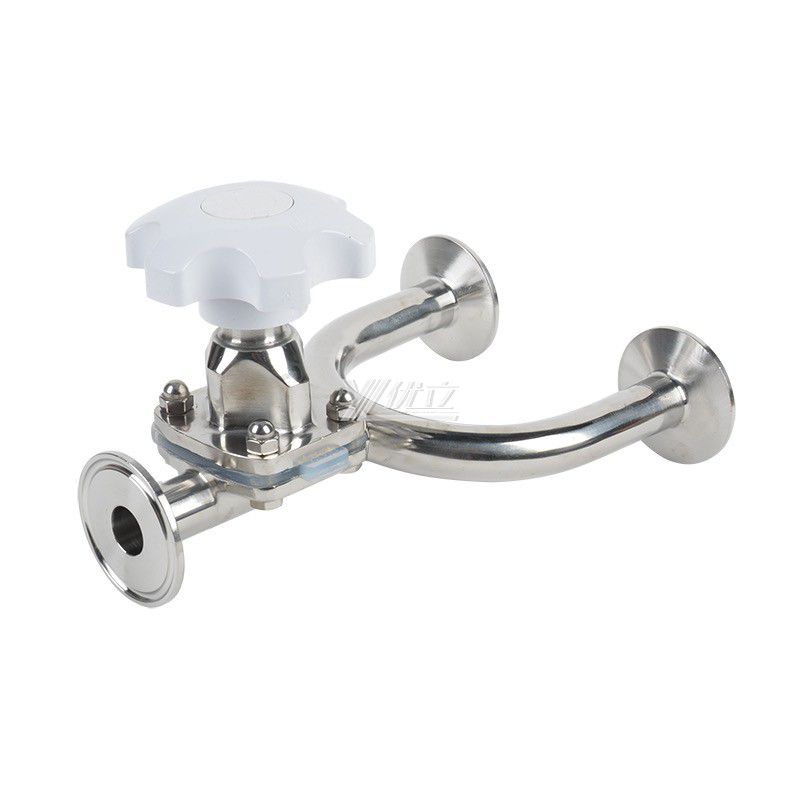

YOULI Medicine Hygienic Food Grade Sanitary Stainless Steel 304 316L Silicone Membrane Manual U Type Tri Clamped Diaphragm Valve-Manual Diaphram Valve-WenZhou YouLi Machinery Co., Ltd.

Model NO.	D001004001004D-01
FOB Price	US $29.58-145.6 / Piece
Product Details	Ckeck View
Min. Order	1 Piece
Port	Ningbo, China
Production Capacity	3000sets/Month
Payment Terms	L/C, T/T, D/P, Western Union, Paypal, Money Gram
Actuator	Manual
Connection	Threaded Triclamp, Welded
Material	Stainless Steel
Structure	Through Way Diaphragm Valve
Pressure	Ordinary Pressure
Flow Direction	Unidirection
TAG	Sanitary Stainless Steel Manual diaphragm Valve 、 304 Stainless Steel Hygienic Manual Diaphragm Valve 、

Inquiry

Basic Info

Model NO. : D001004001004D-01

Function : Solenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

Usage : Flow Control

Standard : DIN, GB, ANSI, BSW, JIS

Valve Body Material : Ss316L

Availably Standard : 3A/Bpe/DIN/ISO/Idf/SMS

Seal Material : PTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

Availably Size : 1"-3", Dn20-Dn65

Availably Connection : Clamp/Weld/Thread/Special Connection

Operated : Manual, Pneumatic for Pulse Jet Diaphragm Valve

Availably Structure : Straight, Tee, U-Type, Tank Bottom

Max. Working Pressure : 10bar

Max. Working Temperature : 120 Degree C

Application Scope : Dairy, Food, Beverage, Pharmacy, Cosmetic, etc

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

Product Description

Products Name:YOULI Medicine Hygienic Food Grade Sanitary Stainless Steel 304 316L Silicone Membrane Manual U Type Tri Clamped Diaphragm Valve

Clamped Diaphragm Valve
Sanitary Diaphragm Valve

Body material	SUS 316L,SUS316(CF8M),SUS 304L(CF8),WCB,SUS304,SUS etc.
Full port	1/4"-4",DN8-DN100
Working pressure	ANSI CLASS 150-300,JIS10K-20K,PN10-PN64
Medium temperature	- 20 ℃ ~ + 130°C,Optional(- 20℃ ~ + 150°C)
Connection type	Clamp,Weld,Thread,Flanged
Thread Standard	BSPT,Optional(NPT, BSP, BSPP)
Diaphragm material	EPDM,EPDM +PTFE
The handwheel material	PA66/304
Production process	Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Capacity to produce	10000PCS/Mouth
Certification	CE, ISO, our factory has been inspected by leyon and TUV
MOQ	1PC
HS Code	8481804090
Trademark	YOULI
Application	Suitable for water, oil, air and some corrosive liquid etc
Application	Buyer's drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Or as buyer's requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 10 to 15 days after receiving the deposit

Operating Principle

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries.The valve is excellent for flow control as well as for open/closeduties.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

Comyany information

Packaging Shipping

Our Service

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome to order our products

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

FAQ

Related products

YOULI Hygienic Food Grade Sanitary Stainless Steel 316L Biological Tri Clamped Pneumatic Diaphragm Valve Pneumatic

FOB Price:US $39.81-487.99 / Piece Min. Order:1 Piece

Look More »

YOULI Hygienic Food Grade Sanitary Stainless Steel 316L Pharmaceutical Biological Membrane Plastics Pneumatic Diaphragm Valve

FOB Price:US $95.55-1023.75 / Piece Min. Order:1 Piece

Look More »

YOULI Hygienic Food Grade Sanitary all Stainless Steel 316L Pharmaceutical Biological Membrane Pneumatic Diaphragm Valve

FOB Price:US $62.56-568.75 / Piece Min. Order:1 Piece

Look More »

YOULI Biological Hygienic Food Grade Sanitary Stainless Steel 316L Medicine Manual U Type Tri Clamped Diaphragm Valve

FOB Price:US $70.53-137.64 / Piece Min. Order:1 Piece

Look More »

YOULI Hygienic Food Grade Sanitary Stainless Steel 316L Pharmaceutical Biological EPDM PTFE Manual Tri Clamped Diaphragm Valve

FOB Price:US $17.06-432.25 / Piece Min. Order:1 Piece

Look More »

YOULI Medicine Hygienic Food Grade Sanitary Stainless Steel 304 316L Silicone Membrane Manual U Type Tri Clamped Diaphragm Valve

Model NO.:D001004001004D-01

NO.	Mat	Spec	Ps
1	316L	Φ19MM*Φ19MM DN15-Φ19MM	-20°C-80°C Silicone
2	316L	Φ25MM*Φ25MM DN15-Φ19MM	-20°C-80°C Silicone
3	316L	Φ32MM*Φ32MM DN15-Φ19MM	-20°C-80°C Silicone
4	316L	Φ38MM*Φ38MM DN15-Φ19MM	-20°C-80°C Silicone
5	316L	Φ51MM*Φ51MM DN15-Φ19MM	-20°C-80°C Silicone
6	316L	Φ63MM*Φ63MM DN15-Φ19MM	-20°C-80°C Silicone
7	316L	Φ76MM*Φ76MM DN15-Φ19MM	-20°C-80°C Silicone
8	316L	Φ25MM*Φ25MM DN20-Φ25MM	-20°C-80°C Silicone
9	316L	Φ32MM*Φ32MM DN20-Φ25MM	-20°C-80°C Silicone
10	316L	Φ38MM*Φ38MM DN20-Φ25MM	-20°C-80°C Silicone
11	316L	Φ51MM*Φ51MM DN20-Φ25MM	-20°C-80°C Silicone
12	316L	Φ63MM*Φ63MM DN20-Φ25MM	-20°C-80°C Silicone
13	316L	Φ76MM*Φ76MM DN20-Φ25MM	-20°C-80°C Silicone
14	316L	Φ25MM*Φ25MM DN25-Φ25MM	-20°C-80°C Silicone
15	316L	Φ32MM*Φ32MM DN25-Φ25MM	-20°C-80°C Silicone
16	316L	Φ38MM*Φ38MM DN25-Φ25MM	-20°C-80°C Silicone
17	316L	Φ51MM*Φ51MM DN25-Φ25MM	-20°C-80°C Silicone
18	316L	Φ63MM*Φ63MM DN25-Φ25MM	-20°C-80°C Silicone
19	316L	Φ76MM*Φ76MM DN25-Φ25MM	-20°C-80°C Silicone
20	316L	Φ32MM*Φ32MM DN32-Φ32MM	-20°C-80°C Silicone
21	316L	Φ38MM*Φ38MM DN32-Φ32MM	-20°C-80°C Silicone
22	316L	Φ51MM*Φ51MM DN32-Φ32MM	-20°C-80°C Silicone
23	316L	Φ63MM*Φ63MM DN32-Φ32MM	-20°C-80°C Silicone
24	316L	Φ76MM*Φ76MM DN32-Φ32MM	-20°C-80°C Silicone
25	316L	Φ38MM*Φ38MM DN40-Φ38MM	-20°C-80°C Silicone
26	316L	Φ51MM*Φ51MM DN40-Φ38MM	-20°C-80°C Silicone
27	316L	Φ63MM*Φ63MM DN40-Φ38MM	-20°C-80°C Silicone
28	316L	Φ76MM*Φ76MM DN40-Φ38MM	-20°C-80°C Silicone
29	316L	Φ51MM*Φ51MM DN50-Φ51MM	-20°C-80°C Silicone
30	316L	Φ63MM*Φ63MM DN50-Φ51MM	-20°C-80°C Silicone
31	316L	Φ76MM*Φ76MM DN50-Φ51MM	-20°C-80°C Silicone
32	316L	Φ63MM*Φ63MM DN65-Φ63MM	-20°C-80°C Silicone
33	316L	Φ76MM*Φ76MM DN65-Φ63MM	-20°C-80°C Silicone
34	316L	Φ76MM*Φ76MM DN76-Φ76MM	-20°C-80°C Silicone
35	316L	Φ19MM*Φ19MM DN15-Φ19MM	-20°C-120°C composite material
36	316L	Φ25MM*Φ25MM DN15-Φ19MM	-20°C-120°C composite material
37	316L	Φ32MM*Φ32MM DN15-Φ19MM	-20°C-120°C composite material
38	316L	Φ38MM*Φ38MM DN15-Φ19MM	-20°C-120°C composite material
39	316L	Φ51MM*Φ51MM DN15-Φ19MM	-20°C-120°C composite material
40	316L	Φ63MM*Φ63MM DN15-Φ19MM	-20°C-120°C composite material
41	316L	Φ76MM*Φ76MM DN15-Φ19MM	-20°C-120°C composite material
42	316L	Φ25MM*Φ25MM DN20-Φ25MM	-20°C-120°C composite material
43	316L	Φ32MM*Φ32MM DN20-Φ25MM	-20°C-120°C composite material
44	316L	Φ38MM*Φ38MM DN20-Φ25MM	-20°C-120°C composite material
45	316L	Φ51MM*Φ51MM DN20-Φ25MM	-20°C-120°C composite material
46	316L	Φ63MM*Φ63MM DN20-Φ25MM	-20°C-120°C composite material
47	316L	Φ76MM*Φ76MM DN20-Φ25MM	-20°C-120°C composite material
48	316L	Φ25MM*Φ25MM DN25-Φ25MM	-20°C-120°C composite material
49	316L	Φ32MM*Φ32MM DN25-Φ25MM	-20°C-120°C composite material
50	316L	Φ38MM*Φ38MM DN25-Φ25MM	-20°C-120°C composite material
51	316L	Φ51MM*Φ51MM DN25-Φ25MM	-20°C-120°C composite material
52	316L	Φ63MM*Φ63MM DN25-Φ25MM	-20°C-120°C composite material
53	316L	Φ76MM*Φ76MM DN25-Φ25MM	-20°C-120°C composite material
54	316L	Φ32MM*Φ32MM DN32-Φ32MM	-20°C-120°C composite material
55	316L	Φ38MM*Φ38MM DN32-Φ32MM	-20°C-120°C composite material
56	316L	Φ51MM*Φ51MM DN32-Φ32MM	-20°C-120°C composite material
57	316L	Φ63MM*Φ63MM DN32-Φ32MM	-20°C-120°C composite material
58	316L	Φ76MM*Φ76MM DN32-Φ32MM	-20°C-120°C composite material
59	316L	Φ38MM*Φ38MM DN40-Φ38MM	-20°C-120°C composite material
60	316L	Φ51MM*Φ51MM DN40-Φ38MM	-20°C-120°C composite material
61	316L	Φ63MM*Φ63MM DN40-Φ38MM	-20°C-120°C composite material
62	316L	Φ76MM*Φ76MM DN40-Φ38MM	-20°C-120°C composite material
63	316L	Φ51MM*Φ51MM DN50-Φ51MM	-20°C-120°C composite material
64	316L	Φ63MM*Φ63MM DN50-Φ51MM	-20°C-120°C composite material
65	316L	Φ76MM*Φ76MM DN50-Φ51MM	-20°C-120°C composite material
66	316L	Φ63MM*Φ63MM DN65-Φ63MM	-20°C-120°C composite material
67	316L	Φ76MM*Φ76MM DN65-Φ63MM	-20°C-120°C composite material
68	316L	Φ76MM*Φ76MM DN76-Φ76MM	-20°C-120°C composite material

YOULI Medicine Hygienic Food Grade Sanitary Stainless Steel 304 316L Silicone Membrane Manual U Type Tri Clamped Diaphragm Valve

Model NO.:D001004001004D-01

NO.	Mat	Spec	SPrice($)	CPrice(RMB)	Ps1
1	316L	Φ19MM*Φ19MM DN15-Φ19MM	$29.58	130	-20°C-80°C Silicone
2	316L	Φ25MM*Φ25MM DN15-Φ19MM	$30.71	135	-20°C-80°C Silicone
3	316L	Φ32MM*Φ32MM DN15-Φ19MM	$32.99	145	-20°C-80°C Silicone
4	316L	Φ38MM*Φ38MM DN15-Φ19MM	$34.13	150	-20°C-80°C Silicone
5	316L	Φ51MM*Φ51MM DN15-Φ19MM	$36.4	160	-20°C-80°C Silicone
6	316L	Φ63MM*Φ63MM DN15-Φ19MM	$46.64	205	-20°C-80°C Silicone
7	316L	Φ76MM*Φ76MM DN15-Φ19MM	$54.6	240	-20°C-80°C Silicone
8	316L	Φ25MM*Φ25MM DN20-Φ25MM	$31.85	140	-20°C-80°C Silicone
9	316L	Φ32MM*Φ32MM DN20-Φ25MM	$34.13	150	-20°C-80°C Silicone
10	316L	Φ38MM*Φ38MM DN20-Φ25MM	$35.26	155	-20°C-80°C Silicone
11	316L	Φ51MM*Φ51MM DN20-Φ25MM	$37.54	165	-20°C-80°C Silicone
12	316L	Φ63MM*Φ63MM DN20-Φ25MM	$47.78	210	-20°C-80°C Silicone
13	316L	Φ76MM*Φ76MM DN20-Φ25MM	$55.74	245	-20°C-80°C Silicone
14	316L	Φ25MM*Φ25MM DN25-Φ25MM	$34.13	150	-20°C-80°C Silicone
15	316L	Φ32MM*Φ32MM DN25-Φ25MM	$36.4	160	-20°C-80°C Silicone
16	316L	Φ38MM*Φ38MM DN25-Φ25MM	$37.54	165	-20°C-80°C Silicone
17	316L	Φ51MM*Φ51MM DN25-Φ25MM	$39.81	175	-20°C-80°C Silicone
18	316L	Φ63MM*Φ63MM DN25-Φ25MM	$50.05	220	-20°C-80°C Silicone
19	316L	Φ76MM*Φ76MM DN25-Φ25MM	$58.01	255	-20°C-80°C Silicone
20	316L	Φ32MM*Φ32MM DN32-Φ32MM	$38.68	170	-20°C-80°C Silicone
21	316L	Φ38MM*Φ38MM DN32-Φ32MM	$39.81	175	-20°C-80°C Silicone
22	316L	Φ51MM*Φ51MM DN32-Φ32MM	$42.09	185	-20°C-80°C Silicone
23	316L	Φ63MM*Φ63MM DN32-Φ32MM	$52.33	230	-20°C-80°C Silicone
24	316L	Φ76MM*Φ76MM DN32-Φ32MM	$60.29	265	-20°C-80°C Silicone
25	316L	Φ38MM*Φ38MM DN40-Φ38MM	$46.64	205	-20°C-80°C Silicone
26	316L	Φ51MM*Φ51MM DN40-Φ38MM	$48.91	215	-20°C-80°C Silicone
27	316L	Φ63MM*Φ63MM DN40-Φ38MM	$59.15	260	-20°C-80°C Silicone
28	316L	Φ76MM*Φ76MM DN40-Φ38MM	$67.11	295	-20°C-80°C Silicone
29	316L	Φ51MM*Φ51MM DN50-Φ51MM	$60.29	265	-20°C-80°C Silicone
30	316L	Φ63MM*Φ63MM DN50-Φ51MM	$70.53	310	-20°C-80°C Silicone
31	316L	Φ76MM*Φ76MM DN50-Φ51MM	$78.49	345	-20°C-80°C Silicone
32	316L	Φ63MM*Φ63MM DN65-Φ63MM	$104.65	460	-20°C-80°C Silicone
33	316L	Φ76MM*Φ76MM DN65-Φ63MM	$112.61	495	-20°C-80°C Silicone
34	316L	Φ76MM*Φ76MM DN76-Φ76MM	$136.5	600	-20°C-80°C Silicone
35	316L	Φ19MM*Φ19MM DN15-Φ19MM	$31.85	140	-20°C-120°C composite material
36	316L	Φ25MM*Φ25MM DN15-Φ19MM	$32.99	145	-20°C-120°C composite material
37	316L	Φ32MM*Φ32MM DN15-Φ19MM	$35.26	155	-20°C-120°C composite material
38	316L	Φ38MM*Φ38MM DN15-Φ19MM	$36.4	160	-20°C-120°C composite material
39	316L	Φ51MM*Φ51MM DN15-Φ19MM	$38.68	170	-20°C-120°C composite material
40	316L	Φ63MM*Φ63MM DN15-Φ19MM	$48.91	215	-20°C-120°C composite material
41	316L	Φ76MM*Φ76MM DN15-Φ19MM	$56.88	250	-20°C-120°C composite material
42	316L	Φ25MM*Φ25MM DN20-Φ25MM	$35.26	155	-20°C-120°C composite material
43	316L	Φ32MM*Φ32MM DN20-Φ25MM	$37.54	165	-20°C-120°C composite material
44	316L	Φ38MM*Φ38MM DN20-Φ25MM	$38.68	170	-20°C-120°C composite material
45	316L	Φ51MM*Φ51MM DN20-Φ25MM	$40.95	180	-20°C-120°C composite material
46	316L	Φ63MM*Φ63MM DN20-Φ25MM	$51.19	225	-20°C-120°C composite material
47	316L	Φ76MM*Φ76MM DN20-Φ25MM	$59.15	260	-20°C-120°C composite material
48	316L	Φ25MM*Φ25MM DN25-Φ25MM	$37.54	165	-20°C-120°C composite material
49	316L	Φ32MM*Φ32MM DN25-Φ25MM	$39.81	175	-20°C-120°C composite material
50	316L	Φ38MM*Φ38MM DN25-Φ25MM	$40.95	180	-20°C-120°C composite material
51	316L	Φ51MM*Φ51MM DN25-Φ25MM	$43.23	190	-20°C-120°C composite material
52	316L	Φ63MM*Φ63MM DN25-Φ25MM	$53.46	235	-20°C-120°C composite material
53	316L	Φ76MM*Φ76MM DN25-Φ25MM	$61.43	270	-20°C-120°C composite material
54	316L	Φ32MM*Φ32MM DN32-Φ32MM	$43.23	190	-20°C-120°C composite material
55	316L	Φ38MM*Φ38MM DN32-Φ32MM	$44.36	195	-20°C-120°C composite material
56	316L	Φ51MM*Φ51MM DN32-Φ32MM	$46.64	205	-20°C-120°C composite material
57	316L	Φ63MM*Φ63MM DN32-Φ32MM	$56.88	250	-20°C-120°C composite material
58	316L	Φ76MM*Φ76MM DN32-Φ32MM	$64.84	285	-20°C-120°C composite material
59	316L	Φ38MM*Φ38MM DN40-Φ38MM	$51.19	225	-20°C-120°C composite material
60	316L	Φ51MM*Φ51MM DN40-Φ38MM	$53.46	235	-20°C-120°C composite material
61	316L	Φ63MM*Φ63MM DN40-Φ38MM	$63.7	280	-20°C-120°C composite material
62	316L	Φ76MM*Φ76MM DN40-Φ38MM	$71.66	315	-20°C-120°C composite material
63	316L	Φ51MM*Φ51MM DN50-Φ51MM	$64.84	285	-20°C-120°C composite material
64	316L	Φ63MM*Φ63MM DN50-Φ51MM	$75.08	330	-20°C-120°C composite material
65	316L	Φ76MM*Φ76MM DN50-Φ51MM	$83.04	365	-20°C-120°C composite material
66	316L	Φ63MM*Φ63MM DN65-Φ63MM	$110.34	485	-20°C-120°C composite material
67	316L	Φ76MM*Φ76MM DN65-Φ63MM	$118.3	520	-20°C-120°C composite material
68	316L	Φ76MM*Φ76MM DN76-Φ76MM	$145.6	640	-20°C-120°C composite material

YOULI Medicine Hygienic Food Grade Sanitary Stainless Steel 304 316L Silicone Membrane Manual U Type Tri Clamped Diaphragm Valve

Model NO.:D001004001004D-01

NO.	Mat	Spec	SPrice($)	Ps
1	316L	Φ19MM*Φ19MM DN15-Φ19MM	$29.58	-20°C-80°C Silicone
2	316L	Φ25MM*Φ25MM DN15-Φ19MM	$30.71	-20°C-80°C Silicone
3	316L	Φ32MM*Φ32MM DN15-Φ19MM	$32.99	-20°C-80°C Silicone
4	316L	Φ38MM*Φ38MM DN15-Φ19MM	$34.13	-20°C-80°C Silicone
5	316L	Φ51MM*Φ51MM DN15-Φ19MM	$36.4	-20°C-80°C Silicone
6	316L	Φ63MM*Φ63MM DN15-Φ19MM	$46.64	-20°C-80°C Silicone
7	316L	Φ76MM*Φ76MM DN15-Φ19MM	$54.6	-20°C-80°C Silicone
8	316L	Φ25MM*Φ25MM DN20-Φ25MM	$31.85	-20°C-80°C Silicone
9	316L	Φ32MM*Φ32MM DN20-Φ25MM	$34.13	-20°C-80°C Silicone
10	316L	Φ38MM*Φ38MM DN20-Φ25MM	$35.26	-20°C-80°C Silicone
11	316L	Φ51MM*Φ51MM DN20-Φ25MM	$37.54	-20°C-80°C Silicone
12	316L	Φ63MM*Φ63MM DN20-Φ25MM	$47.78	-20°C-80°C Silicone
13	316L	Φ76MM*Φ76MM DN20-Φ25MM	$55.74	-20°C-80°C Silicone
14	316L	Φ25MM*Φ25MM DN25-Φ25MM	$34.13	-20°C-80°C Silicone
15	316L	Φ32MM*Φ32MM DN25-Φ25MM	$36.4	-20°C-80°C Silicone
16	316L	Φ38MM*Φ38MM DN25-Φ25MM	$37.54	-20°C-80°C Silicone
17	316L	Φ51MM*Φ51MM DN25-Φ25MM	$39.81	-20°C-80°C Silicone
18	316L	Φ63MM*Φ63MM DN25-Φ25MM	$50.05	-20°C-80°C Silicone
19	316L	Φ76MM*Φ76MM DN25-Φ25MM	$58.01	-20°C-80°C Silicone
20	316L	Φ32MM*Φ32MM DN32-Φ32MM	$38.68	-20°C-80°C Silicone
21	316L	Φ38MM*Φ38MM DN32-Φ32MM	$39.81	-20°C-80°C Silicone
22	316L	Φ51MM*Φ51MM DN32-Φ32MM	$42.09	-20°C-80°C Silicone
23	316L	Φ63MM*Φ63MM DN32-Φ32MM	$52.33	-20°C-80°C Silicone
24	316L	Φ76MM*Φ76MM DN32-Φ32MM	$60.29	-20°C-80°C Silicone
25	316L	Φ38MM*Φ38MM DN40-Φ38MM	$46.64	-20°C-80°C Silicone
26	316L	Φ51MM*Φ51MM DN40-Φ38MM	$48.91	-20°C-80°C Silicone
27	316L	Φ63MM*Φ63MM DN40-Φ38MM	$59.15	-20°C-80°C Silicone
28	316L	Φ76MM*Φ76MM DN40-Φ38MM	$67.11	-20°C-80°C Silicone
29	316L	Φ51MM*Φ51MM DN50-Φ51MM	$60.29	-20°C-80°C Silicone
30	316L	Φ63MM*Φ63MM DN50-Φ51MM	$70.53	-20°C-80°C Silicone
31	316L	Φ76MM*Φ76MM DN50-Φ51MM	$78.49	-20°C-80°C Silicone
32	316L	Φ63MM*Φ63MM DN65-Φ63MM	$104.65	-20°C-80°C Silicone
33	316L	Φ76MM*Φ76MM DN65-Φ63MM	$112.61	-20°C-80°C Silicone
34	316L	Φ76MM*Φ76MM DN76-Φ76MM	$136.5	-20°C-80°C Silicone
35	316L	Φ19MM*Φ19MM DN15-Φ19MM	$31.85	-20°C-120°C composite material
36	316L	Φ25MM*Φ25MM DN15-Φ19MM	$32.99	-20°C-120°C composite material
37	316L	Φ32MM*Φ32MM DN15-Φ19MM	$35.26	-20°C-120°C composite material
38	316L	Φ38MM*Φ38MM DN15-Φ19MM	$36.4	-20°C-120°C composite material
39	316L	Φ51MM*Φ51MM DN15-Φ19MM	$38.68	-20°C-120°C composite material
40	316L	Φ63MM*Φ63MM DN15-Φ19MM	$48.91	-20°C-120°C composite material
41	316L	Φ76MM*Φ76MM DN15-Φ19MM	$56.88	-20°C-120°C composite material
42	316L	Φ25MM*Φ25MM DN20-Φ25MM	$35.26	-20°C-120°C composite material
43	316L	Φ32MM*Φ32MM DN20-Φ25MM	$37.54	-20°C-120°C composite material
44	316L	Φ38MM*Φ38MM DN20-Φ25MM	$38.68	-20°C-120°C composite material
45	316L	Φ51MM*Φ51MM DN20-Φ25MM	$40.95	-20°C-120°C composite material
46	316L	Φ63MM*Φ63MM DN20-Φ25MM	$51.19	-20°C-120°C composite material
47	316L	Φ76MM*Φ76MM DN20-Φ25MM	$59.15	-20°C-120°C composite material
48	316L	Φ25MM*Φ25MM DN25-Φ25MM	$37.54	-20°C-120°C composite material
49	316L	Φ32MM*Φ32MM DN25-Φ25MM	$39.81	-20°C-120°C composite material
50	316L	Φ38MM*Φ38MM DN25-Φ25MM	$40.95	-20°C-120°C composite material
51	316L	Φ51MM*Φ51MM DN25-Φ25MM	$43.23	-20°C-120°C composite material
52	316L	Φ63MM*Φ63MM DN25-Φ25MM	$53.46	-20°C-120°C composite material
53	316L	Φ76MM*Φ76MM DN25-Φ25MM	$61.43	-20°C-120°C composite material
54	316L	Φ32MM*Φ32MM DN32-Φ32MM	$43.23	-20°C-120°C composite material
55	316L	Φ38MM*Φ38MM DN32-Φ32MM	$44.36	-20°C-120°C composite material
56	316L	Φ51MM*Φ51MM DN32-Φ32MM	$46.64	-20°C-120°C composite material
57	316L	Φ63MM*Φ63MM DN32-Φ32MM	$56.88	-20°C-120°C composite material
58	316L	Φ76MM*Φ76MM DN32-Φ32MM	$64.84	-20°C-120°C composite material
59	316L	Φ38MM*Φ38MM DN40-Φ38MM	$51.19	-20°C-120°C composite material
60	316L	Φ51MM*Φ51MM DN40-Φ38MM	$53.46	-20°C-120°C composite material
61	316L	Φ63MM*Φ63MM DN40-Φ38MM	$63.7	-20°C-120°C composite material
62	316L	Φ76MM*Φ76MM DN40-Φ38MM	$71.66	-20°C-120°C composite material
63	316L	Φ51MM*Φ51MM DN50-Φ51MM	$64.84	-20°C-120°C composite material
64	316L	Φ63MM*Φ63MM DN50-Φ51MM	$75.08	-20°C-120°C composite material
65	316L	Φ76MM*Φ76MM DN50-Φ51MM	$83.04	-20°C-120°C composite material
66	316L	Φ63MM*Φ63MM DN65-Φ63MM	$110.34	-20°C-120°C composite material
67	316L	Φ76MM*Φ76MM DN65-Φ63MM	$118.3	-20°C-120°C composite material
68	316L	Φ76MM*Φ76MM DN76-Φ76MM	$145.6	-20°C-120°C composite material
