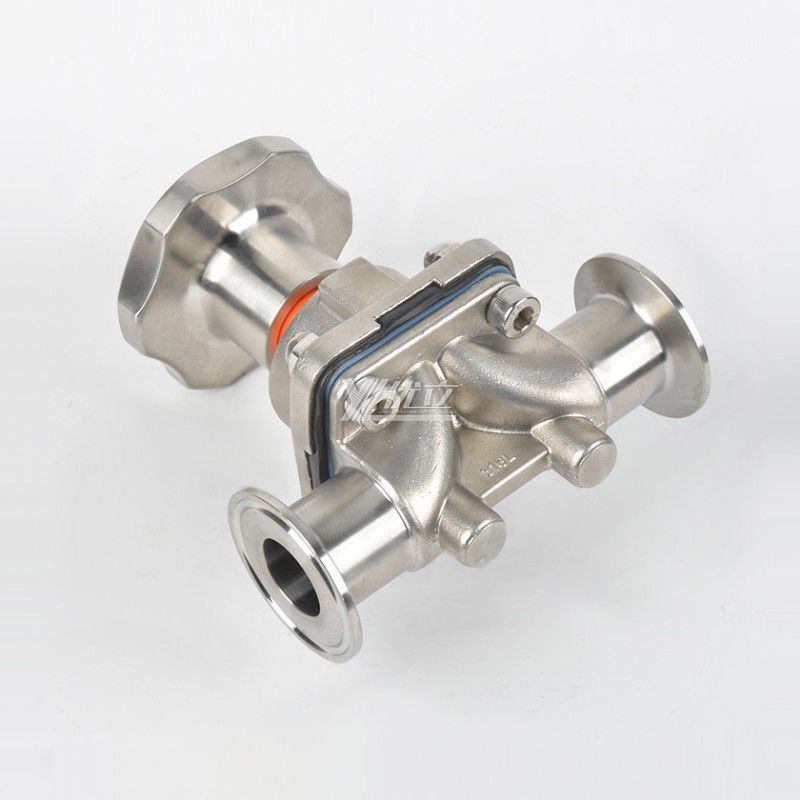

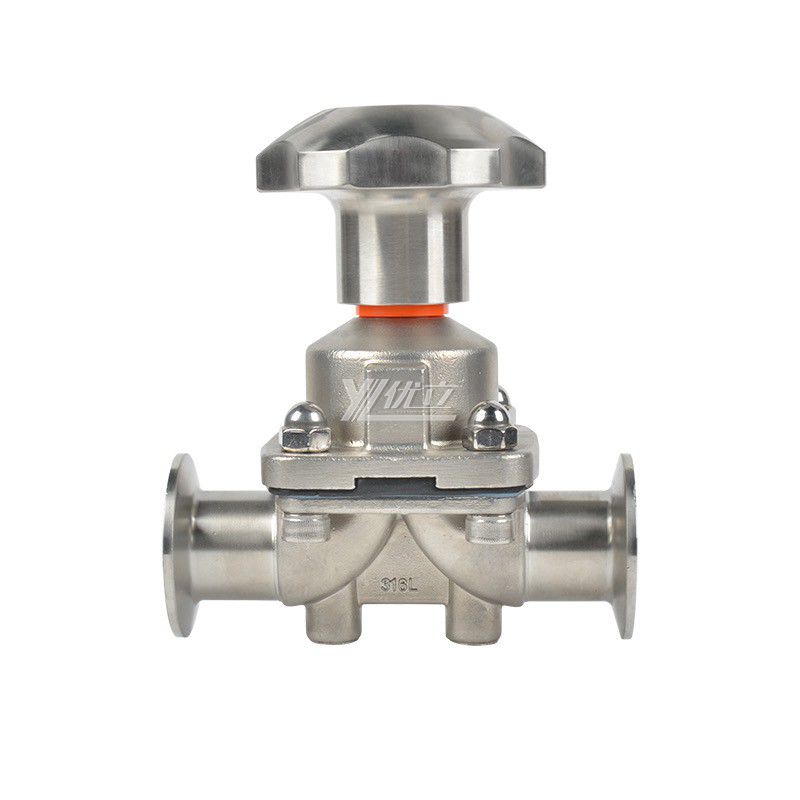

YOULI Hygienic Food Grade Sanitary Stainless Steel Handwheel 316L Medicine Membrane Manual Straight Tri Clamped Diaphragm Valve-Manual Diaphram Valve-WenZhou YouLi Machinery Co., Ltd.

Model NO.	D001004001001DX02-01
FOB Price	US $28.44-477.75 / Piece
Product Details	Ckeck View
Min. Order	1 Piece
Port	Ningbo, China
Production Capacity	3000sets/Month
Payment Terms	L/C, T/T, D/P, Western Union, Paypal, Money Gram
Actuator	Manual
Connection	Threaded Triclamp, Welded
Material	Stainless Steel
Structure	Through Way Diaphragm Valve
Pressure	Ordinary Pressure
Flow Direction	Unidirection
TAG	Sanitary Stainless Steel Manual diaphragm Valve 、 304 Stainless Steel Hygienic Manual Diaphragm Valve 、

Inquiry

Basic Info

Model NO. : D001004001001DX02-01

Function : Solenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

Usage : Flow Control

Standard : DIN, GB, ANSI, BSW, JIS

Valve Body Material : Ss316L

Availably Standard : 3A/Bpe/DIN/ISO/Idf/SMS

Seal Material : PTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

Availably Size : 1"-3", Dn20-Dn65

Availably Connection : Clamp/Weld/Thread/Special Connection

Operated : Manual, Pneumatic for Pulse Jet Diaphragm Valve

Availably Structure : Straight, Tee, U-Type, Tank Bottom

Max. Working Pressure : 10bar

Max. Working Temperature : 120 Degree C

Application Scope : Dairy, Food, Beverage, Pharmacy, Cosmetic, etc

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

Product Description

Products Name:YOULI Hygienic Food Grade Sanitary Stainless Steel 316L Pharmaceutical Biological EPDM PTFE Manual Tri Clamped Diaphragm Valve

Diaphragm Valve
Sanitary Diaphragm Valve

Body material	SUS 316L,SUS316(CF8M),SUS 304L(CF8),WCB,SUS304,SUS etc.
Full port	1/4"-4",DN8-DN100
Working pressure	ANSI CLASS 150-300,JIS10K-20K,PN10-PN64
Medium temperature	- 20 ℃ ~ + 130°C,Optional(- 20℃ ~ + 150°C)
Connection type	Clamp,Weld,Thread,Flanged
Thread Standard	BSPT,Optional(NPT, BSP, BSPP)
Diaphragm material	EPDM,EPDM +PTFE
The handwheel material	PA66/304
Production process	Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Capacity to produce	10000PCS/Mouth
Certification	CE, ISO, our factory has been inspected by leyon and TUV
MOQ	1PC
HS Code	8481804090
Trademark	YOULI
Application	Suitable for water, oil, air and some corrosive liquid etc
Application	Buyer's drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Or as buyer's requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 10 to 15 days after receiving the deposit

Operating Principle

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries.The valve is excellent for flow control as well as for open/closeduties.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

Comyany information

Packaging Shipping

Our Service

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome to order our products

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

FAQ

NO.	Mat	Spec	Wgt(kg)	Ps
1	316L	DN8-Ф10.5-K25.4MM	0.3kg	-20°C-150°C
2	316L	DN10-Ф12.7-K25.4MM	0.3kg	-20°C-150°C
3	316L	DN15-Ф19-K50.5MM	0.7kg	-20°C-150°C
4	316L	DN20-Ф22-K50.5MM	1.45kg	-20°C-150°C
5	316L	DN25-Ф25-K50.5MM	1.45kg	-20°C-150°C
6	316L	DN32-Ф32-K50.5MM	2.5kg	-20°C-150°C
7	316L	DN40-Ф38-K50.5MM	2.4kg	-20°C-150°C
8	316L	DN45-Ф45-K64MM	3.3kg	-20°C-150°C
9	316L	DN50-Ф51-K64MM	3.3kg	-20°C-150°C
10	316L	DN57-Ф57-K77.5MM		-20°C-150°C
11	316L	DN65-Ф63-K77.5MM	6.5kg	-20°C-150°C
12	316L	DN76-Ф76-K91MM		-20°C-150°C
13	316L	DN80-Ф89-K106MM		-20°C-150°C
14	316L	DN100-Ф102-K119MM		-20°C-150°C

NO.	Mat	Spec	SPrice($)	CPrice(RMB)	Wgt(kg)	Ps1
1	316L	DN8-Ф10.5-K25.4MM	$28.44	125	0.3kg	-20°C-150°C
2	316L	DN10-Ф12.7-K25.4MM	$28.44	125	0.3kg	-20°C-150°C
3	316L	DN15-Ф19-K50.5MM	$40.95	180	0.7kg	-20°C-150°C
4	316L	DN20-Ф22-K50.5MM	$48.91	215	1.45kg	-20°C-150°C
5	316L	DN25-Ф25-K50.5MM	$53.46	235	1.45kg	-20°C-150°C
6	316L	DN32-Ф32-K50.5MM	$67.11	295	2.5kg	-20°C-150°C
7	316L	DN40-Ф38-K50.5MM	$71.66	315	2.4kg	-20°C-150°C
8	316L	DN45-Ф45-K64MM	$80.76	355	3.3kg	-20°C-150°C
9	316L	DN50-Ф51-K64MM	$89.86	395	3.3kg	-20°C-150°C
10	316L	DN57-Ф57-K77.5MM	$114.89	505		-20°C-150°C
11	316L	DN65-Ф63-K77.5MM	$168.35	740	6.5kg	-20°C-150°C
12	316L	DN76-Ф76-K91MM	$191.1	840		-20°C-150°C
13	316L	DN80-Ф89-K106MM	$307.13	1350		-20°C-150°C
14	316L	DN100-Ф102-K119MM	$477.75	2100		-20°C-150°C

NO.	Mat	Spec	SPrice($)	Wgt(kg)	Ps
1	316L	DN8-Ф10.5-K25.4MM	$28.44	0.3kg	-20°C-150°C
2	316L	DN10-Ф12.7-K25.4MM	$28.44	0.3kg	-20°C-150°C
3	316L	DN15-Ф19-K50.5MM	$40.95	0.7kg	-20°C-150°C
4	316L	DN20-Ф22-K50.5MM	$48.91	1.45kg	-20°C-150°C
5	316L	DN25-Ф25-K50.5MM	$53.46	1.45kg	-20°C-150°C
6	316L	DN32-Ф32-K50.5MM	$67.11	2.5kg	-20°C-150°C
7	316L	DN40-Ф38-K50.5MM	$71.66	2.4kg	-20°C-150°C
8	316L	DN45-Ф45-K64MM	$80.76	3.3kg	-20°C-150°C
9	316L	DN50-Ф51-K64MM	$89.86	3.3kg	-20°C-150°C
10	316L	DN57-Ф57-K77.5MM	$114.89		-20°C-150°C
11	316L	DN65-Ф63-K77.5MM	$168.35	6.5kg	-20°C-150°C
12	316L	DN76-Ф76-K91MM	$191.1		-20°C-150°C
13	316L	DN80-Ф89-K106MM	$307.13		-20°C-150°C
14	316L	DN100-Ф102-K119MM	$477.75		-20°C-150°C
