Model NO. : D001001001003DX001-01

Working Temperature : Normal Temperature (-40°C-120°C)

Material of Seal Surface : Soft Sealed

Valve Body : Forge Welding

Application : Industrial Usage, Water Industrial Usage, Household Usage, Milk, Beer, Juice, Phramacy

Connection Standard : DIN, 3A, SMS, Rjt

Flow Medium Parts : 304, 304L, 316L (1.4301, 1.4307, 1.4404)

Port Size : Dn10-150 or 1/2"-150

Way of Connection : Weld, Male, Clamp, Flange

Gasket : Silicone, EPDM, Viton, NBR

Kinds of Handle : Pull Handle, Gripper Hanle/Fiber Handle.

Pressure Range : 0bar~0bar

Temperature Range : -20 Degree Celsius to 120 Degree Celsius

Processing Machine : Forge Processing, Advance CNC Machine

Working Principle : Remote-Controlled Operation by The Driving Gear or

HS Code : 8481804090

Trademark : YOULI

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

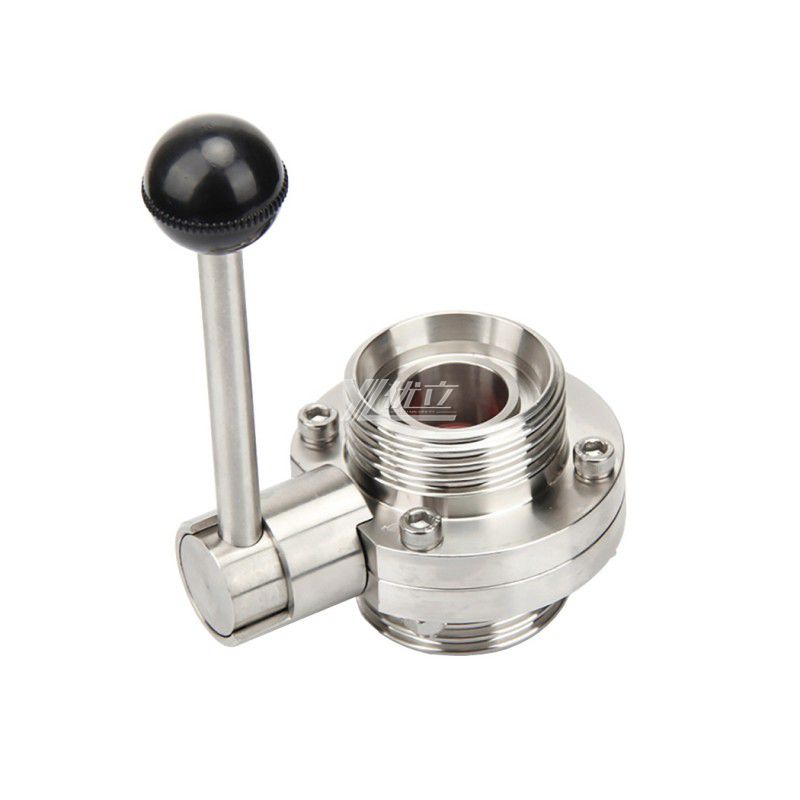

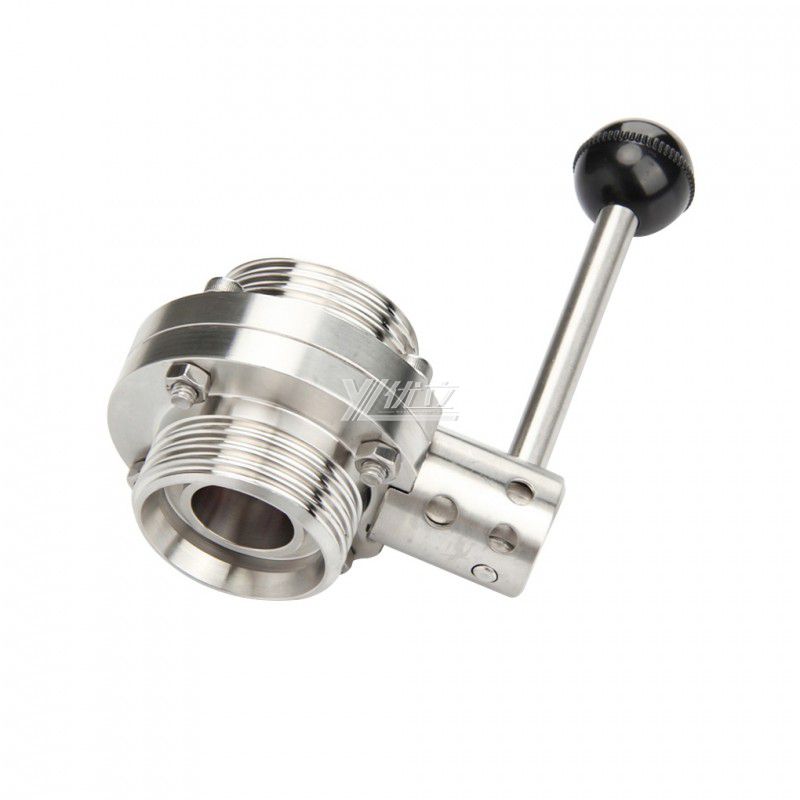

Product Name:YOULI Hygienic Food Grade Stainless Steel 3A/SMS/DIN 304 316L Silicon Sanitary Manual Male Threaded Butterfly Valve

manual food Butterfly Valve
Male Threaded Butterfly Valve

Operating Principle

A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

Our Service

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
